140CHS41010 | Schneider Hot Standby Kit for Modicon Quantum

Introduction to the 140CHS41010 Hot Standby Kit

When uptime is non-negotiable, the 140CHS41010 from Schneider Electric provides a comprehensive hot standby solution for Modicon Quantum control systems. This kit bundles all critical components needed to build a redundant architecture, ensuring seamless operation even if a primary unit fails. For engineers designing high-availability applications, the 140CHS41010 simplifies procurement and integration by delivering matched components in one package.

As part of the Modicon Quantum product line, this hot standby kit is engineered for demanding industrial environments. It includes two Quantum CPUs, two remote I/O processors, two backplanes, two power supplies, and two hot standby processors, along with a 3-meter fiber optic cable and an S908 terminator kit. With these components, you can establish a robust redundant system that minimizes downtime and protects critical processes.

Key Features and Technical Specifications

The 140CHS41010 kit is built around redundancy and reliability. Below are the core components and their roles:

• Two 140CPU11302 Quantum CPUs handle processing tasks, providing the computational power needed for control logic.
• Two 140CRP93101 Remote I/O Processors manage input and output functions, ensuring efficient communication with field devices.
• Two 140XBP00600 Backplanes offer connectivity for various modules, supporting system expansion.
• Two 140CPS11100 Power Supplies deliver redundant power, enhancing system reliability.

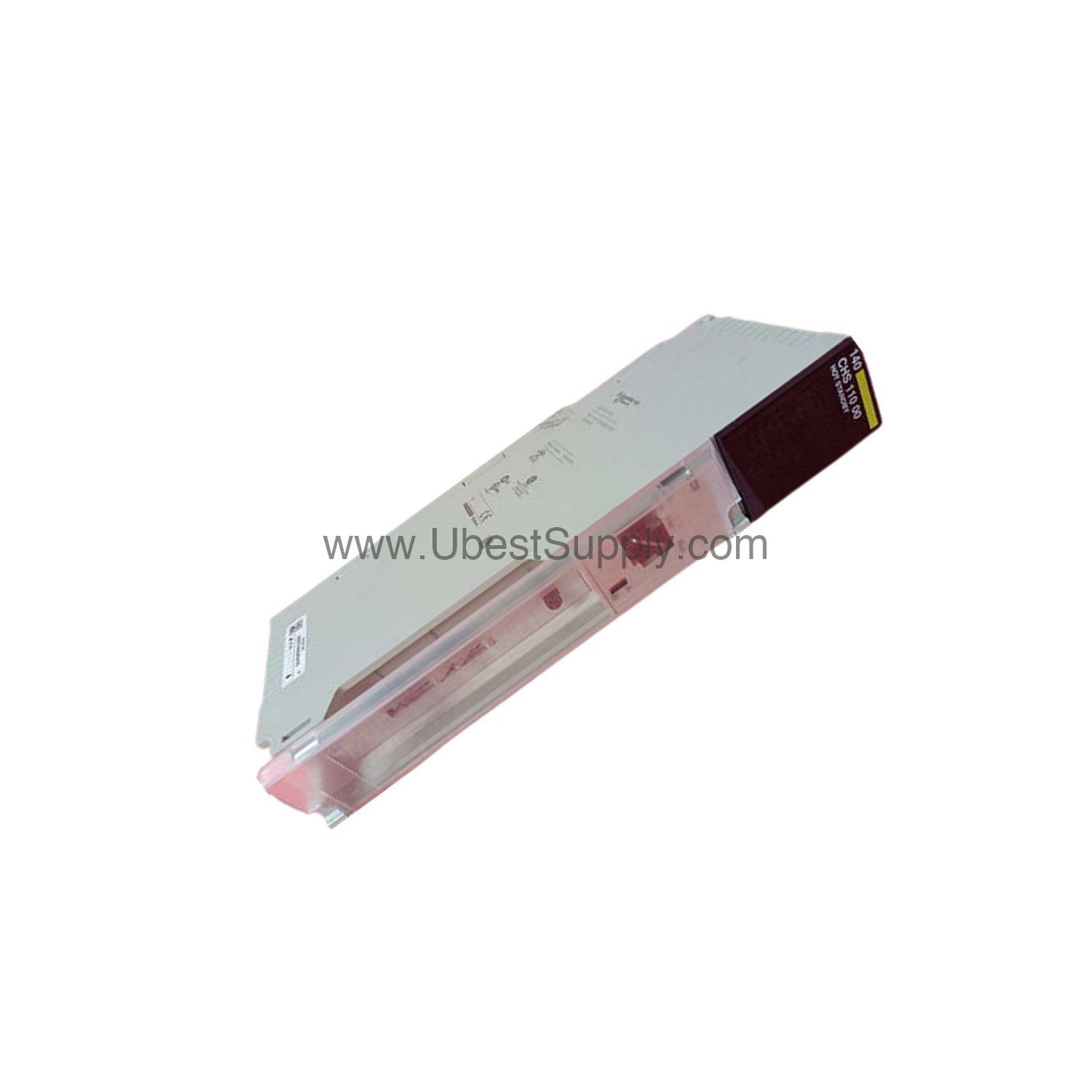

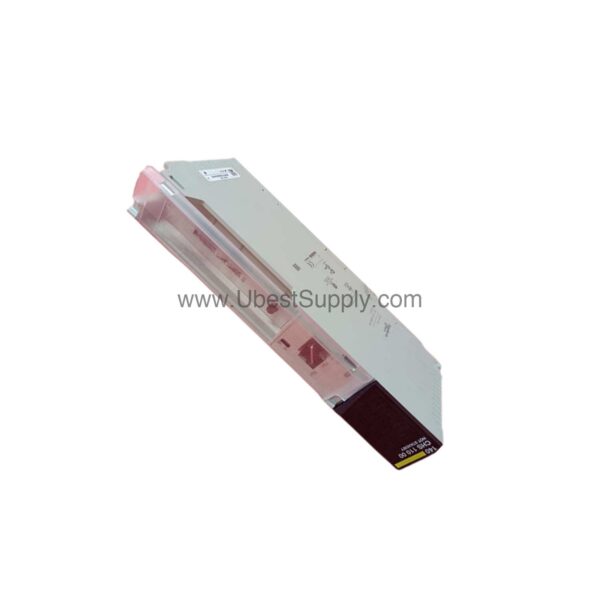

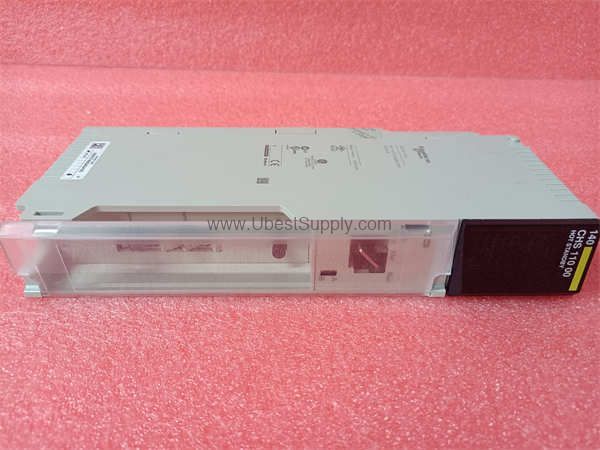

• Two 140CHS11000 Hot Standby Processors enable seamless transitions in case of primary unit failure.
• One S908 Terminator Kit ensures reliable network communication.
• One Fiber Optic (3m) Hot Standby Cable maintains high-speed, reliable connections between redundant components.

Environmental specifications are equally important. The kit operates within a temperature range of 0 to 40 degrees Celsius and can be stored at 0 to 50 degrees Celsius. It tolerates up to 80% relative humidity (non-condensing) in both operating and storage conditions, making it suitable for a variety of industrial settings.

Applications and Use Cases

The 140CHS41010 is ideal for industries where continuous operation is critical, such as manufacturing, water treatment, and power generation. In a production line, for example, a primary controller failure could halt operations and incur significant losses. With this hot standby kit, the backup system takes over instantly, minimizing downtime. Similarly, in remote monitoring stations, the redundant architecture ensures data integrity and process control remain uninterrupted. Because the kit includes all necessary components, it simplifies system design and reduces the risk of compatibility issues.

Installation and Setup

Setting up the 140CHS41010 requires careful planning. Begin by mounting the backplanes in the designated racks, then install the CPUs, remote I/O processors, and hot standby processors into the backplane slots. Connect the power supplies to ensure redundant power input. Use the included fiber optic cable to link the hot standby processors, and install the S908 terminator kit on the remote I/O network. Always refer to the installation manual included with the kit for detailed instructions. Proper grounding and shielding are essential to avoid electrical interference.

Maintenance and Reliability

Regular maintenance ensures long-term reliability. Inspect the system periodically for dust accumulation, loose connections, and signs of wear. Check that all modules are seated firmly in the backplane. Monitor operating temperature and humidity to stay within the specified ranges—0 to 40 degrees Celsius and up to 80% RH non-condensing. Because the kit includes redundant power supplies and processors, you can perform maintenance on one side without shutting down the entire system, which is a key cost-saving benefit.

Compatibility and Integration

The 140CHS41010 is designed for the Modicon Quantum series, ensuring seamless integration with other Quantum modules. The included 140CPU11302 CPUs and 140CRP93101 remote I/O processors are standard Quantum components, so you can expand your system with additional I/O modules as needed. The fiber optic cable provides a high-speed link between redundant processors, and the S908 terminator kit ensures proper network termination. For specific compatibility questions, consult the Schneider Electric documentation or contact Petro Auto Tech.

Troubleshooting and Common Issues

Common issues with hot standby systems include communication failures between processors and power supply problems. If the system does not switch over correctly, verify that the fiber optic cable is properly connected and undamaged. Check that both power supplies are functioning and providing the correct voltage. Ensure that all modules are seated correctly in the backplane. If problems persist, refer to the troubleshooting section of the installation manual or contact Petro Auto Tech for technical support.

FAQ about 140CHS41010

Q: What components are included in the 140CHS41010 kit?

A: The kit includes two 140CPU11302 CPUs, two 140CRP93101 remote I/O processors, two 140XBP00600 backplanes, two 140CPS11100 power supplies, two 140CHS11000 hot standby processors, one S908 terminator kit, and one 3-meter fiber optic hot standby cable.

Q: What is the operating temperature range for the 140CHS41010?

A: The operating temperature range is 0 to 40 degrees Celsius, with a storage temperature range of 0 to 50 degrees Celsius.

Q: How does the 140CHS41010 ensure system redundancy?

A: It includes redundant CPUs, power supplies, and hot standby processors, along with a fiber optic cable for communication, allowing seamless failover in case of primary unit failure.

Q: Can the 140CHS41010 be used in high-humidity environments?

A: Yes, it can operate and be stored in environments with up to 80% relative humidity, non-condensing.

Product Support and Availability

The 140CHS41010 is available from Petro Auto Tech, an industrial automation parts supplier. For pricing and availability, contact Petro Auto Tech directly. Please verify current lifecycle status and availability with Petro Auto Tech before ordering.
