140CPS11100C | Schneider 120-230V AC Power Supply Module

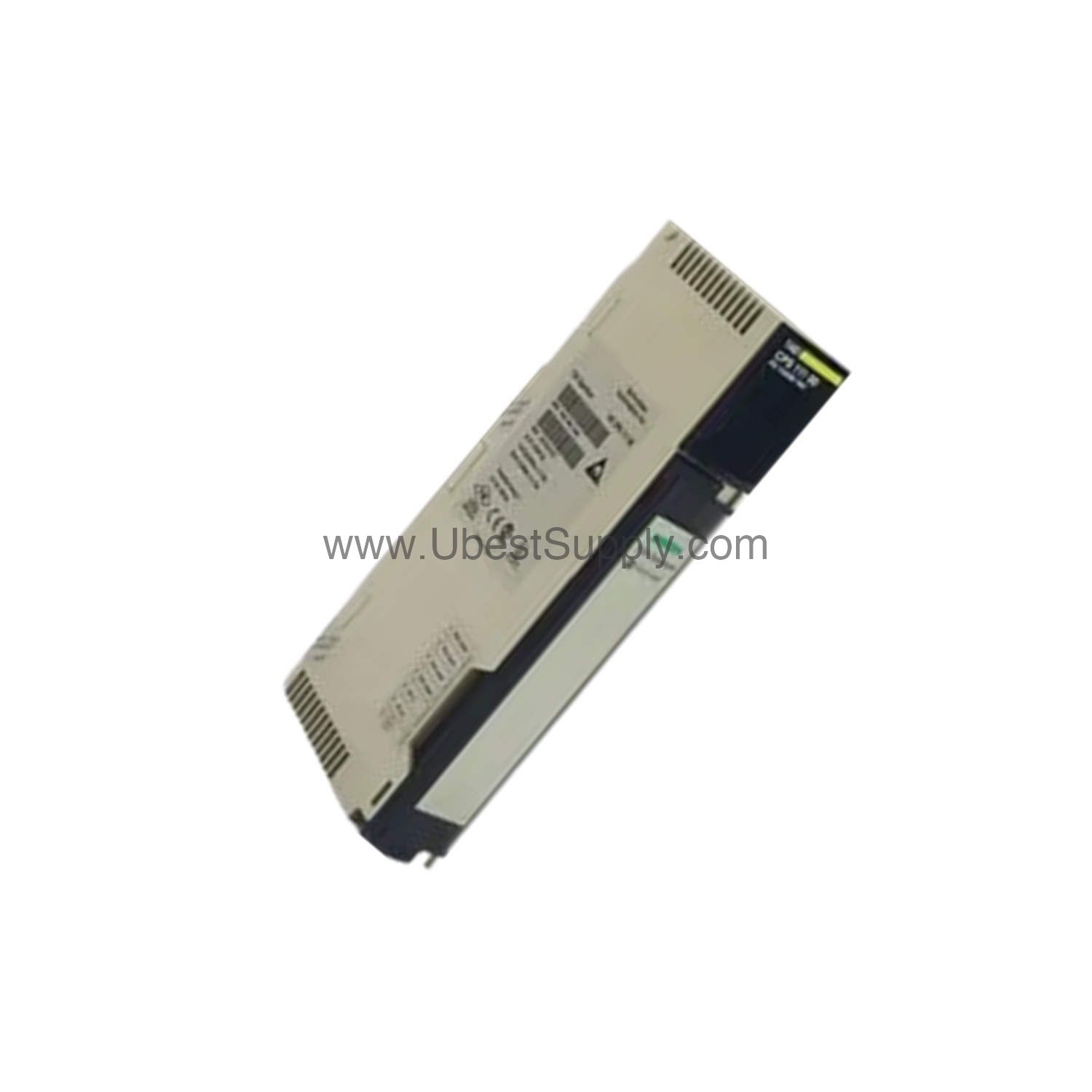

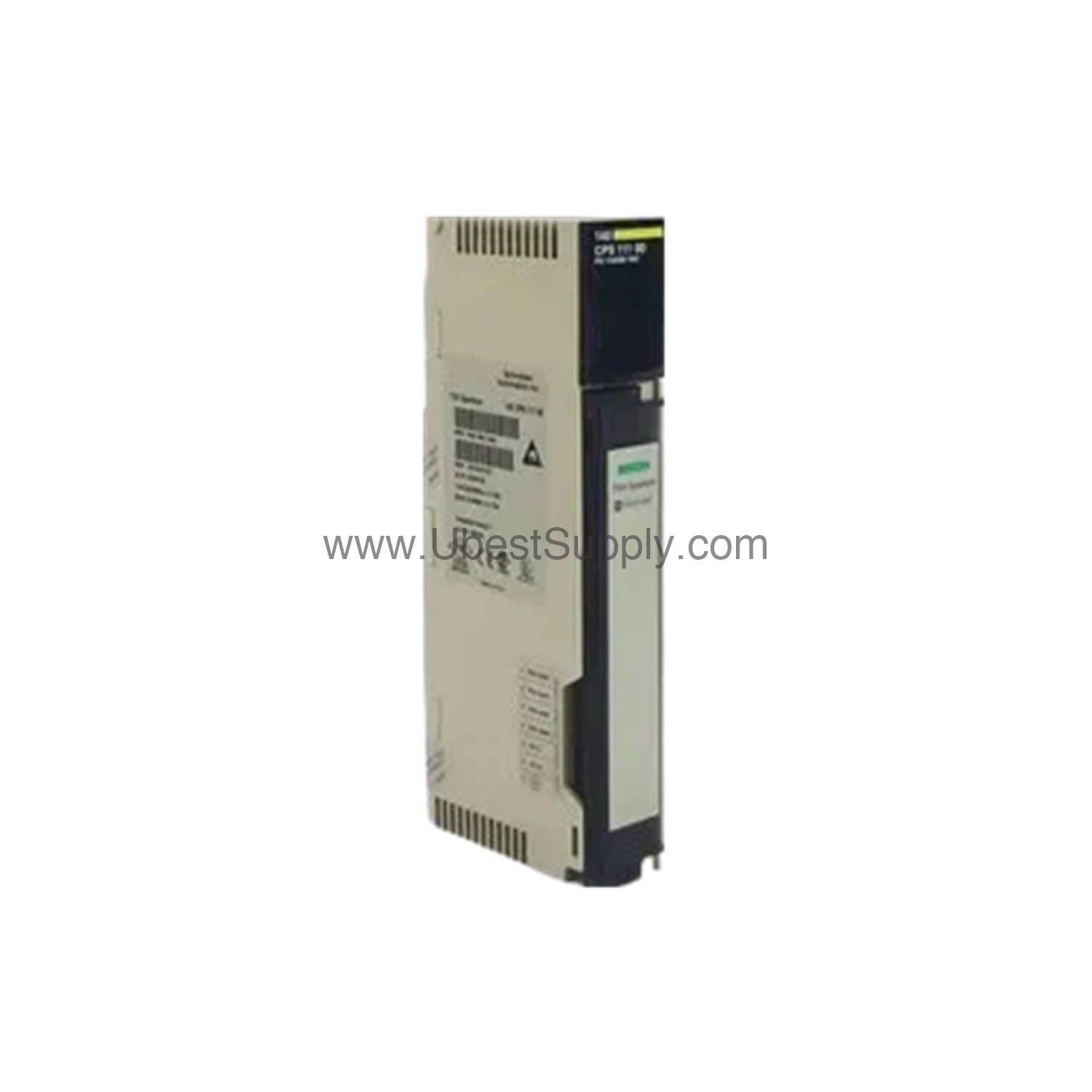

Introduction to the 140CPS11100C Power Supply Module

When reliable power is critical, the 140CPS11100C from Schneider Electric provides a dependable solution for Modicon Quantum control systems. This power supply module converts AC line power into a stable 5.1 V DC output, ensuring your automation equipment operates without interruption. Designed for industrial environments, it offers a wide input range and built-in protections to safeguard your investment.

Key Features and Technical Specifications

The 140CPS11100C is engineered for performance and durability. Below are its core specifications:

• Input voltage range: 120–230 V AC, with an extended range of 100–276 V AC.
• Output voltage: 5.1 V DC, providing consistent power to connected modules.
• Rated power: 50 VA, suitable for moderate loads.
• Input current: 400 mA at 115 V and 200 mA at 230 V.
• Inrush current: 20 A at 115 V and 10 A at 230 V, ensuring safe startup.
• Frequency support: 47–63 Hz, accommodating various power grids.
• Harmonic distortion: ≤10%, promoting efficient operation.
• Power dissipation: 2 + (3 × Iout) W, aiding thermal management.
• Output current: 3 A, capable of driving multiple loads.
• Protection: internal overload and overvoltage protection enhance safety.
• LED indicator: one green LED for PWR OK status.

One distinctive feature is the wide input range of 100–276 V AC, which allows the module to handle voltage fluctuations without compromising performance. This is particularly valuable in facilities where power quality varies.

Applications and Use Cases

The 140CPS11100C is ideal for a variety of industrial control applications. In manufacturing plants, it powers PLC racks that manage assembly lines. In process industries, it supports control systems that monitor and regulate production parameters. Additionally, it suits infrastructure projects such as water treatment and energy distribution, where reliable power is non-negotiable. Its robust design makes it a preferred choice for engineers seeking long-term stability.

Installation and Setup

Installing the 140CPS11100C is straightforward. First, ensure the input voltage matches your facility's supply (120–230 V AC). Mount the module securely in the Quantum rack, then connect the AC input wires to the designated terminals. After wiring, power up the system and verify the green LED illuminates, indicating PWR OK. For detailed steps, consult the official Schneider Electric documentation.

Maintenance and Reliability

Regular maintenance is essential to maximize the lifespan of the 140CPS11100C. Periodically inspect the module for dust accumulation or loose connections. Verify that the input voltage remains within the specified range to prevent stress. Because the module operates across 47–63 Hz, it adapts well to different power systems, reducing the risk of frequency-related issues. Following the manufacturer's guidelines ensures consistent performance.

Compatibility and Integration

As part of the Modicon Quantum series, the 140CPS11100C integrates seamlessly with other Quantum modules. It is designed to supply power to backplanes and I/O modules within the same rack. While specific communication protocols are not listed, the module's primary role is power delivery, making it compatible with any Quantum-based control system.

Troubleshooting and Common Issues

If the green LED fails to light, check the input power source and fuse. The module includes a 1.5 A slow-blow fuse; if blown, replace it with the same rating. Verify that the input voltage is within 100–276 V AC. If the module overheats, ensure adequate ventilation around the rack. For persistent issues, refer to the Schneider Electric manual or contact Petro Auto Tech for assistance.

FAQs about the 140CPS11100C

Q: What is the output voltage of the 140CPS11100C?

A: The output voltage is 5.1 V DC, providing stable power to connected modules.

Q: What input voltage range does the 140CPS11100C support?

A: It supports 120–230 V AC, with an extended range of 100–276 V AC.

Q: Does the 140CPS11100C have overload protection?

A: Yes, it includes internal overload protection to safeguard the module and connected equipment.

Q: What is the rated power of the 140CPS11100C?

A: The rated power is 50 VA, suitable for various industrial loads.

Q: How can I verify the module is operating correctly?

A: Check the green LED indicator; when lit, it confirms PWR OK status.

Product Support and Availability

The 140CPS11100C is available through Petro Auto Tech, an industrial automation parts supplier. In stock and ready to ship, this module can be ordered with confidence. For lifecycle status and availability confirmation, please contact Petro Auto Tech before placing an order.
