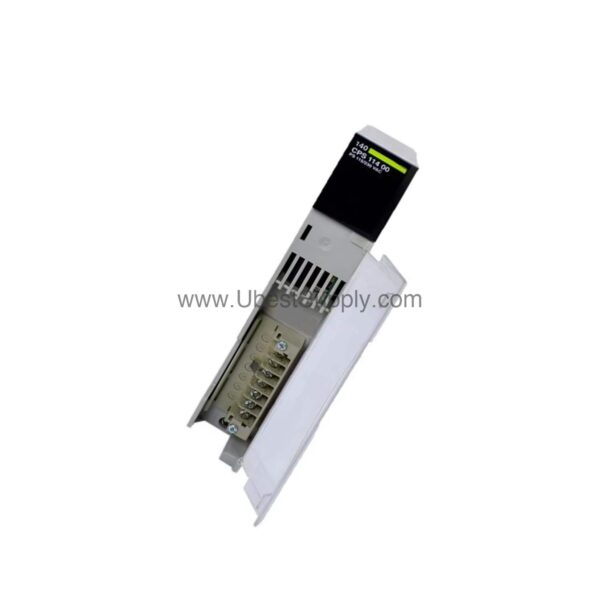

140CPS11400 | Schneider 8A 24V DC Power Supply Module

Introduction to the Schneider 140CPS11400

When your control system demands stable and efficient power, the 140CPS11400 from Schneider Electric stands ready. This power supply module, part of the Modicon Quantum series, provides a rated current of 8A and an output voltage of 24V DC. Designed for DIN rail mounting, it simplifies installation for panel builders and system integrators. With an operating temperature range of 0°C to 60°C, it adapts to typical industrial environments.

Moreover, the module accepts 115/230 VAC input at 50/60 Hz, making it versatile across global installations. Its natural convection cooling eliminates the need for fans, reducing maintenance and energy costs. By choosing the 140CPS11400, you invest in a power solution that balances performance and total cost of ownership.

Key Features and Technical Specifications

• Rated Current: 8A – sufficient for powering multiple I/O modules.
• Output Voltage: 24V DC (typical) – standard for industrial control logic.
• Input Voltage: 115/230 VAC – flexible for regional power grids.
• Frequency: 50/60 Hz – compatible with common mains supplies.
• Protection: Short circuit, overload, and overvoltage – safeguards your system.
• Certifications: UL, CE, CSA – meets international safety standards.
• IP20 Rating: Indoor use, protected against dust.
• Humidity: Up to 80% RH without condensation – reliable in damp conditions.

One standout specification is the 8A rated current. This capacity allows you to power a substantial number of I/O points without needing additional supplies, directly reducing hardware costs and panel space. The built-in protections minimize downtime caused by electrical faults, translating to lower repair expenses and improved productivity.

Applications and Use Cases

In manufacturing lines, the 140CPS11400 ensures consistent power to PLC racks, preventing unexpected shutdowns. For process control systems, its reliable 24V DC output keeps sensors and actuators operating smoothly. Additionally, in building automation, this module supports HVAC and lighting control panels. Because it accepts 115/230 VAC, you can standardize on one power supply model across multiple facilities, simplifying inventory and reducing procurement costs. Furthermore, its compact DIN rail design saves valuable enclosure space, lowering installation and material expenses.

Installation and Setup

Mounting the 140CPS11400 is straightforward. Simply clip it onto a standard DIN rail, ensuring proper airflow for natural convection cooling. Connect the input wires to the 115/230 VAC terminals, observing correct polarity and grounding. Then, connect the 24V DC output to your load, respecting current limits. Always follow the manufacturer's manual for detailed wiring diagrams and torque specifications. Before powering up, double-check that the input voltage matches your supply and that all connections are secure. This careful approach prevents costly mistakes and ensures safe operation.

Maintenance and Reliability

Routine inspection of the 140CPS11400 is minimal, thanks to its convection cooling design. Periodically check for dust accumulation on the enclosure, as excessive buildup can impede heat dissipation. Verify that the operating environment stays within 0°C to 60°C and humidity below 80% RH without condensation. Because the module has no moving parts, wear is negligible, extending its service life. This reliability reduces unplanned maintenance and replacement costs, contributing to a lower total cost of ownership. Always follow the manufacturer's safety guidelines when performing any inspection.

Compatibility and Integration

The 140CPS11400 is designed for the Modicon Quantum automation platform. It integrates seamlessly with Quantum I/O modules, processors, and communication adapters. While specific compatibility details are not provided here, the module's universal 24V DC output is suitable for a wide range of industrial loads. For detailed integration guidance, consult the official Schneider documentation or contact Petro Auto Tech. Ensuring correct compatibility before purchase avoids costly mismatches and downtime.

Troubleshooting and Common Issues

If the output voltage is absent, first check the input power source and fuses. Verify that the input voltage is within 115/230 VAC and frequency is 50/60 Hz. If the module trips due to overload, reduce the connected load or check for short circuits. Overheating can occur if the ambient temperature exceeds 60°C or if airflow is blocked. In such cases, improve ventilation or relocate the module. For persistent issues, consult the official troubleshooting guide or contact Petro Auto Tech for technical support.

FAQ about 140CPS11400

Q: What is the output voltage of the 140CPS11400?

A: The module provides a typical output voltage of 24V DC.

Q: What input voltages does the 140CPS11400 accept?

A: It accepts 115/230 VAC at 50/60 Hz.

Q: What protection features does the 140CPS11400 include?

A: It includes short circuit, overload, and overvoltage protection.

Q: Can the 140CPS11400 be used outdoors?

A: No, it has an IP20 rating and is intended for indoor use only.

Q: What is the operating temperature range?

A: It operates from 0°C to 60°C.

Product Support and Availability

The 140CPS11400 is available from Petro Auto Tech, your trusted industrial automation parts supplier. We keep this model in stock and ready to ship, ensuring minimal lead time for your projects. Contact our team for pricing and availability, and we will help you secure this reliable power supply for your automation needs.
