170BDO94650 | Schneider 16-Channel AC Output Module

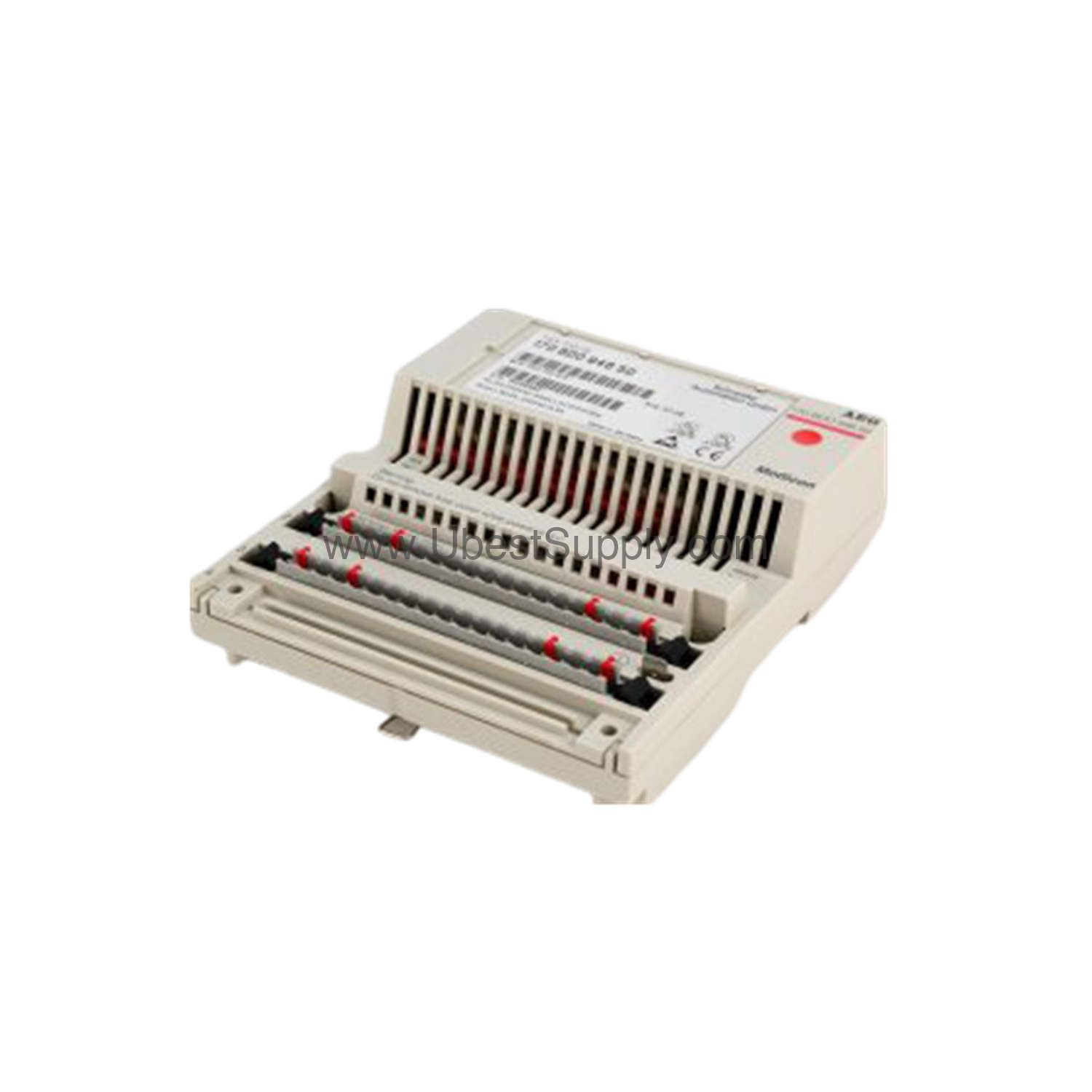

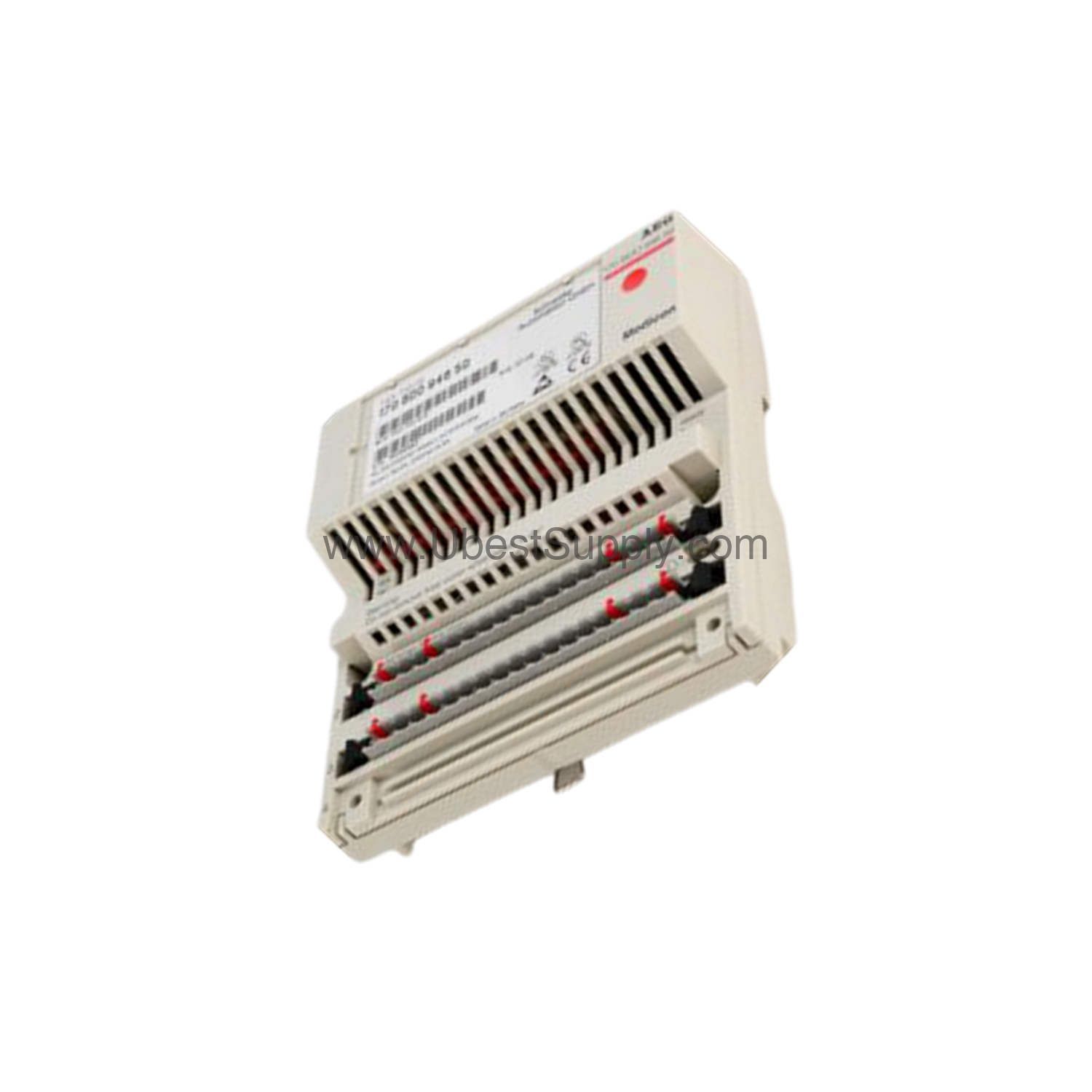

Introduction to the 170BDO94650

When your control system needs to drive multiple AC loads reliably, the 170BDO94650 from Schneider Electric provides a robust solution. This output module, part of the Modicon Momentum series, is engineered to handle 16 discrete outputs with a voltage rating of 115-230V AC. It supports both 50 and 60 Hz frequencies, making it adaptable to various regional power standards. With CE marking, it meets essential safety requirements for European installations. For engineers seeking a dependable AC output interface, this module offers a straightforward path to expand control capabilities.

Key Features & Technical Specifications

• 16 output channels for controlling multiple AC devices.
• Voltage rating of 115-230V AC, compatible with common industrial supplies.
• Operates at 50 or 60 Hz, matching grid frequencies worldwide.
• CE marked, confirming compliance with relevant EU directives.
• Operating temperature range of 0 to 40 degrees Celsius.
• Maximum altitude of 1000 meters without derating.
• Humidity tolerance up to 80% RH without condensation.

One distinctive aspect of the 170BDO94650 is its ability to handle a wide voltage range—115 to 230V AC—within a single module. This flexibility reduces the need for multiple module types, simplifying inventory and installation. Additionally, the module’s design supports a single output group, which can simplify wiring in certain applications.

Applications & Use Cases

The 170BDO94650 is well-suited for industrial automation tasks that require switching AC loads such as motors, solenoids, and lighting. In a typical manufacturing line, it can control conveyor motor contactors or valve actuators. Because it supports both 50 and 60 Hz, the module can be deployed in facilities with different power grids, offering global versatility. Furthermore, its CE marking ensures acceptance in European markets, making it a practical choice for OEMs and system integrators.

Installation & Setup

Installing the 170BDO94650 is straightforward for those familiar with Modicon Momentum systems. The module is designed to snap onto a DIN rail or mount directly, depending on your panel layout. Before wiring, ensure the power is disconnected to avoid electrical hazards. Connect the AC supply to the module’s input terminals, and route the output wires to the controlled devices. Always verify that the voltage and frequency of your supply match the module’s rating of 115-230V AC and 50/60 Hz. For detailed wiring diagrams and torque specifications, refer to the official Schneider Electric documentation.

Maintenance & Reliability

Regular inspection of the 170BDO94650 helps maintain long-term reliability. Check for loose connections or signs of overheating, especially in high-cycle applications. The module’s operating temperature range of 0 to 40°C means it should be installed in a well-ventilated enclosure to avoid exceeding limits. Additionally, keep the environment free of excessive humidity—up to 80% RH without condensation is acceptable. By following these simple practices, you can minimize downtime and extend the service life of your control system.

Compatibility & Integration

The 170BDO94650 is part of the Modicon Momentum family, which integrates seamlessly with Schneider Electric’s Momentum controllers and I/O bases. This module is designed to work with the Momentum’s backplane, allowing quick installation and removal. It is compatible with various Momentum processors, enabling you to build a scalable automation solution. For specific compatibility details, consult the product datasheet or contact Petro Auto Tech for guidance.

Troubleshooting & Common Issues

If an output fails to energize, first verify that the module is receiving the correct supply voltage (115-230V AC) and that the frequency matches your local grid (50 or 60 Hz). Check the output wiring for loose terminals or broken connections. Also, confirm that the load is within the module’s rated capacity. Since the module has a single output group, ensure that all outputs share the same common return. If problems persist, consult the Schneider Electric manual or reach out to Petro Auto Tech for technical support.

FAQ about the 170BDO94650

Q: What is the voltage rating of the 170BDO94650?

A: The 170BDO94650 operates at 115-230V AC, as specified by Schneider Electric.

Q: How many output channels does the 170BDO94650 have?

A: It provides 16 output channels, suitable for controlling multiple AC loads.

Q: Can the 170BDO94650 be used in high-humidity environments?

A: Yes, it can handle up to 80% relative humidity without condensation, both during operation and storage.

Q: Is the 170BDO94650 CE marked?

A: Yes, the module is CE marked, indicating compliance with European safety standards.

Product Support & Availability

The 170BDO94650 is available through Petro Auto Tech, an industrial automation parts supplier. We offer competitive pricing and fast shipping to keep your projects on schedule. Contact our team for current stock status and lead times.
