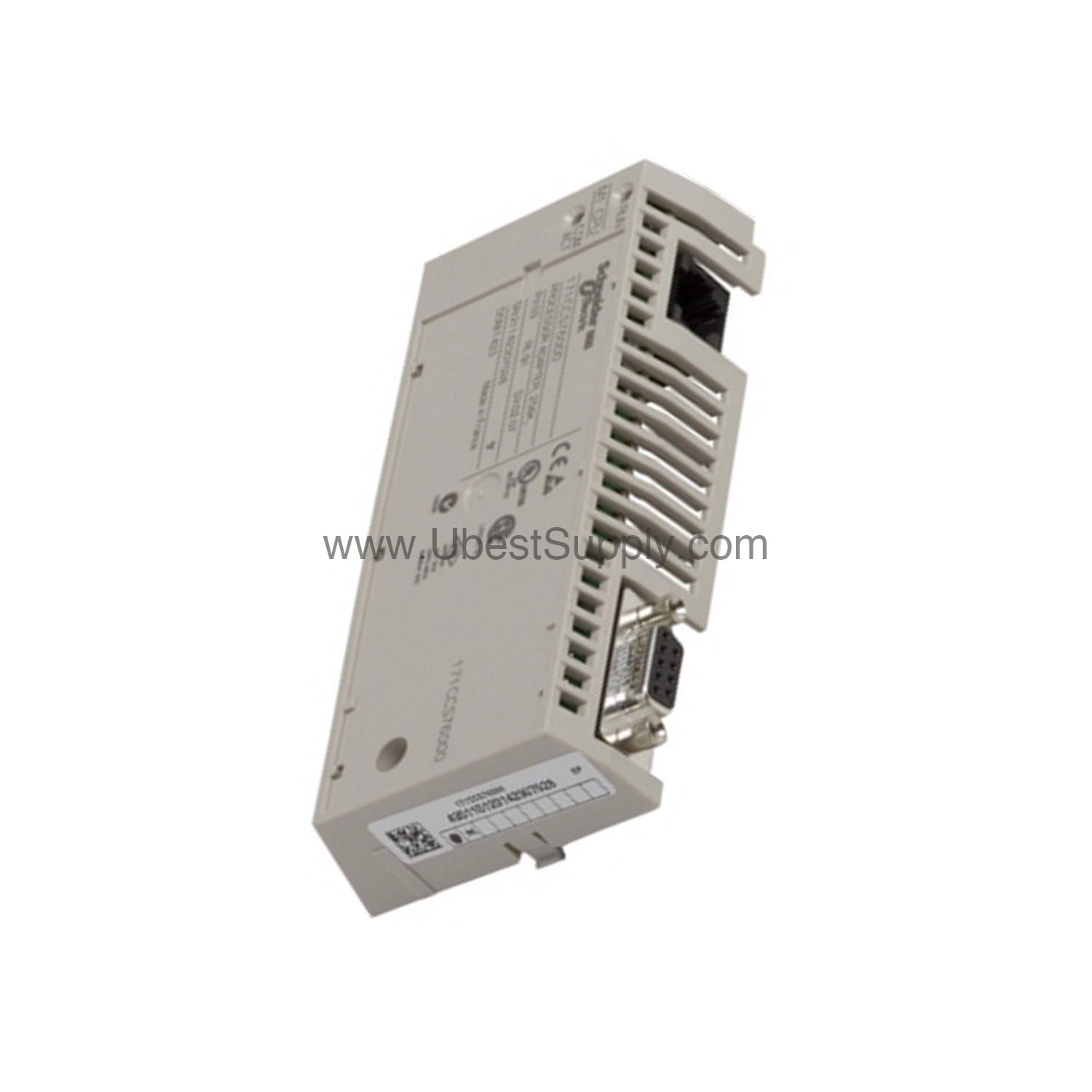

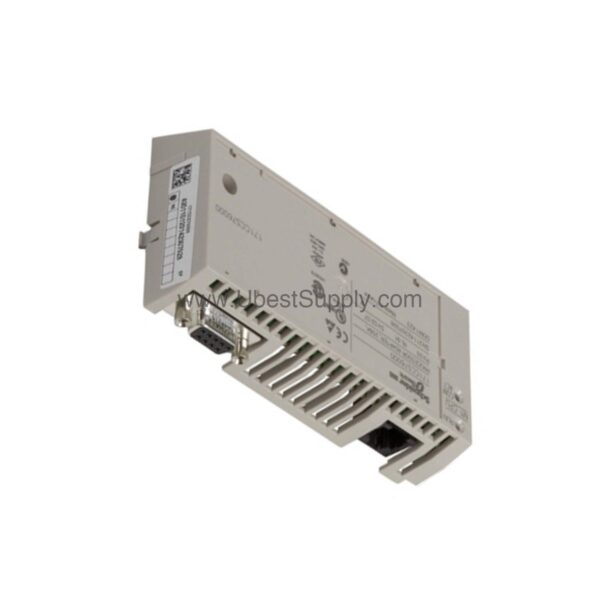

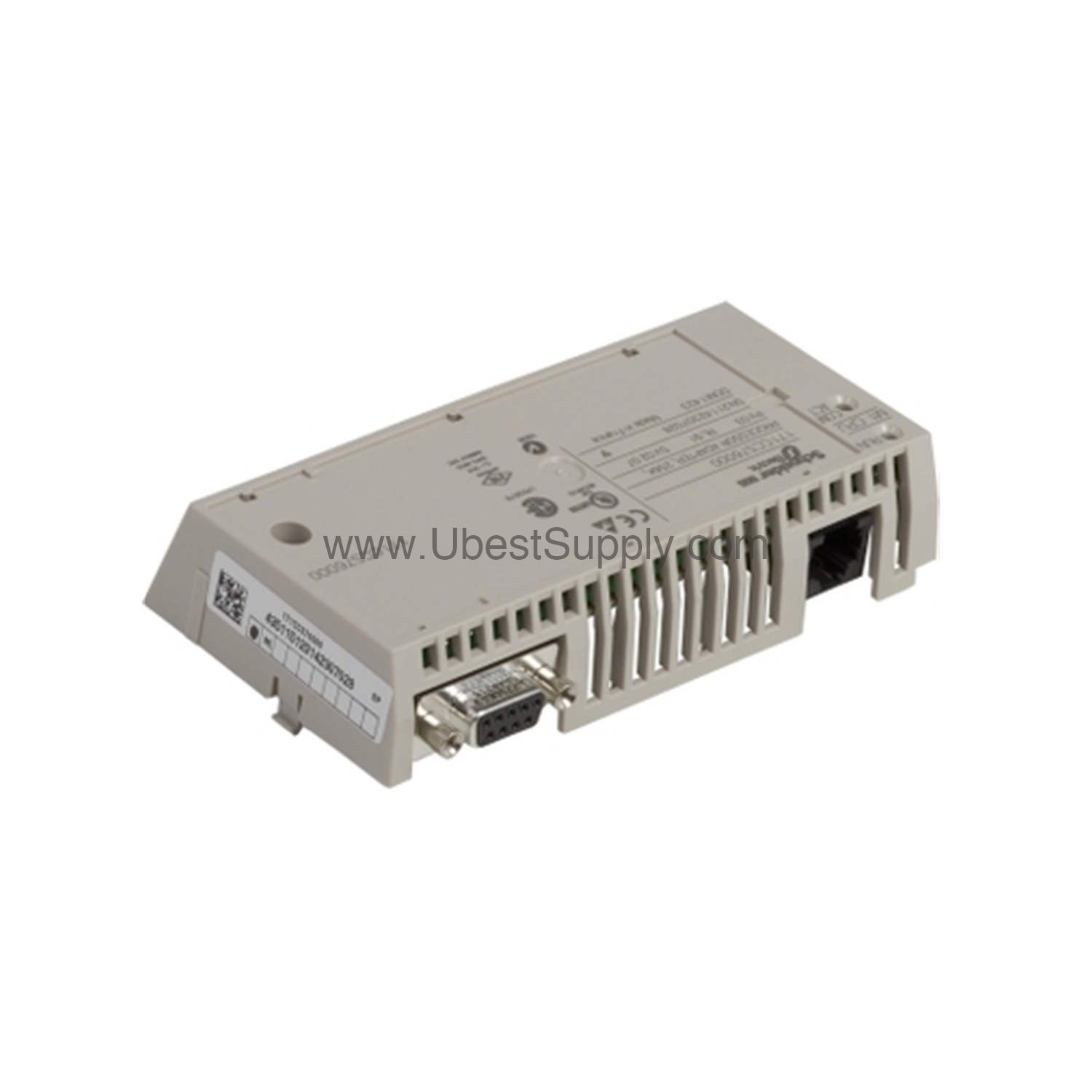

171CCS76000 | Schneider Modicon Momentum M1/M1E Processor Adapter Module

171CCS76000 Overview: A Reliable Processor Adapter for Modicon Momentum

When you need a dependable processor adapter for your Modicon Momentum automation platform, the 171CCS76000 from Schneider Electric delivers the performance and flexibility your control system demands. This M1/M1E processor adapter module is engineered to handle a wide range of automation tasks, from discrete and process control to data handling and communication.

With its robust design and proven technology, the 171CCS76000 ensures seamless integration into existing Momentum I/O bases, making it a smart choice for both new installations and system upgrades. Its compact form factor and lightweight construction simplify installation and reduce panel space requirements.

Key Features and Technical Specifications

The 171CCS76000 is packed with features that enhance its performance and usability. Here are the core specifications you can rely on:

• Memory: 256 kB flash and 256 kB RAM for program and data storage.
• Supply Voltage: Rated for 5 V DC +/- 5 %, powered directly by the Momentum I/O base.
• Communication: One RS-232C Modbus port and one I/O bus port for flexible connectivity.
• Processor: X86-based (Intel or AMD) with a clock frequency of 32 MHz.
• Scan Time: 0.63 ms per kilobyte of logic, ensuring fast processing.
• I/O Capacity: Handles up to 2048 discrete inputs and 2048 discrete outputs, plus 4096 words of register I/O.
• Environmental Ratings: Operates in 0 to 60 °C ambient temperatures and can be stored from -40 to 85 °C.
• Certifications: CE, cUL, UL, and FM Class 1 Division 2 approved for hazardous locations.

One standout feature is the 171CCS76000's ability to support both LL984 and IEC programming languages, giving you the flexibility to use the programming environment you are most comfortable with. This makes it an excellent choice for legacy system upgrades or new deployments.

Applications and Use Cases

The 171CCS76000 is ideal for a variety of industrial automation applications, including material handling, packaging, and process control. Its robust communication capabilities allow it to integrate seamlessly with Modbus networks, making it suitable for remote monitoring and control scenarios.

For example, in a manufacturing plant, the 171CCS76000 can manage a conveyor system, coordinating multiple drives and sensors while reporting status to a central SCADA system. Its fast scan time ensures that time-critical processes are executed without delay.

Additionally, the module's ability to handle both discrete and register I/O makes it versatile enough for applications that require analog signal processing, such as temperature or pressure monitoring.

Installation and Setup

Installing the 171CCS76000 is straightforward. The module snaps directly onto a Momentum I/O base, which provides both mechanical support and electrical power. No additional wiring is required for power, as the base supplies the 5 V DC.

For communication, connect your Modbus network to the RS-232C port using a standard serial cable. The I/O bus port connects to other Momentum modules, allowing you to expand your system as needed. Always refer to the user manual for specific wiring diagrams and configuration steps.

Maintenance and Reliability

Routine maintenance for the 171CCS76000 is minimal. Periodically check that all connections are secure and that the module is free from dust and debris. The module's operating temperature range of 0 to 60 °C ensures reliable performance in most industrial environments.

With its solid-state design and no moving parts, the 171CCS76000 offers long service life and reduced downtime. Its compliance with CE and UL standards gives you confidence in its safety and quality.

Compatibility and Integration

The 171CCS76000 is part of the Modicon Momentum family, ensuring compatibility with a wide range of Momentum I/O modules and bases. It supports Modbus protocol, which is widely used in industrial networks, allowing easy integration with PLCs, HMIs, and SCADA systems from various manufacturers.

Software compatibility includes Concept V2.6, Modsoft V2.5 or later, ProWORX NxT V2.0, and ProWORX 32, giving you multiple programming options to suit your expertise.

Frequently Asked Questions

What is the memory capacity of the 171CCS76000?

The 171CCS76000 has 256 kB of flash memory and 256 kB of RAM, providing ample space for your control programs and data.

What communication ports are available on the 171CCS76000?

It features one RS-232C Modbus port and one I/O bus port, allowing connection to Modbus networks and expansion with additional Momentum modules.

What is the scan time of the 171CCS76000?

The scan time is 0.63 ms per kilobyte of logic, ensuring fast and efficient processing for your control tasks.

What are the operating temperature limits?

The 171CCS76000 operates in ambient temperatures from 0 to 60 °C and can be stored in temperatures from -40 to 85 °C.

Product Support and Availability

The 171CCS76000 is available from Petro Auto Tech, your trusted industrial automation parts supplier. We keep this module in stock and ready to ship, ensuring you get the parts you need without delay. Contact our team for pricing and availability.
