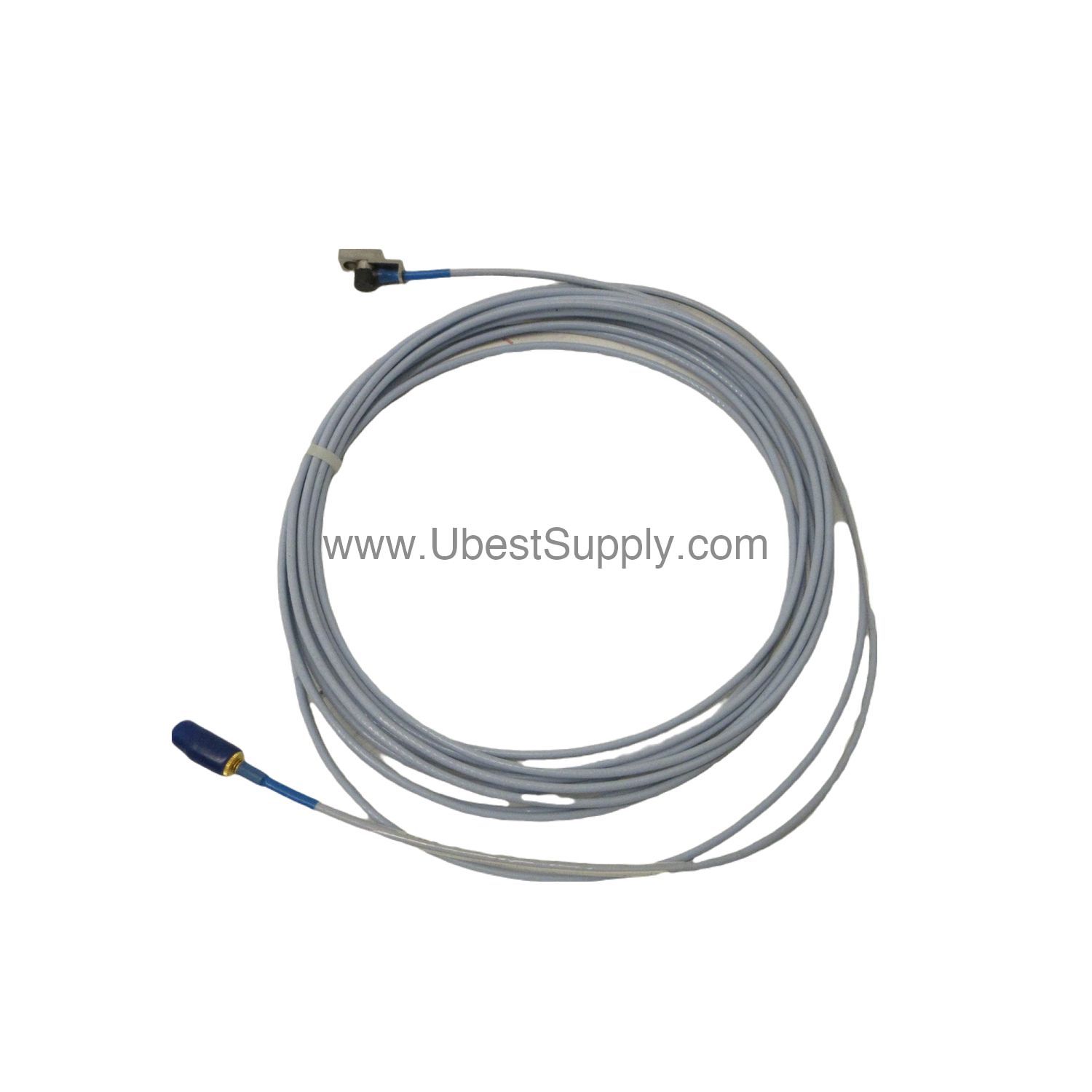

173688-01-20-12-05 | Bently Nevada 3300 XL 8 mm Proximity Probe

Introduction to the 173688-01-20-12-05

When machine vibration threatens uptime, the 173688-01-20-12-05 from Bently Nevada delivers precise, real-time data. This 3300 XL 8 mm proximity probe is engineered for continuous monitoring in critical rotating equipment. It provides the accuracy needed to detect early signs of mechanical trouble.

Part of the trusted 3300 XL family, this probe measures shaft vibration and position without contact. Its robust construction suits harsh industrial environments. The 173688-01-20-12-05 helps maintenance teams act before small issues become costly failures.

Key Features and Technical Specifications

The 173688-01-20-12-05 comes with a set of specifications that ensure dependable performance. Each feature supports accurate measurement and long service life.

• Mounting Thread: 1/2-14 NPT for secure installation.
• Unthreaded Length: 0.1 inches (option 01).
• Overall Case Length: 2.0 inches (option 20).
• System Length: 2.0 meters (6.6 feet) for flexible routing.
• Connector: Miniature ClickLoc coaxial connector with FluidLoc cable.
• Agency Approvals: CSA, ATEX, IECEx certified for hazardous areas.
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Weight: 0.323 kg.

The FluidLoc cable option (12) is included, but note that it may not be necessary for most 330105 and 330106 installations due to the probe sleeve. Consider your application carefully before ordering this option.

Applications and Use Cases

The 173688-01-20-12-05 excels in monitoring turbines, compressors, pumps, and motors. It provides continuous shaft vibration and position data that helps operators assess machine health. In petrochemical plants, the ATEX and IECEx approvals allow safe use in explosive atmospheres. Similarly, the CSA certification supports deployment in Canadian and US industrial sites. This probe is also suitable for paper mills, power generation, and oil refineries where reliability is paramount.

Installation and Setup

Proper installation is critical for accurate readings. The 1/2-14 NPT mounting thread ensures a secure fit into standard probe ports. Ensure the probe tip is positioned correctly relative to the shaft surface. The 2.0-meter system length provides flexibility in routing cables to the monitor. Follow the manufacturer's guidelines for gap settings and calibration. Always verify the connector is fully seated to avoid signal loss.

Maintenance and Reliability

Regular inspection of the probe and cable helps maintain measurement integrity. Check for physical damage or wear on the tip and cable. The stainless steel case and PPS tip resist corrosion and abrasion. Although the probe is designed to seal differential pressure, it is not pressure tested before shipment. If your application requires a pressure seal test, contact the custom design department. Follow the manufacturer's manual for any cleaning or handling procedures.

Comparison with Similar Probes

Compared to other 3300 XL 8 mm probes, the 173688-01-20-12-05 offers a specific combination of options. The 2.0-meter system length is a common choice for many installations. The FluidLoc cable option adds extra protection against fluid ingress, though it may be unnecessary with the probe sleeve. The CSA, ATEX, and IECEx approvals make this probe suitable for global hazardous area use. Always verify that the selected options match your application requirements.

Compatibility and Integration

The 173688-01-20-12-05 is designed to work with Bently Nevada 3300 XL monitoring systems. It connects via a miniature ClickLoc coaxial connector, ensuring a secure and reliable signal path. The probe's output is compatible with standard Bently Nevada monitors and diagnostic equipment. For integration details, refer to the system manual or contact Petro Auto Tech for assistance.

FAQs about the 173688-01-20-12-05

What is the system length of the 173688-01-20-12-05?

The system length is 2.0 meters (6.6 feet), which provides flexibility in routing the cable to the monitor.

What approvals does the 173688-01-20-12-05 hold?

It holds CSA, ATEX, and IECEx approvals, making it suitable for hazardous area installations.

What materials are used in the probe tip and case?

The probe tip is made of polyphenylene sulfide (PPS), and the case is made of AISI 303 or 304 stainless steel.

Is the FluidLoc cable option required for all installations?

No, the FluidLoc cable option is not necessary for most 330105 and 330106 installations due to the probe sleeve. Consider your application before ordering.

Product Support and Availability

The 173688-01-20-12-05 is available from Petro Auto Tech. We maintain stock to support your maintenance and project needs. Contact our team for current availability and lead times. We are ready to help you keep your machinery running smoothly.
