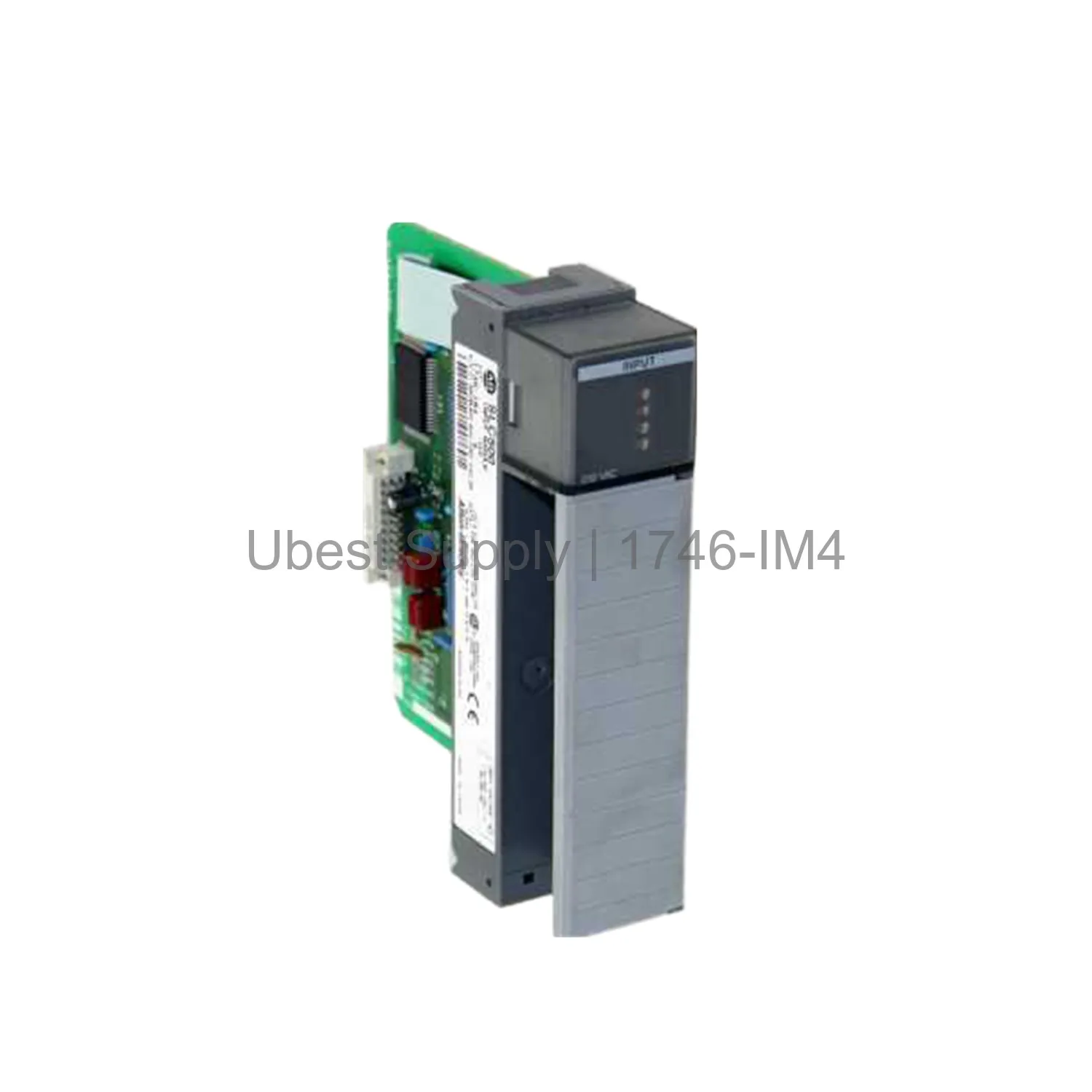

1746-IM4 Allen-Bradley SLC 500 AC Input Module 4 Points

Product Overview

The Allen-Bradley 1746-IM4 is a digital AC input module. It belongs to the SLC 500 family. This module has four input points. It works with 200-240V AC signals. The operational voltage range is 170-265V AC. It supports a line frequency of 47-63 Hz. The module draws 35 milliamps from the 5V DC backplane. It does not draw current from the 24V DC backplane. The 1746-IM4 offers reliable signal detection. It is ideal for general-purpose 125V DC input applications. The module provides circuit isolation at 1500V AC. This isolation protects the backplane from high voltages.

Application Scenarios

Use the 1746-IM4 in industrial automation systems. It works well for monitoring AC signals. Applications include motor start/stop detection. Use it for conveyor belt status monitoring. It fits in manufacturing and process control. The module suits environments with high electrical noise. It meets NEMA ICS 2-230 noise immunity standards. The 1746-IM4 is UL, CSA, and C-UL certified. These certifications allow use in hazardous locations. Install the module in a 1746 I/O chassis. It connects with 1746-HT and 1746-HCA cables. The module handles shock up to 30G. It handles vibration up to 2.5G at 57-500 Hz.

Technical Specifications

The 1746-IM4 has a nominal input current of 12mA. This is at 240V AC. The maximum surge current is 1.6A. The surge duration is 500 microseconds. Each point has a maximum wattage of 0.35W. The total module power dissipation is 1.6W. The signal delay for ON condition is 35 milliseconds. The signal delay for OFF condition is 45 milliseconds. The off-state leakage current is 2.0 milliamps. The step response is 100 milliseconds in and 2.5 milliseconds out. The operating temperature range is 0 to 60 degrees Celsius. The storage temperature range is -40 to 85 degrees Celsius. The humidity range is 5 to 95 percent non-condensing.

Installation & Maintenance Guide

Install the 1746-IM4 into any slot of a 1746 chassis. Ensure the chassis power is off before insertion. Align the module with the card guide. Push firmly until the locking tab clicks. Connect the field wiring to the removable terminal block. Use the correct I/O connection cable. For maintenance, inspect the module for damage. Check for loose connections. Keep the module free from dust and moisture. The module requires no routine calibration. Replace the module if it fails to operate correctly. Always follow local safety codes during installation.

Packing List

One Allen-Bradley 1746-IM4 AC Input Module. One installation guide. The terminal block is not included. The I/O cable is not included. The module is shipped in an anti-static package. We ship via FedEx, UPS, or DHL. Contact us for expedited shipping options.
