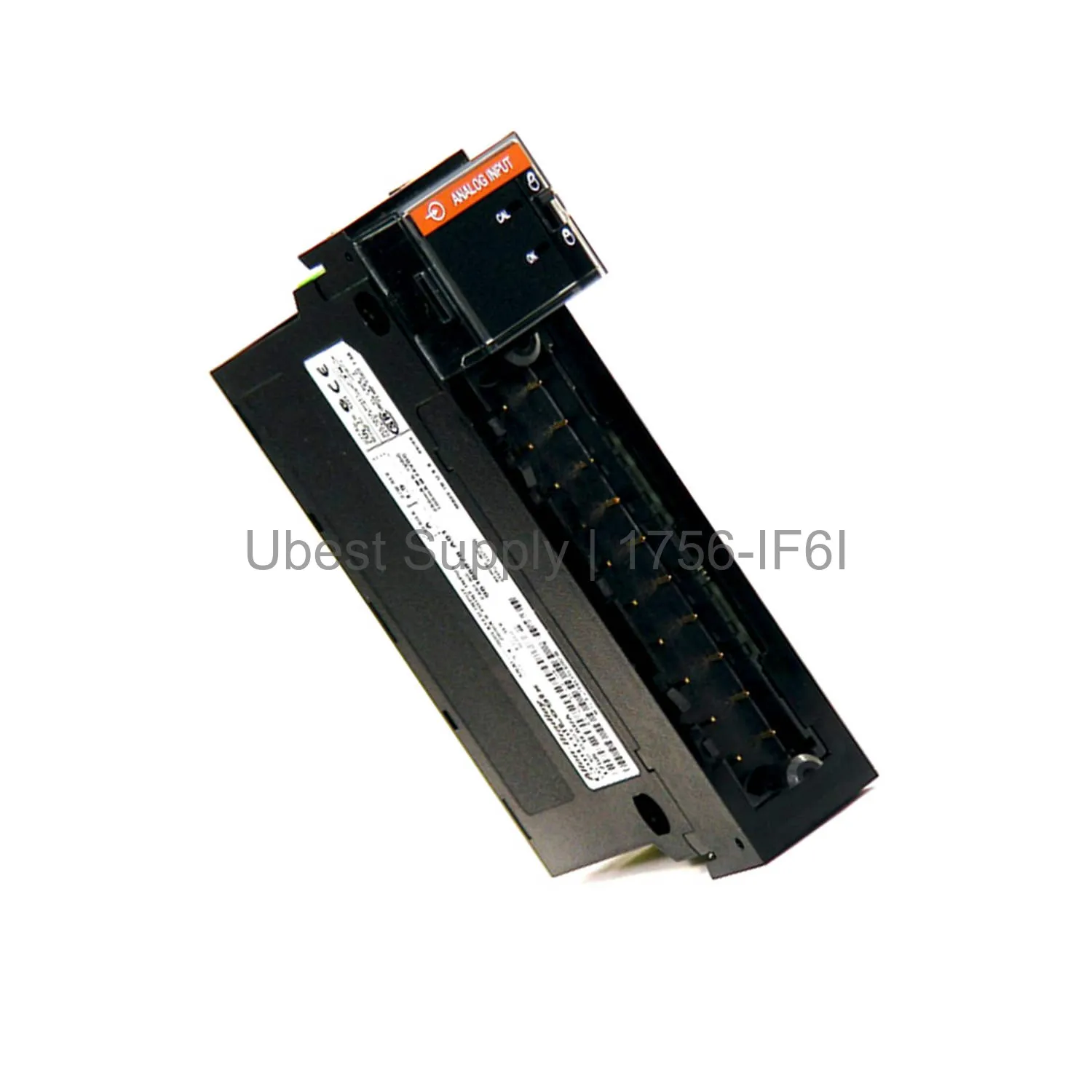

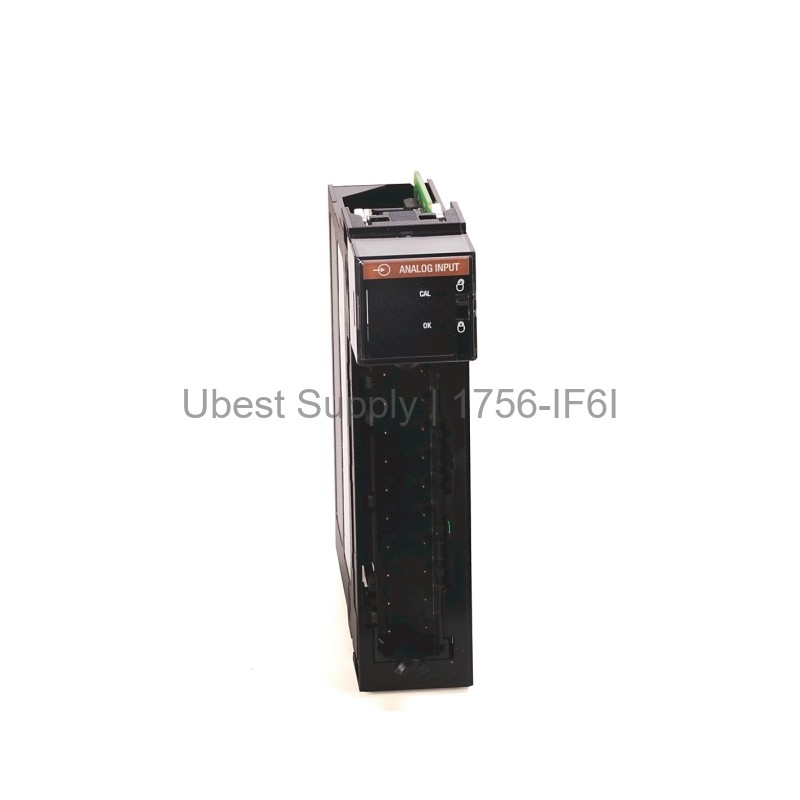

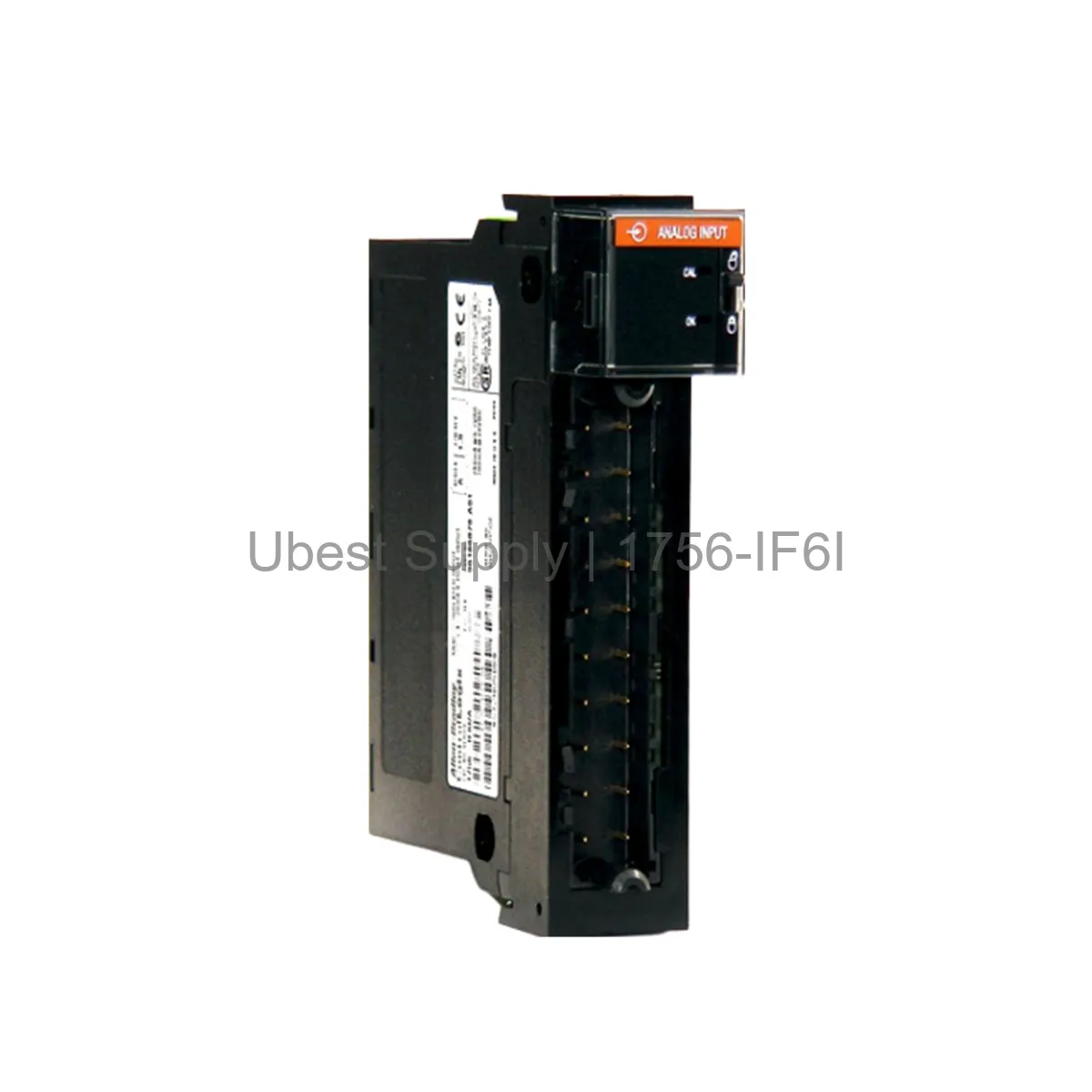

1756-IF6I Allen-Bradley ControlLogix 6-Point Analog Input Module

Product Overview

The Allen-Bradley 1756-IF6I is a high-performance analog input module. It belongs to the ControlLogix series. This module features six isolated input points. It uses a sigma-delta conversion method. This design ensures accurate signal measurement. The module supports multiple signal ranges. These include ±10.5V, 0-10.5V, 0-5.25V, and 0-21 mA. It provides both integer and IEEE 32-bit floating point data formats. The 1756-IF6I is ideal for demanding industrial applications.

Application Scenarios

This module works well in complex automation systems. It is suitable for process control environments. Use it in applications requiring signal isolation. It excels in monitoring voltage and current signals. The 1756-IF6I is common in manufacturing plants. It also fits into power generation facilities. Engineers use it for precise data acquisition. It integrates seamlessly into existing ControlLogix racks.

Technical Specifications

The module provides 16-bit resolution. At 10.5V, the resolution is 343 μV/bit. At 0-10.5V, it offers 171 μV/bit. The 0-5.25V range gives 86 μV/bit. For current, 0-21 mA provides 0.34 μA/bit. The backplane current draw is 250 mA at 5 Volts. It draws 100 mA at 24 Volts. Maximum power dissipation is 3.7 W for voltage. It reaches 4.3 W for current. The module uses removable terminal blocks. Compatible blocks include 1756-TBNH and 1756-TBSH.

Installation & Maintenance Guide

Install the 1756-IF6I into any ControlLogix chassis. Ensure the backplane power is off. Align the module with the guide rails. Push it firmly into the slot. Secure it with the locking screws. Connect the wiring to the terminal block. Use proper wire gauges for signals. Follow standard safety procedures. Regularly check for loose connections. Keep the module free from dust.

Packing List

One Allen-Bradley 1756-IF6I module. One removable terminal block (if ordered separately). Standard installation documentation. The product is shipped in anti-static packaging. Shipping is via Fedex, UPS, or DHL. The module is in new or refurbished condition.
