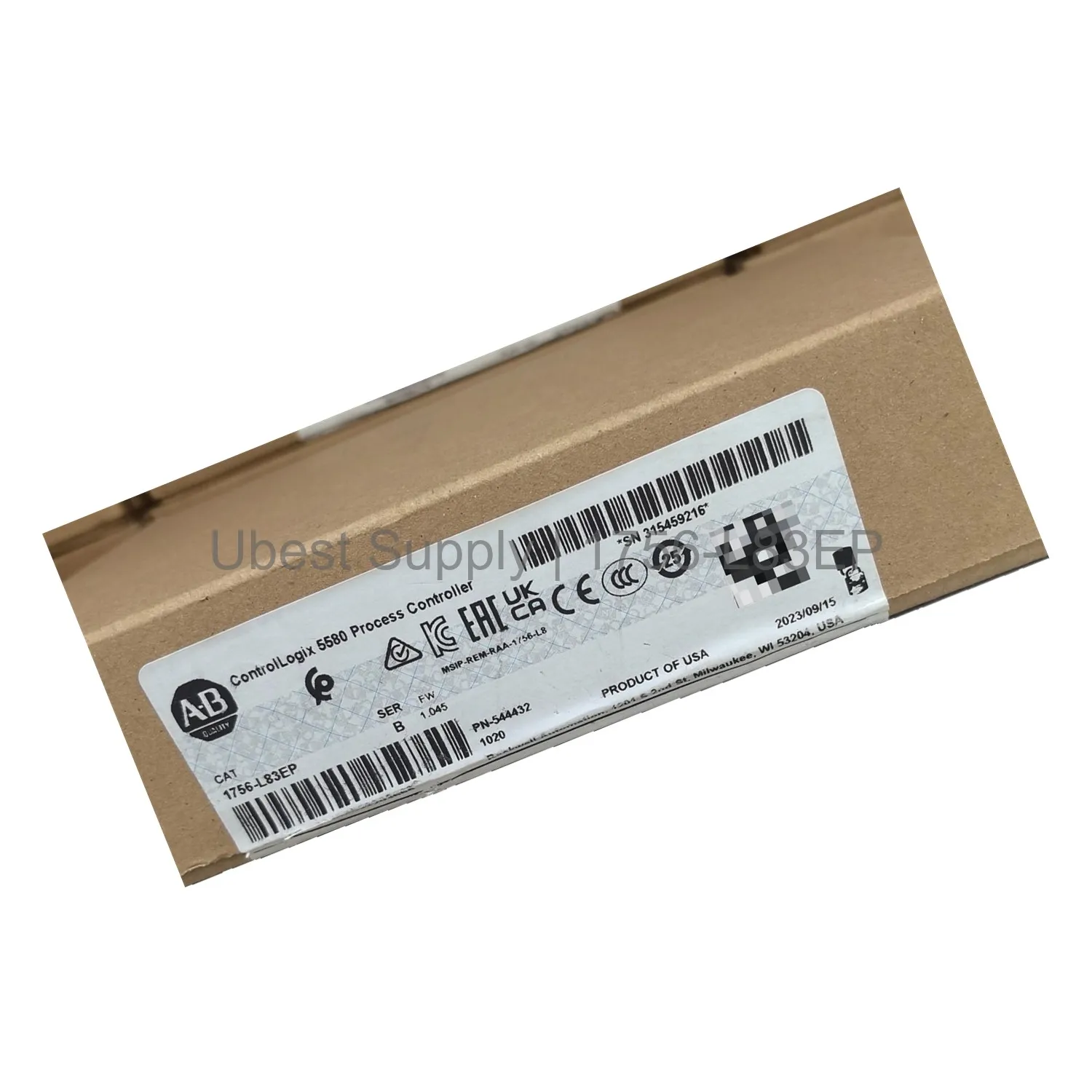

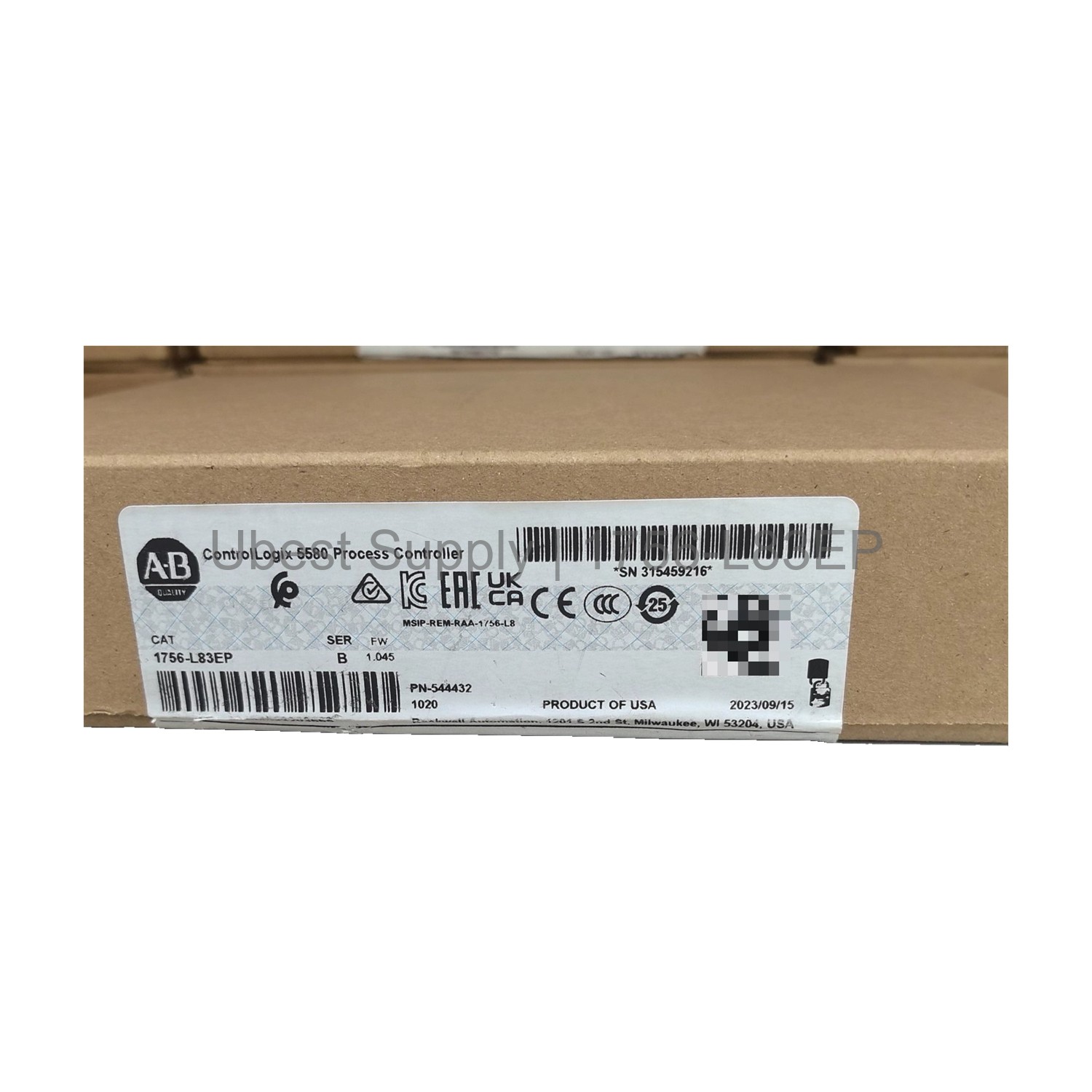

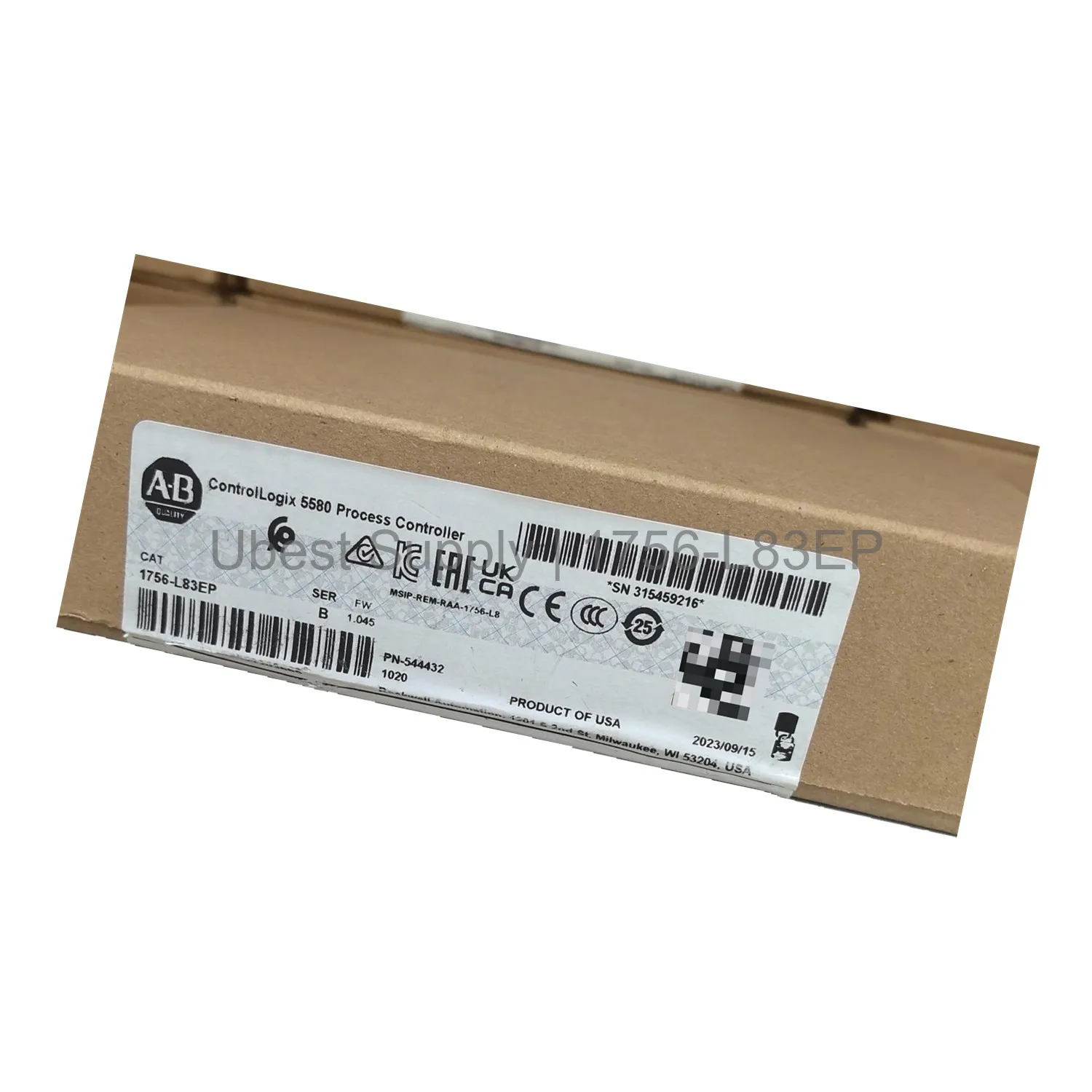

1756-L83EP Allen-Bradley ControlLogix 5580E Process Controller

Product Overview

The Allen-Bradley 1756-L83EP is a powerful process controller. It belongs to the ControlLogix 5580E series. This unit offers 10 MB of user memory. It supports up to 250 EtherNet/IP devices. The controller includes a USB 2.0 port. It also has a 1 GB Ethernet port. A 4-character alphanumeric display is built in. This model works with Studio 5000 software. It is designed for demanding process applications.

Application Scenarios

This controller is ideal for process industries. Use it in chemical plants and refineries. It works well for batch control applications. The 1756-L83EP manages continuous processes too. It handles monitoring and controlling tasks. You can deploy it in water treatment facilities. It also suits oil and gas operations. The controller integrates with existing ControlLogix systems.

Technical Specifications

The 1756-L83EP draws 1.2 Amps at 5.1 Volts. It supports 128,000 digital I/O points. It also handles 4000 analog I/O points. The communication speed is 12 Mbps. It supports 100 or 250 Ethernet nodes. Thermal dissipation is 21.2 BTU per hour. Power dissipation is 6.2 Watts. The unit has 32 controller tasks. Each task can run 1000 programs. It includes a 2 GB SD card for storage.

Installation & Maintenance Guide

Install the controller in a ControlLogix I/O chassis. Ensure proper grounding before use. Connect the Ethernet port for network access. Use the USB port for local programming. The unit is hot-swappable in most systems. Keep the firmware updated for best performance. Regularly check the display for error codes. Store the SD card data securely.

Packing List

1 x Allen-Bradley 1756-L83EP Controller
1 x 2 GB SD Card (included)
1 x Quick Start Guide
Shipping is via FedEx, UPS, or DHL.
