1769-IQ32 | Allen-Bradley Discrete Input Module Supplier

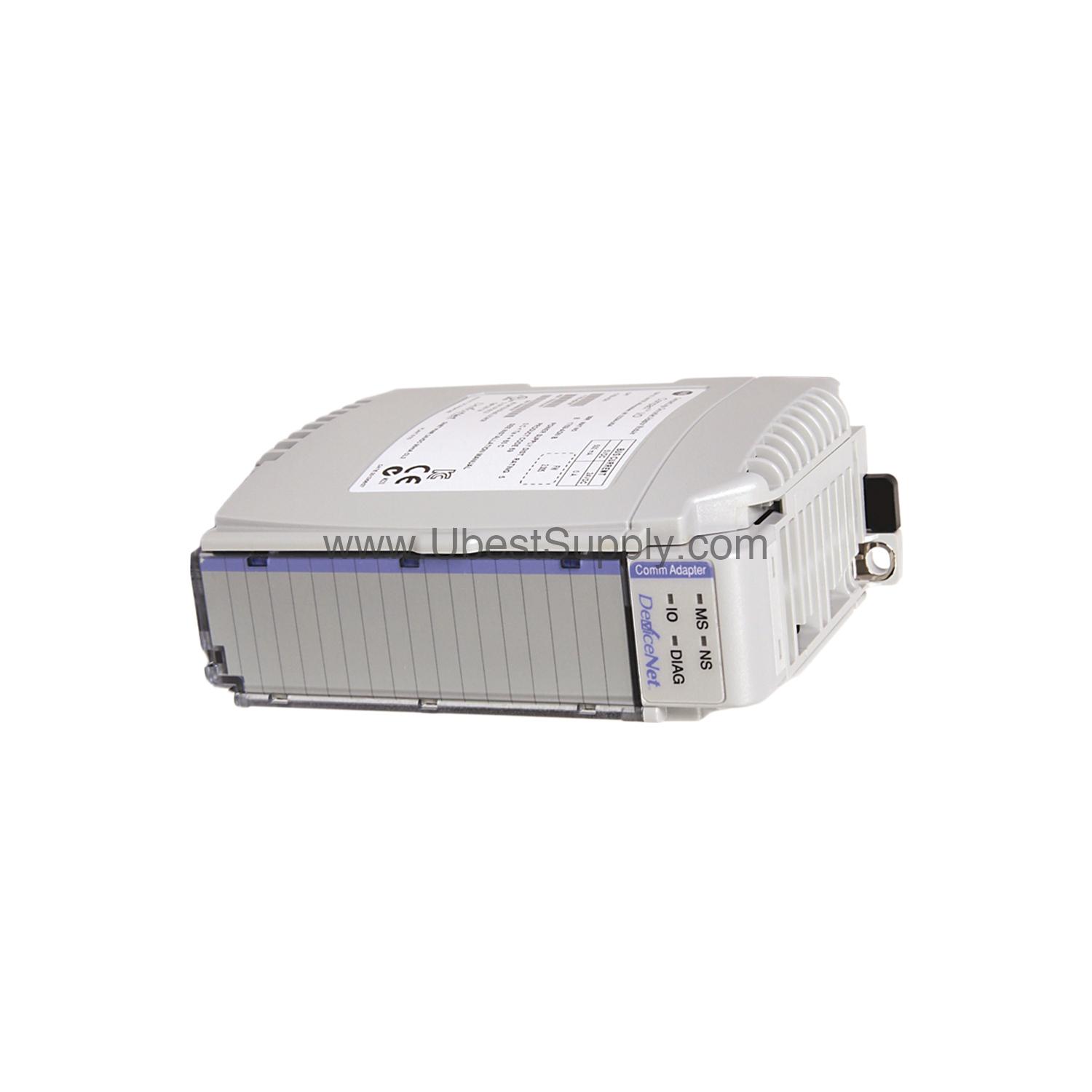

What Is the 1769-IQ32?

When your control system demands reliable digital input handling, the 1769-IQ32 delivers. This discrete input module from Allen-Bradley is part of the Compact I/O family and offers thirty-two 24VDC input channels organized into four groups of eight inputs each. It supports both sink and source wiring configurations, making it a flexible choice for diverse automation setups.

Designed for use with MicroLogix 1500 and CompactLogix controllers, the 1769-IQ32 integrates seamlessly into existing architectures. Its compact form factor and high channel density help reduce panel space while maintaining robust performance.

Key Features & Technical Specs

• 32 digital inputs in 4 groups of 8, supporting sink/source wiring.
• Operating voltage range: 10…30V DC at 30 °C (86 °F) and 10…26.4V DC at 60 °C (140 °F).
• Off-state voltage: 5V DC; on-state voltage: 10V DC.
• Input delay on: 8 ms for reliable signal capture.
• Operating temperature: 0°C to +60°C (32°F to +140°F); storage temperature: -40°C to +85°C (-40°F to +185°F).
• Operating humidity: 5% to 95% non-condensing.
• Power supply distance rating: 8 modules from the power supply.
• Weight: 0.97 lb (440 g); shipping dimensions: 8 x 8 x 5 in.
• Replacement terminal block: 1769-RTBN18.
• Wire size: 22-14 AWG solid copper, 90°C rating.

One distinctive spec is the power supply distance rating of 8. This means the 1769-IQ32 must be installed no more than eight modules away from the power supply. In larger CompactLogix systems, additional power supply units may be required to maintain proper operation.

Industry Applications

In manufacturing environments, the 1769-IQ32 excels at monitoring discrete sensors, limit switches, and pushbuttons. Its 32-point density suits applications where many inputs are needed in a compact footprint. For example, in packaging lines, this module can handle multiple sensor inputs simultaneously, reducing the number of modules required and simplifying wiring.

Furthermore, its wide operating temperature range makes it suitable for both climate-controlled and harsher industrial settings. The module’s robust design helps minimize downtime caused by environmental stress.

Installation Guide

Mount the 1769-IQ32 on a DIN rail or panel using the provided terminal screws (6 lb x inches torque). Ensure the module is within eight positions of the power supply to meet the distance rating. Use copper wire sized 22-14 AWG with a 90°C rating for connections. The replacement terminal block 1769-RTBN18 simplifies field wiring changes.

For CompactLogix systems, follow the standard rack installation method. When using the 1769-ADN DeviceNet adapter or 1769-AENTR Ethernet adapter, verify compatibility with your controller firmware.

Maintenance & Reliability

Regular inspection of the 1769-IQ32 helps ensure long-term reliability. Check for secure connections and signs of environmental stress such as moisture or dust accumulation. The module’s operating humidity range of 5% to 95% non-condensing indicates it can handle moderate moisture, but avoid condensation.

Because the module uses solid-state components, there are no moving parts to wear out. However, verify that the power supply distance rating is maintained if system expansion occurs. This proactive approach reduces unexpected failures and extends service life.

Compatibility & Integration

The 1769-IQ32 works with MicroLogix 1500 and CompactLogix controllers. Supported adapters include the 1769-ADN DeviceNet adapter and the 1769-AENTR Ethernet adapter. This allows integration into both DeviceNet and Ethernet/IP networks, providing flexibility in system design.

The module uses a 32-point communication cable and is available in Series A and B. Ensure your controller firmware supports the specific series for optimal performance.

Troubleshooting & Common Issues

A common issue with high-density input modules is miswiring. Verify that the 1769-IQ32’s wiring matches the sink or source configuration required by your sensors. The off-state voltage of 5V DC and on-state voltage of 10V DC help define clear signal thresholds.

If inputs fail to register, check the power supply distance rating—if the module is more than eight positions from the supply, it may not receive adequate power. Also, confirm that the input delay of 8 ms aligns with your application’s timing requirements.

FAQs about the 1769-IQ32

Q: What is the power supply distance rating for the 1769-IQ32?

A: The module has a power supply distance rating of 8, meaning it must be installed no more than eight modules away from the power supply.

Q: Can the 1769-IQ32 be used with both sink and source wiring?

A: Yes, it supports both sink and source wiring configurations.

Q: What is the on-state voltage for this module?

A: The on-state voltage is 10V DC.

Q: What is the operating temperature range?

A: The operating temperature is 0°C to +60°C (32°F to +140°F).

Q: Which controllers are compatible with the 1769-IQ32?

A: It is compatible with MicroLogix 1500 and CompactLogix controllers.

Product Support & Availability

The 1769-IQ32 is available from Petro Auto Tech. In stock and ready to ship, this module supports your automation needs with reliable performance. Contact Petro Auto Tech for current lifecycle status and ordering details.
