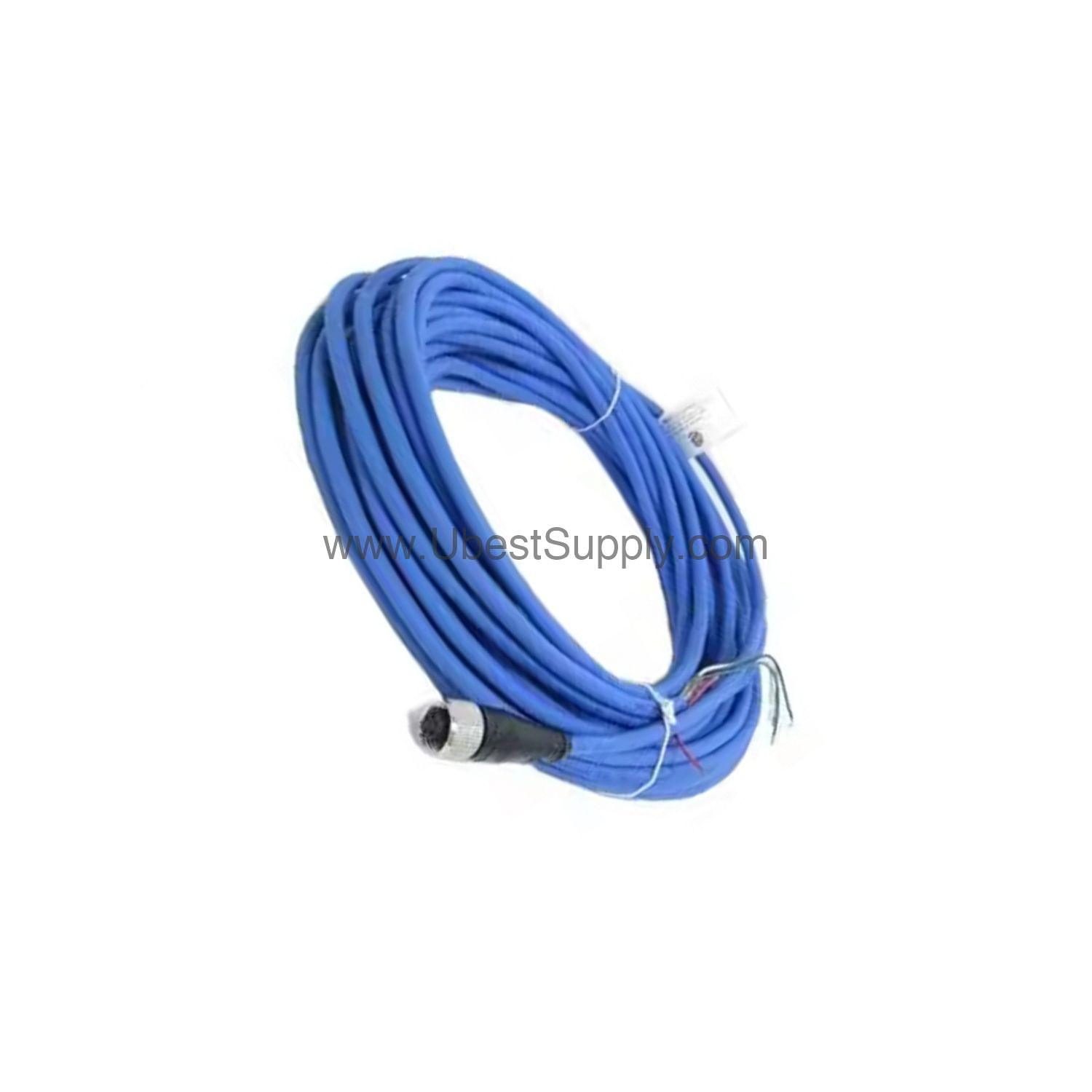

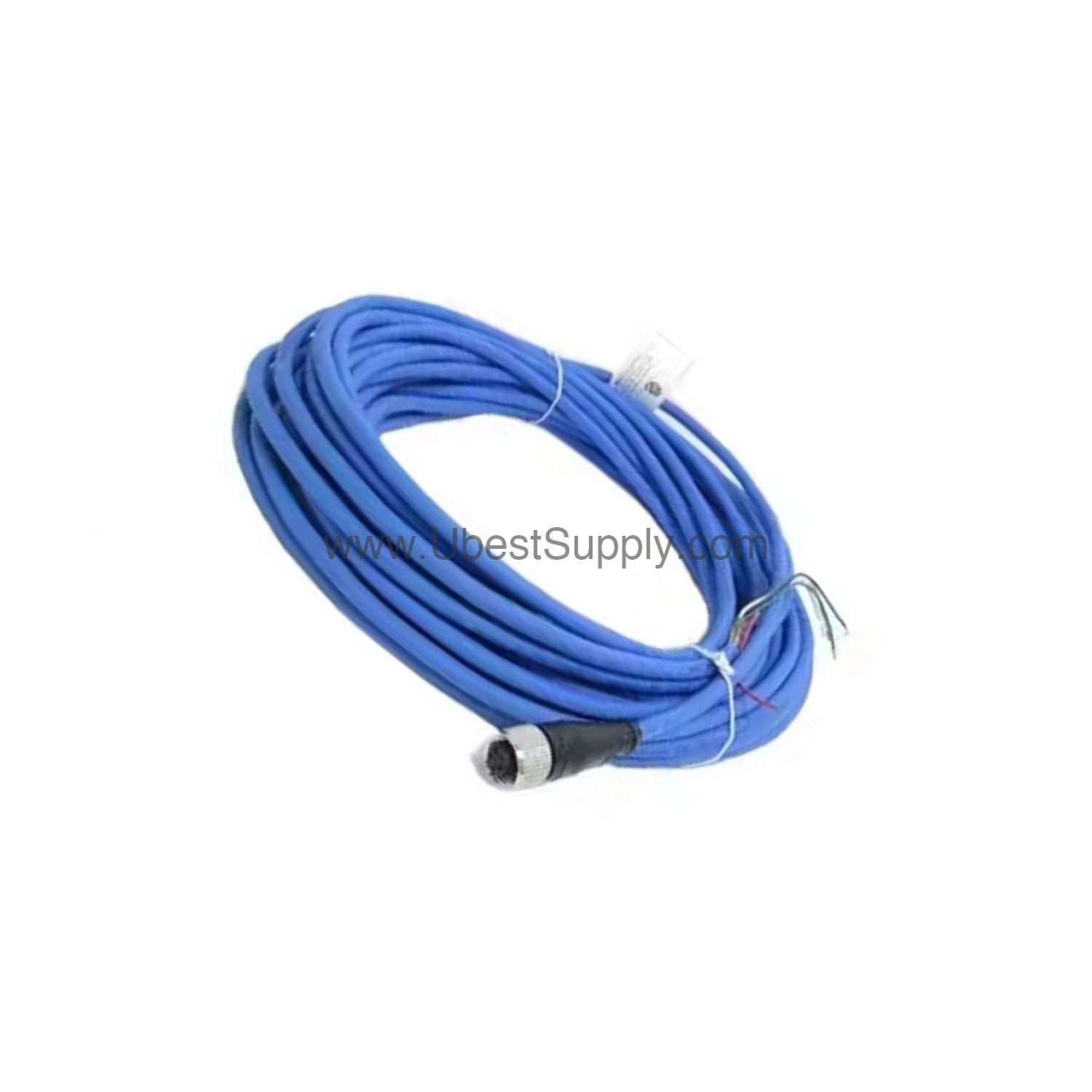

200152-04-10 | Bently Nevada 4.0m Accelerometer Interface Cable

Introduction to the 200152-04-10 Accelerometer Interface Cable

When industrial vibration monitoring demands reliable signal transmission, the 200152-04-10 from Bently Nevada provides a robust solution. This standard cable connects accelerometers to monitoring systems, featuring a 4.0-meter length and an enhanced coupling nut on the accelerometer end only. Engineered for harsh environments, it ensures consistent performance in critical rotating machinery applications.

Key Features and Technical Specifications of the 200152-04-10

• Model: 200151 – Accelerometer Interface Standard Cable, connector on accelerometer end only.
• Length: 4.0 meters (–04 option) for flexible installation.
• Coupling nut: Enhanced coupling nut (–10) provides better grip for tightening to the accelerometer.
• Minimum bend radius: 73.7 mm (2.9 in) for cable routing.
• Operating temperature range: –20 °C to +100 °C (–4 °F to +212 °F).
• Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket.
• Connectors provide an IP67 seal to transducers and mating hardware; molded to the cable.
• DC4 electrical insulating compound in connectors offers additional moisture protection during thermal shock.

The enhanced coupling nut distinguishes this cable from standard options, simplifying installation in tight spaces and reducing the risk of loosening due to vibration.

Applications and Use Cases for the 200152-04-10

Industries rely on the 200152-04-10 for precise vibration data from pumps, compressors, turbines, and fans. Its rugged construction suits oil and gas, power generation, and manufacturing environments where cable integrity is critical. The IP67 seal and moisture protection make it ideal for outdoor or washdown areas.

Installation and Setup Guidance

When installing the 200152-04-10, ensure the cable bend radius exceeds 73.7 mm to prevent damage. Tighten the enhanced coupling nut securely by hand to the accelerometer. Avoid flexing the cable at temperatures below –20 °C (–4 °F) to maintain flexibility and longevity. Route the cable away from sharp edges and high-heat sources.

Maintenance and Reliability

Periodically inspect the cable jacket for cuts or abrasion, and verify connector tightness. The IP67-rated connectors resist dust and water ingress, reducing maintenance intervals. The braided shield and drain wire protect signal integrity, minimizing downtime from noise interference.

Compatibility and Integration

The 200152-04-10 works with Bently Nevada accelerometers that accept a 4-conductor, 22 AWG interface. It connects directly to monitoring systems via the accelerometer end connector. For system-specific compatibility, consult the Bently Nevada documentation.

Troubleshooting and Common Issues

If signal loss occurs, check the coupling nut tightness and inspect the cable for damage near connectors. Moisture ingress can be prevented by ensuring the DC4 compound is intact. For persistent issues, verify the cable bend radius is not exceeded and that operating temperatures stay within –20 °C to +100 °C.

Frequently Asked Questions about the 200152-04-10

What is the cable length of the 200152-04-10?

The cable length is 4.0 meters, indicated by the –04 option in the model number.

What is the operating temperature range for this cable?

The operating temperature range is –20 °C to +100 °C (–4 °F to +212 °F).

Does the 200152-04-10 have an IP rating?

Yes, the connectors provide an IP67 seal to transducers and mating hardware.

What is the minimum bend radius for the 200152-04-10?

The minimum bend radius is 73.7 mm (2.9 in).

What type of connector does the 200152-04-10 use?

The cable has a connector on the accelerometer end only, with an enhanced coupling nut for better grip.

Product Support and Availability

The 200152-04-10 is in stock and ready to ship from Petro Auto Tech. Contact our team for pricing and lead times. We provide fast delivery for industrial automation needs.
