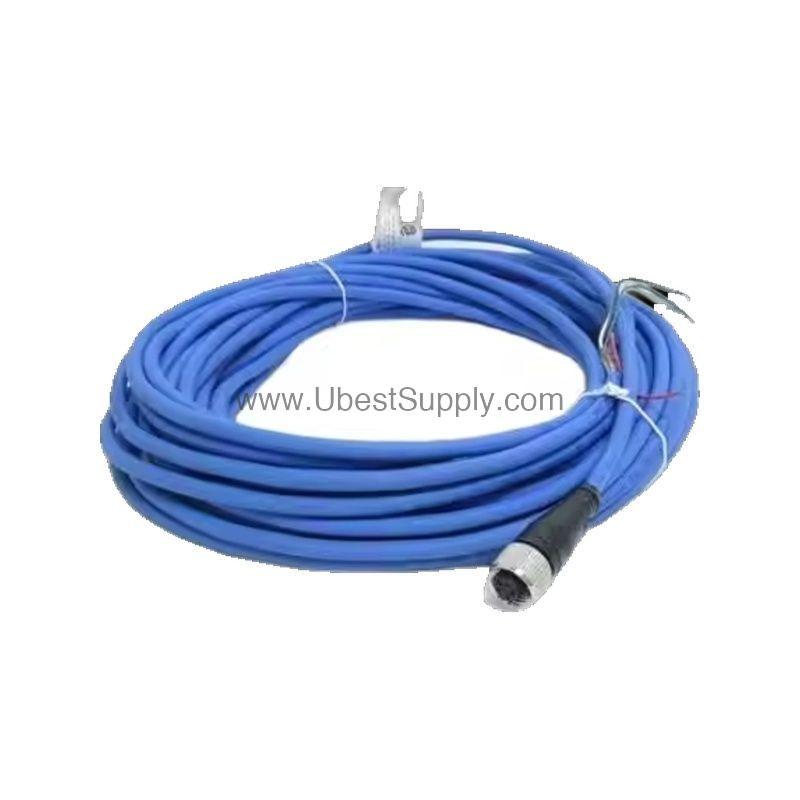

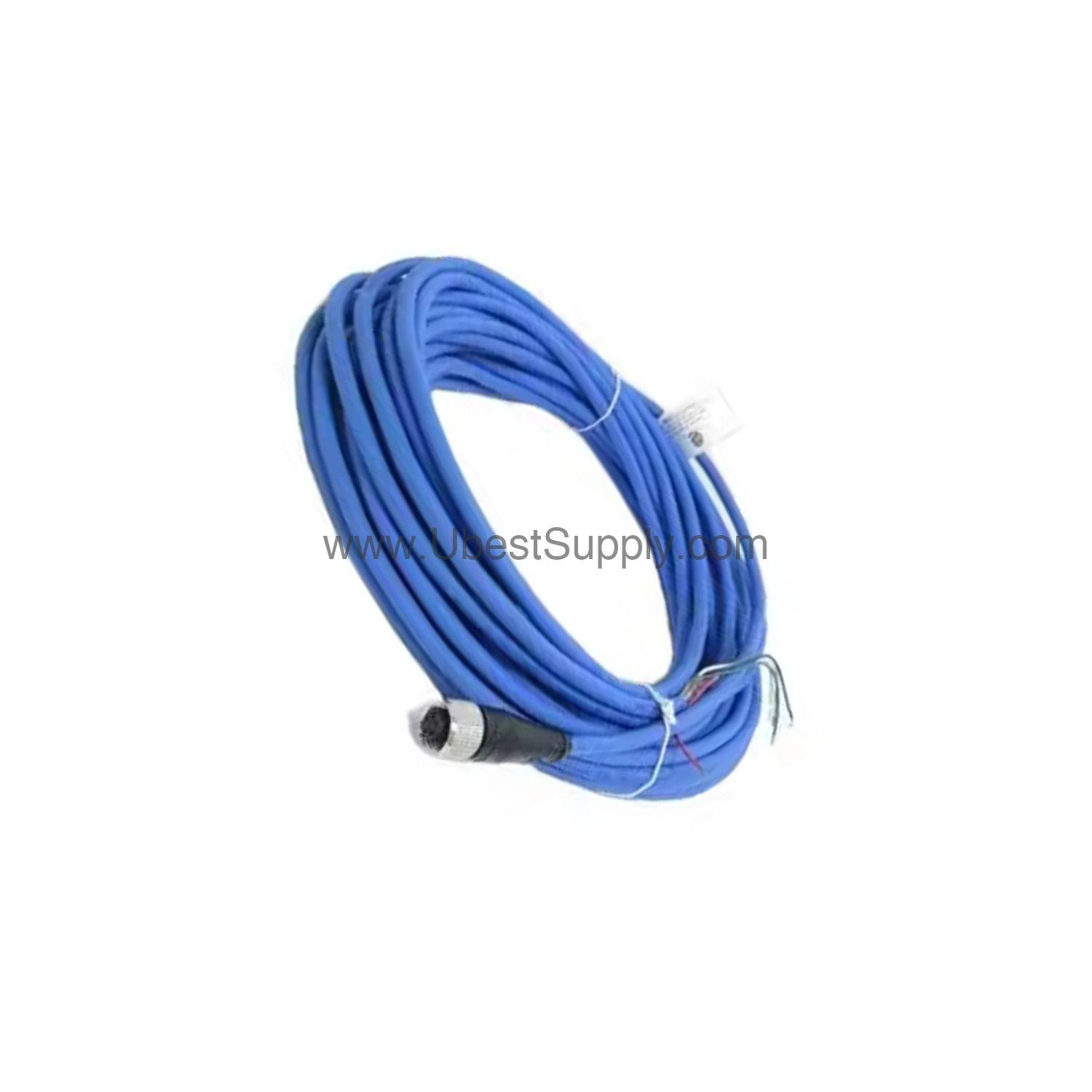

200152-15-10 | Bently Nevada 15m Accelerometer Interface Cable

What Makes the 200152-15-10 Essential for Vibration Monitoring?

When industrial machinery demands precise vibration data, the 200152-15-10 from Bently Nevada provides a reliable connection between accelerometer and monitoring system. This standard interface cable, with connector on accelerometer end only, ensures signal integrity in harsh environments. Designed for continuous operation, it supports predictive maintenance strategies that reduce unplanned downtime.

Key Features & Technical Specs of the 200152-15-10

• Cable length: 15 meters (model code -15).
• Connector: Enhanced coupling nut (-10 option) for better grip on accelerometer end.
• Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket.
• Connector seal: IP67 seal to transducers and mating hardware; connectors are molded to the cable.
• Moisture protection: DC4 electrical insulating compound in connectors provides additional protection against moisture during thermal shock.
• Operating temperature range: -20 °C to +100 °C (-4 °F to +212 °F).
• Minimum bend radius: 73.7 mm (2.9 in).
• Coupling nut material: Nickel-plated.

The 15-meter length offers flexibility for routing in tight installations while maintaining signal quality. The enhanced coupling nut simplifies tightening, reducing installation time and ensuring a secure connection.

Real-World Applications for the 200152-15-10

In rotating machinery monitoring, the 200152-15-10 connects accelerometers to data acquisition systems in turbines, compressors, and pumps. Its IP67 seal withstands washdown environments in food processing or chemical plants. The cable's flexibility at temperatures down to -20 °C suits outdoor installations in cold climates, provided the cable is not flexed below that threshold.

Installation & Setup Guidance

When installing the 200152-15-10, ensure the bend radius exceeds 73.7 mm to prevent internal damage. Tighten the enhanced coupling nut by hand until snug; do not use tools that could over-torque. Route the cable away from sharp edges and high-heat sources. For temperatures below -20 °C, avoid flexing the cable to prevent cracking the PVC jacket.

Maintenance & Reliability Tips

Periodically inspect the cable jacket for cuts or abrasions, especially near connection points. Verify the IP67 seal remains intact by checking for moisture ingress at the connector. Replace the cable if the braided shield becomes exposed. Following these steps extends service life and maintains signal integrity, reducing long-term replacement costs.

Compatibility & Integration

The 200152-15-10 is designed for Bently Nevada accelerometers with compatible connectors. It works with standard monitoring systems that accept 4-conductor shielded cables. For specific system integration details, consult the Bently Nevada documentation.

FAQ about the 200152-15-10

Q: What is the cable length of the 200152-15-10?

A: The cable length is 15 meters, indicated by the -15 in the part number.

Q: Does the 200152-15-10 have a connector on both ends?

A: No, the connector is on the accelerometer end only.

Q: What is the operating temperature range for this cable?

A: The operating temperature range is -20 °C to +100 °C (-4 °F to +212 °F).

Q: What is the minimum bend radius of the 200152-15-10?

A: The minimum bend radius is 73.7 mm (2.9 in).

Q: What type of connector does the 200152-15-10 use?

A: It uses an enhanced coupling nut for better grip, with nickel-plated construction.

Product Support & Availability

The 200152-15-10 is in stock and ready to ship from Petro Auto Tech. Contact our team for pricing and lead time. Please verify current lifecycle status and availability with Petro Auto Tech before ordering.
