200350-01-00-00 | Bently Nevada 100 mV/g Accelerometer ±20%

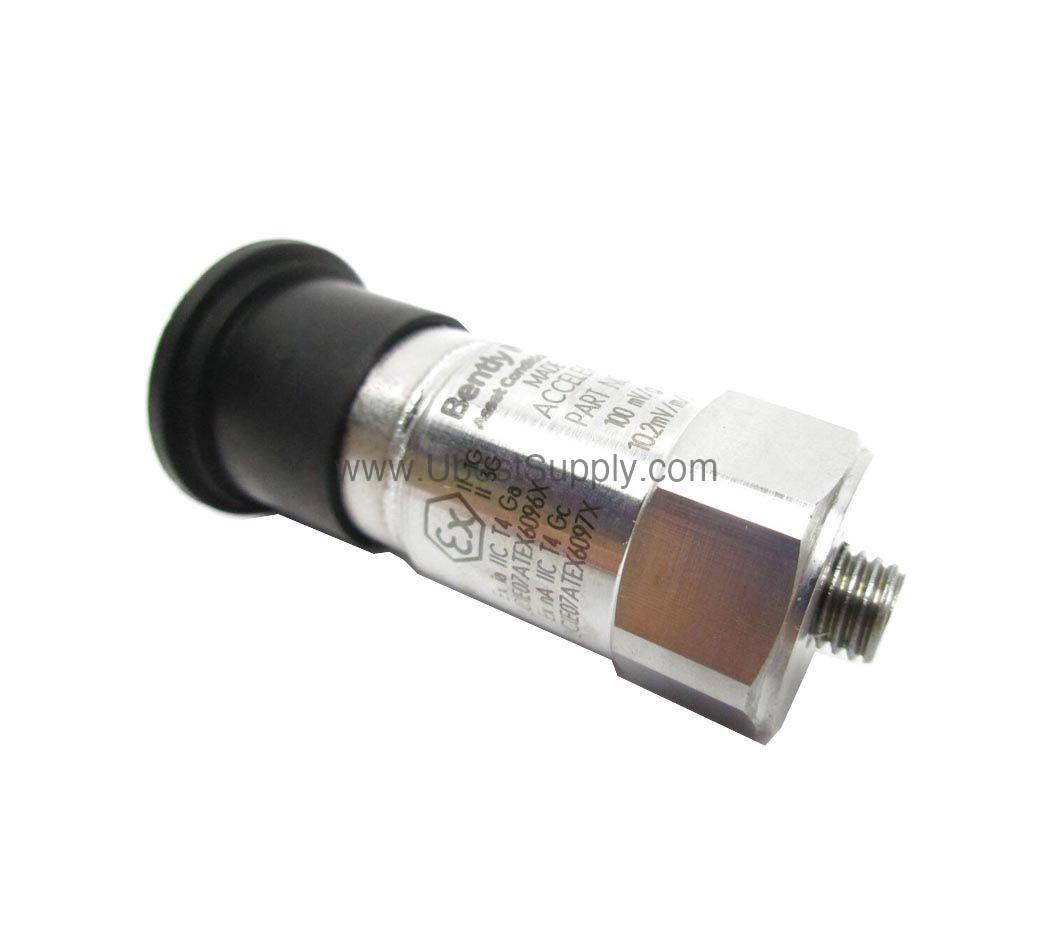

Introduction to the 200350-01-00-00 Bently Nevada Accelerometer

When you need precise vibration monitoring in demanding conditions, the 200350-01-00-00 from Bently Nevada offers a trusted solution. This accelerometer is part of the 200350 series, designed for industrial automation applications where accuracy and durability matter. With a sensitivity of 100 mV/g ±20% and a frequency range of 30-600,000 cpm (0.5-10,000 Hz), it captures a wide spectrum of vibration data.

The 200350-01-00-00 features a stainless steel housing and welded hermetic sealing, ensuring long-term reliability even in humid or dusty settings. Its IP68 enclosure rating means it withstands continuous submersion in water, making it suitable for outdoor or washdown environments.

Key Features and Technical Specifications of the 200350-01-00-00

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%) for accurate vibration measurement.
• Measurement Range: ±50g, covering a broad amplitude of vibration signals.
• Frequency Response: 30-600,000 cpm (0.5-10,000 Hz) at ±3 dB, ideal for rotating machinery monitoring.
• Output Bias Voltage: 8 to 12 VDC, ensuring stable signal transmission.
• Excitation Voltage: 18 to 28 VDC with constant current excitation of 2 to 20 mA.
• Operating Temperature: -65°F to +250°F (-54°C to +121°C) for extreme environments.
• Enclosure Rating: IP68, providing protection against dust and prolonged immersion.
• Mounting Thread: 1/4-28 female with recommended torque of 2 to 5 ft-lb (2.7 to 6.8 N-m).
• Weight: 0.051 kg, compact and easy to install.

One standout spec is the broadband electrical noise of only 350 μg (3,434 μm/s²) from 1-10 kHz. This low noise floor allows the 200350-01-00-00 to detect subtle vibration changes that might otherwise be masked, improving early fault detection.

Applications and Use Cases for the 200350-01-00-00

In industrial settings, vibration monitoring is critical for predictive maintenance. The 200350-01-00-00 excels in applications such as pumps, motors, fans, compressors, and turbines. Its wide frequency range captures both low-speed and high-speed machinery vibrations. For example, in a chemical processing plant, this accelerometer can monitor pump bearings continuously, helping to prevent unplanned downtime. Additionally, its IP68 rating makes it suitable for food processing or marine environments where washdowns are routine.

Installation and Setup Guide

Mounting the 200350-01-00-00 correctly is essential for accurate readings. Use the 1/4-28 female thread and apply a mounting torque between 2 and 5 ft-lb (2.7 to 6.8 N-m). The accelerometer comes with a ¼-28 to M6 x 1.00 stainless steel stud for flexible attachment. Ensure the mounting surface is clean, flat, and free of debris to achieve optimal coupling. Connect the 2-pin Mil-C-5015 top connector to your monitoring system, and verify the excitation voltage is within 18 to 28 VDC with a constant current of 2 to 20 mA. Allow a settling time of 2.0 seconds (within 1% of bias) before taking measurements.

Maintenance and Reliability Tips

To maintain reliable performance, inspect the 200350-01-00-00 periodically for physical damage or corrosion on the connector and housing. Since it is hermetically sealed, no internal cleaning is required. Check the output bias voltage (8 to 12 VDC) during routine calibration to ensure the sensor remains within spec. The ceramic shear sensing element provides long-term stability, but verify the amplitude linearity (±1%) annually. For installations in high-humidity or condensing environments, the IP68 rating ensures the accelerometer remains protected.

Compatibility and Integration

The 200350-01-00-00 integrates seamlessly with Bently Nevada monitoring systems and most industrial data acquisition platforms that accept standard IEPE (ICP) sensors. Its output impedance of less than 150 ohms allows for long cable runs without signal degradation. The electrical isolation from case (>108 ohms) prevents ground loops in complex installations. For system integration, ensure your power supply provides 18-28 VDC and 2-20 mA constant current excitation.

Frequently Asked Questions about the 200350-01-00-00

What is the sensitivity of the 200350-01-00-00?

A: The sensitivity is 100 mV/g ±20% (10.2 mV/m/s² ±20%).

What is the operating temperature range?

A: It operates from -65°F to +250°F (-54°C to +121°C).

Is the 200350-01-00-00 suitable for outdoor use?

A: Yes, its IP68 enclosure rating protects against dust and water immersion.

What mounting thread does it use?

A: It uses a 1/4-28 female thread with a recommended torque of 2 to 5 ft-lb.

Product Support and Availability

The 200350-01-00-00 is available from Petro Auto Tech. In stock and ready to ship, it comes with full manufacturer support. Contact Petro Auto Tech for current lifecycle status and ordering details.
