200350-02-00-01 | Bently Nevada 100 mV/g Accelerometer ±20%

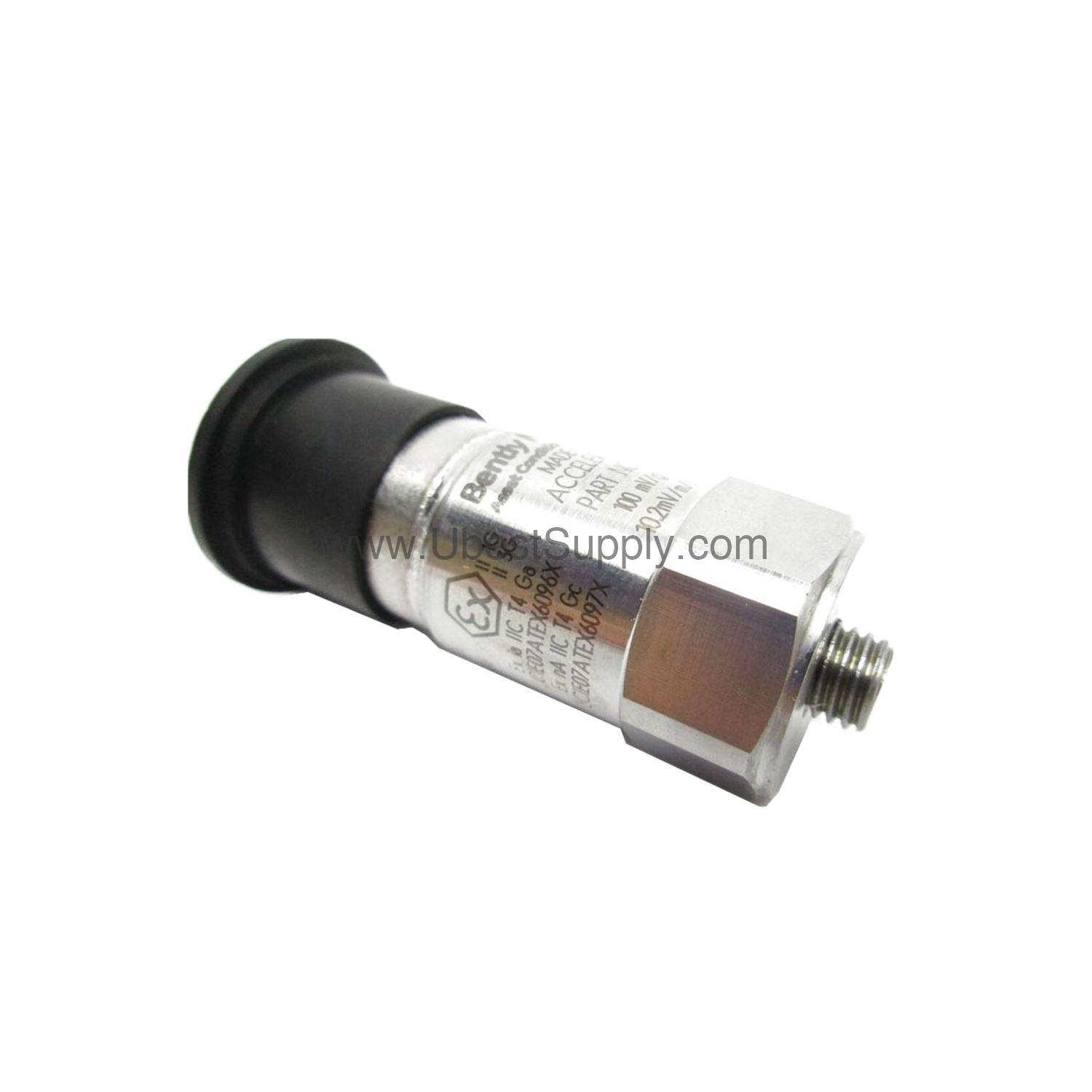

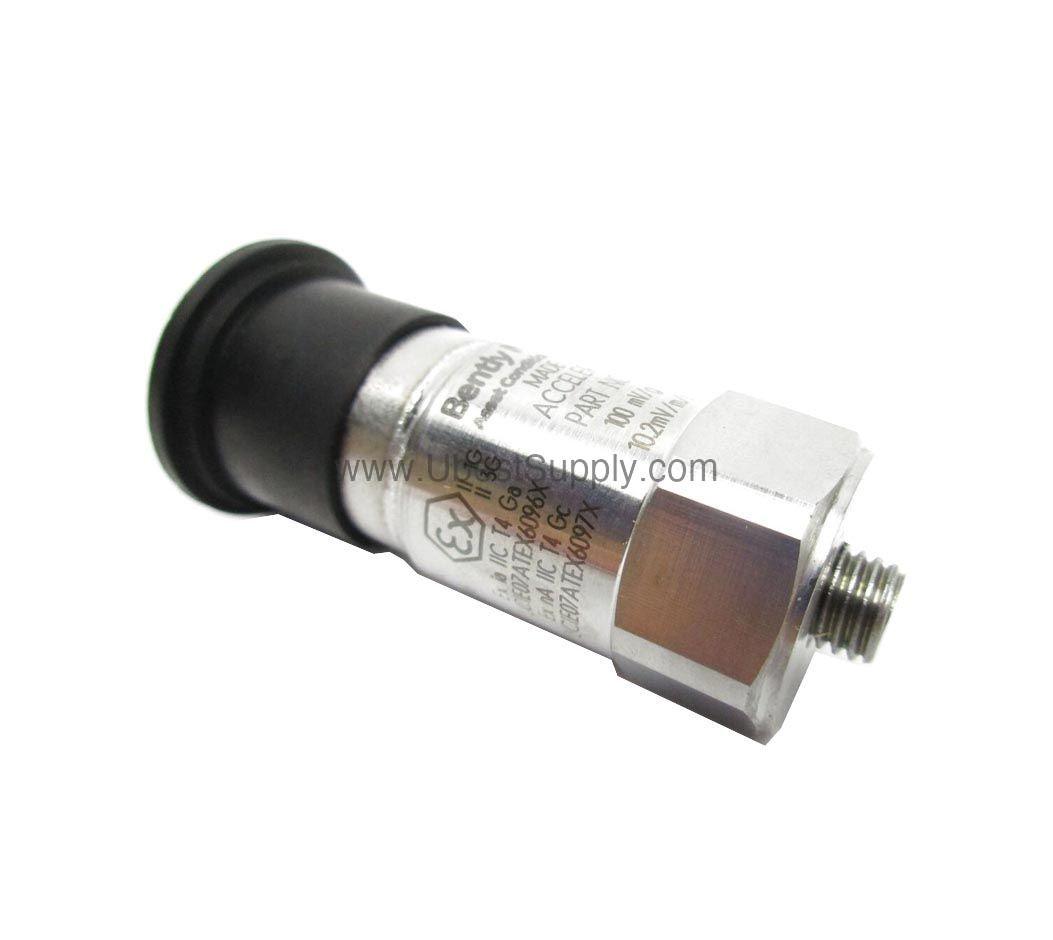

Introduction to the Bently Nevada 200350-02-00-01 Accelerometer

When reliable vibration monitoring is critical, the 200350-02-00-01 from Bently Nevada delivers precise measurements. This accelerometer offers a sensitivity of 100 mV/g ±20% and a measurement range of ±50g, making it suitable for demanding industrial environments. Its welded hermetic stainless steel housing and IP68 enclosure rating ensure durability in harsh conditions.

Key Features & Technical Specs of the 200350-02-00-01

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%)
• Frequency range: 30 to 600,000 cpm (0.5 to 10,000 Hz) ±3 dB
• Measurement range: ±50g
• Output bias voltage: 8 to 12 VDC
• Excitation voltage: 18 to 28 VDC
• Constant current excitation: 2 to 20 mA
• Operating temperature: -65°F to +250°F (-54°C to +121°C)
• Enclosure rating: IP68
• Weight: 0.051 kg

A standout feature is the ceramic shear sensing element, which provides excellent transverse sensitivity (≤7%) and amplitude linearity (±1%). This design enhances accuracy in vibration analysis.

Applications & Use Cases for the 200350-02-00-01

This accelerometer is well-suited for machinery health monitoring in industries such as oil and gas, power generation, and manufacturing. For example, it can detect early bearing faults in pumps or compressors, helping prevent unplanned downtime. Its wide frequency range also supports both low-speed and high-speed rotating equipment.

Installation & Setup Guide

Mount the 200350-02-00-01 using the ¼-28 female thread with a torque of 2 to 5 ft-lb (2.7 to 6.8 N·m). Ensure the mounting surface is clean and flat for optimal coupling. The top-mounted 2-pin Mil-C-5015 connector simplifies wiring, and the stainless steel stud option (¼-28 to M8 x 1.25) provides flexibility.

Maintenance & Reliability Tips

Regularly inspect the cable and connector for damage, especially in condensing humidity environments. The welded hermetic seal and IP68 rating protect against moisture ingress, but periodic checks ensure long-term reliability. Follow Bently Nevada guidelines for calibration intervals.

Compatibility & Integration

The 200350-02-00-01 works with standard vibration monitoring systems that accept IEPE sensors with constant current excitation (2 to 20 mA). Its output bias voltage of 8 to 12 VDC is compatible with most data acquisition modules. For system-specific integration, consult the Bently Nevada documentation.

FAQs about the 200350-02-00-01

Q: What is the sensitivity of the 200350-02-00-01?

A: The sensitivity is 100 mV/g ±20% (10.2 mV/m/s² ±20%).

Q: What is the operating temperature range?

A: It operates from -65°F to +250°F (-54°C to +121°C).

Q: Is the 200350-02-00-01 suitable for hazardous areas?

A: Yes, it has agency approvals for CSA, ATEX, and IECEx.

Q: What is the enclosure rating?

A: The enclosure rating is IP68, meaning it is protected against dust and prolonged immersion.

Q: What is the weight of the accelerometer?

A: It weighs 0.051 kg.

Product Support & Availability

The 200350-02-00-01 is in stock and ready to ship from Petro Auto Tech. Contact our team for pricing and lead time. We provide fast delivery and expert support for your industrial automation needs.
