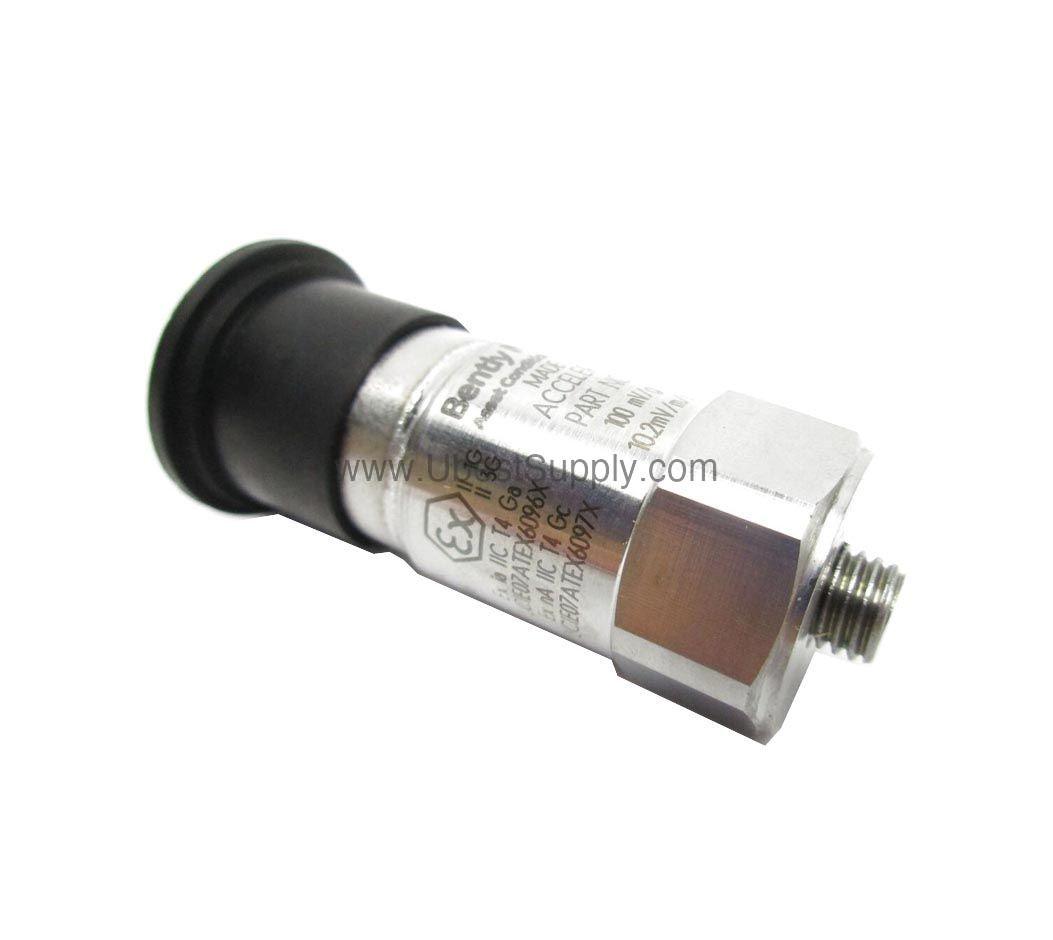

200350-12-00-01 | Bently Nevada 100 mV/g Accelerometer

What Makes the Bently Nevada 200350-12-00-01 Essential for Vibration Monitoring?

When machinery vibration threatens uptime and safety, the 200350-12-00-01 from Bently Nevada provides precise, real-time data. This accelerometer is part of the 200350 series, engineered for permanent installation in demanding settings. With a sensitivity of 100 mV/g ±20% and a measurement range of ±50g, it captures both subtle and severe vibrations. The unit's IP68 enclosure rating and welded hermetic sealing ensure reliable operation even in condensing humidity or submerged conditions. For engineers seeking robust condition monitoring, this sensor delivers consistent performance across a wide frequency range of 30 to 600,000 cpm (0.5 to 10,000 Hz).

Key Features & Technical Specs of the 200350-12-00-01

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%) for accurate vibration measurement.
• Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz) covers most rotating machinery.
• Measurement Range: ±50g enables monitoring of high-amplitude events.
• Output Bias Voltage: 8 to 12 VDC ensures stable signal transmission.
• Excitation Voltage: 18 to 28 VDC with constant current excitation of 2 to 20 mA.
• Broadband Electrical Noise: 350 μg (3,434 μm/s²) from 1 to 10 kHz for clean data.
• Operating Temperature: -65°F to +250°F (-54°C to +121°C) suits extreme environments.
• Enclosure Rating: IP68 protects against dust and prolonged immersion.

A standout spec is the mounted resonant frequency of 1500 kcpm (25 kHz), which allows accurate readings well beyond typical machine speeds, reducing aliasing errors.

Real-World Applications for the 200350-12-00-01

This accelerometer excels in continuous vibration monitoring on pumps, fans, compressors, and motors. In oil and gas facilities, its CSA, ATEX, and IECEx agency approvals make it suitable for hazardous areas. The stainless steel housing and welded hermetic seal withstand corrosive environments. By integrating this sensor into a condition monitoring system, maintenance teams can detect bearing wear or imbalance early, preventing unplanned downtime.

Installation & Setup Guide

Mount the 200350-12-00-01 using the M8x1.25 adhesive stud mount (option 12) or the 1/4-28 female thread. Apply a maximum mounting torque of 2 to 5 ft-lb (2.7 to 6.8 N-m). The top-mounted 2-pin Mil-C-5015 connector simplifies wiring. Ensure excitation voltage between 18 and 28 VDC and constant current of 2 to 20 mA. Allow a settling time of 2.0 seconds within 1% of bias before taking measurements. For best results, follow the manufacturer's installation manual.

Maintenance & Reliability Tips

Routine inspection of the 200350-12-00-01 includes verifying the connector integrity and checking for physical damage. The welded hermetic seal and stainless steel construction minimize corrosion risk. In condensing humidity environments, the IP68 rating ensures internal components stay dry. Regular calibration checks against a known reference maintain measurement accuracy. For critical machinery, schedule periodic verification per the OEM's guidelines to extend service life.

Common Questions About the 200350-12-00-01

Q: What is the sensitivity tolerance of the 200350-12-00-01?

A: The sensitivity is 100 mV/g ±20% (10.2 mV/m/s² ±20%), as specified in the datasheet.

Q: Can this accelerometer be used in hazardous locations?

A: Yes, the 200350-12-00-01 carries CSA, ATEX, and IECEx agency approvals for use in explosive atmospheres.

Q: What is the output bias voltage range?

A: The output bias voltage is 8 to 12 VDC, ensuring compatibility with most monitoring systems.

Q: What mounting options are available?

A: The part number includes an M8x1.25 adhesive stud mount, and the sensor also has a 1/4-28 female thread for alternative mounting.

Q: What is the operating temperature range?

A: The unit operates from -65°F to +250°F (-54°C to +121°C), suitable for extreme industrial environments.

Product Support & Availability

The 200350-12-00-01 is in stock and ready to ship from Petro Auto Tech. As an industrial automation parts supplier, we offer fast fulfillment and expert support. Please verify current lifecycle status and availability with Petro Auto Tech before ordering.
