2094-BC07-M05-M | Allen-Bradley Kinetix 6000 Integrated Axis Module - Petro Auto Tech

Product Overview

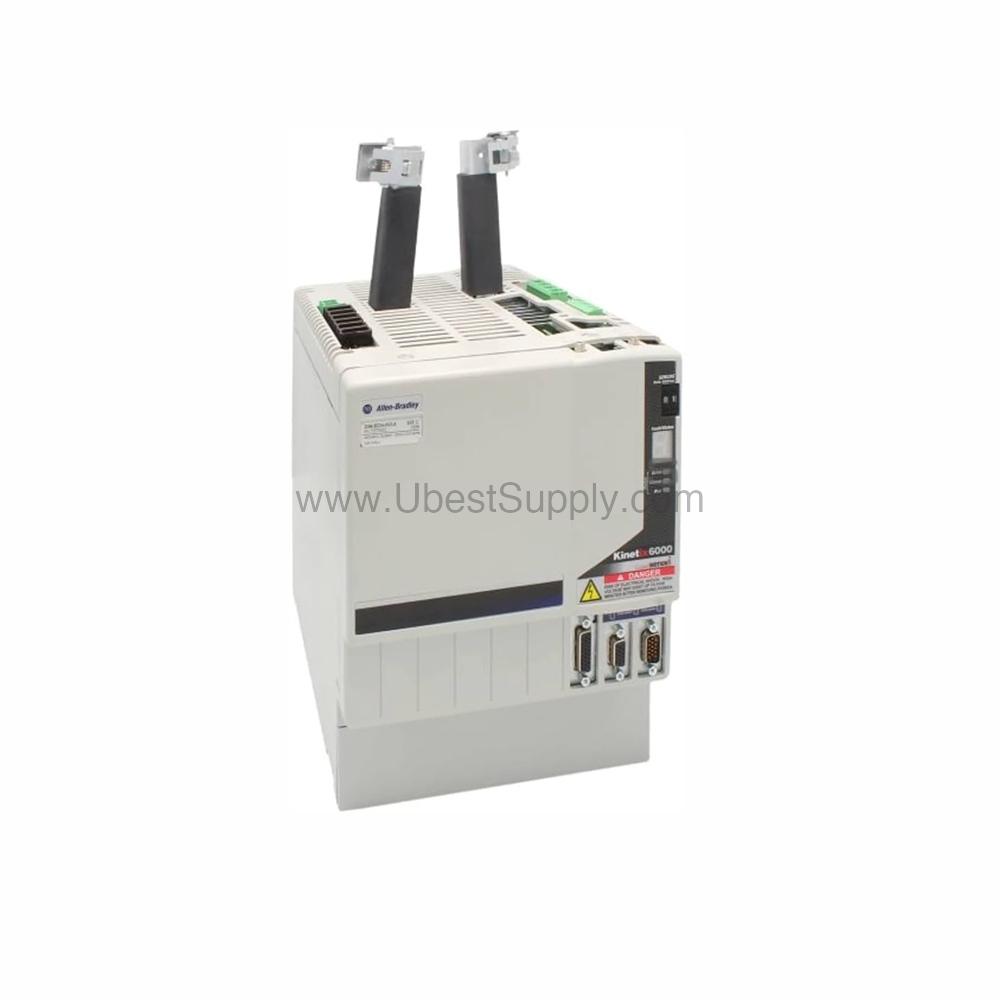

The 2094-BC07-M05-M is an Allen-Bradley Kinetix 6000 Integrated Axis Module. This module functions as a converter and inverter for multi-axis servo drive systems. It delivers reliable power conversion for demanding industrial automation applications. Rockwell Automation manufactures this high-performance module.

Technical Specifications Analysis

The 2094-BC07-M05-M operates with a nominal drive voltage of 360-480 Volts (3 Phase). The converter section outputs 45 kW, while the inverter section delivers 49 A. Continuous output current to the bus is 67.7 A. Power dissipation ranges from 71 to 226 Watts. Operating temperature spans 32-122 F (0-50 C). Dimensions are 7.7 x 11.9 x 16.7 in (196 x 302 x 426 mm) and weight is 22.0 lbs (9.98 kg). Maximum bus capacitance is 17,915 microfarads. The module requires a minimum enclosure depth of 302 mm (11.9 in) and installation clearance of 80 mm (3.10 in).

Application Scenarios & Usage Methods

Integrate the 2094-BC07-M05-M into Kinetix 6000 systems for precise motion control in packaging, material handling, and assembly lines. Use the 45 kW converter rating to power multiple servo axes. The 49 A inverter rating supports high-torque applications. Connect the module to a 360-480VAC three-phase supply. Configure the control input fuse as FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A). Select the control input breaker as 1492-SPM2D060 or 1492-SPM1D150.

Installation Guide & Packing List

Mount the module in a clean, dry enclosure with adequate airflow. Maintain the specified clearance of 80 mm (3.10 in) for proper ventilation. Ensure the enclosure depth meets the minimum 302 mm (11.9 in). Use the recommended DC bus power fuse: Bussmann FWJ-125A or Mersen equivalent. The package includes the 2094-BC07-M05-M Integrated Axis Module. Verify all components before installation.

Purchasing Advice

Verify that your system voltage matches the 360-480VAC input range. Confirm the converter and inverter ratings meet your load requirements. Choose Petro Auto Tech for genuine Allen-Bradley products and fast delivery. Our team can help you select the correct module for your application.

Repair & Maintenance Tips

Periodically inspect the module for dust accumulation and clean with dry compressed air. Check all connections for tightness. Monitor operating temperature to stay within 32-122 F (0-50 C). Replace fuses only with the specified types. Keep the module powered off during maintenance.

Frequently Asked Questions (FAQs)

Q: What is the input voltage range for the 2094-BC07-M05-M?

A: The nominal drive voltage is 360-480 Volts (3 Phase).

Q: What is the converter section output rating?

A: The converter section outputs 45 kW.

Q: What is the inverter section output rating?

A: The inverter section outputs 49 A.

Q: What are the dimensions and weight of this module?

A: Dimensions are 7.7 x 11.9 x 16.7 in (196 x 302 x 426 mm) and weight is 22.0 lbs (9.98 kg).

Q: What is the operating temperature range?

A: The operating temperature is 32-122 F (0-50 C).
