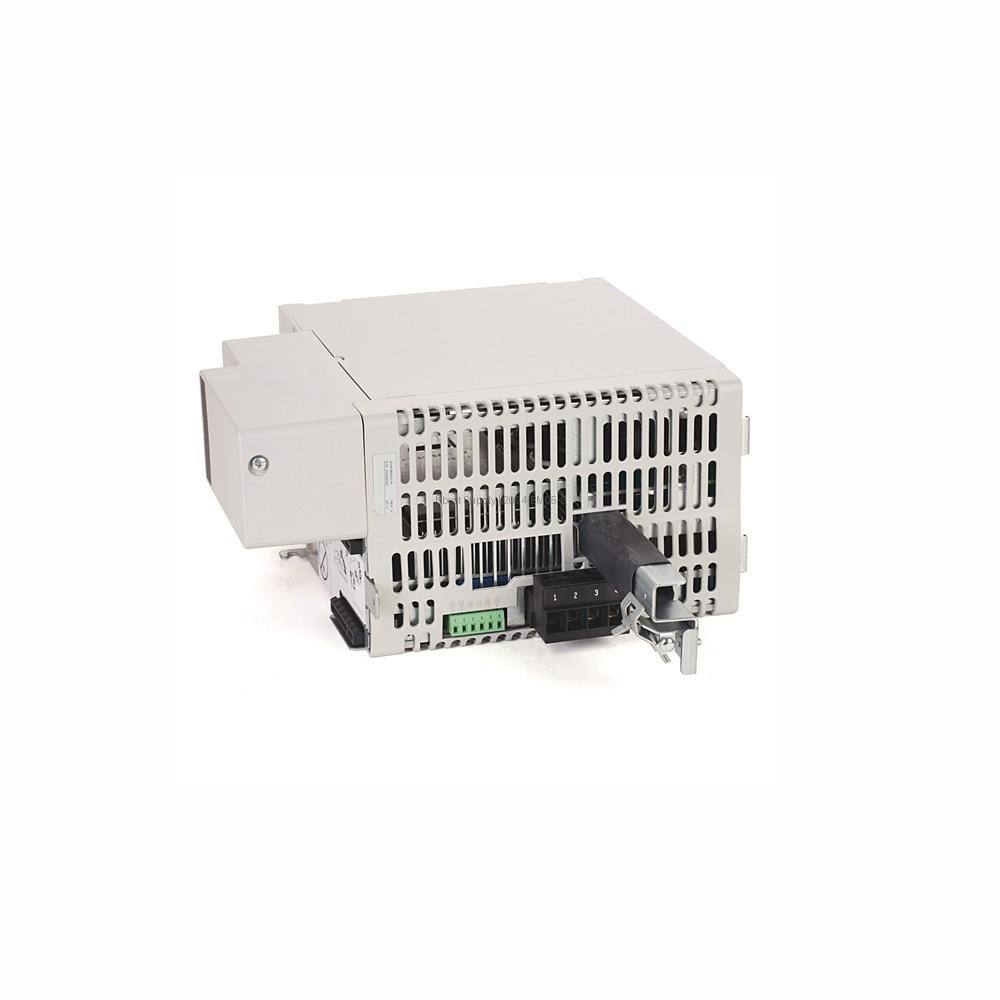

2094-BM05-S Integrated Axis Module by Allen-Bradley 400V

Product Overview

The Allen-Bradley 2094-BM05-S is a robust Integrated Axis Module. It belongs to the AM 400 Volt Class. This module handles a nominal drive voltage of 360-480 Volts. It provides a continuous output current of 34.6 A. The peak current reaches 69.2 A. This unit achieves an impressive 98% efficiency. It includes an internal shunt resistor rated at 28.75 Ohms. The module supports Safe Torque-off functionality. This feature meets Performance Level e and SIL 3 standards. It is certified by ISO 13849-1.

Application Scenarios

This module works best in high-performance motion control systems. Use it for packaging, printing, and converting machinery. It also suits material handling and metal forming applications. The 400V class design fits global industrial power systems. The high continuous power output supports demanding servo applications. The integrated shunt handles regenerative energy effectively.

Technical Specifications

The module has a nominal input voltage of 650 Volts DC. It delivers a continuous output current of 34.6 A. The sine continuous current is 48.9 A. The peak current capability is 69.2 A. It provides 22.0 kW of continuous power. The velocity loop bandwidth is 500 Hertz. The current loop bandwidth is 1300 Hertz. The PWM frequency is set at 4 kHz. The internal shunt handles 200W continuous power. It can manage 22.5 kW of peak power. The short-circuit current rating is 200,000 A symmetrical. The total capacitance is 1175 µF.

Installation & Maintenance Guide

Mount the module in a clean, dry cabinet. Ensure proper airflow for cooling. Connect the three-phase power supply correctly. Use shielded cables for feedback and communication. Tighten all terminals to the specified torque. Perform regular visual inspections. Check for dust buildup on the heatsink. Verify all connections remain secure. Do not operate with damaged components.

Packing List

The package includes one Allen-Bradley 2094-BM05-S Integrated Axis Module. It also contains a quick start guide. The product is packed in anti-static packaging. We ship using Fedex, UPS, or DHL. Your order will be processed promptly.
