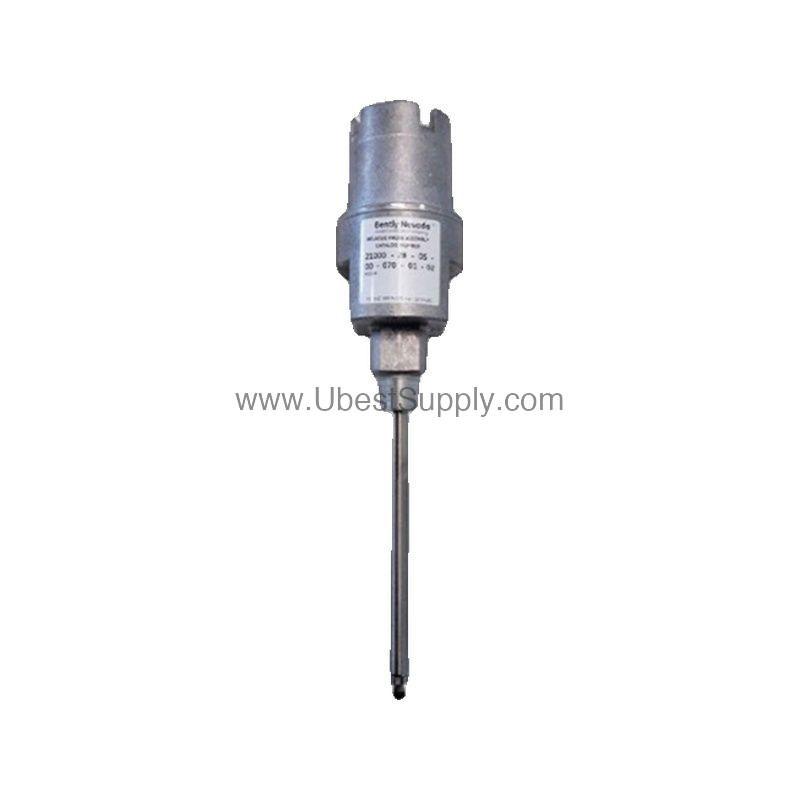

21000-34-05-15-066-04-02 | Bently Nevada 0.5m Cable Proximity Probe Housing Assembly

Introduction to the Bently Nevada 21000-34-05-15-066-04-02

When harsh industrial environments demand reliable vibration monitoring, the 21000-34-05-15-066-04-02 from Bently Nevada delivers robust performance. This proximity probe housing assembly is engineered for externally mounted probes in hazardous areas. Its aluminum body with a 304 stainless steel sleeve ensures durability in demanding conditions. With CSA Type 4 enclosure certification, it meets API 670 standards for safety and reliability.

Key Features and Technical Specs of the 21000-34-05-15-066-04-02

• Probe Option: 3300 XL 8 mm probe with connector protector and selectable hazardous area approvals.
• Probe Cable Length: 0.5 m (20 in).
• Standoff Adapter: 1.5 in.
• Probe Penetration: 6.6 in.
• Fitting Option: One 3/4-14 NPT plug only.
• Mounting Thread: 3/4-14 NPT.
• Material: Aluminum body with 304 stainless steel sleeve.
• Maximum (C) + (D) Dimension: 13.5 in (34.3 cm).
• Weight: 1.1 kg (2.4 lb) typical, without fittings.

The unique 0.5 m probe cable length provides flexibility for tight installations. This assembly includes a dome cover, threaded ports, probe sleeve, O-rings, reverse mount probe, thread seal, and optional conduit fittings.

Applications and Use Cases for the Bently Nevada 21000-34-05-15-066-04-02

Industries such as oil and gas, power generation, and petrochemical rely on this housing for critical machinery protection. It monitors vibration in pumps, compressors, and turbines. The CSA explosion-proof rating makes it suitable for hazardous environments. Additionally, its compliance with API 670 ensures consistent performance in externally mounted configurations.

Installation and Setup Guide

Mount the housing using the 3/4-14 NPT thread for secure conduit connections. Ensure the standoff adapter is correctly positioned to achieve the required probe penetration of 6.6 in. Verify that the probe cable length of 0.5 m is sufficient for your routing path. Always follow the manufacturer's manual for proper torque and sealing.

Maintenance and Reliability Tips

Regularly inspect the O-rings and thread seal for wear to maintain environmental integrity. Check the dome cover for tightness to prevent moisture ingress. The aluminum and stainless steel construction resists corrosion, extending service life. For long-term reliability, verify the probe and cable condition during routine shutdowns.

Compatibility and Integration

The 21000-34-05-15-066-04-02 integrates with Bently Nevada monitoring systems and third-party vibration analyzers. It accepts 3300 XL 8 mm probes with connector protectors. The housing supports selectable hazardous area approvals for intrinsically safe applications. Use with appropriate conduit fittings for explosion-proof installations.

Frequently Asked Questions about the 21000-34-05-15-066-04-02

Q: What is the probe cable length of the 21000-34-05-15-066-04-02?

A: The probe cable length is 0.5 m (20 in).

Q: What is the standoff adapter length for this model?

A: The standoff adapter length is 1.5 in.

Q: Is the 21000-34-05-15-066-04-02 suitable for hazardous areas?

A: Yes, it offers selectable hazardous area approvals and is CSA rated explosion-proof when ordered with appropriate options.

Q: What is the weight of the housing assembly?

A: The typical weight is 1.1 kg (2.4 lb) without fittings.

Q: What material is the housing made of?

A: The housing has an aluminum body with a 304 stainless steel sleeve.

Product Support and Availability

The 21000-34-05-15-066-04-02 is in stock and ready to ship from Petro Auto Tech. As a trusted supplier of industrial automation parts, we ensure fast delivery and genuine Bently Nevada products. Contact our team for ordering assistance or technical inquiries.
