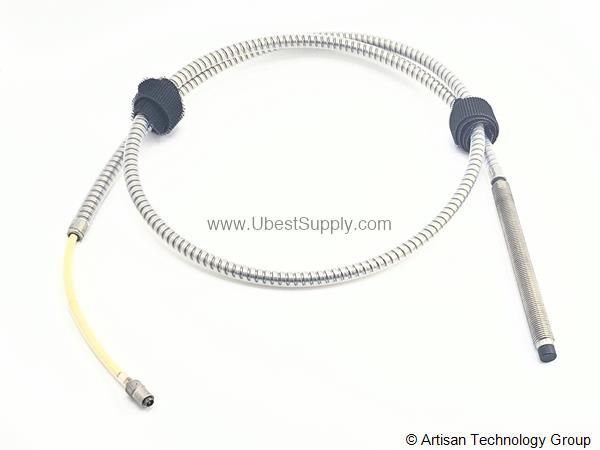

21505-00-60-05-02 | Bently Nevada 8mm Proximity Probe 0.5m

Introduction: Solving Vibration Monitoring Challenges

When rotating machinery begins to vibrate unexpectedly, the 21505-00-60-05-02 from Bently Nevada provides the precise measurement needed to diagnose issues before they escalate. This 8 mm proximity probe is engineered for continuous vibration monitoring in industrial environments, offering a calibrated range of 80 mils (2.0 mm) that begins at approximately 10 mils (0.25 mm) from the probe face. With a scale factor of 200 mV/mil (7.87 V/mm), it translates physical displacement into clear electrical signals.

As part of the 7200 Proximity Transducer Systems, this model is built to withstand harsh conditions. Its stainless steel lead armor protects the cable, while the probe and extension cable operate reliably from -30°F to +350°F (-34°C to +177°C). The Proximitor electronics handle temperatures from -60°F to +212°F (-51°C to +100°C). This makes the 21505-00-60-05-02 suitable for demanding applications where accuracy and durability are non-negotiable.

Key Features and Technical Specifications

• Part Number: 21505-00-60-05-02 – Bently Nevada 8 mm proximity probe.
• Total Length: 0.5 metre (20 inches) – fits tight installations.
• Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.
• Calibrated Range: 80 mils (2.0 mm), starting at approximately 10 mils (0.25 mm) from the probe face.
• Scale Factor: 200 mV/mil (7.87 V/mm), ±4% when calibrated as a system.
• Linearity: Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line (system-calibrated).
• Frequency Response: 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz.
• Temperature Sensitivity: Typically -3% change in scale factor at +150°F (+65°C) at 50 mils gap (1.27 mm).
• Operating Temperature: Proximitor: -60°F to +212°F (-51°C to +100°C); Probe and extension cable: -30°F to +350°F (-34°C to +177°C).
• Relative Humidity: Up to 95%, noncondensing.
• System Weight: 1.3 lbs (0.59 kg).

One distinctive feature is the 8 mm diameter with 3/8-24 threads, which allows for standard mounting in existing sensor ports. The miniature male coaxial connector ensures a secure signal connection, while the stainless steel armor protects against physical damage. This combination of rugged construction and precise electronics makes the 21505-00-60-05-02 a reliable choice for continuous vibration monitoring.

Real-World Applications

In petrochemical plants, the 21505-00-60-05-02 monitors pump and compressor vibration, helping to prevent unplanned downtime. Its corrosion resistance to air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, and DMF ensures reliable operation even when exposed to process chemicals.

For power generation facilities, this probe provides critical data for turbine shaft vibration analysis. The frequency response up to 10 kHz captures both low-speed and high-speed machine dynamics. Additionally, in steel mills, the rugged stainless steel armor withstands the harsh environment while delivering accurate measurements.

Because the probe begins sensing at only 10 mils from the target, it can detect early signs of shaft misalignment or bearing wear. This early warning capability is essential for predictive maintenance programs, allowing maintenance teams to schedule repairs before catastrophic failure occurs.

Installation and Setup

Proper installation is crucial for accurate readings. First, mount the probe using the 3/8-24 threaded case, ensuring the face is positioned at the recommended gap (approximately 10 mils from the target surface). Use the supplied miniature male coaxial connector to attach the extension cable, and route the cable away from high-voltage sources to avoid interference.

Next, connect the power supply within the specified range of -17.5 Vdc to -26 Vdc. Verify that the output signal is within the expected scale factor of 200 mV/mil. If the reading seems off, check the gap and re-calibrate the system as needed. Always follow the manufacturer's installation manual for detailed torque and clearance specifications.

For best results, use the probe as part of a complete Bently Nevada 7200 system, which includes the Proximitor and extension cable. This ensures that all components are matched and calibrated together, maximizing accuracy.

Maintenance and Reliability

Routine inspection of the probe and cable is recommended to ensure long-term reliability. Check for any physical damage to the stainless steel armor, and verify that the connector remains secure. Because the probe is exposed to process fluids, periodically inspect for corrosion or buildup, even though the probe is designed to resist common chemicals.

The temperature sensitivity of typically -3% at +150°F means that in high-temperature environments, you may need to compensate readings. However, for most applications, this variation is acceptable. The system weight of 1.3 lbs makes it easy to handle during maintenance.

By following a simple inspection schedule, you can extend the service life of the 21505-00-60-05-02 and avoid unexpected failures. Regular verification of the output signal against a known gap will confirm that the probe is still within its linear range.

Compatibility and Integration

The 21505-00-60-05-02 is part of the Bently Nevada 7200 Proximity Transducer Systems. It is designed to work with compatible Bently Nevada monitors and diagnostic equipment. The 8 mm probe size is a common standard, making it easy to integrate into existing machinery monitoring setups.

For new installations, pair this probe with the appropriate Proximitor and extension cable from the 7200 series. The system provides a 200 mV/mil output that can be fed into vibration monitoring systems for trend analysis and alarm generation. Ensure that the power supply meets the -17.5 Vdc to -26 Vdc requirement to maintain accurate readings.

Troubleshooting Common Issues

If the output signal is unstable, first check the gap between the probe face and the target. The calibrated range begins at approximately 10 mils, so ensure the gap is within that range. Also, verify that the power supply voltage is within the specified limits.

Another common issue is signal noise, which can be caused by improper grounding or cable routing. Keep the extension cable away from high-voltage lines and ensure the connector is tight. If the problem persists, consult the Bently Nevada documentation or contact Petro Auto Tech for technical support.

FAQs about the 21505-00-60-05-02

Q: What is the calibrated range of the 21505-00-60-05-02?

A: The calibrated range is 80 mils (2.0 mm), starting at approximately 10 mils (0.25 mm) from the probe face.

Q: What power supply is required?

A: The probe requires -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.

Q: What is the frequency response?

A: The frequency response is 0 to 10 kHz (0 to 600,000 cpm), with -5% at 10 kHz.

Q: What is the operating temperature range?

A: The Proximitor operates from -60°F to +212°F (-51°C to +100°C), and the probe and extension cable from -30°F to +350°F (-34°C to +177°C).

Q: Is the probe corrosion resistant?

A: Yes, for 8 mm probes, operation is not affected by direct contact with air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, or DMF.

Product Support and Availability

The 21505-00-60-05-02 is available from Petro Auto Tech as a new and original product in factory packing. It comes with a 12-month factory warranty. For technical questions or ordering assistance, contact Petro Auto Tech directly.
