2300/20_KIT-005-00 | Bently Nevada 1.03 kg Condition Monitoring Kit

Introduction to the Bently Nevada 2300/20_KIT-005-00

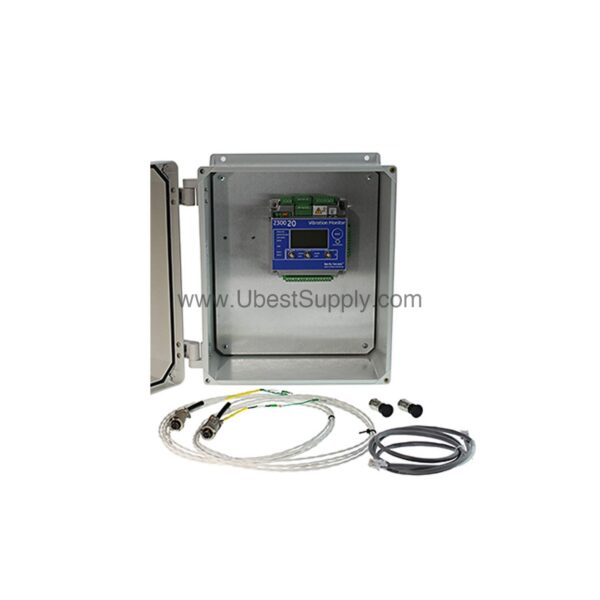

When machinery health is critical, the 2300/20_KIT-005-00 provides a complete condition monitoring solution. This kit from Bently Nevada includes a 2300/20 monitor, a Velomitor sensor, and a housing kit, all engineered for dependable operation.

As a maintenance engineer, you need accurate data to prevent unplanned downtime. This kit delivers just that, with configurable channels and robust design.

Key Features and Technical Specifications

• Weight: 1.03 kg (2.26 lbs) for easy handling.
• Dimensions: 127 mm x 127 mm x 76.2 mm (5 in. x 5 in. x 3 in.).
• Power input: 18–36 Vdc, max 7.5 W.
• Two 4-20 mA outputs with internal current loop power supply.
• Load resistance: 0 to 600 Ω.
• Resolution: 0.3662 µA.
• Accuracy: 1% over operating temperature range.
• Update rate: 100 ms.
• Ethernet communication: 10Base-T and 100Base-TX, conforms to IEEE802.3.
• Cable length: 100 meters (328 ft.) maximum.

Each input channel uses an independent 24-bit ADC for precise measurement. The monitor supports accelerometers, velocity sensors, and proximity transducers, with configurable bandpass filters from 0.2 Hz to 20 kHz.

Applications and Use Cases

In rotating machinery monitoring, the 2300/20_KIT-005-00 excels at tracking vibration and speed. It is ideal for pumps, fans, compressors, and motors where early fault detection saves costs.

For example, in a chemical plant, continuous vibration monitoring helps avoid catastrophic failures. The kit's configurable channels adapt to different sensor types, making it versatile across various assets.

Moreover, the 4-20 mA outputs integrate easily with existing PLC or DCS systems, providing real-time data for process control.

Installation and Setup

Mounting is flexible: panel mount or DIN rail (adapter included). The housing kit (105M6193-01) is fiberglass for nonhazardous areas, while an optional stainless steel version (105M6193-03) is available for hazardous areas.

Connect the shielded Ethernet cable (6 ft. / 1.8 m included) to your network. Ensure the power supply is within 18–36 Vdc and does not exceed 7.5 W.

For 4-20 mA outputs, note that they do not work with an external powered loop. Use the internal current loop power supply only.

Maintenance and Reliability

Regular inspection of the monitor and sensor connections ensures consistent performance. The unit operates in temperatures from -30°C to +65°C, and storage from -40°C to +85°C.

With a real-time clock battery life of 38 years powered (at 50°C) and 12 years unpowered, the 2300/20_KIT-005-00 is built for long-term reliability.

Following the manufacturer's manual for periodic checks will help maintain accuracy and extend service life.

Compatibility and Integration

The 2300/20 monitor communicates via Ethernet, supporting 10Base-T and 100Base-TX networks. It integrates with Bently Nevada System 1 software for advanced diagnostics.

In case of network disruption, the monitor can store up to at least 5 alarm data captures (requires System 1 Evolution 21.1 or newer and Firmware release 3.2 or newer).

The kit includes a Velomitor sensor (330500) with a 17 ft. (5.2 m) cable, ready for installation.

Troubleshooting Common Issues

If the monitor shows a protection fault, check for hardware issues affecting alarm determination. The OK LED indicates proper operation.

For communication problems, verify Ethernet cable length does not exceed 100 meters. Ensure the network is configured for 10/100 Mbps.

If the 4-20 mA output is not working, confirm that no external power is connected to the loop.

FAQ about the 2300/20_KIT-005-00

Q: What is the power requirement for the 2300/20_KIT-005-00?

A: The monitor accepts 18–36 Vdc input, with a maximum power consumption of 7.5 W.

Q: Can the 2300/20_KIT-005-00 be used in hazardous areas?

A: Yes, with the optional stainless steel housing (105M6193-03) designed for hazardous areas.

Q: What is the accuracy of the 4-20 mA outputs?

A: The accuracy is 1% over the operating temperature range, with a resolution of 0.3662 µA.

Q: How many 4-20 mA outputs are available?

A: Two 4-20 mA outputs are provided, with internal current loop power supply.

Q: What is the maximum cable length for Ethernet?

A: The maximum cable length is 100 meters (328 ft.).

Support and Availability

The 2300/20_KIT-005-00 is available from Petro Auto Tech. Contact us for current lifecycle status and availability before ordering.
