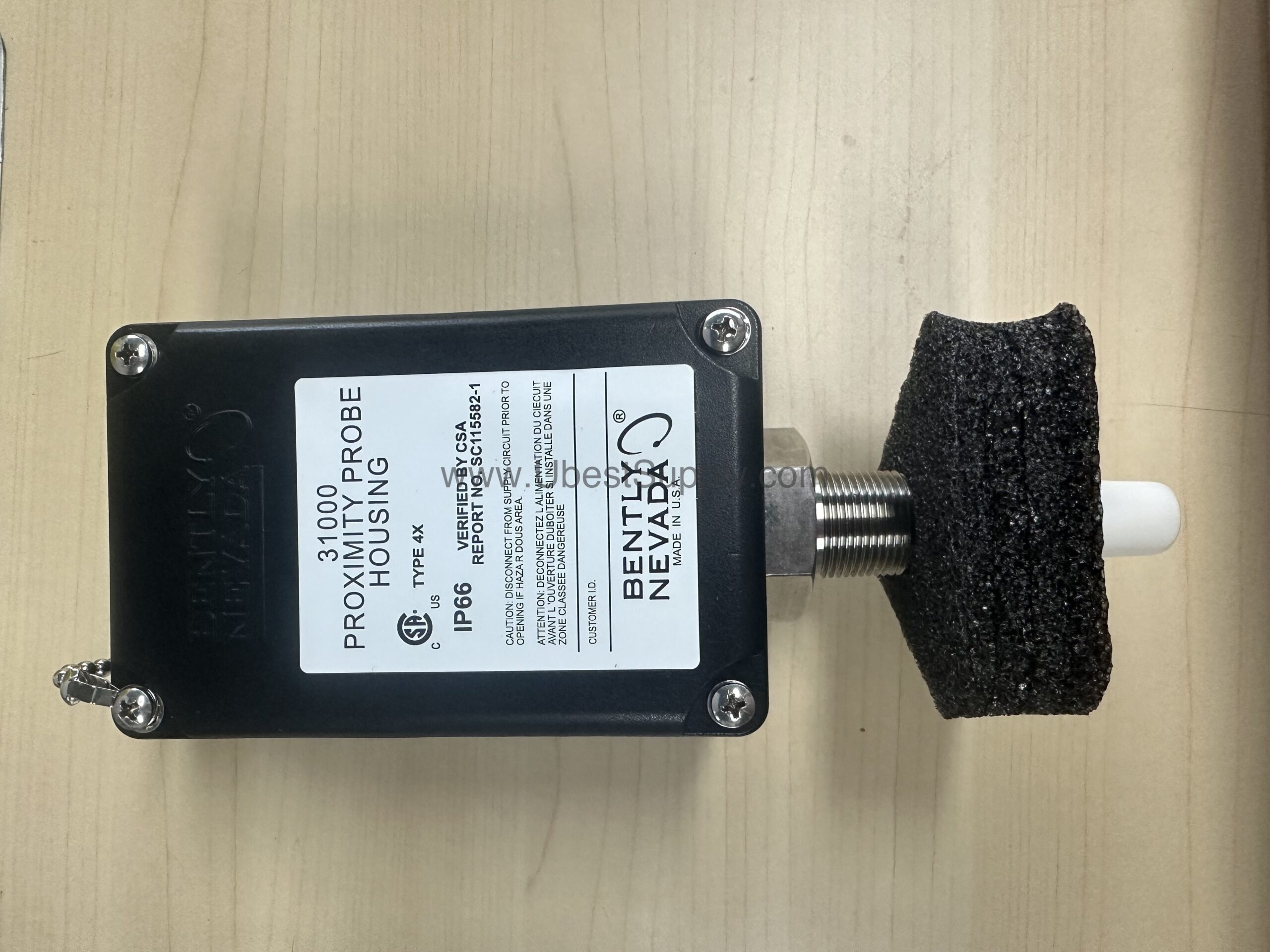

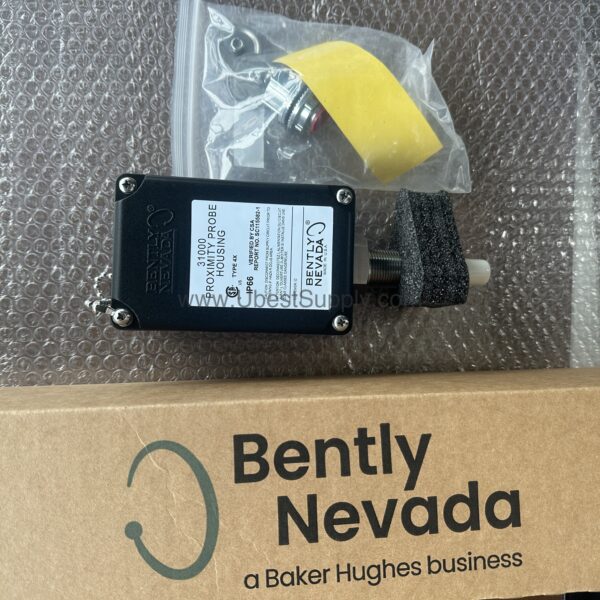

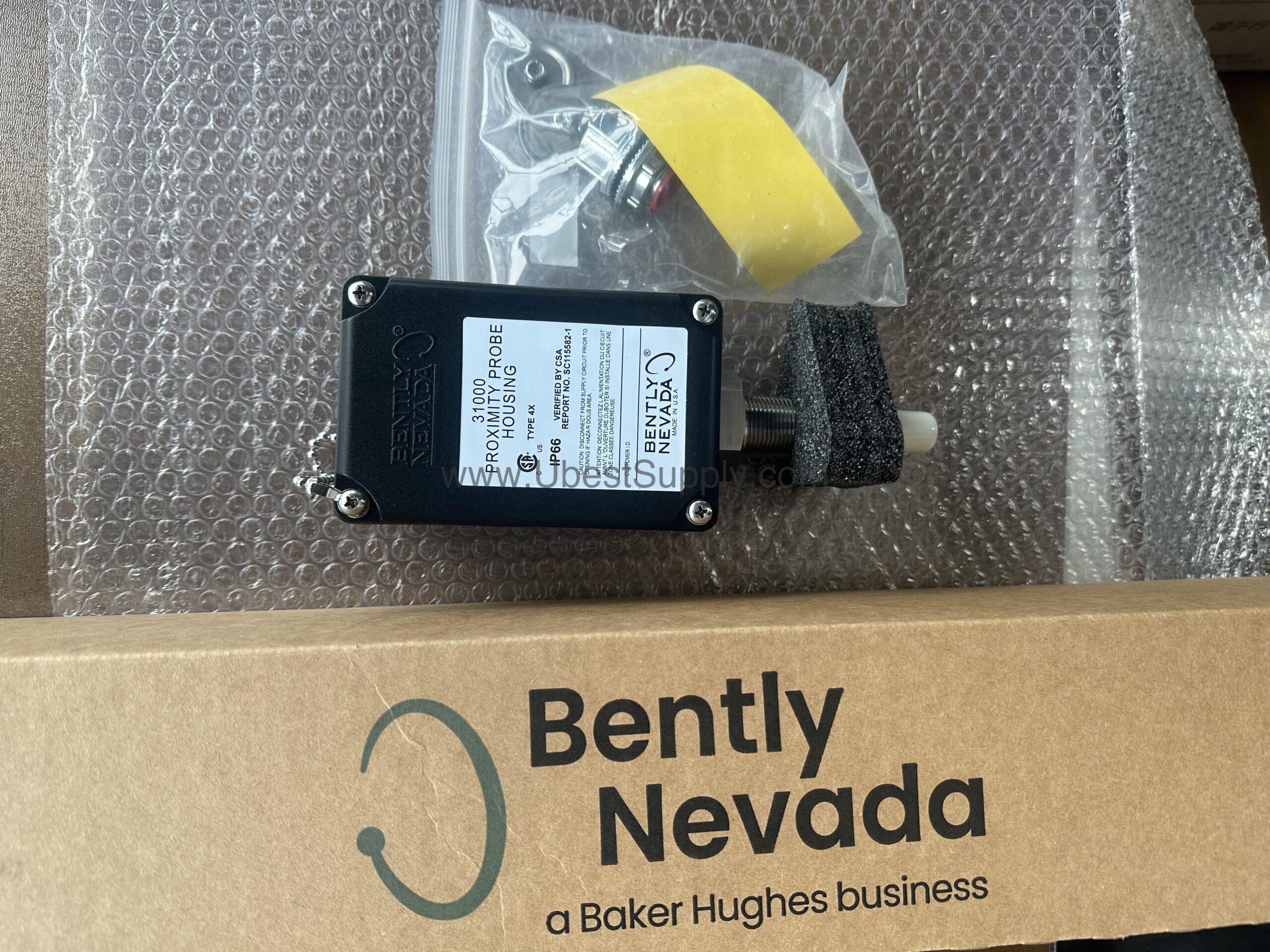

31000-16-10-00-154-00-02 | Bently Nevada 8 mm Probe Housing

Why Choose the 31000-16-10-00-154-00-02?

When your rotating machinery demands reliable vibration monitoring, the 31000-16-10-00-154-00-02 from Bently Nevada stands ready. This 31000 series proximity probe housing is engineered to protect a 3300 XL 8 mm probe in demanding industrial settings. It combines rugged construction with precise specifications to deliver consistent performance. Consequently, you can trust it for critical asset protection.

Key Features and Technical Specifications

The 31000-16-10-00-154-00-02 is built with materials chosen for durability and safety. Its housing is made of glass-reinforced polyphenylene sulfide (PPS) thermoplastic containing conductive fibers, which helps dissipate electrostatic charge. The sleeve and retaining chain use AISI 304 stainless steel, while the outer sleeve and exterior screws are AISI 303 stainless steel. Moreover, the O-ring is made of Neoprene® for a reliable seal.

• Probe option: 3300 XL 8 mm probe with connector
• Probe cable length: 1.0 m (39 in)
• Probe penetration: 15.4 in
• Mounting thread: 3/4-14 NPT
• Temperature rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg (2.6 lb) typical
• Housing impact strength: certified by BASEEFA to withstand 4 Joule impacts at -39°C and 115°C; CSA verified 7 Joule impact at ambient temperature

These specifications ensure the housing can withstand physical abuse and extreme temperatures. Therefore, it is suitable for many industrial environments.

Real-World Applications

This housing is ideal for use in turbomachinery, pumps, compressors, and other rotating equipment where proximity probes monitor shaft vibration and position. For example, in a petrochemical plant, the 31000-16-10-00-154-00-02 can protect the probe from harsh weather and potential impacts. Furthermore, its IP66 rating means it resists dust and water ingress, making it reliable outdoors. Additionally, the Type 4X rating (CSA certified) ensures corrosion resistance. Hence, it is a versatile choice for many industries.

Installation and Setup

Proper installation is crucial for accurate readings. First, mount the housing securely using the 3/4-14 NPT thread. Then, insert the 3300 XL 8 mm probe and adjust the penetration to 15.4 in as needed. The recommended torque for the retaining nut is 29.4 N·m (260 in·lb). After that, connect the probe cable (1.0 m) to your monitoring system. Finally, verify the probe gap according to the manufacturer's instructions.

Maintenance and Reliability

Regular inspection helps maintain performance. Check the housing for cracks or damage, especially after any impact. Also, inspect the O-ring and seals for wear. Because the housing is made of PPS with conductive fibers, it is designed to dissipate static electricity, reducing ignition risk in hazardous areas. Consequently, routine checks ensure long-term reliability and safety.

Compatibility and Integration

The 31000-16-10-00-154-00-02 is designed for use with Bently Nevada 3300 XL 8 mm proximity probes. It is part of the 31000 series, which is widely used in vibration monitoring systems. Therefore, it integrates seamlessly with Bently Nevada monitors and software. For other systems, consult the official documentation to confirm compatibility.

Frequently Asked Questions

What is the temperature range for the 31000-16-10-00-154-00-02?

The housing operates from -51°C to +105°C (-60°F to +221°F), making it suitable for extreme environments.

What probe does this housing accommodate?

It accommodates a 3300 XL 8 mm probe with a connector, as indicated by the probe option code 16.

What is the mounting thread size?

The mounting thread option is 3/4-14 NPT, which is required if you order a standoff adapter.

What is the weight of the housing?

The typical weight is 1.2 kg (2.6 lb).

Is the housing suitable for hazardous areas?

Yes, it has a CENELEC EN50014 rating for electrostatic dissipation of plastic material in hazardous areas.

Product Support and Availability

The 31000-16-10-00-154-00-02 is available through Petro Auto Tech, your trusted industrial automation parts supplier. We offer competitive pricing and fast shipping. Contact our team for availability and ordering assistance.
