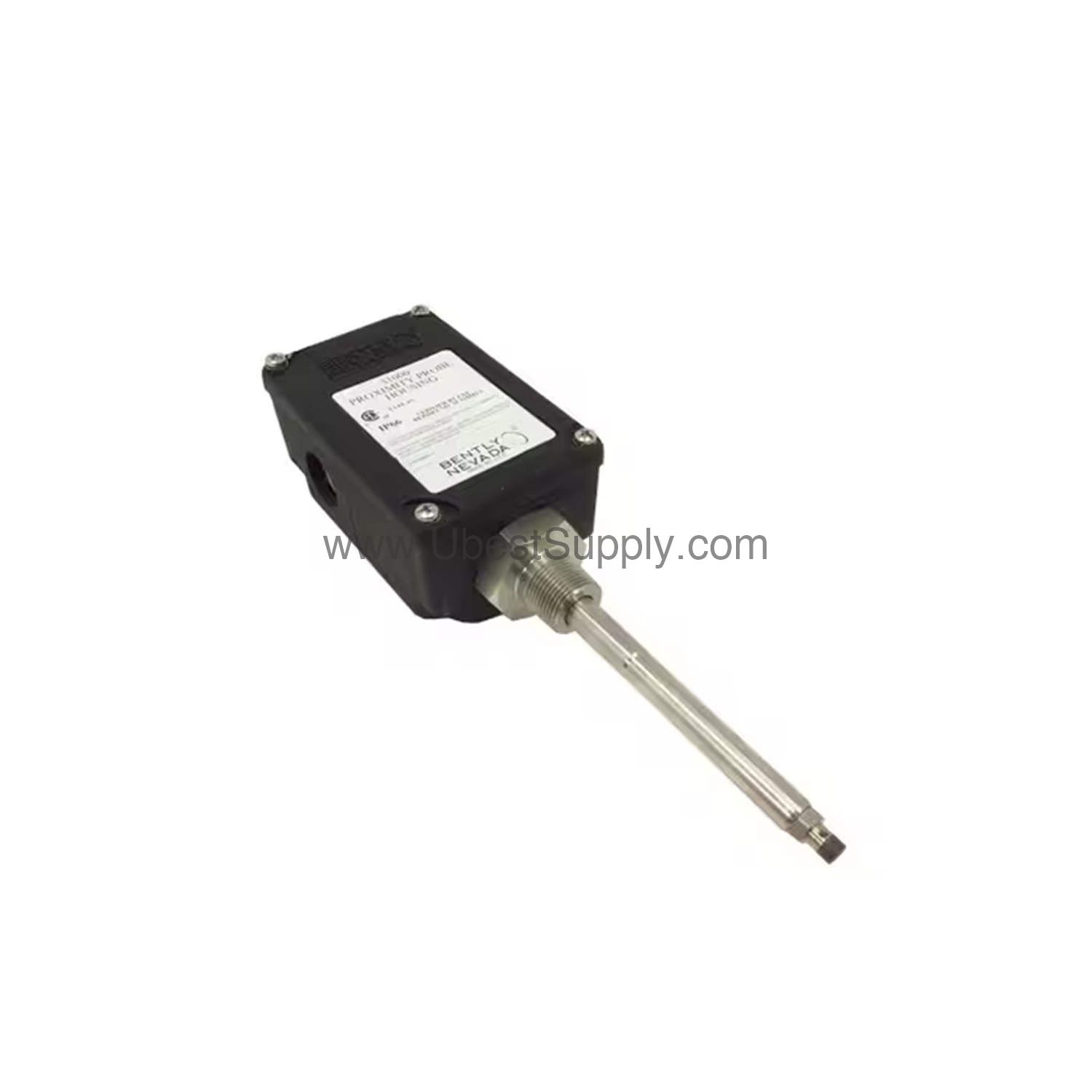

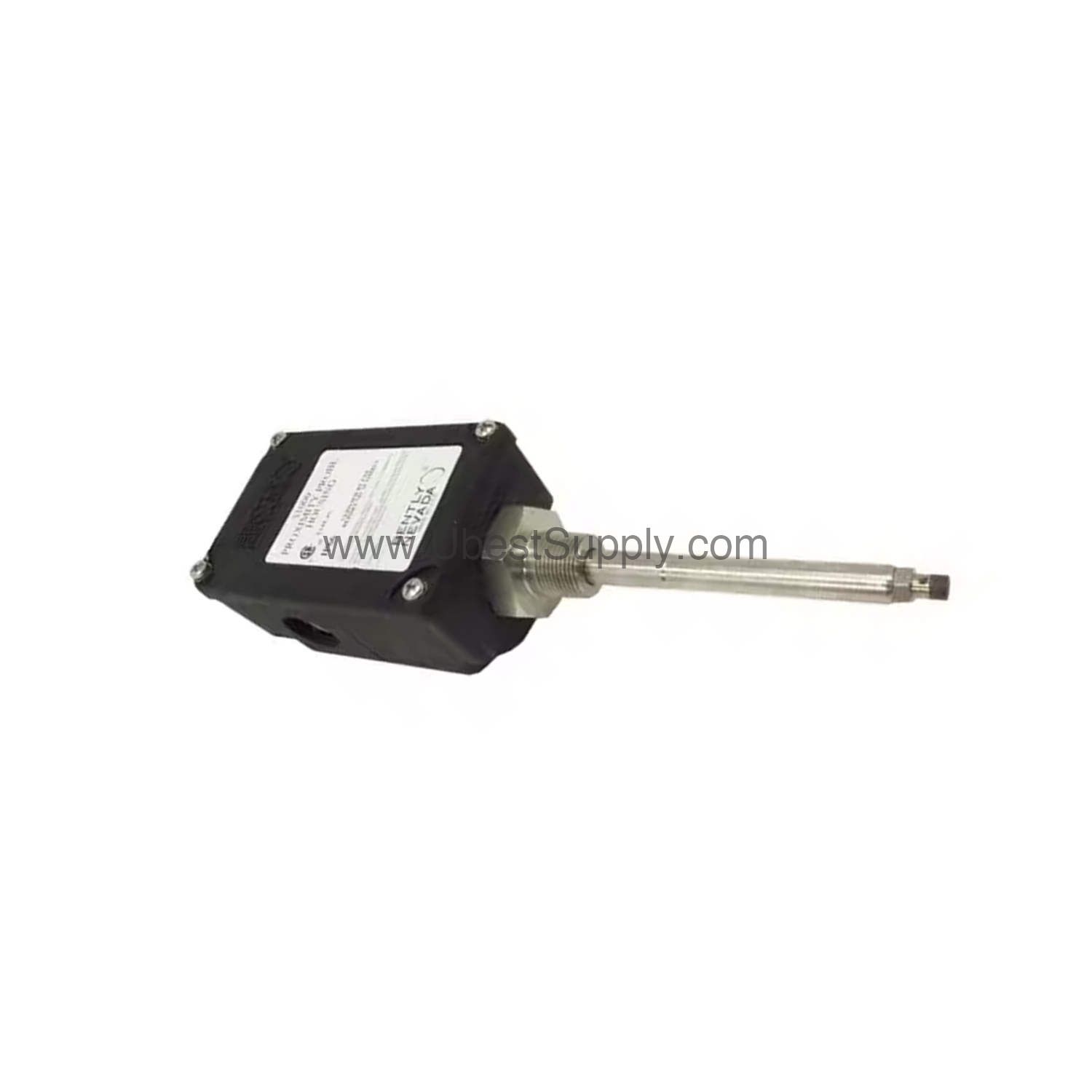

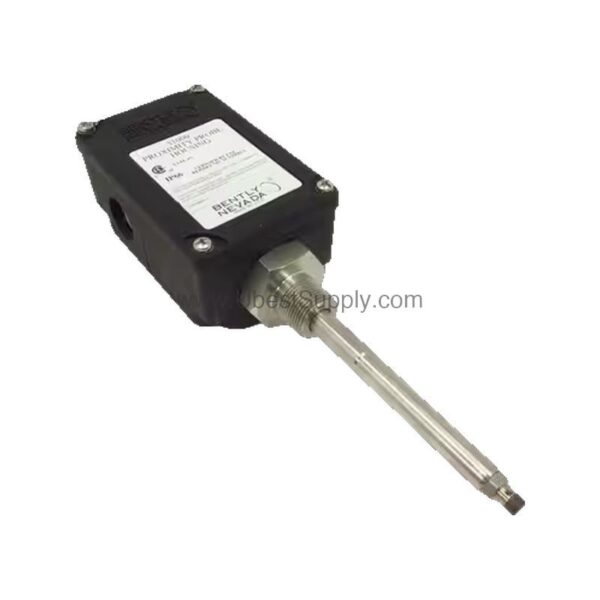

32000-28-05-00-060-03-02 | Bently Nevada 32000 Metric Probe Housing

Introduction to the Bently Nevada 32000-28-05-00-060-03-02

When machinery protection demands reliable vibration monitoring, the 32000-28-05-00-060-03-02 from Bently Nevada delivers a robust housing solution. This metric proximity probe housing is engineered to safeguard 3300 XL 8 mm probes in demanding industrial environments. Its construction focuses on durability and consistent performance, helping you minimize unplanned downtime and reduce long-term maintenance costs.

With a temperature rating of -51°C to +105°C (-60°F to +221°F), this housing withstands extreme conditions. The glass-reinforced PPS thermoplastic material provides high impact strength, while stainless steel components resist corrosion. Consequently, the housing maintains its integrity over years of service, offering a cost-effective protection solution.

Key Features and Technical Specifications

• Probe Compatibility: Designed for 3300 XL 8 mm probes with multiple approvals.
• Cable Length: Includes a 0.5 metre probe cable option.
• Probe Penetration: 60 mm penetration depth for proper installation.
• Fittings: Two plugs, M20 fitting, and one cable seal grip for armored probe cable.
• Mounting Thread: 3/4-14 NPT, required for standoff adapter option.
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers.
• Sleeve Material: AISI 304 stainless steel for sleeve and retaining chain.
• Outer Sleeve and Screws: AISI 303 stainless steel.
• O-Ring Material: Neoprene® for environmental sealing.
• Weight: 1.2 kg.

One standout feature is the IP66 rating, verified by SC115582-1 (e) 106, ensuring protection against dust and powerful water jets. Additionally, the Type 4X rating certified by CSA confirms corrosion resistance. These ratings directly reduce the risk of contamination and moisture ingress, which can lead to premature sensor failure and costly replacements.

Applications and Use Cases

This housing is ideal for rotating machinery monitoring in industries such as oil and gas, power generation, and manufacturing. In these settings, reliable vibration data is critical for predictive maintenance. By protecting the probe from harsh elements, the housing helps maintain accurate readings, enabling early detection of bearing wear or misalignment. As a result, you can schedule maintenance proactively, avoiding expensive emergency repairs and production losses.

Furthermore, the 3/4-14 NPT mounting thread simplifies installation into standard ports, reducing setup time. The M20 fitting and cable seal grip accommodate armored cables, which are common in rugged environments. Therefore, this housing integrates seamlessly into existing monitoring systems, supporting both new installations and retrofits.

Installation and Setup

Proper installation is essential for optimal performance. Begin by verifying that the mounting thread (3/4-14 NPT) matches your equipment's port. Then, insert the probe with the specified 60 mm penetration, ensuring correct gap and clearance. Use the provided fittings—two plugs and the M20 fitting—to secure the cable entry. For armored cables, attach the cable seal grip with grommet to maintain the IP66 seal.

During installation, avoid overtightening the housing, as this could damage the threads or O-ring. Also, confirm that the standoff adapter option is not required (option 00 indicates none). If you need a standoff adapter, remember that the 3/4-14 NPT thread is mandatory. Following these steps ensures a leak-proof and mechanically stable installation, which contributes to long-term reliability.

Maintenance and Reliability

Routine inspection of the housing is straightforward. Periodically check the O-ring and cable seal for signs of wear or degradation. Clean the exterior with a soft cloth and mild detergent if necessary, avoiding harsh solvents that could damage the PPS material. Additionally, verify that all screws and fittings remain tight, as vibration can loosen them over time.

The stainless steel components resist corrosion, while the PPS housing withstands impacts up to 7 Joules at ambient temperature (as certified by CSA). This durability translates into fewer replacements and lower total cost of ownership. By investing in this housing, you reduce the frequency of sensor failures, which directly cuts maintenance labor and spare parts expenses.

Compatibility and Integration

The 32000-28-05-00-060-03-02 is specifically designed for Bently Nevada 3300 XL 8 mm proximity probes. It is not compatible with other probe sizes unless adapters are used, so always confirm probe compatibility before ordering. The housing works with standard Bently Nevada monitoring systems, ensuring seamless integration into existing vibration monitoring architectures.

Because the housing includes a 0.5 metre cable, it is suitable for installations where the probe is close to the monitor. For longer distances, consult Bently Nevada's cable extension options. The M20 fitting and cable seal grip support armored cables, which are often required in hazardous areas. Therefore, this housing integrates well into both standard and specialized monitoring setups.

FAQ about the 32000-28-05-00-060-03-02

Q: What is the temperature range of this housing?

A: The housing operates from -51°C to +105°C (-60°F to +221°F), making it suitable for extreme environments.

Q: Does this housing come with a probe?

A: No, the housing is sold separately. It is designed to accommodate a 3300 XL 8 mm probe, which must be ordered separately.

Q: What is the mounting thread size?

A: The mounting thread is 3/4-14 NPT, which is required if you plan to use a standoff adapter.

Q: Is the housing suitable for hazardous areas?

A: Yes, it meets CENELEC standard EN50014 for electrostatic dissipation of plastic material in hazardous areas.

Q: What is the weight of the housing?

A: The housing weighs 1.2 kg, which is lightweight for easy handling and installation.

Product Support and Availability

The 32000-28-05-00-060-03-02 is available from Petro Auto Tech, an industrial automation parts supplier. We maintain a stock of this item and can ship promptly to minimize your downtime. For technical assistance or to verify compatibility with your system, contact our knowledgeable team. We are committed to helping you find the right solution for your machinery protection needs.
