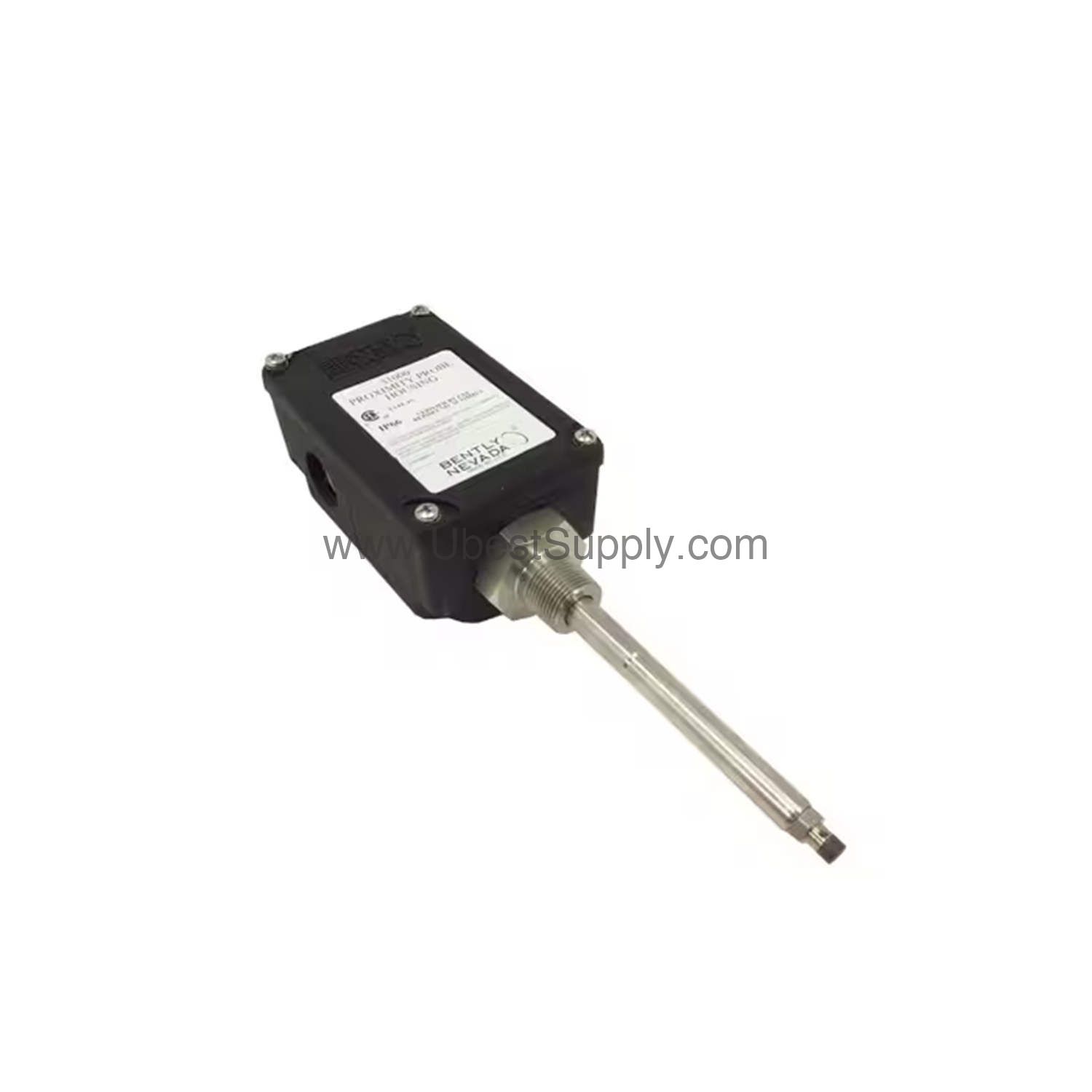

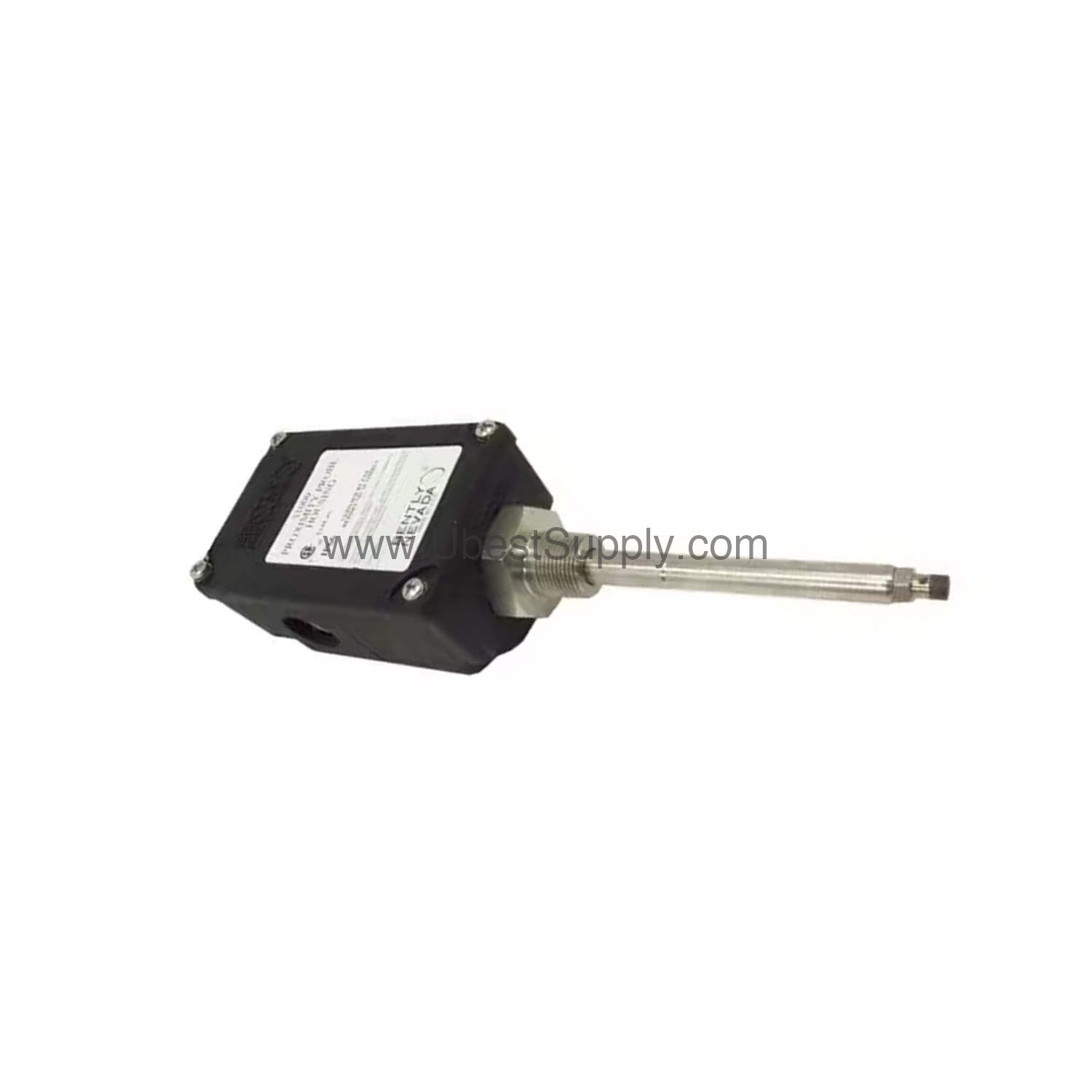

32000-28-05-05-110-03-02 | Bently Nevada 8 mm Probe Housing

Overview of the Bently Nevada 32000-28-05-05-110-03-02

When you need reliable vibration monitoring in demanding industrial environments, the 32000-28-05-05-110-03-02 from Bently Nevada provides a robust solution. This metric proximity probe housing is designed to protect a 3300 XL 8 mm probe, ensuring accurate measurements in rotating machinery. With a temperature rating of -51°C to +105°C (-60°F to +221°F), it performs consistently across extreme conditions. The housing is built with glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers, offering both strength and static dissipation. This makes it a dependable choice for continuous operation in harsh settings.

Key Features and Technical Specifications

The 32000-28-05-05-110-03-02 comes with a range of features that enhance its durability and ease of installation. Here are the critical specifications:

• Probe Option: 3300 XL 8 mm probe with multiple approvals.
• Cable Length: 0.5 metre probe cable.
• Standoff Adapter: 50 mm standoff adapter option.
• Probe Penetration: 110 mm probe penetration option.
• Fittings: Two plugs, M20 fitting, and one cable seal grip with grommet for armored probe cable.
• Mounting Thread: 3/4-14 NPT (required for standoff adapter).
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers.
• Sleeve Material: AISI 304 stainless steel for sleeve and retaining chain.
• Outer Sleeve and Screws: AISI 303 stainless steel.
• O-Ring Material: Neoprene®.
• Temperature Rating: -51°C to +105°C (-60°F to +221°F).
• Weight: 1.2 kg.

One standout feature is the housing's impact strength. It is certified by BASEEFA to withstand two separate 4 Joule impacts at -39°C and at 115°C, and CSA verified to withstand a 7 Joule impact at room temperature. This ruggedness ensures long-term reliability in tough conditions.

Applications and Use Cases

This probe housing is ideal for vibration monitoring on pumps, motors, compressors, and other rotating equipment. Its robust construction and wide temperature range make it suitable for outdoor installations and areas with high mechanical stress. For example, in a petrochemical plant, the housing can protect the probe from harsh weather and potential impacts, ensuring continuous machine health monitoring. Additionally, the Type 4X and IP66 ratings provide protection against water and dust ingress, which is critical in washdown or dusty environments.

Installation and Setup

When installing the 32000-28-05-05-110-03-02, follow the manufacturer's guidelines for proper mounting. The 3/4-14 NPT thread is required when using the standoff adapter, so ensure the mounting hole matches this specification. The fittings option includes two plugs, an M20 fitting, and a cable seal grip for armored cable, which helps maintain the enclosure's integrity. For best results, verify the probe penetration depth (110 mm) and standoff adapter (50 mm) align with your measurement requirements. Always consult the installation manual for torque specifications and cable routing.

Maintenance and Reliability

Regular inspection of the housing and its seals is recommended to maintain its protective rating. Check the O-ring and cable gland periodically for wear or damage, especially in high-vibration areas. Because the housing is made of PPS with conductive fibers, avoid exposing it to solvents that could degrade the material. With proper care, this housing can provide years of dependable service, reducing the need for frequent replacements and minimizing downtime.

Compatibility and Integration

The 32000-28-05-05-110-03-02 is designed to work with Bently Nevada's 3300 XL 8 mm proximity probe system. It is compatible with standard Bently Nevada monitors and diagnostic equipment that accept 8 mm probe inputs. The housing's M20 fitting and cable seal grip accommodate armored probe cables, ensuring a secure connection. For integration with existing systems, verify that your monitor supports the 3300 XL series probe specifications.

Frequently Asked Questions

Q: What is the temperature range for the 32000-28-05-05-110-03-02?

A: The housing is rated for -51°C to +105°C (-60°F to +221°F), making it suitable for extreme environments.

Q: What probe is compatible with this housing?

A: It is designed for the Bently Nevada 3300 XL 8 mm probe, which offers multiple approvals.

Q: What mounting thread is required?

A: The mounting thread option is 3/4-14 NPT, which is required when using the standoff adapter.

Q: What is the weight of the housing?

A: The housing weighs 1.2 kg.

Q: What protective ratings does this housing have?

A: It has a Type 4X rating (CSA certified) and IP66 rating (verified), along with CENELEC EN50014 for electrostatic dissipation.

Product Support and Availability

For pricing and availability of the 32000-28-05-05-110-03-02, contact Petro Auto Tech. We are an industrial automation parts supplier committed to providing genuine components. Please verify current lifecycle status and availability with Petro Auto Tech before ordering.
