32000-28-05-06-020-07-02 | Bently Nevada 8mm Probe Housing

Introduction to the 32000-28-05-06-020-07-02

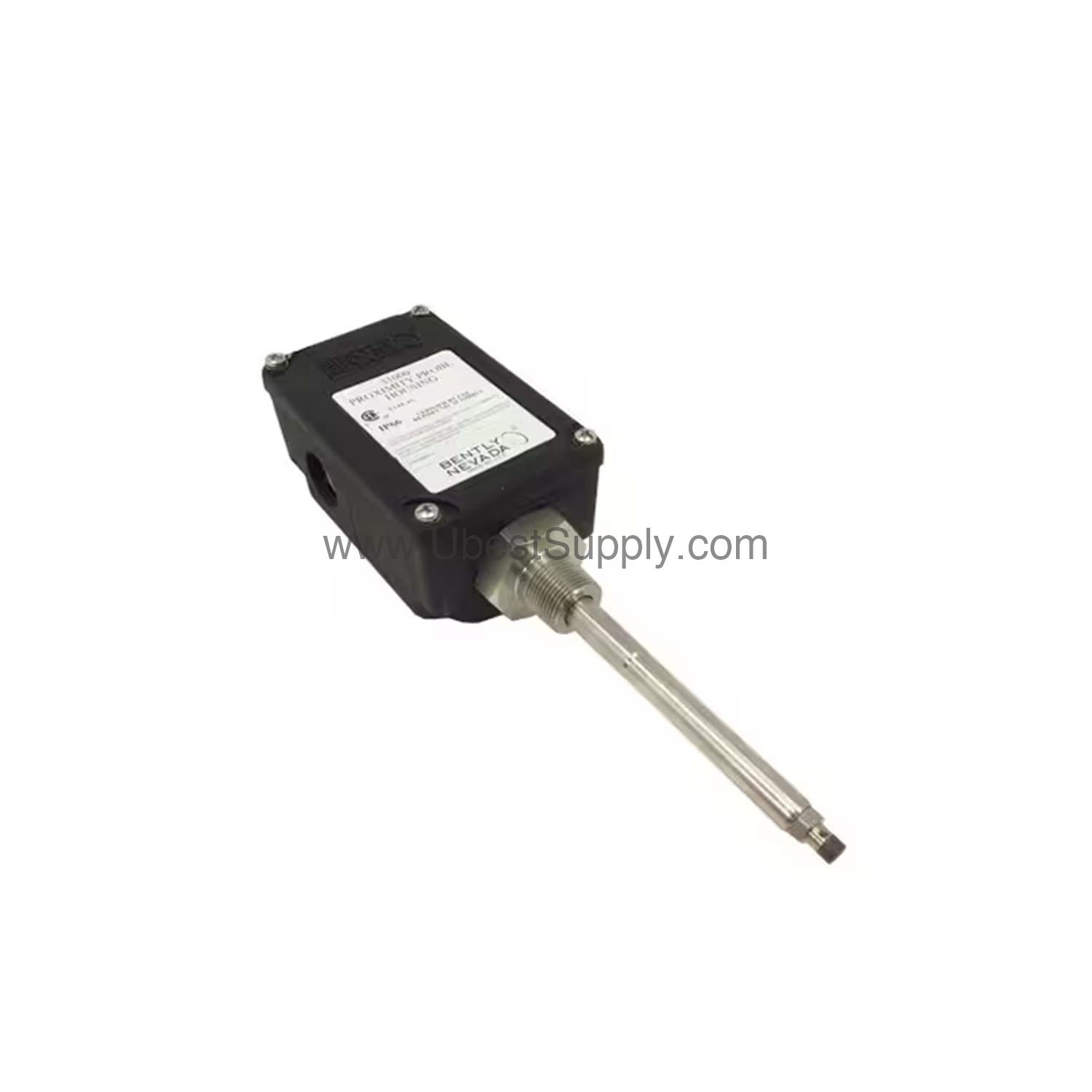

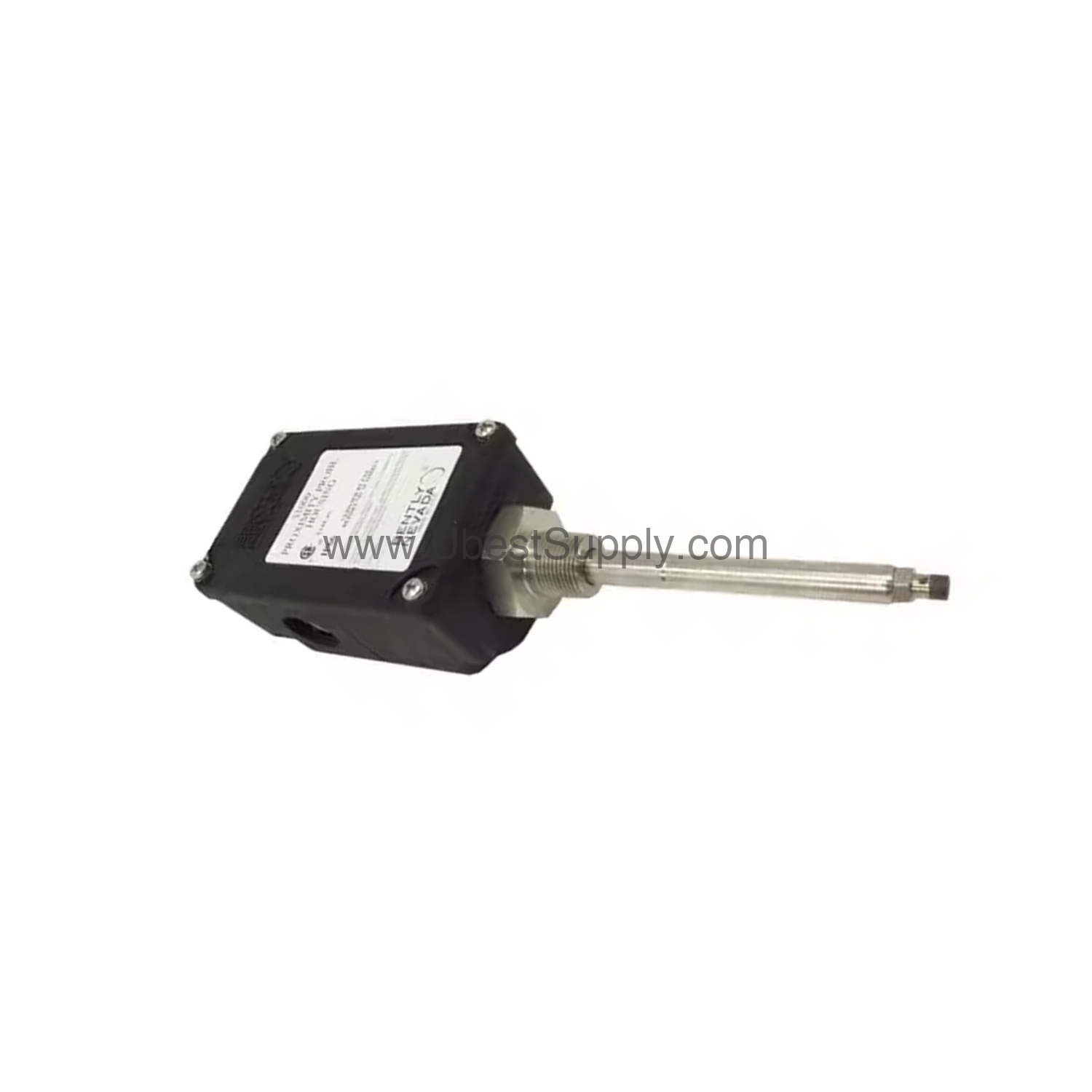

In the evolution of industrial machinery monitoring, the need for robust, reliable sensor housings has never been greater. The 32000-28-05-06-020-07-02 from Bently Nevada addresses this demand with a design built for harsh environments. This metric proximity probe housing is part of the 32000 series, engineered to safeguard sensitive 3300 XL 8 mm probes while maintaining accurate measurements.

Manufactured in the U.S.A., this housing combines advanced materials with precise engineering. It is suitable for applications where vibration, temperature extremes, and moisture could compromise performance. With its protective ratings and durable construction, it ensures long-term reliability in critical rotating machinery.

Key Features and Technical Specifications

The 32000-28-05-06-020-07-02 offers a range of features that make it a preferred choice for industrial monitoring:

• Probe Compatibility: Designed for 3300 XL 8 mm probes with multiple approvals.
• Cable Length: Includes a 0.5 m (20 in) probe cable.
• Standoff Adapter: 60 mm standoff adapter for precise positioning.
• Probe Penetration: 20 mm penetration depth for accurate measurement.
• Fittings: One PG21 x M20 fitting and two plugs for secure connections.
• Mounting Thread: 3/4-14 NPT thread, required for standoff adapter option.
• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers.
• Protection Ratings: Type 4X certified by CSA, IP66 verified, and CENELEC EN50014 for electrostatic dissipation.
• Temperature Range: Operates from -51°C to +105°C (-60°F to +221°F).
• Weight: 1.2 kg.

These specifications ensure that the housing can withstand demanding conditions while maintaining signal integrity. The PPS material provides excellent chemical resistance and dimensional stability, while the stainless steel components resist corrosion.

Applications and Use Cases

The 32000-28-05-06-020-07-02 is ideal for monitoring vibration and position in turbines, compressors, pumps, and other rotating equipment. In petrochemical plants, where explosive atmospheres exist, the CENELEC rating ensures safe operation. Furthermore, its IP66 rating makes it suitable for outdoor installations exposed to rain and dust. Consequently, this housing is a versatile solution for both new installations and retrofits.

Installation and Setup

Proper installation is crucial for optimal performance. The 3/4-14 NPT mounting thread allows secure attachment to machinery. When installing, ensure the probe cable is routed without sharp bends to avoid damage. The standoff adapter should be adjusted to achieve the correct gap between the probe tip and the target surface. Additionally, verify that all fittings are tightened to maintain the IP66 seal. For detailed instructions, refer to the Bently Nevada installation manual.

Maintenance and Reliability

Regular inspection of the housing and its components is recommended to ensure long-term reliability. Check the O-ring and fittings for signs of wear or damage. Clean the exterior with a soft cloth to remove dirt and contaminants. Because the housing is designed for harsh environments, it requires minimal maintenance, reducing downtime and operational costs. By following a simple inspection routine, you can extend the service life of the housing and the probe.

Compatibility and Integration

The 32000-28-05-06-020-07-02 is compatible with Bently Nevada monitoring systems that accept 3300 XL 8 mm probes. It can be integrated into existing condition monitoring setups, providing seamless data acquisition. The housing's design ensures compatibility with standard mounting configurations, making it easy to replace older units. For specific system integration, consult Bently Nevada documentation or contact Petro Auto Tech for assistance.

Frequently Asked Questions

Q: What is the temperature rating of the 32000-28-05-06-020-07-02?

A: The housing operates from -51°C to +105°C (-60°F to +221°F).

Q: What probe does this housing support?

A: It supports the 3300 XL 8 mm probe with multiple approvals.

Q: What is the mounting thread size?

A: The mounting thread is 3/4-14 NPT.

Q: Is the housing suitable for hazardous areas?

A: Yes, it has CENELEC EN50014 rating for electrostatic dissipation in hazardous areas.

Q: What is the weight of the housing?

A: The housing weighs 1.2 kg.

Product Support and Availability

The 32000-28-05-06-020-07-02 is available from Petro Auto Tech, a trusted industrial automation parts supplier. We ensure genuine Bently Nevada products with prompt shipping. For technical support or ordering assistance, contact our team. We are committed to helping you maintain your machinery monitoring systems efficiently.
