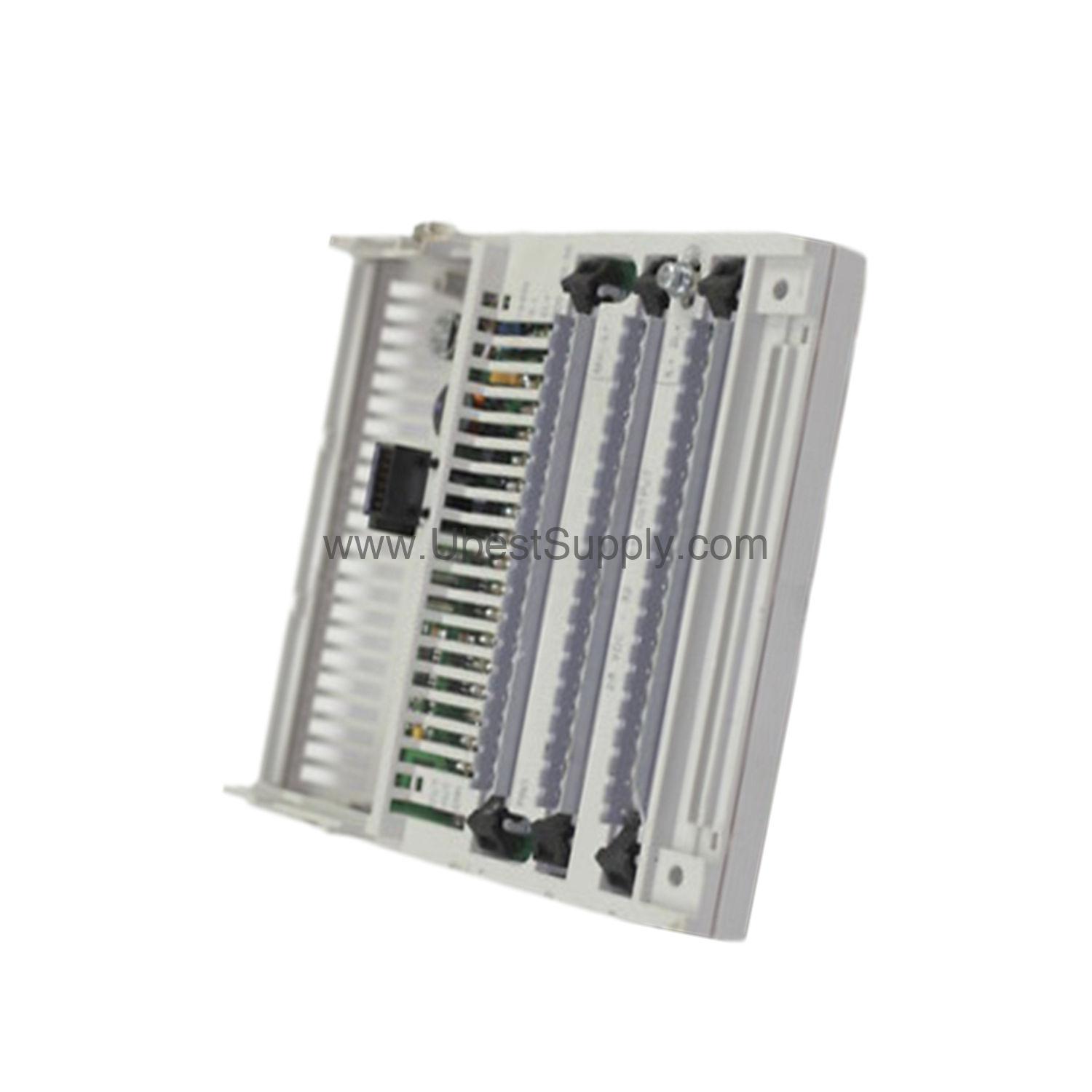

Product Overview

The 3500/94M-03-00-02 is a Bently Nevada VGA Display Module designed for industrial machinery monitoring. This panel-mount unit features a 10-inch display and multi-agency approval (CSA/ATEX/IECEx). It provides real-time visualization of vibration, temperature, and other critical parameters from the 3500 series monitoring system. With a maximum power consumption of only 4.6 watts, it delivers efficient performance in demanding environments.

Technical Specifications Analysis

The 3500/94M-03-00-02 operates within an ambient temperature range of -20°C to 65°C (-22°F to 149°F) and can be stored from -40°C to 85°C (-40°F to 185°F). It withstands humidity up to 95% non-condensing. The module includes a VGA port for analog red, green, blue, and sync signals, an RS232 port for touch controller data, and a front port providing 24 Vdc power out, VGA signal out, and touch commands in. An OK LED indicates proper operation, while TX/RX LEDs show communications between system modules. The I/O module dimensions are 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) and weighs 0.34 kg (0.75 lb). The monitor module dimensions are 241.3 mm x 24.4 mm x 241.8 mm (9.5 in x 0.96 in x 9.52 in) and weighs 0.73 kg (1.6 lb). The complete unit weighs 1.07 kg.

Application Scenarios & Usage Methods

This display module is ideal for continuous monitoring of rotating machinery such as turbines, compressors, and pumps in power generation, oil and gas, and petrochemical plants. Operators can view real-time data trends, alarm status, and system diagnostics directly on the 10-inch screen. Use the RS232 port to connect a touch controller for interactive data navigation. The VGA port allows connection to external monitors for larger viewing. The module requires a 3500/22 Transient Data Interface (TDI) module and firmware version 4.06 Rev. C or newer for proper operation.

Installation Guide & Packing List

Mount the monitor module in one full-height front slot of the 3500 rack and the I/O module in one full-height rear slot. Secure the panel-mount display using the included installation hardware. Connect the VGA cable from the I/O module to the display. Ensure the power supply meets 24 Vdc requirements. The package includes the 3500/94M VGA Display Module with 10-inch panel-mount display, I/O module, and installation hardware. Cables for KVM extender and display router box are not included (ordered separately as option 00).

Purchasing Advice

When selecting the 3500/94M-03-00-02, verify that your system includes the required 3500/22 TDI module and compatible firmware versions. This model is suitable for hazardous locations with multi-agency approval (CSA/ATEX/IECEx). For non-hazardous areas, consider alternative approval options. Petro Auto Tech offers genuine Bently Nevada modules with fast worldwide shipping. Contact our team to confirm compatibility with your existing rack configuration.

Repair & Maintenance Tips

Regularly inspect the display for cracks or damage. Clean the screen with a soft, lint-free cloth and mild cleaner. Keep the module within the specified temperature and humidity ranges. Verify that all cable connections remain secure. Periodically check the OK LED to confirm proper operation. If the display fails, power cycle the module and check connections before replacing. Store spare modules in a clean, dry environment within the storage temperature range.

Frequently Asked Questions (FAQs)

Q: What is the power consumption of the 3500/94M-03-00-02?

A: The maximum power consumption is 4.6 watts.

Q: What is the operating temperature range?

A: The operating temperature range is -20°C to 65°C (-22°F to 149°F).

Q: Does this module require any additional hardware?

A: Yes, it requires a 3500/22 Transient Data Interface (TDI) module.

Q: What certifications does the 3500/94M-03-00-02 have?

A: It has multi-agency approval including CSA, ATEX, and IECEx.

Q: What is the weight of the complete module?

A: The total weight is 1.07 kg.
