ABB AI531 Analog Input Module 8 AI U I RTD R TC DI

Product Overview

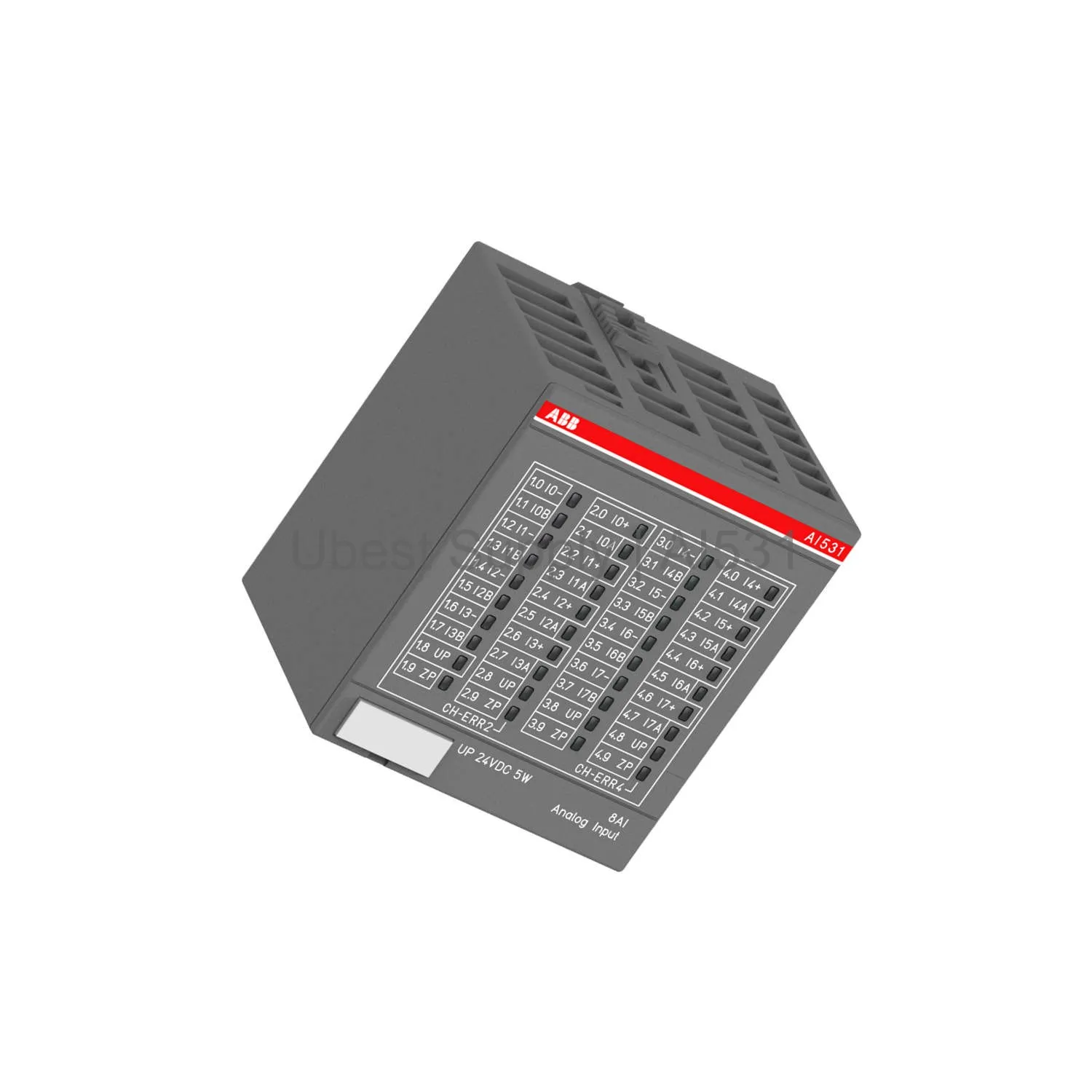

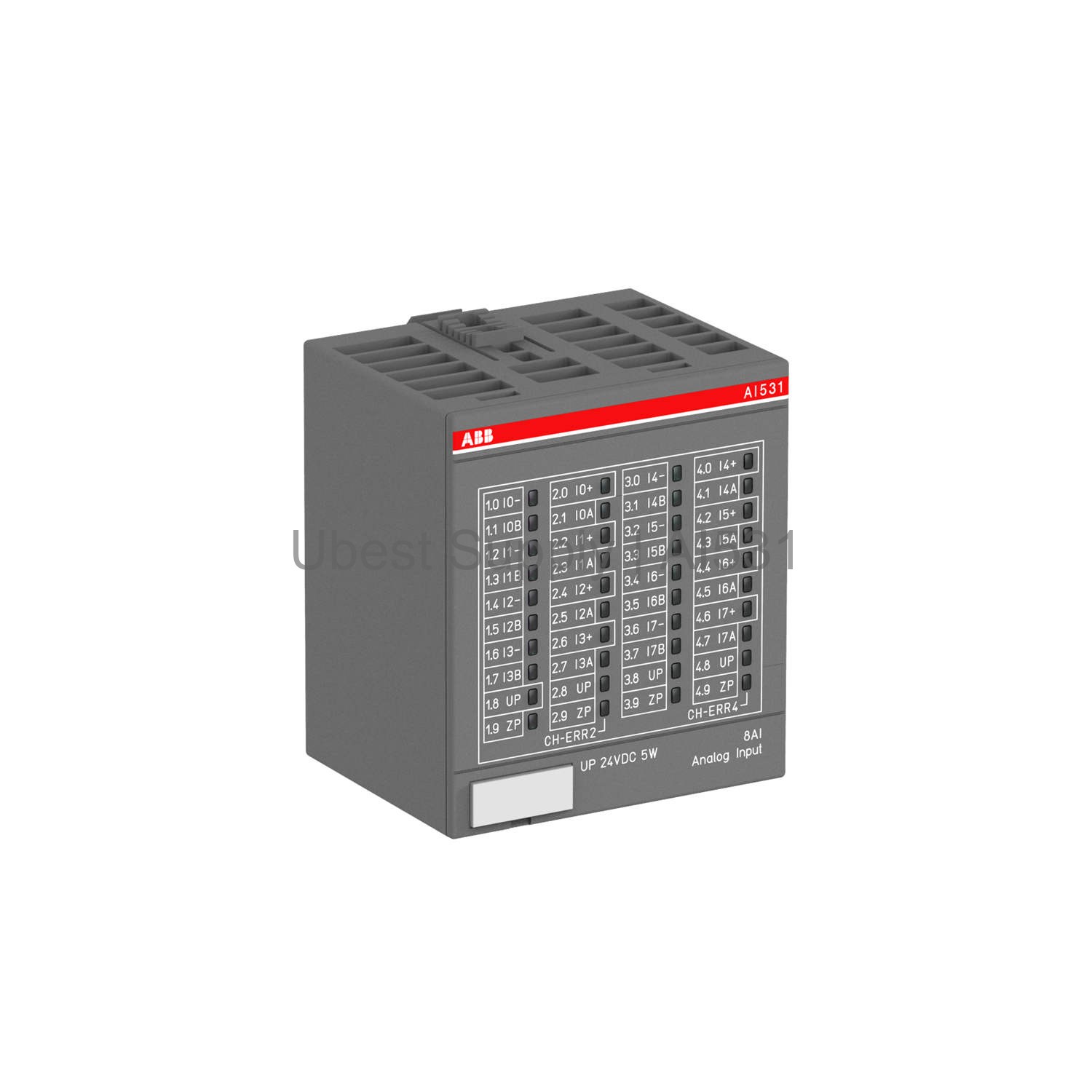

The ABB AI531 is a high-performance analog input module. It belongs to the S500 I/O family. This module offers 8 analog inputs. It supports multiple signal types. These include voltage (U), current (I), RTD, resistance (R), thermocouple (TC), and digital input (DI). The resolution is 16 bit including sign. This module handles 1 to 4-wire connections. It operates on a 24 V DC supply. The housing has an IP20 protection rating. The product net weight is only 0.128 kg. Its dimensions are 67.5 mm wide, 76 mm high, and 62 mm deep. This makes it compact for control cabinets.

Application Scenarios

Engineers use the AI531 in industrial automation systems. It works well for process control tasks. You can connect temperature sensors like RTDs and thermocouples. It also reads pressure and flow transmitters. The module fits into ABB distributed control systems. It is ideal for factory automation and machine building. Use it in chemical plants, power generation, and water treatment. The module handles both analog and digital signals. This reduces the need for extra modules.

Technical Specifications

The module has 8 analog inputs. Input signals include U, I, RTD, R, TC, and DI. The analog resolution is 16 bit. Supply voltage is 24 V DC. Operating temperature ranges from 0 to +60 °C. Storage temperature is -40 to +70 °C. The degree of protection is IP20. Product dimensions are 67.5 x 76 x 62 mm. The product ID is 1SAP250600R0001. The EAN code is 4016779667227. The module supports 1 to 4-wire RTD connections. It offers high accuracy for industrial environments.

Installation & Maintenance Guide

Mount the module on a standard DIN rail. Connect the 24 V DC power supply. Wire your sensors to the terminal block. Follow the wiring diagram for your signal type. Use shielded cables for analog signals. This reduces electrical noise. The module requires no regular maintenance. Keep the housing clean and dry. Check connections during system shutdowns. Replace the module only if it fails. Always disconnect power before handling.

Packing List

Each package includes one ABB AI531 analog input module. The package level 1 units are 1 carton. The gross weight is 0.153 kg. Package dimensions are 84 mm depth, 72 mm height, and 71 mm width. The module comes with a declaration of conformity. No additional accessories are included. Order connectors separately if needed. We ship via FedEx, UPS, or DHL.
