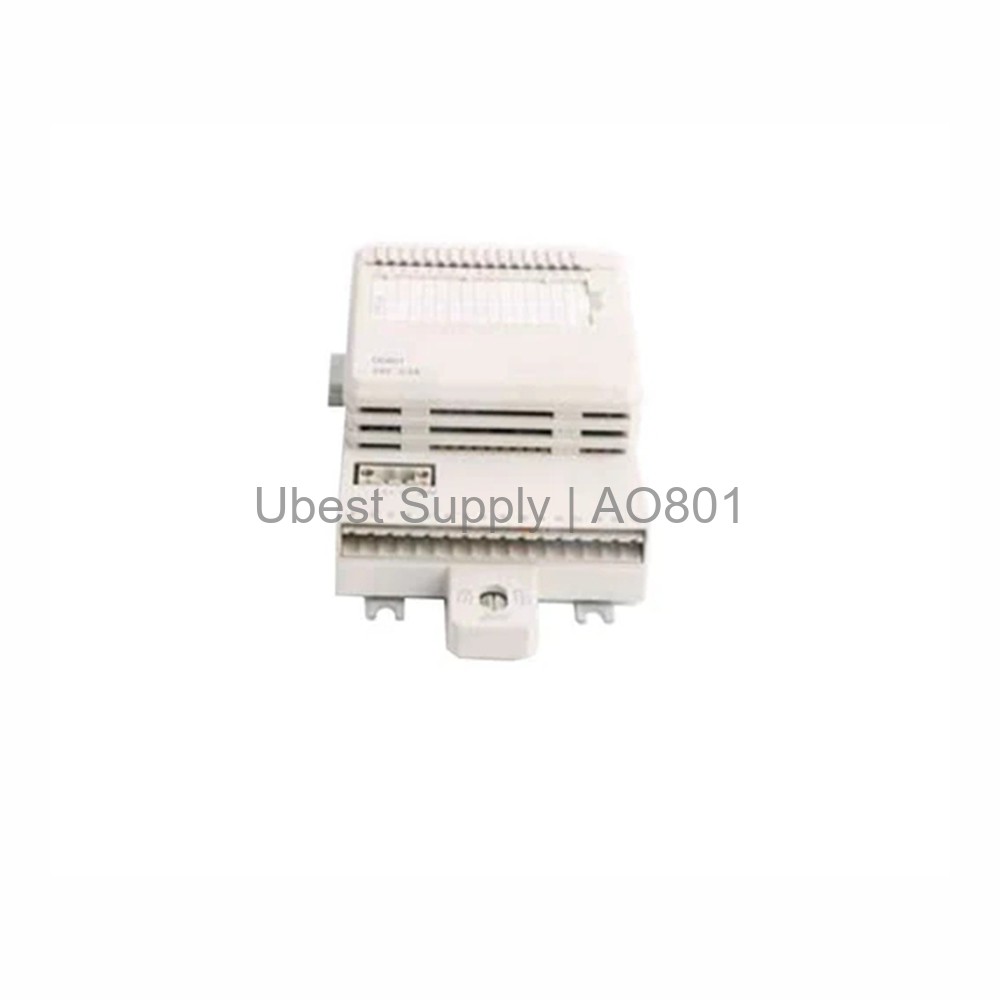

ABB AO801 Analog Output Module 8 Channel 4-20mA

Product Overview

The ABB AO801 is an 8-channel analog output module. It belongs to the S800L I/O series. This module provides unipolar single-ended signals. It supports 0 to 20 mA and 4 to 20 mA ranges. The resolution is 12 bits. The module has groupwise isolation from ground. It offers high accuracy with an error of only 0.1 percent. The temperature drift is typical 30 ppm per degree Celsius. This makes it stable in changing conditions. The AO801 features a short circuit proof output. It can drive loads up to 850 ohms. The update cycle time is just 1 ms. This ensures fast response for control loops.

Application Scenarios

This module is perfect for process control systems. It works well in chemical plants. It is also used in oil and gas facilities. The AO801 can control valves and actuators. It is suitable for driving indicators and recorders. The module handles analog signals for motors. It integrates easily into ABB control systems. The device meets marine standards like ABS and DNV. It also has ATEX Zone 2 approval. This makes it safe for hazardous areas. You can use it in power generation. It also fits in water treatment plants.

Technical Specifications

The AO801 has 8 output channels. Each channel supports 0-20 mA or 4-20 mA. The output load is max 850 ohms. The rise time is 10 microseconds. The module consumes 3.8 W of power. It draws 70 mA from the 5 V module bus. It needs 200 mA from the 24 V external supply. The rated insulation voltage is 50 V. The dielectric test voltage is 500 V AC. The maximum field cable length is 600 meters. It supports wire sizes from 30 to 12 AWG. The module weighs 0.24 kg. Its dimensions are 86.1 mm wide, 58.5 mm deep, and 110 mm high.

Installation & Maintenance Guide

Mount the module on a DIN rail. Use the recommended torque of 0.5-0.6 Nm. Strip the wire to a length of 6-7.5 mm. Connect the field wiring to the terminals. The module has front LEDs for status. A green LED shows normal run. A red LED indicates a fault. Check the module error and channel error LEDs. Keep the ambient temperature below 55 degrees Celsius. For vertical mounting, limit it to 40 degrees. Ensure proper ventilation. Do not exceed 95 percent relative humidity. Use shielded cables for long distances.

Packing List

1 x ABB AO801 Analog Output Module. 1 x Product documentation. 1 x Connector set. The module is packed in an anti-static bag. It is shipped in a sturdy cardboard box. We use FedEx, UPS, or DHL for shipping. The package is safe for international transport.
