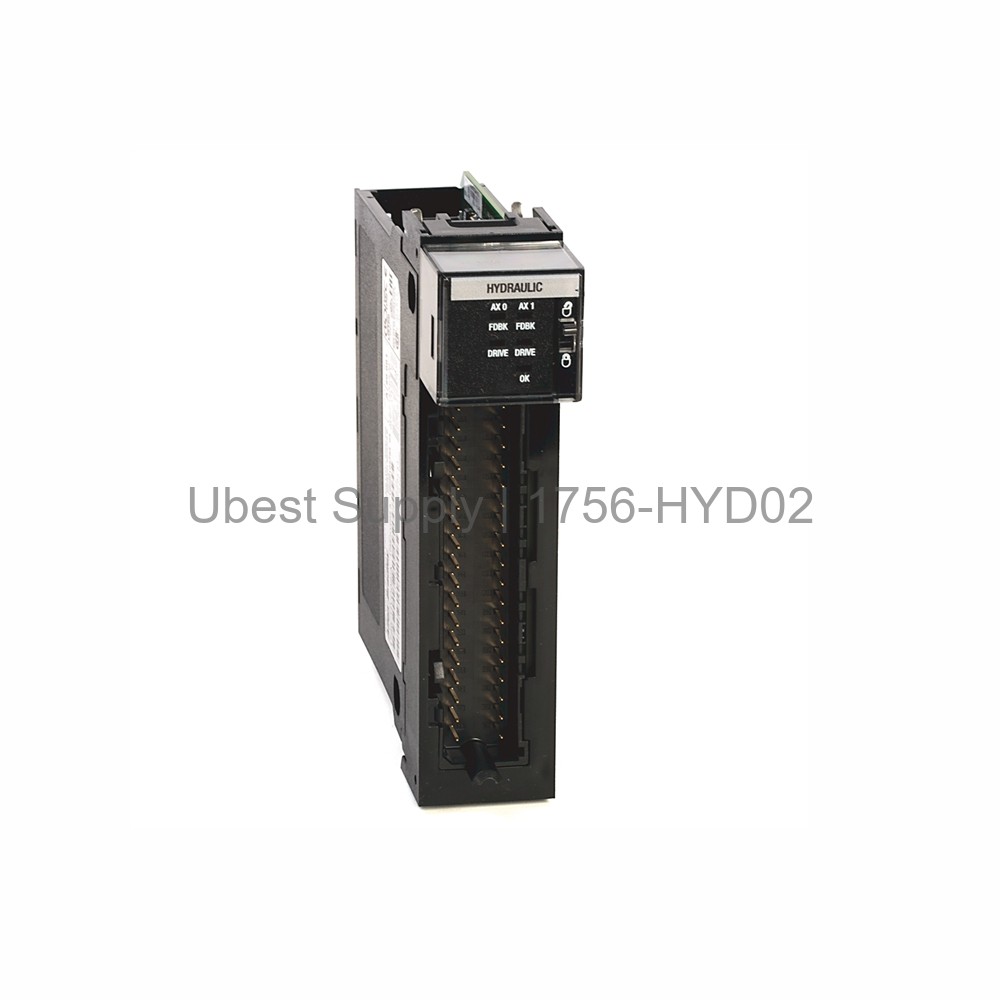

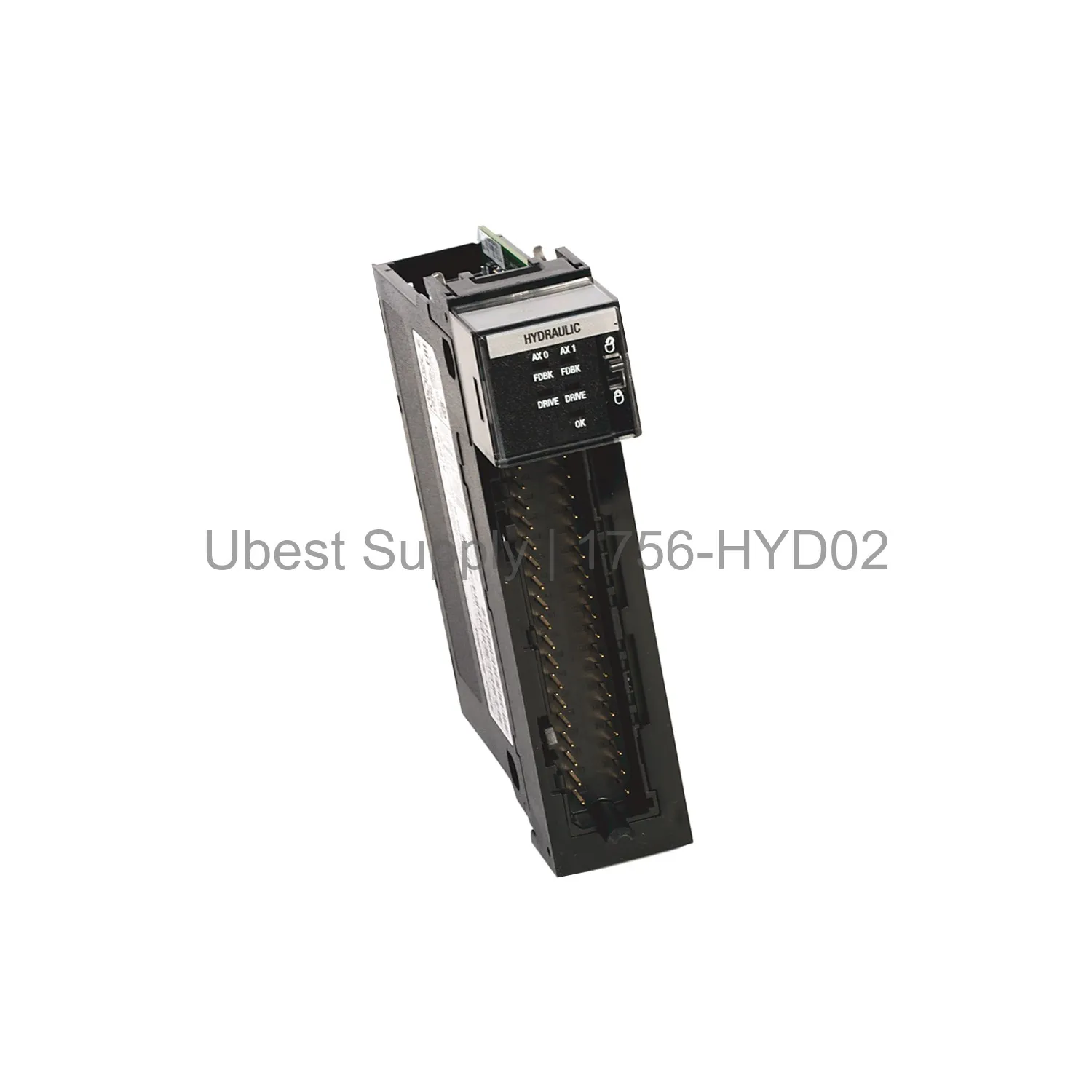

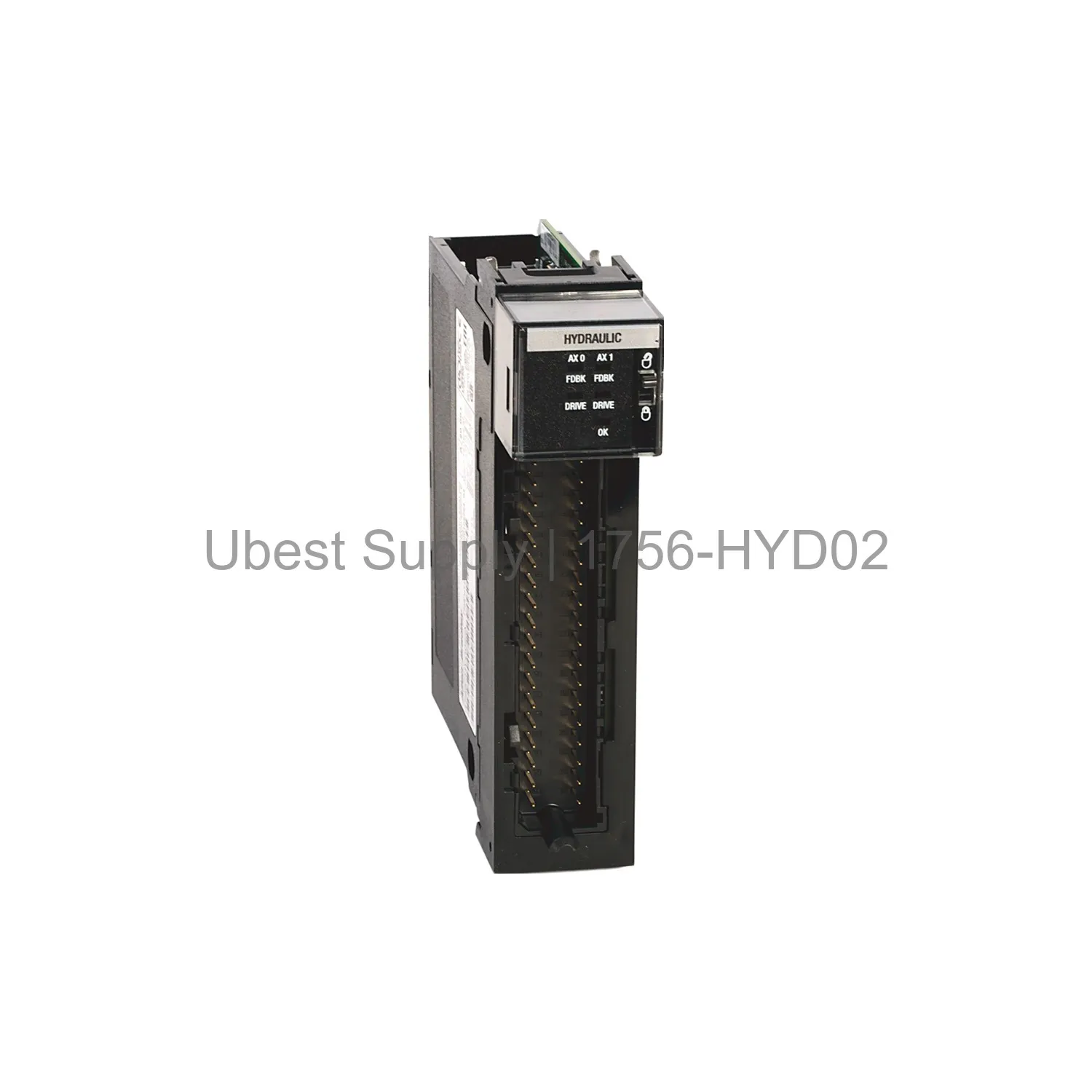

Allen-Bradley 1756-HYD02 ControlLogix Hydraulic Servo Module

Product Overview

The Allen-Bradley 1756-HYD02 is a high-performance hydraulic servo module. It belongs to the ControlLogix series. This module controls two servo axes. It uses a PID loop with feed-forwards. The module accepts LDT input for precise positioning. It is ideal for demanding motion control applications. The 1756-HYD02 offers a selectable rate from 500Hz to 4kHz. It provides a 16-bit analog output. This ensures smooth and accurate valve control.

Application Scenarios

This module works well in industrial automation. Use it for injection molding machines. It is great for metal forming presses. It also suits hydraulic test stands. The 1756-HYD02 handles die casting machines. It controls forging presses effectively. Any system needing precise hydraulic motion benefits. It integrates easily into a ControlLogix chassis. The module supports up to 32 axes per controller.

Technical Specifications

The module has a 32-bit floating point gain resolution. Its absolute position range is 230,000 LDT counts. The analog output is ±10V dc with 16-bit resolution. It uses optically isolated registration inputs. The backplane current draw is 700 mA at 5V. It draws 2.5 mA at 24V. The power dissipation is 5.5 Watts. The module fits in any slot. It has a width of one slot.

Installation & Maintenance Guide

Install the module in any ControlLogix chassis slot. Use removable terminal blocks 1756-TBCH or 1756-TBS6H. Ensure the chassis power is off. Secure the module firmly. Connect LDT and analog wiring correctly. The operating temperature is 0 to 60 degrees Celsius. Store the module between -40 and 85 degrees Celsius. Keep humidity between 5 and 95 percent. The module handles 2g vibration at 10-500 Hertz. It withstands 30g shock while operating.

Packing List

1 x Allen-Bradley 1756-HYD02 Hydraulic Servo Module. 1 x Installation Instructions. The module ships in anti-static packaging. Shipping is via Fedex, UPS, or DHL. Ensure you order the correct terminal blocks separately.
