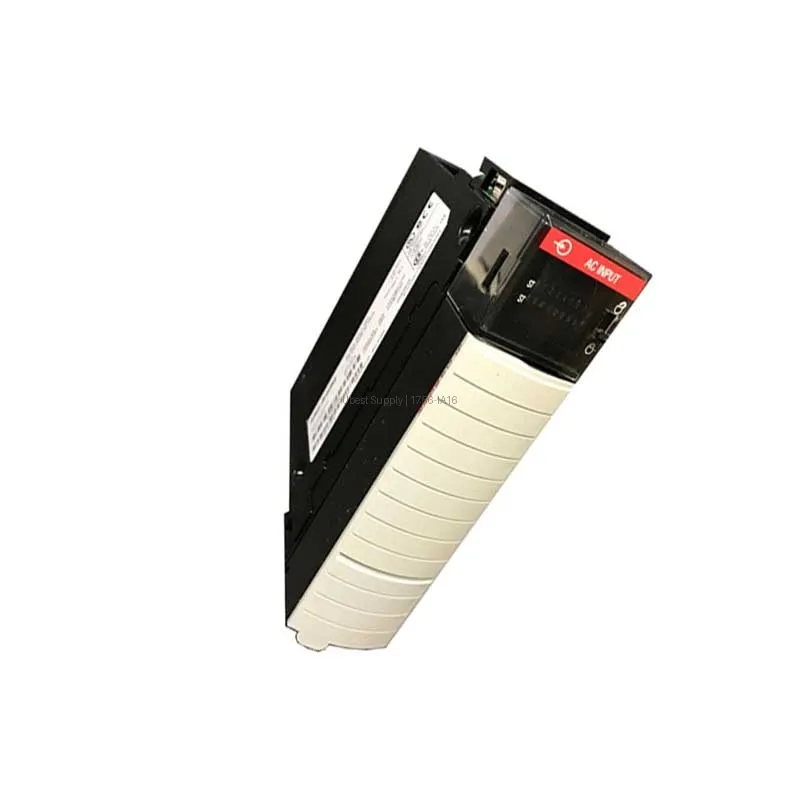

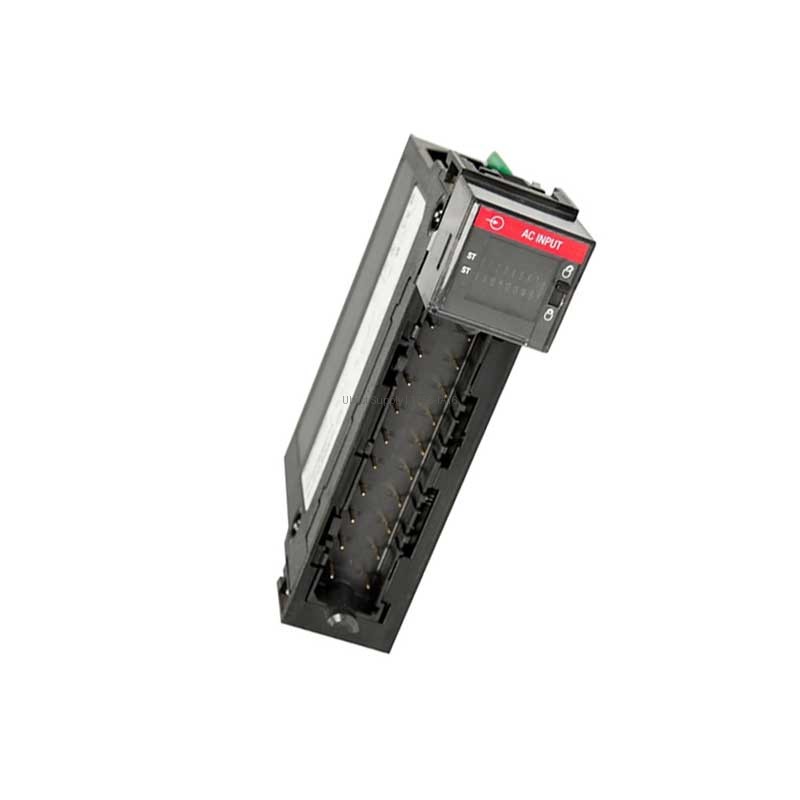

Allen-Bradley 1756-IA16 ControlLogix 16-Point AC Input Module

Product Overview

The Allen-Bradley 1756-IA16 is a digital AC input module for the ControlLogix platform. It provides 16 input points for 120V AC signals. This module operates on a voltage range of 74 to 132V AC. It is ideal for monitoring discrete sensors and switches in industrial environments. The module uses a 20-pin removable terminal block for wiring. It supports a 1756-TBNH or 1756-TBSH housing.

Application Scenarios

This input module works well in factory automation and process control systems. Use it to read signals from push buttons, limit switches, and proximity sensors. It is common in manufacturing lines, packaging machines, and material handling systems. The 1756-IA16 can handle high-voltage AC inputs safely. It fits into any standard ControlLogix chassis.

Technical Specifications

Inputs: 16 points. Voltage range: 74 to 132V AC. On-state current: 5 mA min, 13 mA max. Off-state current: 2.5 mA max. Frequency: 47 to 63 Hz. Maximum off-state voltage: 20V AC. Maximum inrush current: 250 mA peak. Signal delay on transition: 8 ms hardware plus filter time. Filter time options: 9 ms or 18 ms. Signal delay off transition: 10 ms hardware plus filter time. Filter time options: 1 ms or 2 ms. Backplane current: 100 mA at 5.1V DC, 2 mA at 24V DC. Total backplane power: 0.58 W. Thermal dissipation: 18.41 BTU/hr. Module type: Digital AC Input Module.

Installation & Maintenance Guide

Install the 1756-IA16 into any slot of a ControlLogix chassis. Use a 1756-TBNH or 1756-TBSH terminal block for connections. Wire AC signals to the input terminals. Ensure voltage stays within 74 to 132V AC. Set filter times in the programming software for your application. Check connections periodically for tightness. Keep the module free from dust and moisture.

Packing List

1 x 1756-IA16 ControlLogix AC Input Module. 1 x 20-pin removable terminal block. 1 x Installation instructions. The module ships in protective packaging. Use FedEx, UPS, or DHL for delivery.
