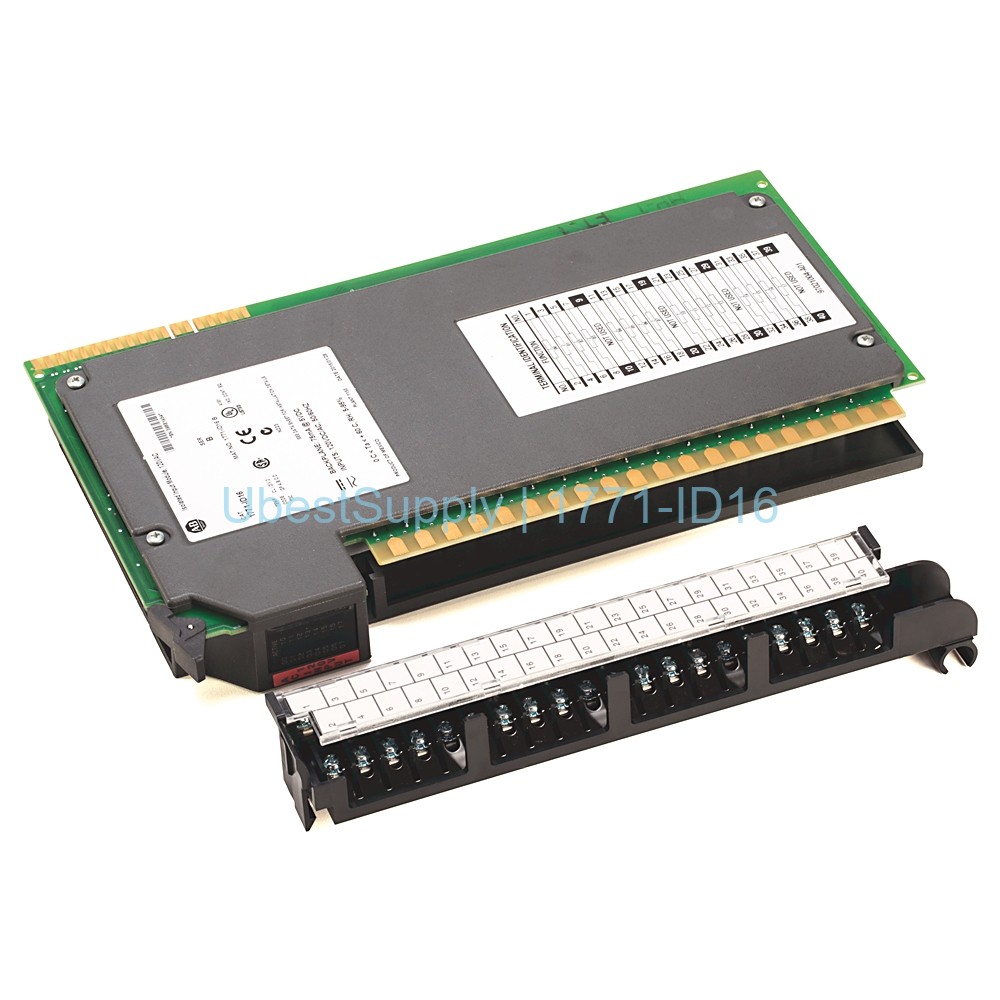

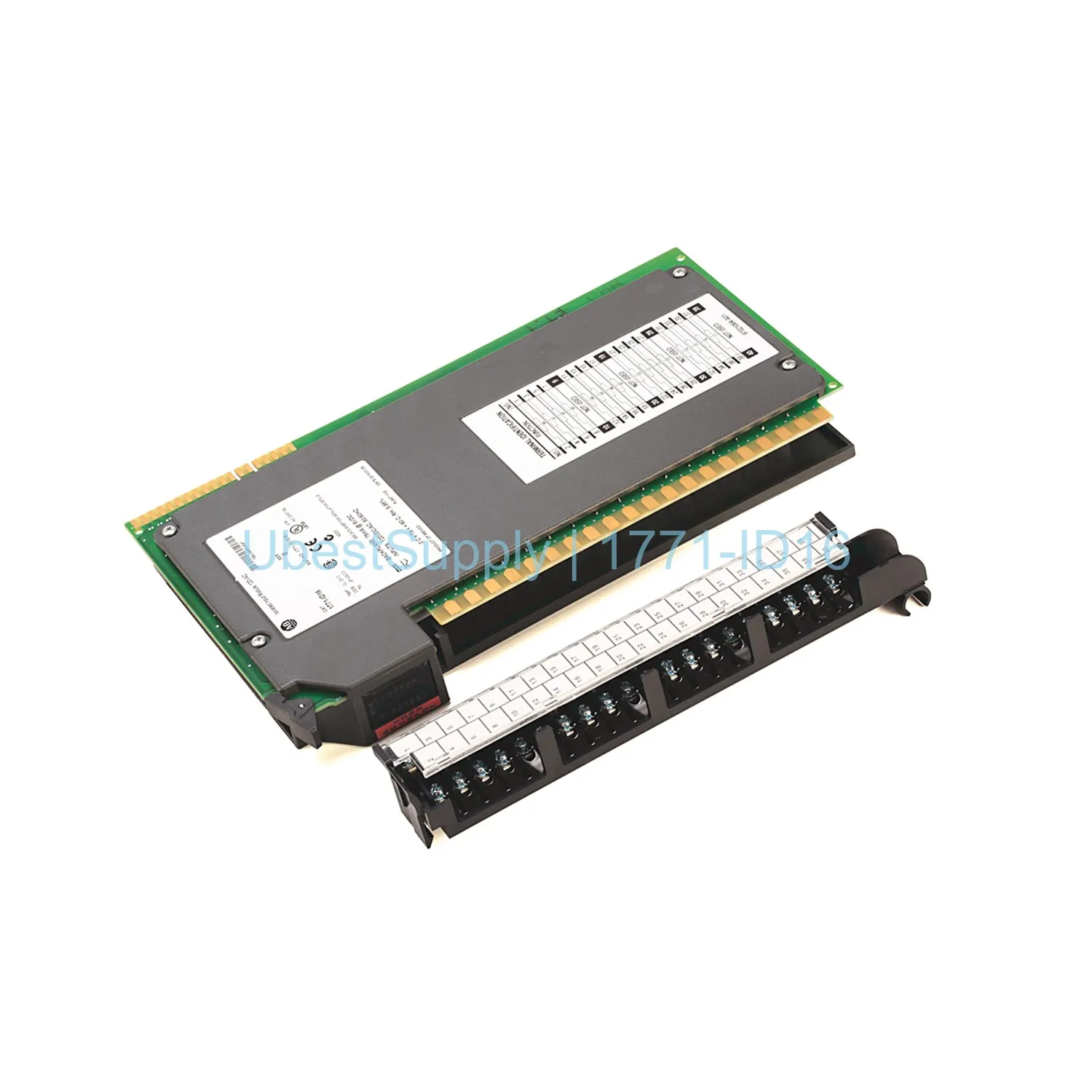

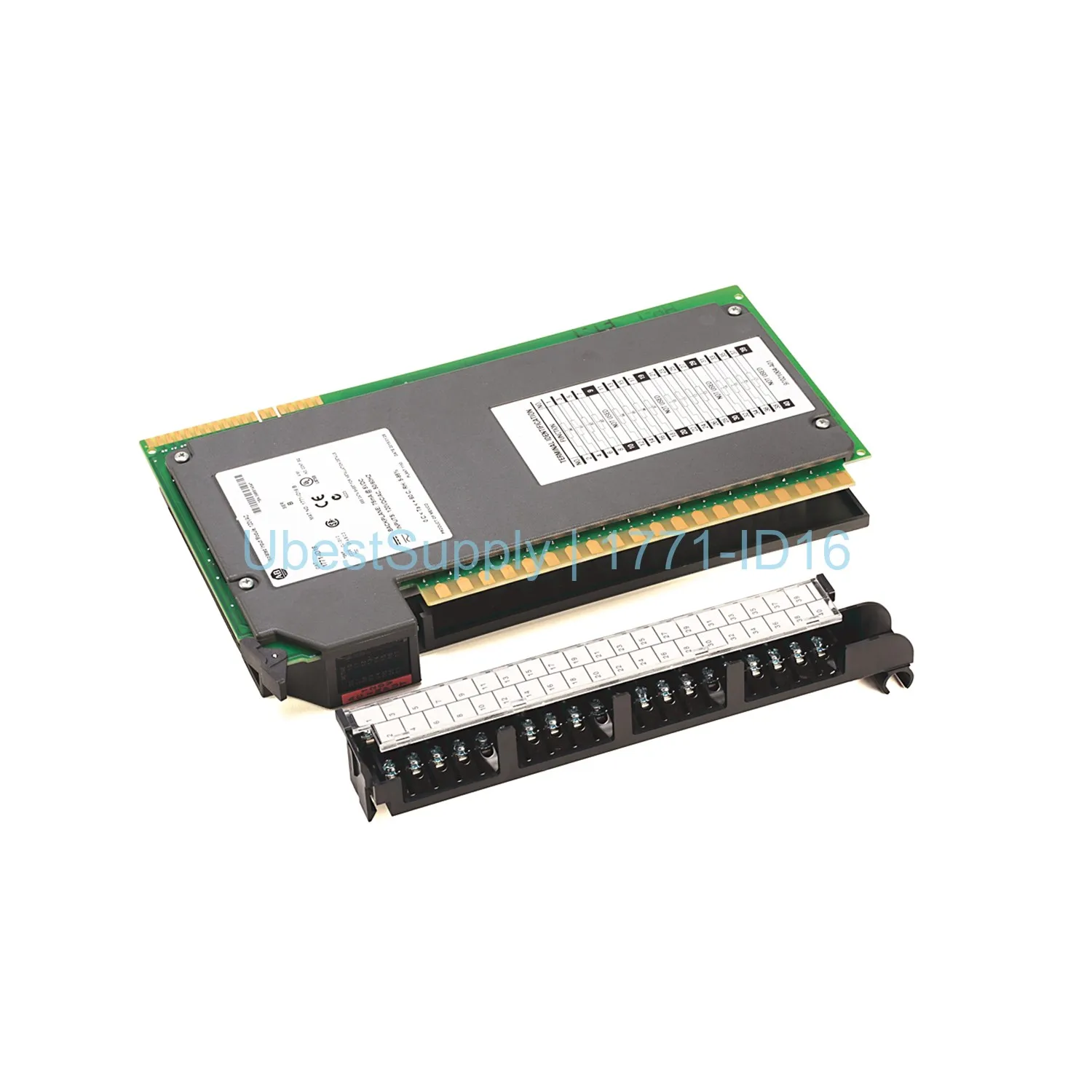

Allen-Bradley 1771-ID16 Digital AC/DC Input Module for PLC-5

Product Overview

The Allen-Bradley 1771-ID16 is a 120V AC/DC isolated input module. It is part of the 1771 Digital AC/DC Input Modules for PLC-5 processors. This module features customer-selectable input filtering. It suppresses voltage transients from contact bounce or radiated noise. The result is improved power quality. It enhances product longevity and minimizes downtime. The module has a factory-set filter time of 9 ms. Due to filtering, typical signal delay for AC off is 9 or 18 ms. For DC off, delay is 9 ms. For on delays, typical is 0.57 ms. The module uses capacitive impedance input. This creates initial current flow.

The module works with 1771-A1B or 1771-A4B I/O chassis. It requires a 1771-WN wiring arm for connections. The wiring arm attaches to the pivot bar. This allows removal or insertion without disconnecting wires. The module is built for isolated multi-phase applications.

Application Scenarios

Use the 1771-ID16 with various input devices. It works well with float switches, selector switches, limit switches, and pushbuttons. It is suitable for industrial control systems needing AC or DC input detection. Typical applications include conveyor systems, packaging machines, and assembly lines. The module handles environments with high electrical noise. Its filtering capability ensures reliable signal detection.

Technical Specifications

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Part Number: 1771-ID16
• Module Type: Digital AC/DC Input Module
• Number of Inputs: 16
• Voltage Category: 120 Volts AC/DC
• AC Operating Voltage: 77-138 Volts
• DC Operating Voltage: 105-138 Volts
• Backplane Current: 75 Milliamperes
• Max AC Off-State Current: 4.0 Milliamperes
• Max DC Off-State Current: 1.8 Milliamperes
• Typical AC Signal Delay (On): 1 ms
• Typical DC Signal Delay (On): 1 ms
• Typical AC Signal Delay (Off): 9 or 18 ms
• Typical DC Signal Delay (Off): 9 ms
• Dimensions: 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm)
• Wiring Arm: 1771-WN
• UPC: 10612598115928

Installation & Maintenance Guide

Install the 1771-ID16 only into compatible 1771 I/O chassis. Use the 1771-WN wiring arm for field connections. Ensure the module is properly seated in the backplane. The module can be inserted or removed with power on when using the wiring arm. No periodic maintenance is required. Keep the module free from dust and contaminants. Do not exceed voltage ratings. Check wiring for tightness.

Packing List

• 1 x Allen-Bradley 1771-ID16 Digital AC/DC Input Module
• 1 x 1771-WN Wiring Arm (40 Terminal Field)
