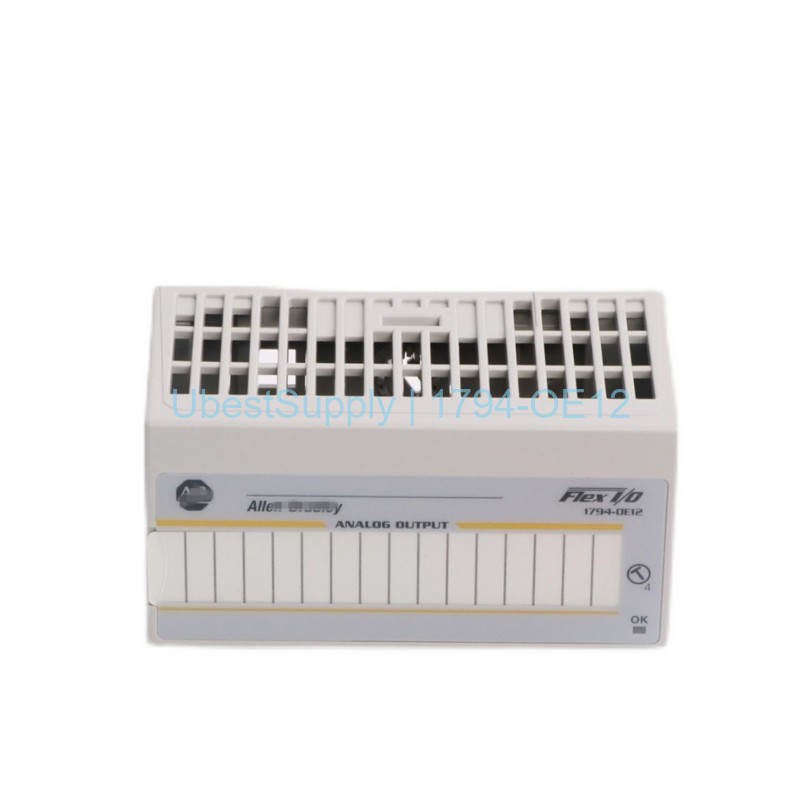

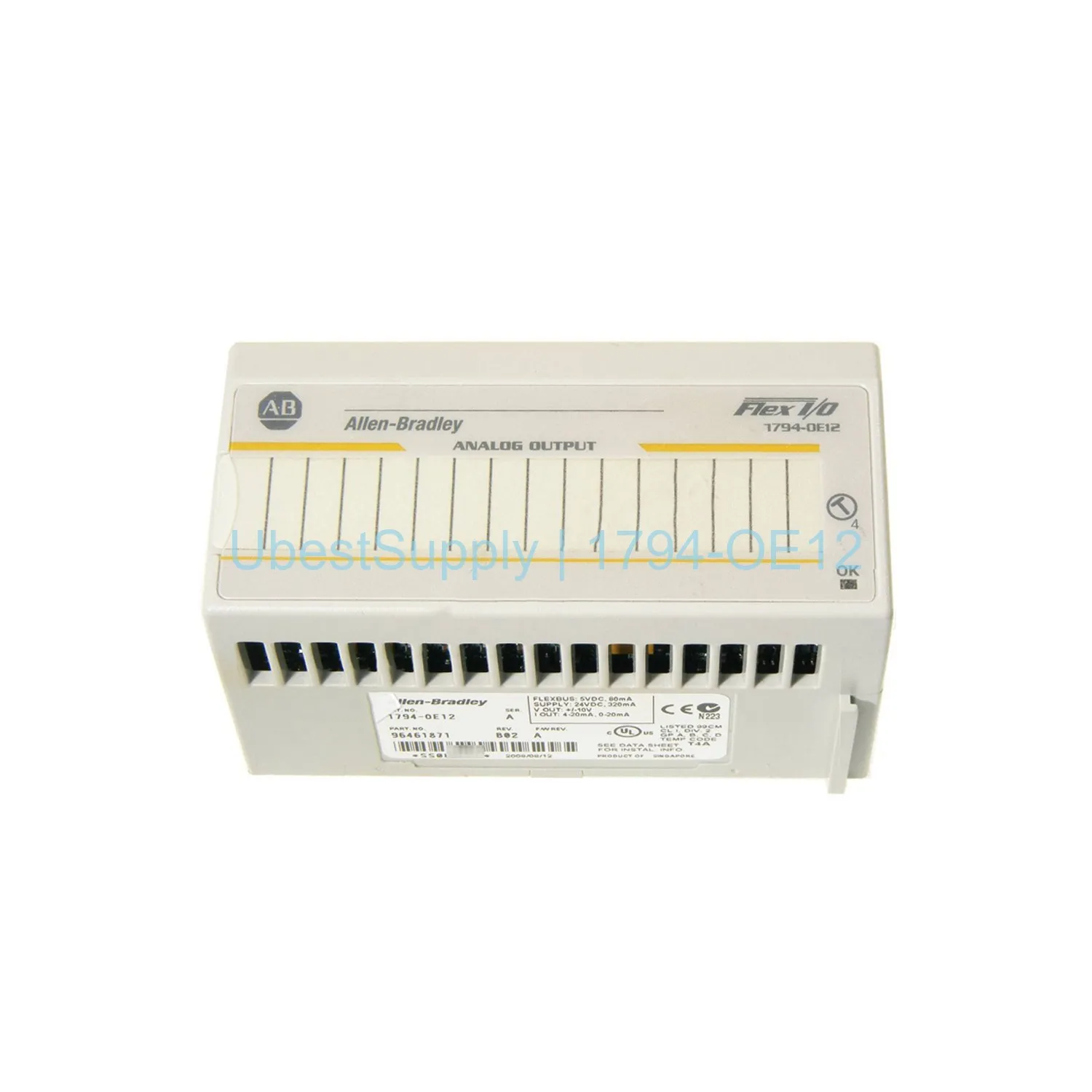

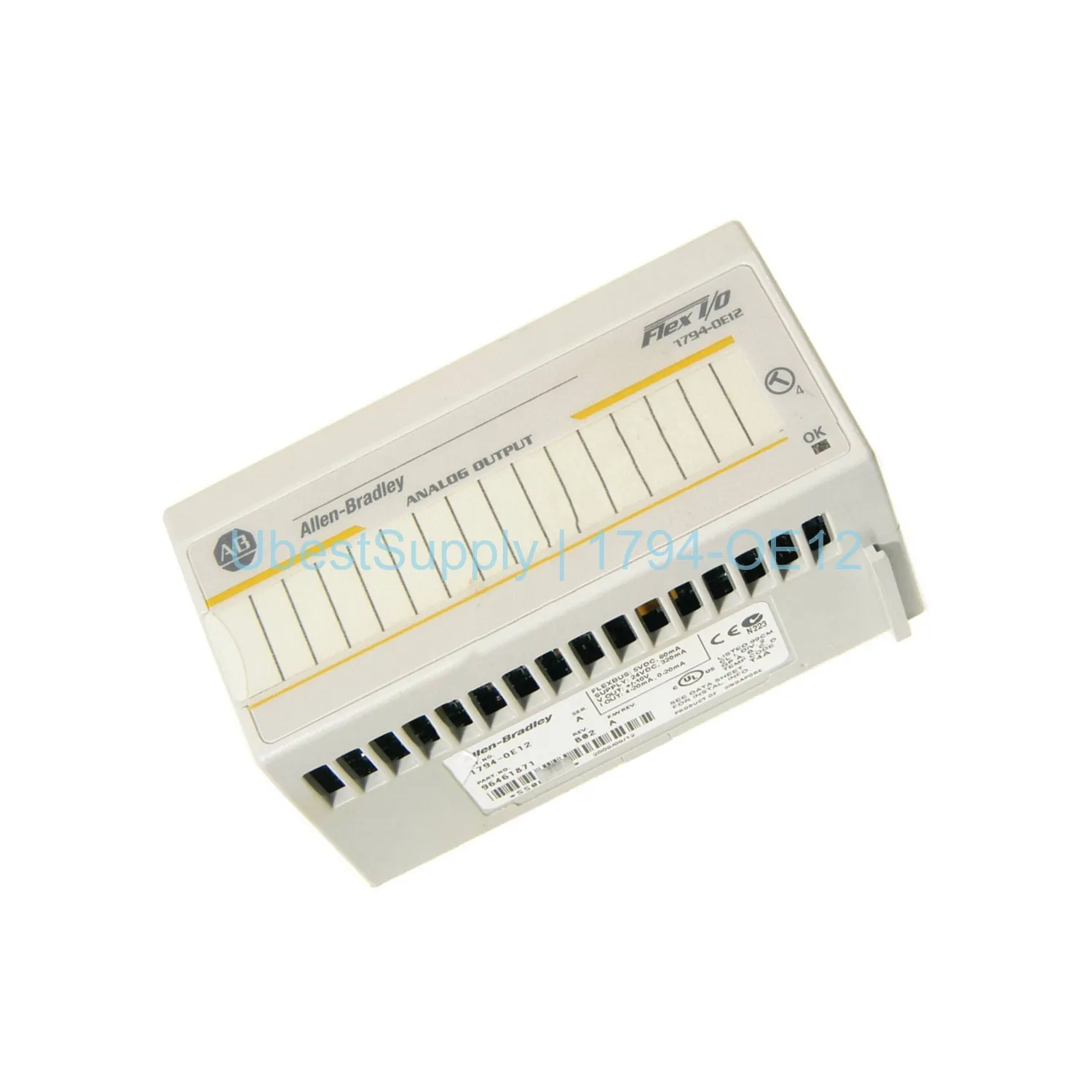

Allen-Bradley 1794-OE12 Analog Output Module 12 Ch

Product Overview

The 1794-OE12 is a high-density analog output module. It is part of the Allen-Bradley Flex IO family. This module has 12 single-ended channels. Each channel can output voltage or current signals. Supported signals include 0-20 mA and 4-20 mA. It also supports +/-10 VDC. The module uses a 16-bit digital-to-analog converter. This ensures precise control. 1794-OE12 is ideal for many automation tasks.

Application Scenarios

Use this module in process control systems. It works well for valve positioning. It is good for analog signal generation. Use it in automotive assembly lines. It fits in food and beverage processing. The module handles harsh industrial environments. Its wide operating temperature range from -20 to 60 degrees Celsius helps. It also withstands shock up to 30 g. Vibration resistance of 5 g at 10-500 Hz is robust.

Technical Specifications

The 1794-OE12 has an external DC supply of 24 V nominal. Range is 10.0 to 31.2 V DC. Current draw at 10 V is 720 mA. At 24 V, current is 320 mA. FlexBus current is 80 mA. Isolation voltage is 50 V continuous. Tested at 850 V DC for 60 seconds. Absolute accuracy for voltage and current is 0.1 percent full scale at 25 degrees Celsius. Accuracy drift is 0.004 percent per degree Celsius. Maximum power dissipation is 4 W at 10 V and 31.2 V. At 24 V, it is 4.3 W. Thermal dissipation is 4.7 BTU/hr at 24 V. Operating temperature range is -20 to 60 degrees Celsius. Storage temperature is -40 to 85 degrees Celsius. Relative humidity is 5 to 95 percent non-condensing. Operating shock is 30 g. Non-operating shock is 50 g. Operating vibration is 5 g at 10-500 Hz. Voltage output load current is 3 mA max. Current output resistive load is 0 to 750 ohms at 24 V DC. Voltage resolution is 320 microvolts per count. Current resolution is 0.641 microamps per count. The output is 0 mA until configuration. It does not require calibration. 1794-OE12 has keyswitch position 4.

Installation & Maintenance Guide

Mount the module on a DIN rail. Use compatible terminal bases like 1794-TB3G or 1794-TB3GS. Ensure proper wiring. The module has an open-style enclosure. It must be inside a protective cabinet. Wire size depends on the installed terminal base. No special calibration is needed. The module has diagnostic LEDs. These LEDs show power and status. Follow standard safety procedures. Do not expose to conductive liquids. The module works with any 1794 Flex IO adapter.

Packing List

One 1794-OE12 analog output module. One product documentation.
