Allen-Bradley PowerFlex 4M Drive 22F-D1P5N103 0.5 HP

Product Overview

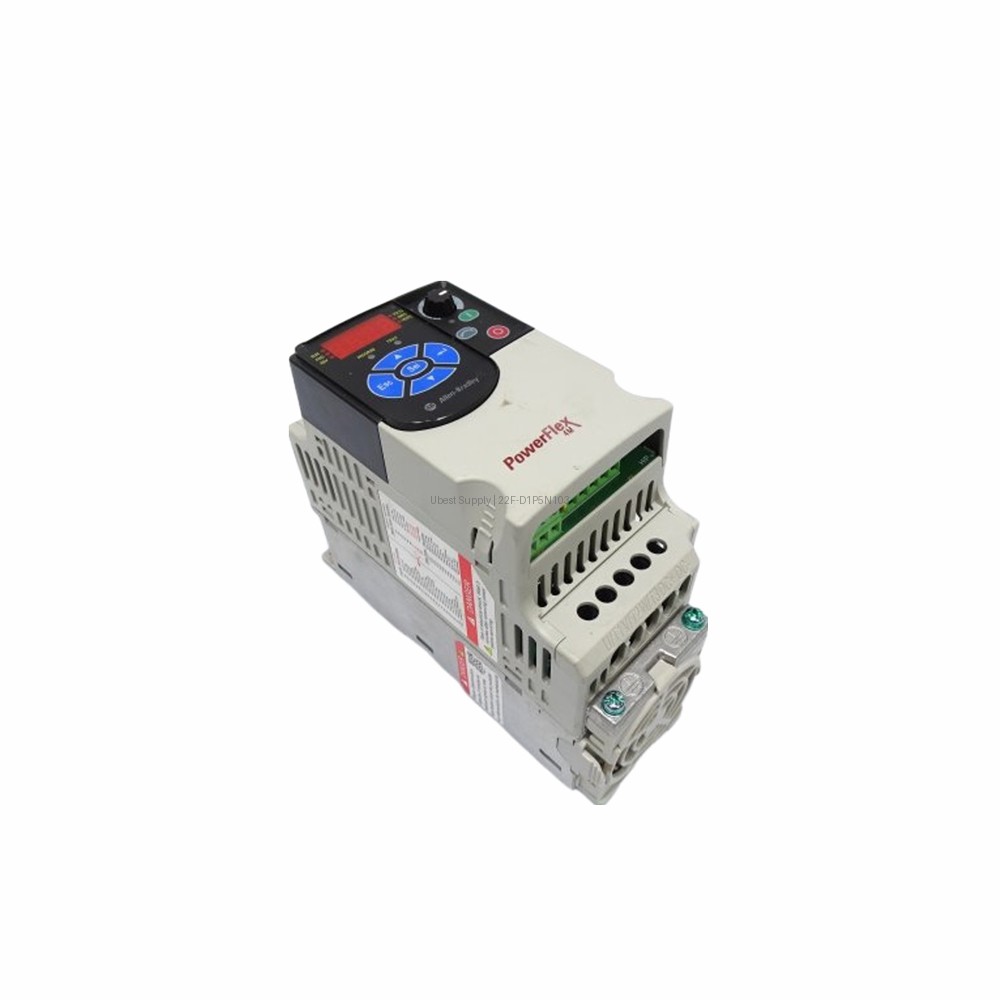

The Allen-Bradley 22F-D1P5N103 is a PowerFlex 4M adjustable frequency AC drive. It provides a compact solution for basic speed control. This drive delivers 0.4 kW or 0.5 HP of output power. It operates on a 380-480VAC, three-phase input supply. The unit features a built-in RS485 communication port. Its integrated human interface module allows for easy local setup. This model is ideal for space-constrained applications.

Application Scenarios

This drive works well in many industrial settings. Use it for conveyors, fans, and pumps. It also suits packaging machines and material handling systems. The compact size fits easily into small control panels. It is a good choice for OEM machine builders. The 22F-D1P5N103 also supports simple automation tasks. Its convection cooling keeps it quiet and reliable.

Technical Specifications

This drive has a 1.5 A output current rating. It produces an output voltage from 0 to 460VAC. The output frequency ranges from 0 to 400 Hz. Drive efficiency reaches 97.5 percent. It provides overload protection at 150 percent for 60 seconds. It also handles 200 percent overload for 3 seconds. The carrier frequency range is 2 to 10 kHz. It has five discrete inputs and one form C output. It also includes one analog input for 4-20 mA or 0-10VDC signals.

Installation & Maintenance Guide

Mount the drive on a flat, vertical panel. Ensure proper airflow for convection cooling. The operating temperature range is 14 to 122 degrees Fahrenheit. Keep the storage temperature between 40 and 185 degrees Fahrenheit. Maintain relative humidity below 95 percent. The unit can withstand 1G vibration at 5-500 Hz. It also handles 15G shock for 11 milliseconds. Use shielded cables for control wiring. Follow all local electrical codes during installation.

Packing List

Each shipment includes one PowerFlex 4M drive. It includes a quick start guide. The package also contains mounting hardware. No additional cables or accessories are included. We ship via FedEx, UPS, or DHL. The 22F-D1P5N103 comes in secure packaging. Verify the unit for any damage upon receipt.
