Allen-Bradley SLC 500 1746-P3 Power Supply 24VDC 3.6A

Product Overview

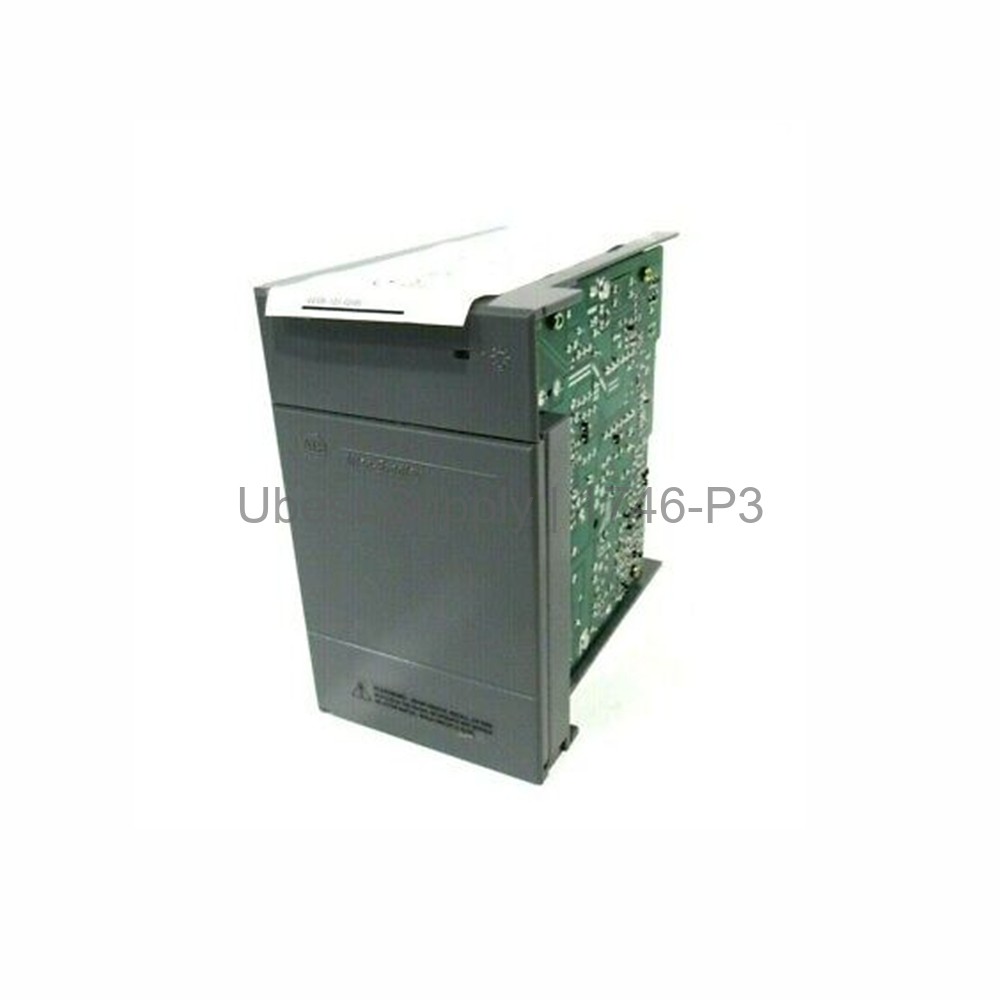

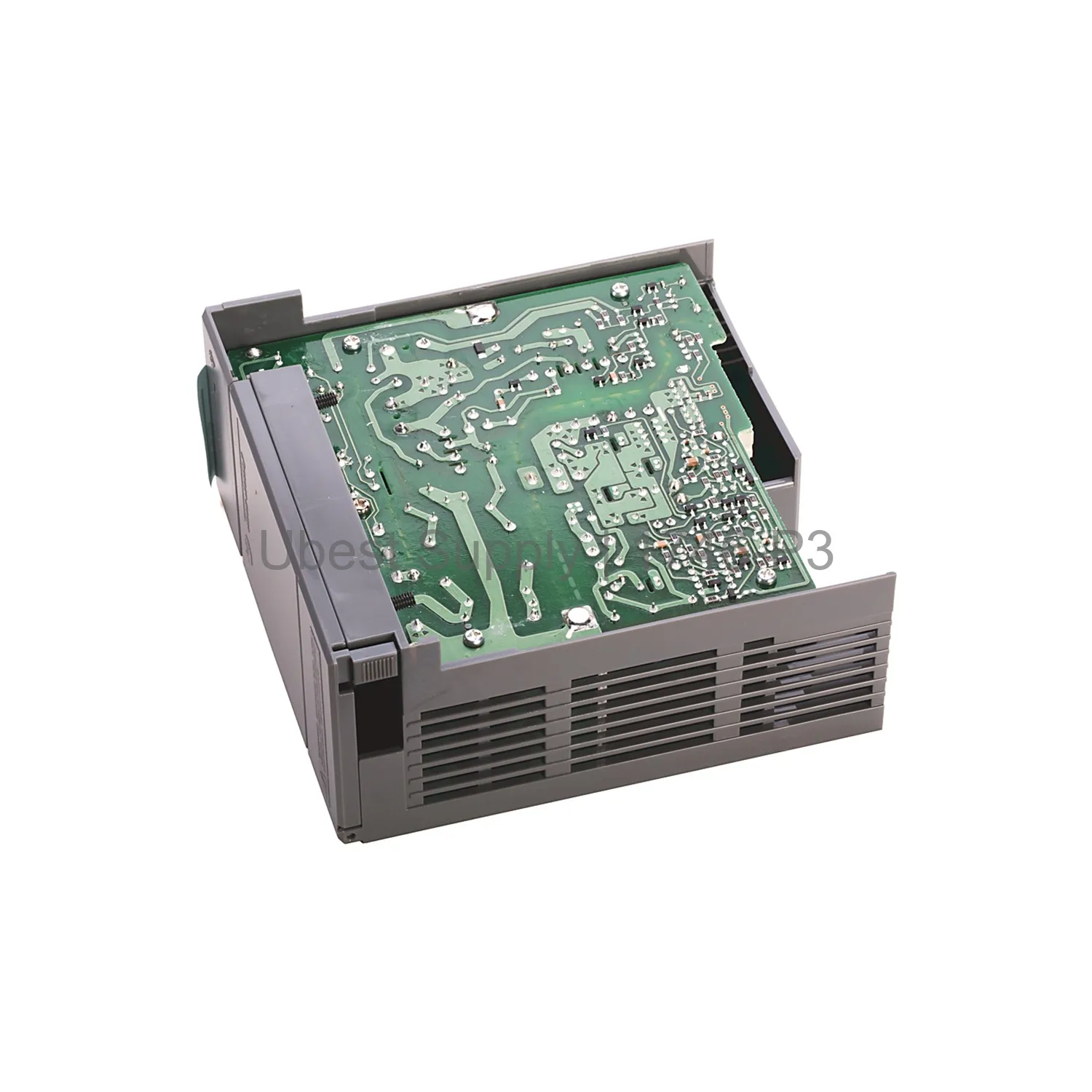

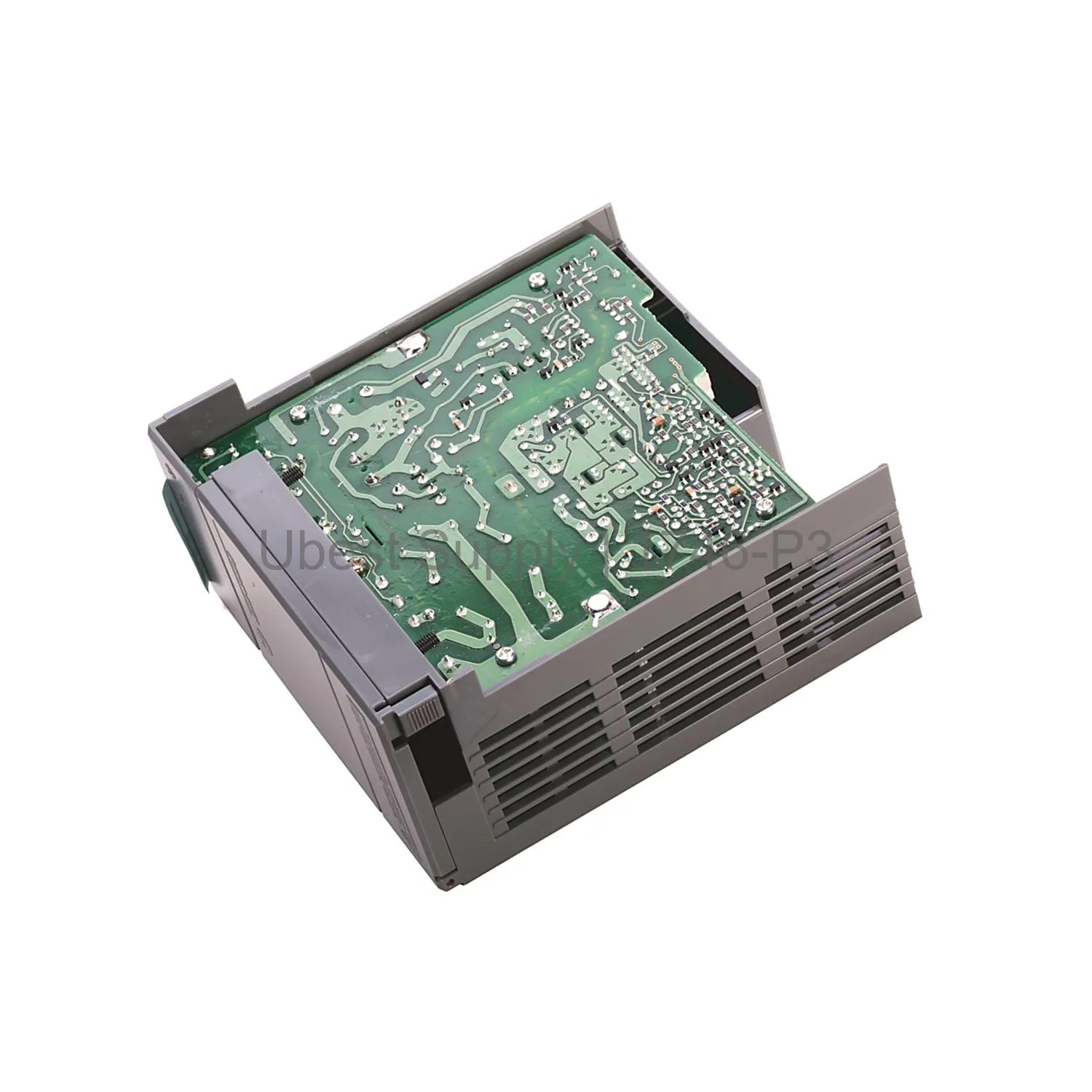

The Allen-Bradley 1746-P3 is a reliable power supply module. It fits the SLC 500 chassis on the left side. This unit accepts a 24VDC input voltage. It provides stable power to the backplane. The 1746-P3 delivers 3.6 Amps at 5 Volts. It also supplies 0.87 Amps at 24 Volts. This module is ideal for industrial automation systems. It ensures consistent operation for your control tasks.

Application Scenarios

This power supply works in many factory settings. Use it in manufacturing plants and assembly lines. It supports packaging machinery and material handling. The 1746-P3 is perfect for process control systems. It also fits in discrete manufacturing environments. You can use it in automotive and food processing. The module handles heavy industrial conditions well. Its compact size saves valuable cabinet space.

Technical Specifications

The input voltage range is 19.2 to 28.8 VDC. Nominal input voltage is 24 Volts DC. Typical power requirement is 90 VA. Inrush current reaches 20 Amps. Isolation voltage is 600V AC RMS for 1 second. Hold up time is 5 ms at full load. It is 1000 ms with no load. Use a 1746-F3 fuse for protection. Operating temperature is 0 to 60 degrees Celsius. Derate current 5% above 55 degrees Celsius. Module weight is 2.5 pounds. Dimensions are 5.5 by 2.9 by 5.7 inches.

Installation & Maintenance Guide

Install the 1746-P3 on the left side of the chassis. Ensure the power is off before installation. Slide the module into the slot until it locks. Connect the 24VDC power source to the terminal. Check the input voltage polarity carefully. Use a fuse for protection against shorts. Keep the area clean and free of debris. Monitor the operating temperature regularly. Replace the module if it shows damage. Always follow safety guidelines for electrical work.

Packing List

You will receive one Allen-Bradley 1746-P3 power supply. The package includes a quick start guide. No additional cables or hardware are included. The unit is packed securely for shipping. We ship via Fedex, UPS, or DHL. Your order will arrive safely and on time.
