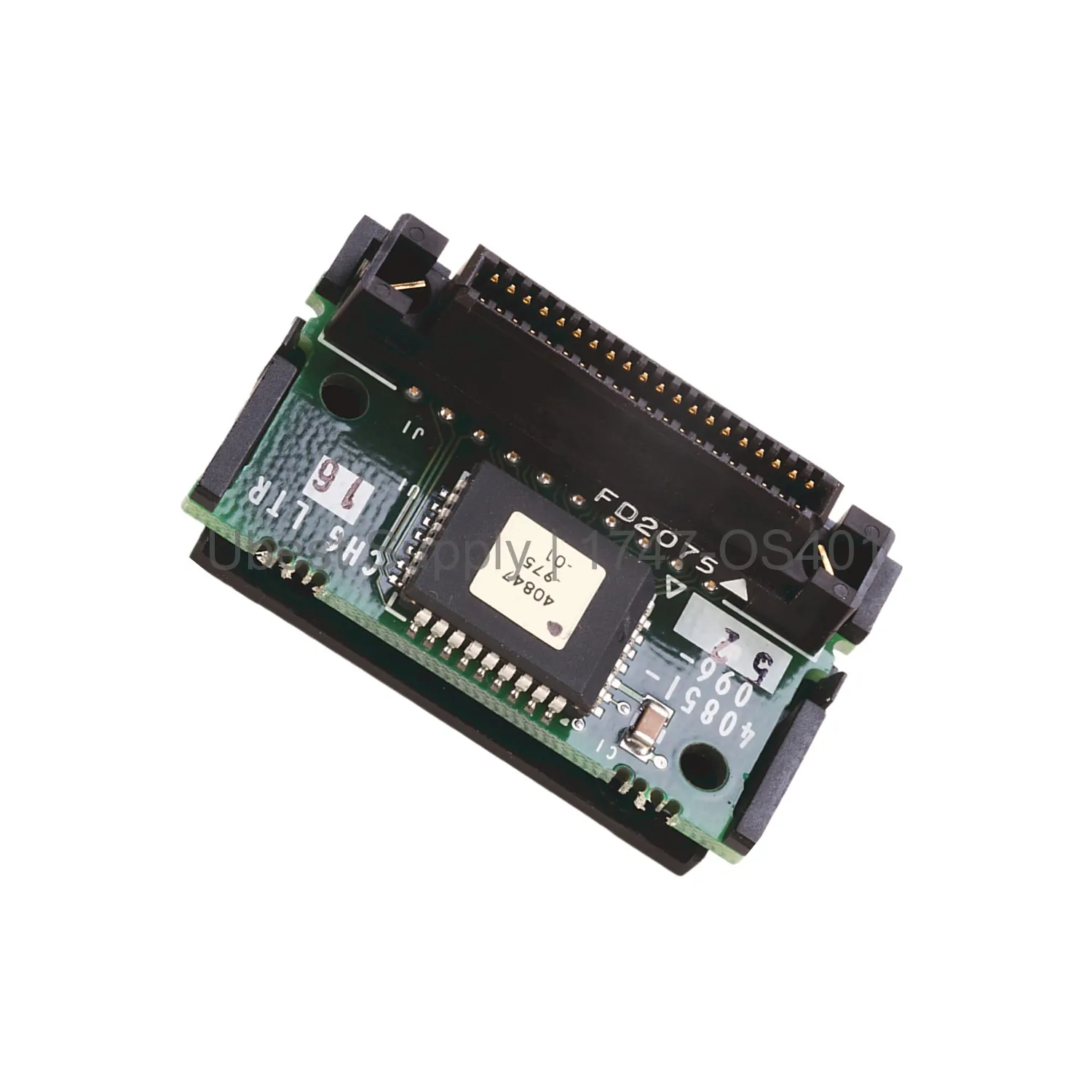

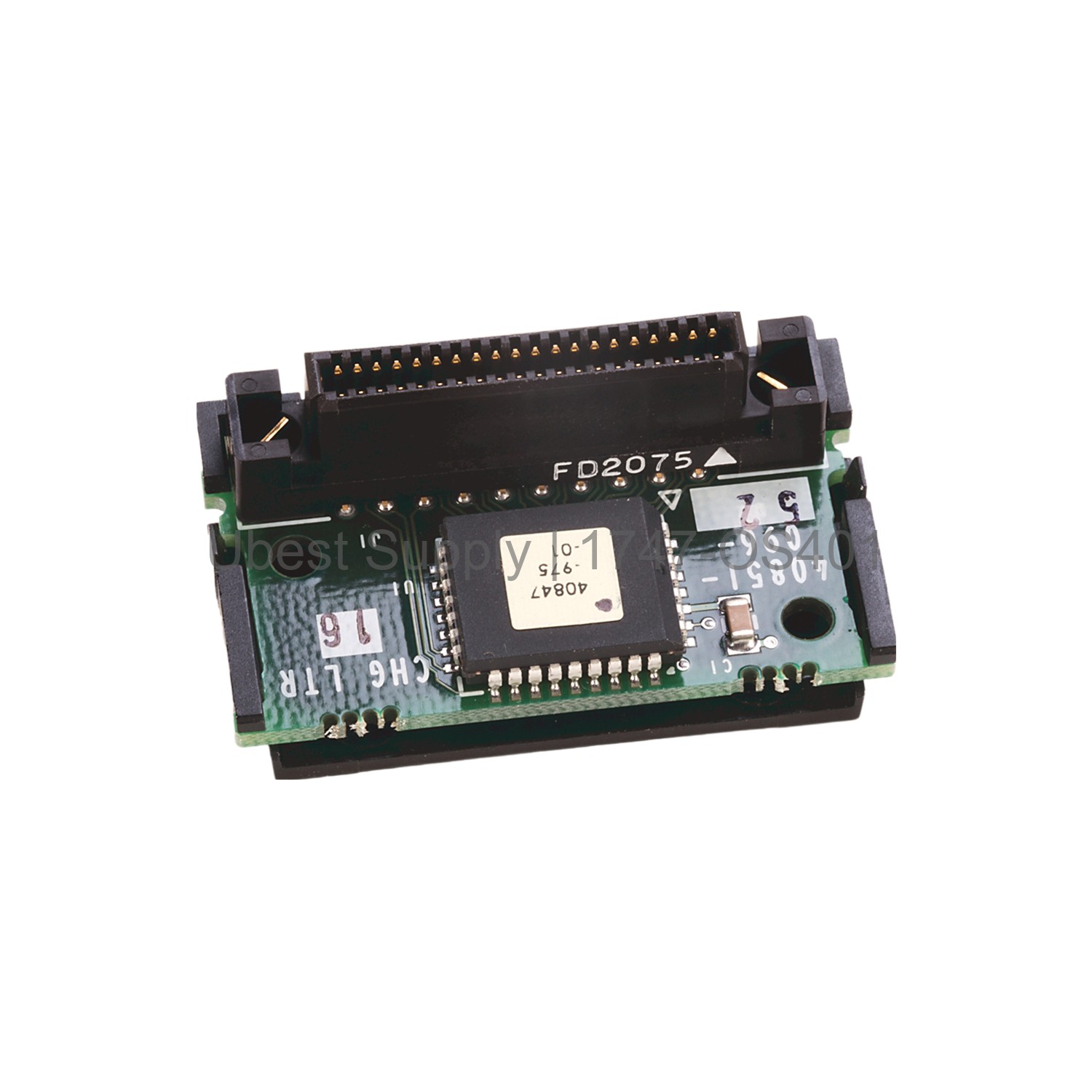

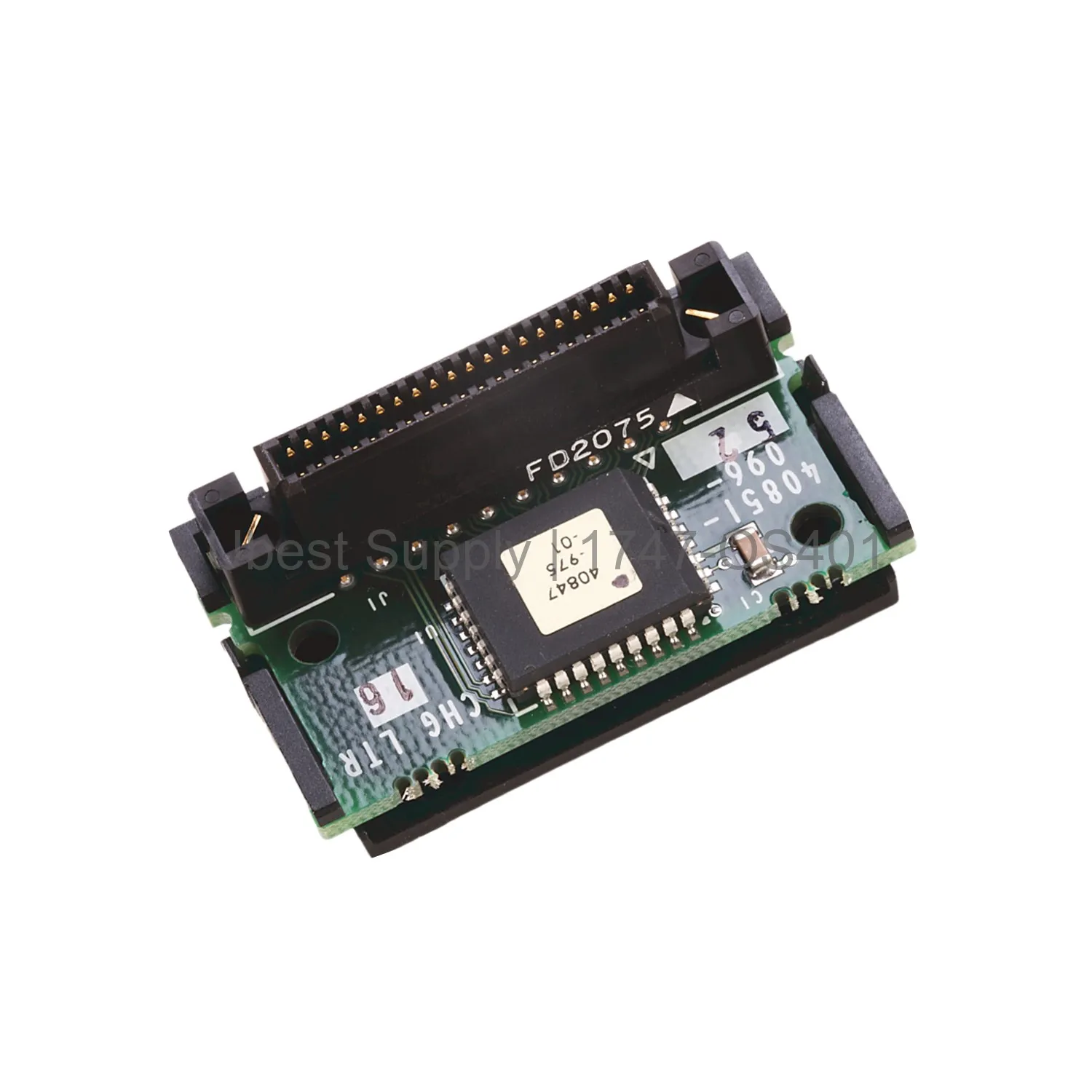

Allen-Bradley SLC 500 1747-OS401 Processor - Advanced Math

Product Overview

The 1747-OS401 is a processor for SLC 500 series. It works with SLC 5/04 architectures. It supports indirect addressing for data flexibility. Users can perform complex math operations. This includes sine, cosine, and tangent functions. The unit also handles natural logarithms. The processor offers many instruction sets. These include SCP, ABS, SWP, ASN, and ACS. The 1747-OS401 is a robust automation component.

Application Scenarios

The processor fits process control applications. It is ideal for data manipulation tasks. Industries use it for complex calculations. It helps in batch processing systems. The unit also works in manufacturing automation. It controls assembly lines effectively. It manages batch processes smoothly. It improves overall system performance.

Technical Specifications

The 1747-OS401 supports SLC 5/04 architectures. It uses indirect addressing for words and bits. It includes SCP instruction for scaling. ABS instruction provides absolute value. SWP instruction swaps data. ASN instruction calculates arcsine. ACS instruction calculates arccosine. ATN instruction calculates arctangent. Mathematical functions include cosine, sine, tangent. Natural logarithmic functions are supported. The processor handles complex calculations easily.

Installation & Maintenance Guide

Install the processor in a SLC 500 chassis. Ensure proper power supply connections. Follow the user manual for wiring. Regularly check for firmware updates. Use only approved accessories. Always power off before installation. Use proper grounding techniques. Verify compatibility with existing system.

Packing List

One 1747-OS401 processor unit. Documentation and quick start guide. Software CD is included.
