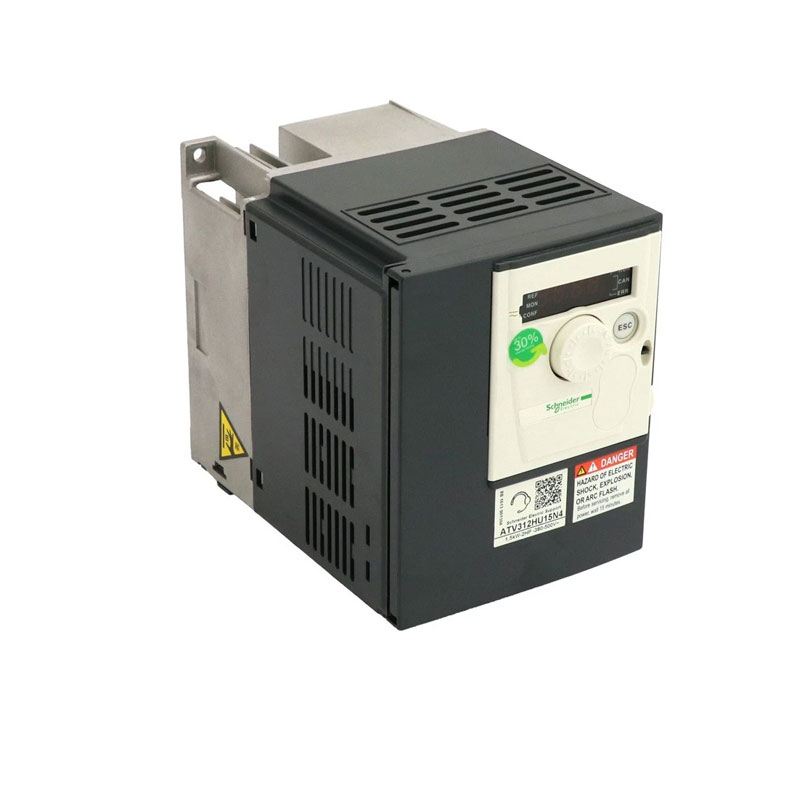

ATV312HU15N4 Schneider Electric: VFD Procurement Guide

Core Value

The ATV312HU15N4 Schneider Electric variable speed drive resolves critical motor control challenges in heavy industries like oil, gas, and manufacturing. It delivers precise sensorless vector PWM control for asynchronous motors up to 1.5 kW. Consequently, operators achieve energy savings and reduced mechanical stress. This drive also integrates an EMC filter, ensuring compliance with electromagnetic compatibility standards. Therefore, it operates reliably in harsh electrical environments.

Technical Insights

Power and Voltage Specifications

The drive supports input voltages from 380 to 500 VAC three-phase with a ±15% tolerance. It delivers 4.2 kVA apparent power and a continuous line current of 6.4 A at 380 V. This robust power range allows stable operation under fluctuating grid conditions. Consequently, equipment lifespan increases in plants with variable power quality.

Control Performance

Sensorless vector PWM technology enables a speed ratio of 1:50. This provides accurate torque control even at low speeds. The drive can deliver 150% braking torque with or without an external resistor. Therefore, applications requiring quick stops or load holding benefit greatly.

Communication and Integration

Built-in Modbus and CANopen protocols simplify integration into existing automation networks. The drive also features one USB port for quick configuration. As a result, engineers reduce commissioning time and improve system responsiveness.

Installation and Maintenance Guide

Mount the drive vertically on a flat, non-flammable surface to ensure proper airflow. Maintain a minimum clearance of 50 mm above and below the unit for cooling. Use shielded cables for motor and control wiring to minimize electrical noise. Tighten all power terminals to the recommended torque values. Regularly inspect the cooling fan for dust accumulation and replace it if noisy. Furthermore, verify that the input voltage remains within the ±15% tolerance range to prevent premature failure.
