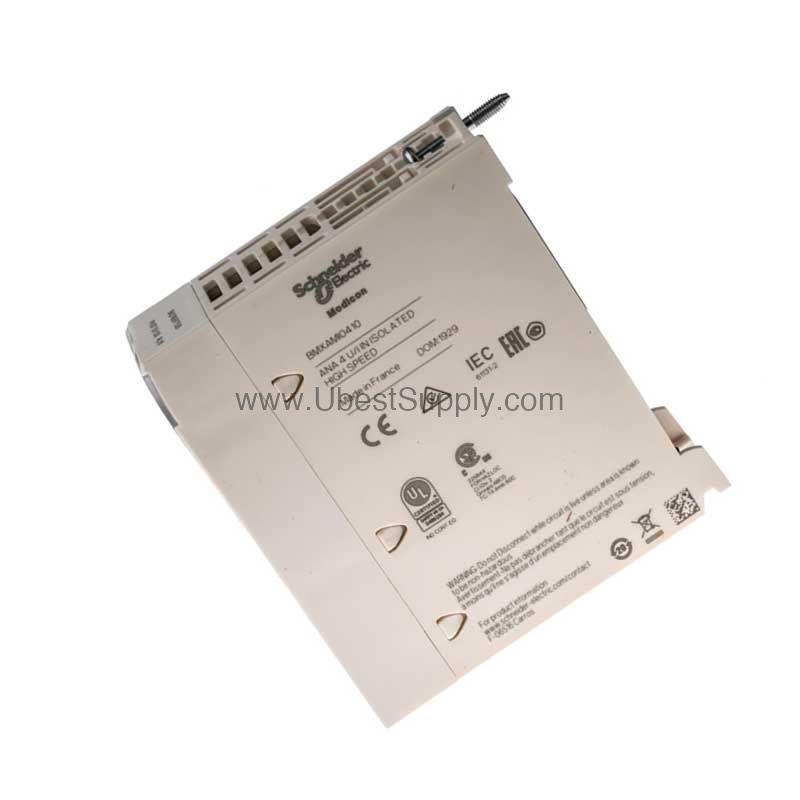

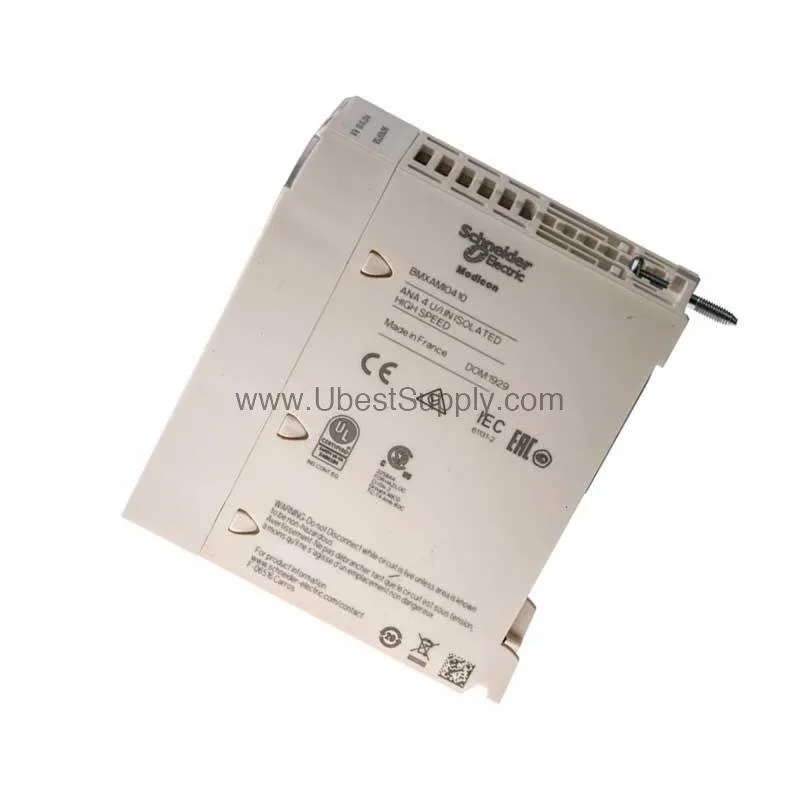

BMXAMI0410 | Schneider Analog Input Module Supplier

Introduction to the BMXAMI0410

For maintenance engineers seeking reliable analog signal acquisition, the BMXAMI0410 from Schneider Electric delivers consistent performance. This analog input module is part of the Modicon X80 range and offers 4 high-level inputs for current and voltage signals. With its isolated design and 24-bit analog-to-digital conversion, it supports accurate data collection in industrial environments.

Key Features and Technical Specifications

• 4 analog inputs accepting current ranges of +/-20 mA, 0-20 mA, and 4-20 mA, as well as voltage ranges of +/-10 V, +/-5 V, 0-10 V, 0-5 V, and 1-5 V.
• 16-bit analog input resolution with a fast read cycle time of 1 ms plus 1 ms per channel used.
• Measurement error of <=0.1% of full scale for voltage ranges and <=0.3% of full scale for current ranges at 0-60 °C.
• Isolation voltage of 300 V DC between channels and 1400 V DC between channels and ground or bus.
• Status LEDs include a green RUN LED, a red ERR LED, a red I/O LED, and one green channel diagnostic LED per channel.
• Current consumption of 150 mA at 3.3 V DC and 45 mA at 24 V DC, with a product weight of 0.143 kg.

A distinctive feature is the internal conversion resistor with 0.1% precision and 15 ppm/°C drift, ensuring stable measurements over temperature changes. This supports reliable operation in varying conditions.

Applications and Use Cases

In process control and monitoring systems, the BMXAMI0410 handles high-speed analog signals from sensors and transmitters. For example, it can acquire 4-20 mA loop signals from pressure transmitters or 0-10 V signals from level sensors. Its fast cycle time makes it suitable for applications requiring quick data updates, such as motion control or batch processing. The module's isolated inputs help prevent ground loops and noise interference, improving signal integrity.

Installation and Setup

When installing the BMXAMI0410, ensure the module is properly seated in the Modicon X80 rack and the 20-way connector is securely attached. Use shielded twisted-pair cables for analog signals to minimize electrical noise. Follow Schneider's guidelines for wiring and grounding to maintain isolation specifications. The module automatically configures after power-up, but verify the input range settings in your control software to match your sensor outputs.

Maintenance and Reliability

From a maintenance perspective, the BMXAMI0410 requires minimal routine care. Periodically inspect the module for dust accumulation and ensure the IP20 enclosure is clean. Check LED status indicators during operation; a steady green RUN LED signals normal function, while a red ERR or I/O LED indicates a fault. Environmental factors like ambient temperature (0-60 °C) and humidity (5-95% without condensation) should remain within specified limits to avoid degradation. Regular system backups and firmware updates, per Schneider's recommendations, help maintain long-term reliability.

Compatibility and Integration

The BMXAMI0410 integrates seamlessly with Modicon X80 backplanes and is compatible with M340 controllers. It supports standard analog input configurations and communicates via the backplane bus. The module is certified to standards including EN/IEC 61131-2, CSA C22.2 No 61010-2-201, and UL 61010-2-201, ensuring broad industrial acceptance. For system integration, refer to the Schneider Modicon X80 hardware guide for detailed mapping and addressing.

Common Questions about the BMXAMI0410

Q: What is the maximum conversion value for the +/-10 V range?

A: The maximum conversion value is +/-11.4 V for the +/-10 V range.

Q: Does the module provide isolation between channels?

A: Yes, isolation voltage is 300 V DC between channels and 1400 V DC between channels and ground or bus.

Q: What is the typical read cycle time for all 4 channels?

A: The nominal read cycle time is 5 ms for 4 channels, with a fast cycle of 1 ms plus 1 ms per channel used.

Q: What certifications does the BMXAMI0410 hold?

A: It holds certifications including Merchant Navy, RCM, UL, CSA, EAC, and CE.

Q: Can the module handle both current and voltage inputs?

A: Yes, it accepts current inputs of +/-20 mA, 0-20 mA, and 4-20 mA, and voltage inputs of +/-10 V, +/-5 V, 0-10 V, 0-5 V, and 1-5 V.

Product Support and Availability

The BMXAMI0410 is available from Petro Auto Tech, an industrial automation parts supplier. Please verify current lifecycle status and availability with Petro Auto Tech before ordering. In-stock units can ship promptly to support your maintenance or upgrade projects.
