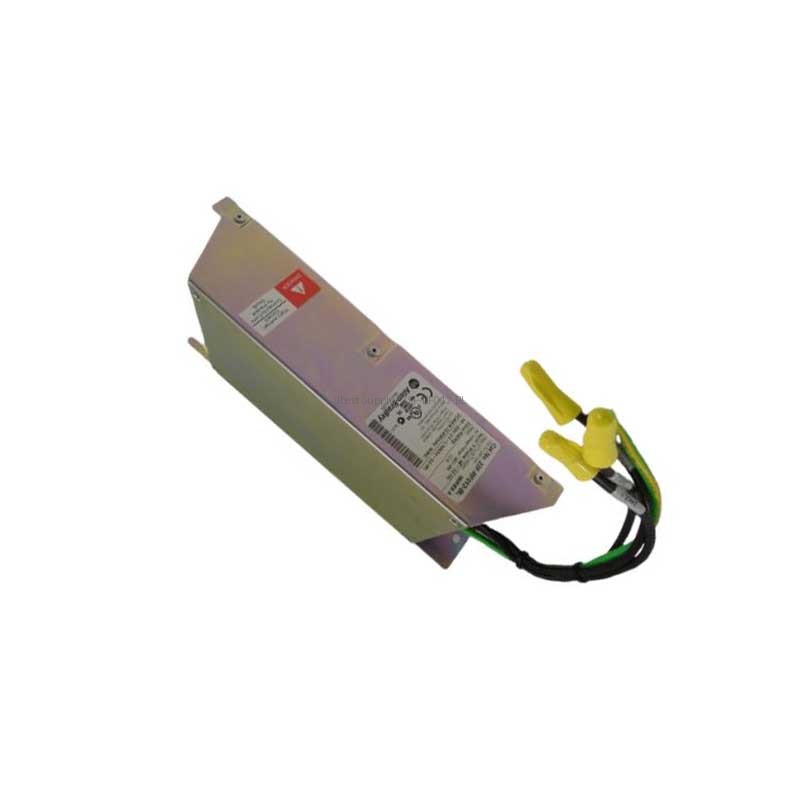

EMC Line Filter Kit Allen-Bradley 22F-RF012-BL 12A

Product Overview

This EMC line filter kit reduces electromagnetic interference. It supports 3-phase systems. The voltage range is 380-480V AC. It handles a continuous current of 12A. This kit works with PowerFlex 4M drives. It is a B Frame size model. The kit includes all mounting hardware. It is easy to install.

Application Scenarios

Use this filter in industrial environments. It helps meet EMC standards. It is ideal for long cable lengths. Common applications include conveyors and pumps. It also works for fans and compressors. Use it with 22F-RF012-BL compatible drives. It ensures stable drive operation. It reduces noise in sensitive areas.

Technical Specifications

The filter has a robust design. Its dimensions are 9.02 x 3.98 x 1.97 inches. The weight is about 0.91 kg. It operates at 380-480V AC. The current rating is 12A. It supports a power range of 2.20 to 3.70 kW. This is a long cable length type filter. It is an EMC line filter.

Installation & Maintenance Guide

Mount the filter on a flat surface. Use the provided screws. Connect the input power lines. Connect the output to the drive. Ensure proper grounding. Keep the filter clean and dry. Check connections periodically. Replace the filter if damaged. Use only qualified personnel for installation.

Packing List

The package includes one EMC filter kit. It contains mounting hardware. It includes an installation manual. The product model is 22F-RF012-BL. All items are new in the box. We ship via Fedex, UPS, or DHL.
