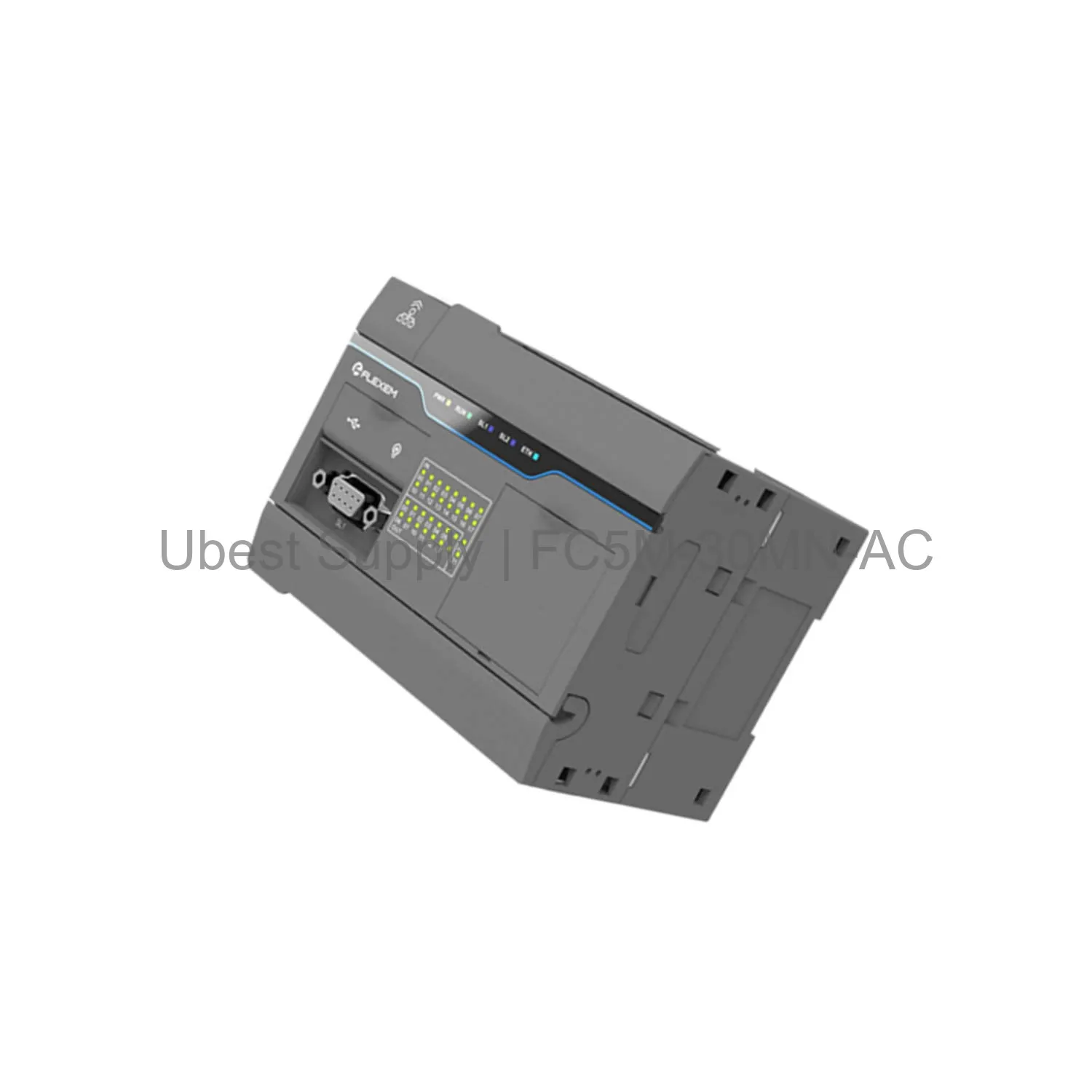

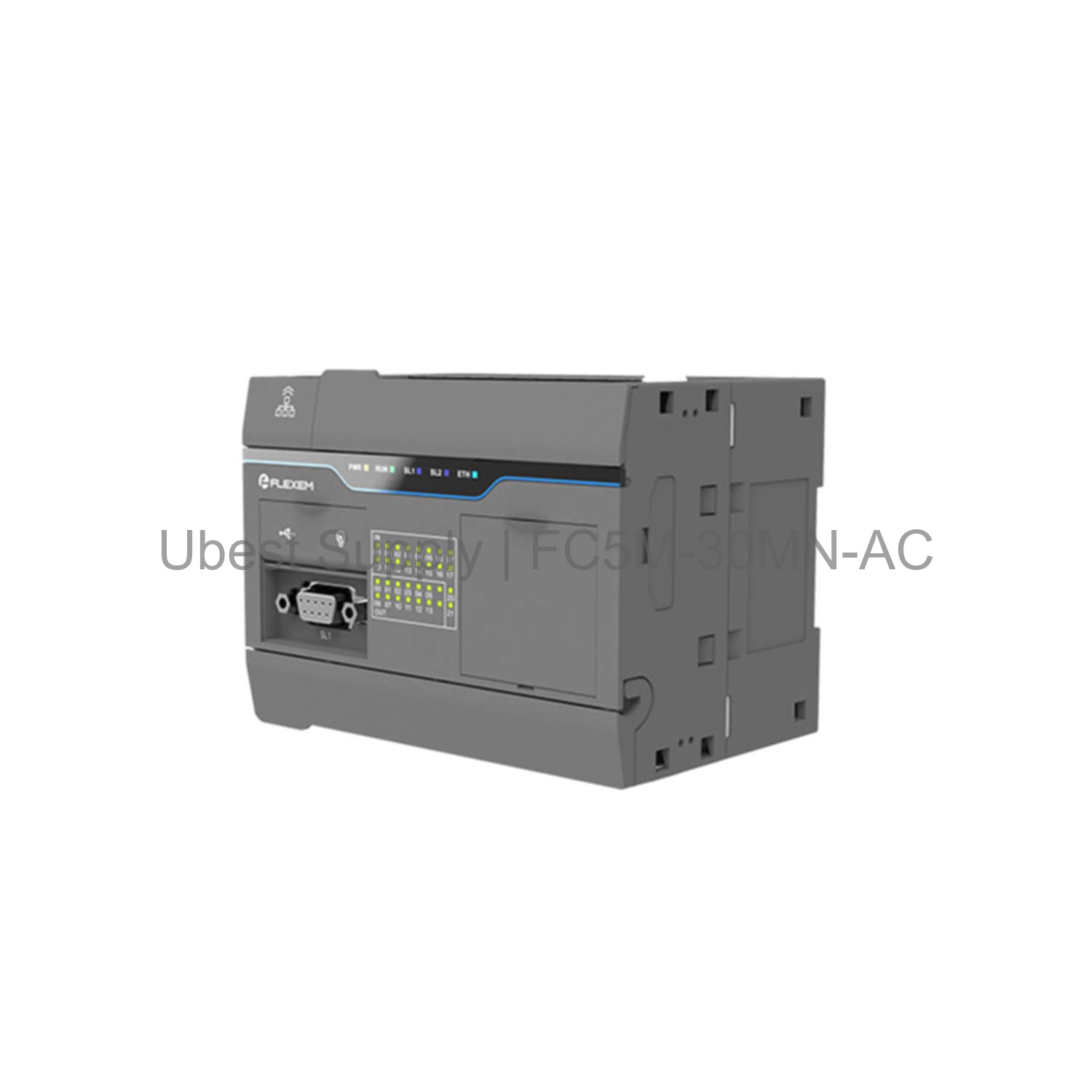

Flexem FC5M-30MN-AC PLC Controller with 18 Inputs and 12 Outputs

Product Overview

The Flexem FC5M-30MN-AC is a compact programmable logic controller. It operates on a standard AC 220V power supply. This unit features 18 discrete inputs, with 7 configured for high-speed counting. It also includes 12 NPN transistor outputs, 6 of which support high-speed pulse output. The controller is built for reliable performance in industrial environments. Its robust design ensures long service life and stable operation.

Application Scenarios

This PLC is ideal for factory automation and machine control. It works well in packaging, material handling, and assembly lines. The high-speed inputs and outputs allow for precise motion control. Use it for positioning, speed monitoring, and simple robotic tasks. It also suits process control in small to medium-sized systems. The controller can manage sensors and actuators efficiently.

Technical Specifications

The FC5M-30MN-AC has a rated input voltage of DC 24V. The input range spans from DC 0V to 28.8V. Input current is 7mA at rated voltage, with a peak voltage of 30V. The unit supports both NPN and PNP sensor types. It can handle 2-wire and 3-wire sensors. The high-speed counter inputs accept up to 200KHz for single-phase signals. Outputs are NPN type with a rated voltage of DC 24V. Each output can handle up to 2A, with a total group current of 4A. The high-speed pulse outputs reach up to 200KHz. The device has a coating for protection against dust and moisture.

Installation & Maintenance Guide

Mount the controller on a standard DIN rail. Ensure proper ventilation around the unit. Use shielded cables for high-speed signals. Keep cable lengths under 5 meters for fast inputs and outputs. For standard I/O, use cables up to 100 meters shielded or 50 meters unshielded. Connect the AC power supply correctly to avoid damage. Check all terminal connections before powering up. Regularly inspect the unit for dust buildup. Clean with a dry cloth if needed. Do not use solvents. Replace the unit if any damage is found.

Packing List

The package includes one Flexem FC5M-30MN-AC PLC controller. It comes with a set of removable terminal blocks. A quick start guide is also included. No additional cables or software are provided. Please order these separately if needed.
