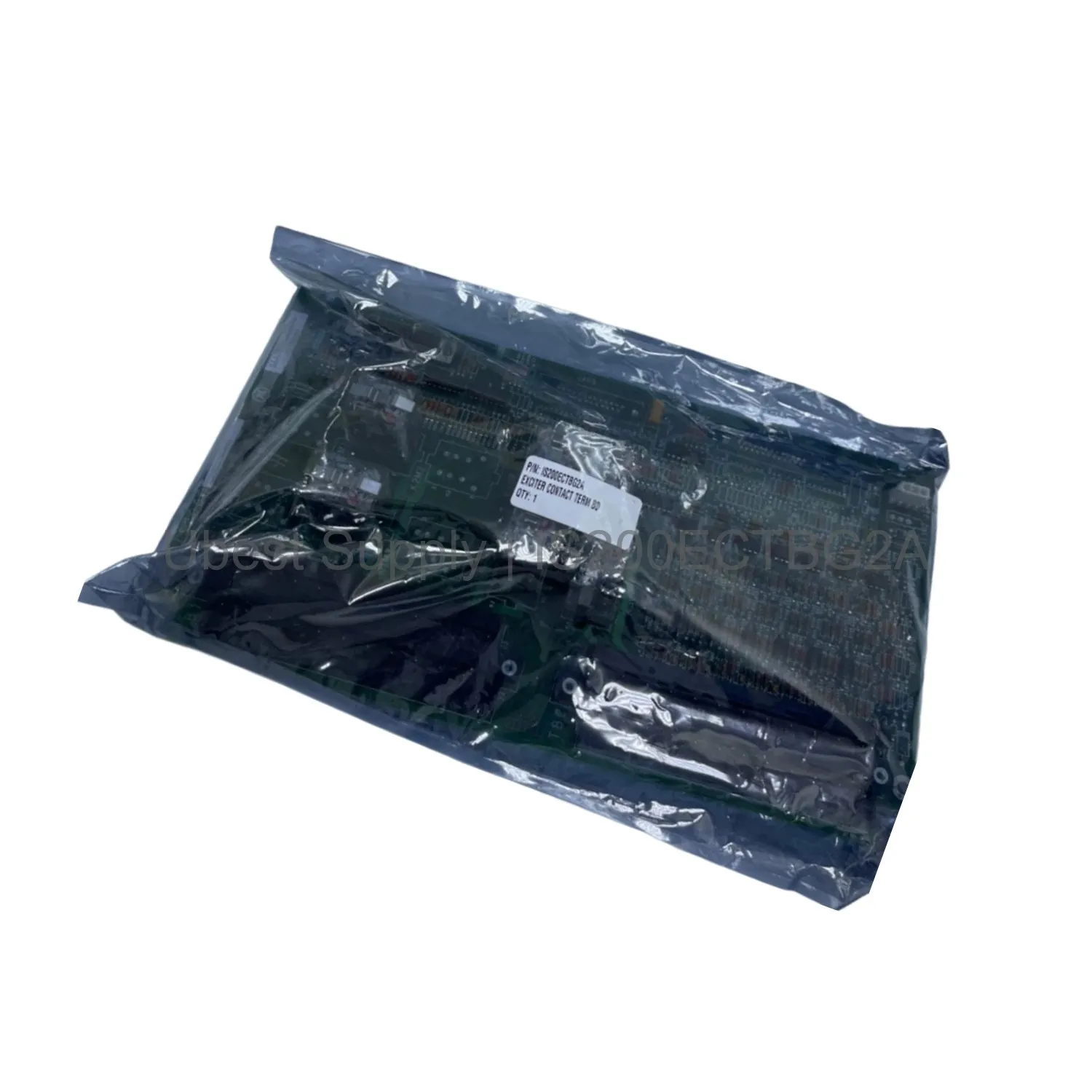

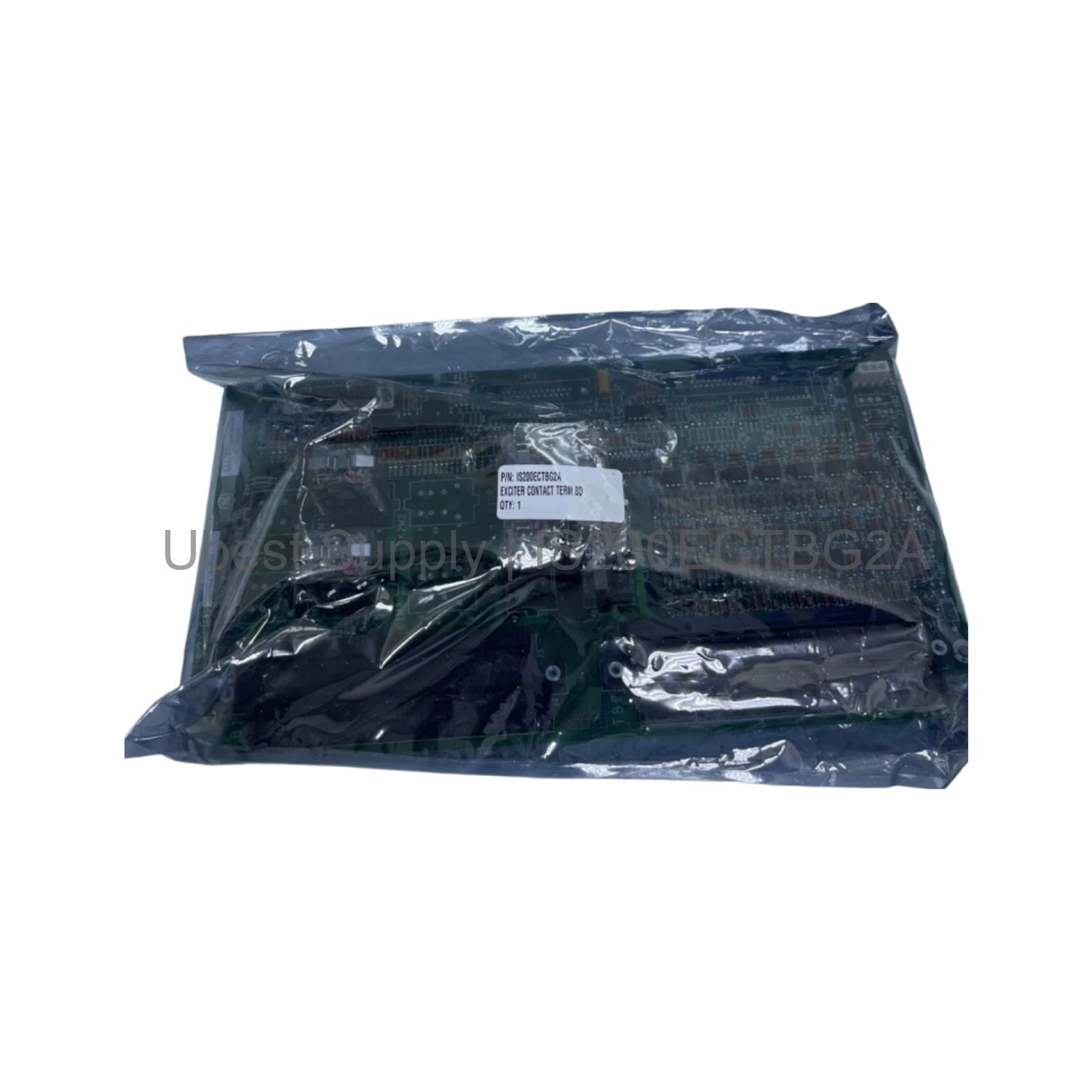

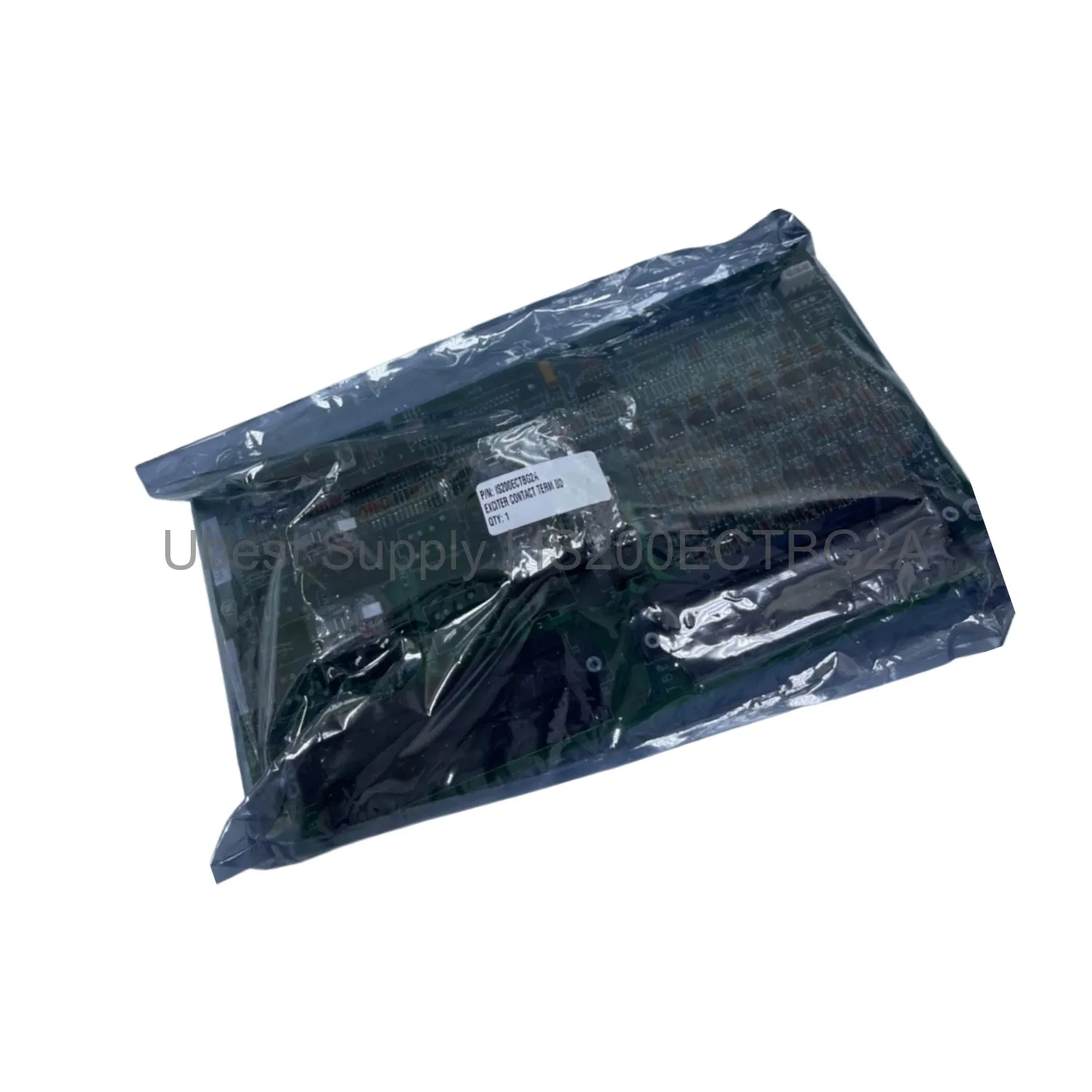

GE EX2100 IS200ECTBG2A ECTB Board for Turbine Control

Product Overview

The GE IS200ECTBG2A is a functional board from the EX2100 series. General Electric designed it for industrial excitation control. This board uses simplex mode only. It ensures stable and reliable turbine control. The board version is ECTBG2I. It weighs 3lbs 4oz. This module is a key part of the EX2100 system.

Application Scenarios

This board works in power generation plants. It controls turbine excitation systems. It fits into GE EX2100 cabinets. The simplex mode suits non-redundant applications. Use it for gas or steam turbine control. It also works in industrial generator sets. The board handles critical voltage regulation tasks.

Technical Specifications

Manufacturer: General Electric Company USA. Series: EX2100. Functional Acronym: ECTB. Instruction Manual Number: GEH-6632. Weight: 3lbs 4oz. Board Version: ECTBG2I. Mode: Simplex Mode Only. This board is a printed circuit board assembly. It interfaces with the main control system. It processes excitation control signals.

Installation & Maintenance Guide

Install the board in a dedicated slot. Ensure the system is powered off first. Use proper ESD protection during handling. Secure the board with mounting screws. Connect all cables firmly. Check for bent pins before installation. Run a system diagnostic after install. Keep the board clean and dry. Inspect for damage regularly.

Packing List

1 x GE IS200ECTBG2A Board. 1 x Anti-static bag. No additional accessories are included. The board is packed securely for shipping. We ship via Fedex, UPS, or DHL. Contact us for expedited shipping options.
