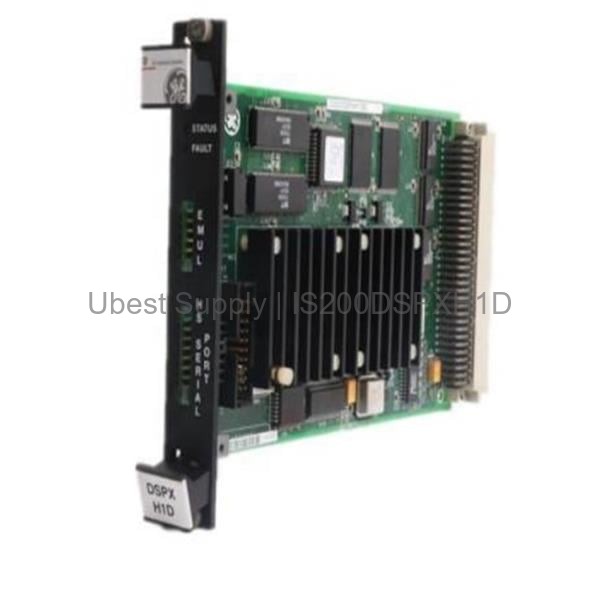

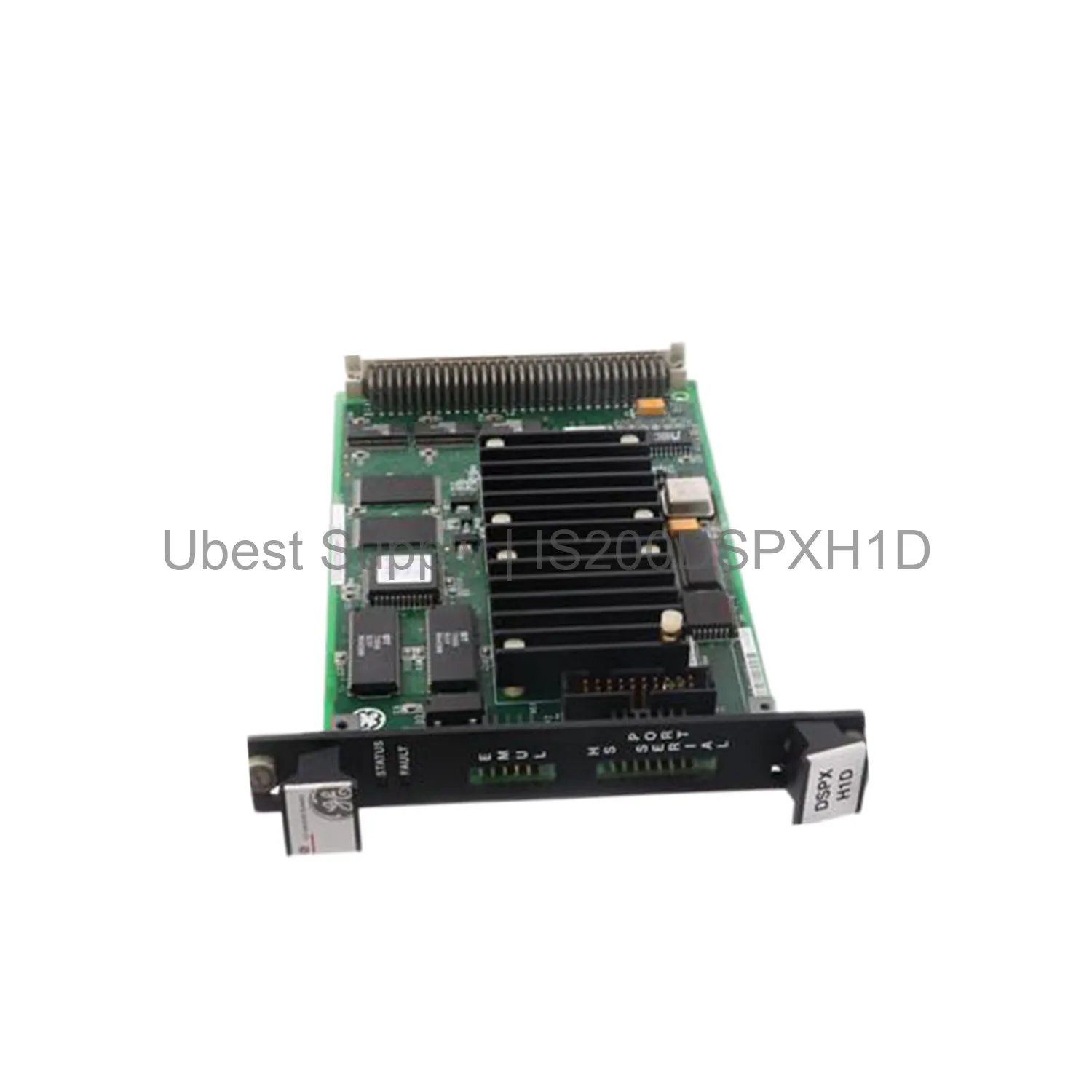

GE IS200DSPXH1D DSPX Main Controller Board Mark VI EX2100

Product Overview

The GE IS200DSPXH1D is a digital signal processor board. It serves as the main controller in the EX2100 excitation control system. This board is part of the Mark VI family. It uses a 60MHz microprocessor for fast data processing. The board includes conformal coating for protection. Its functional acronym is DSPX. This module controls both field voltage and field current. It provides reliable performance for industrial turbines.

Application Scenarios

This board fits into a control rack. It works in power generation plants. It is ideal for steam and gas turbine control. The EX2100 system manages generator excitation. This module ensures stable voltage output. It also regulates current for the field windings. Use this board in heavy industrial environments. It handles high-demand automation tasks. The IS200DSPXH1D supports critical infrastructure operations.

Technical Specifications

The board has a DSP frequency of 60MHz. It operates as a base control module. Its dimensions are 0.5 x 5 x 6.5 inches. It weighs only 5 ounces. The slot type is single-slot. Its height is 3U. The assembly level is base control module. It uses a printed wiring board. The manual number is GEH-6632. The revision is D. The group variation is H1D.

Installation & Maintenance Guide

Install the board in a dedicated control rack. Ensure the slot is clean and free of debris. Align the board with the slot guides. Push firmly until it clicks into place. Secure it with the locking mechanism. Check all connections before powering on. Regularly inspect for dust or damage. Keep the area well-ventilated. Use proper grounding to avoid static discharge. Replace the board only with the power off.

Packing List

Each order includes one IS200DSPXH1D board. The board is packed in an anti-static bag. It is placed in a sturdy cardboard box. We add foam padding for extra safety. Shipping is via FedEx, UPS, or DHL. We ensure fast and secure delivery. The package includes no additional accessories.
