GE IS210AEDBH4AGD Mark VI Bridge Interface Card

Product Overview

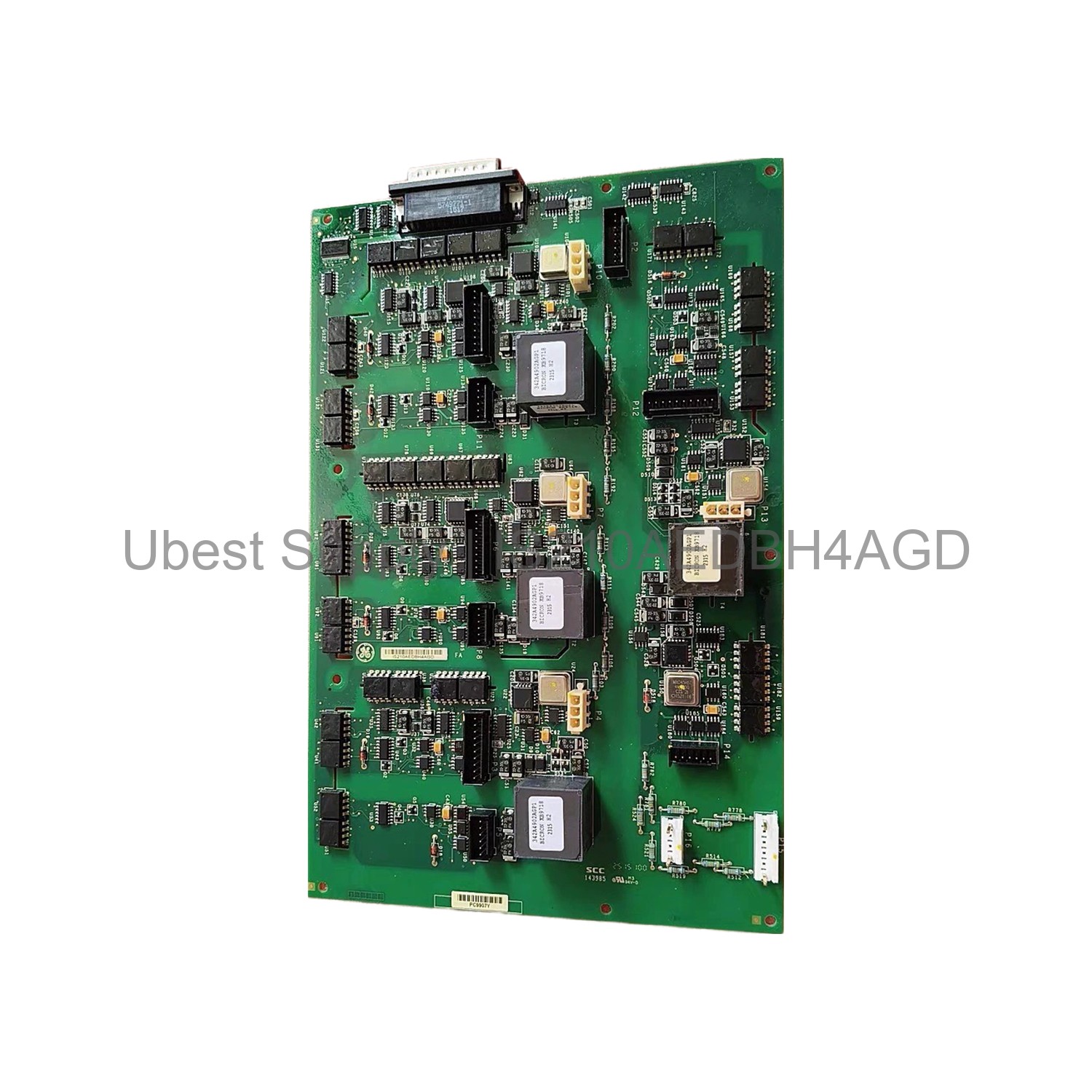

The GE IS210AEDBH4AGD is a Bridge Interface Card for the Mark VI system. This board has many capacitors and resistors. It includes twenty metal film resistors. Diodes and transistors are also present. Four transformers from Bicron are on the board. They are marked B9178. These are encapsulated switch mode or pulse transformers. The card has over 175 integrated circuits. These include read-only chips and oscillating chips. Four plugs with three positions each are on the board. Nine drilled locations are present. Slots are cut into the surface. These slots hold integrated circuits or transformers.

Application Scenarios

This card works in turbine control systems. It is part of the Mark VI platform. Use it in power generation plants. It fits in industrial automation setups. The card handles high-speed data transfer. It is ideal for harsh environments. The 5 KVAC hipot level ensures safety. Use it for reliable bridge communication.

Technical Specifications

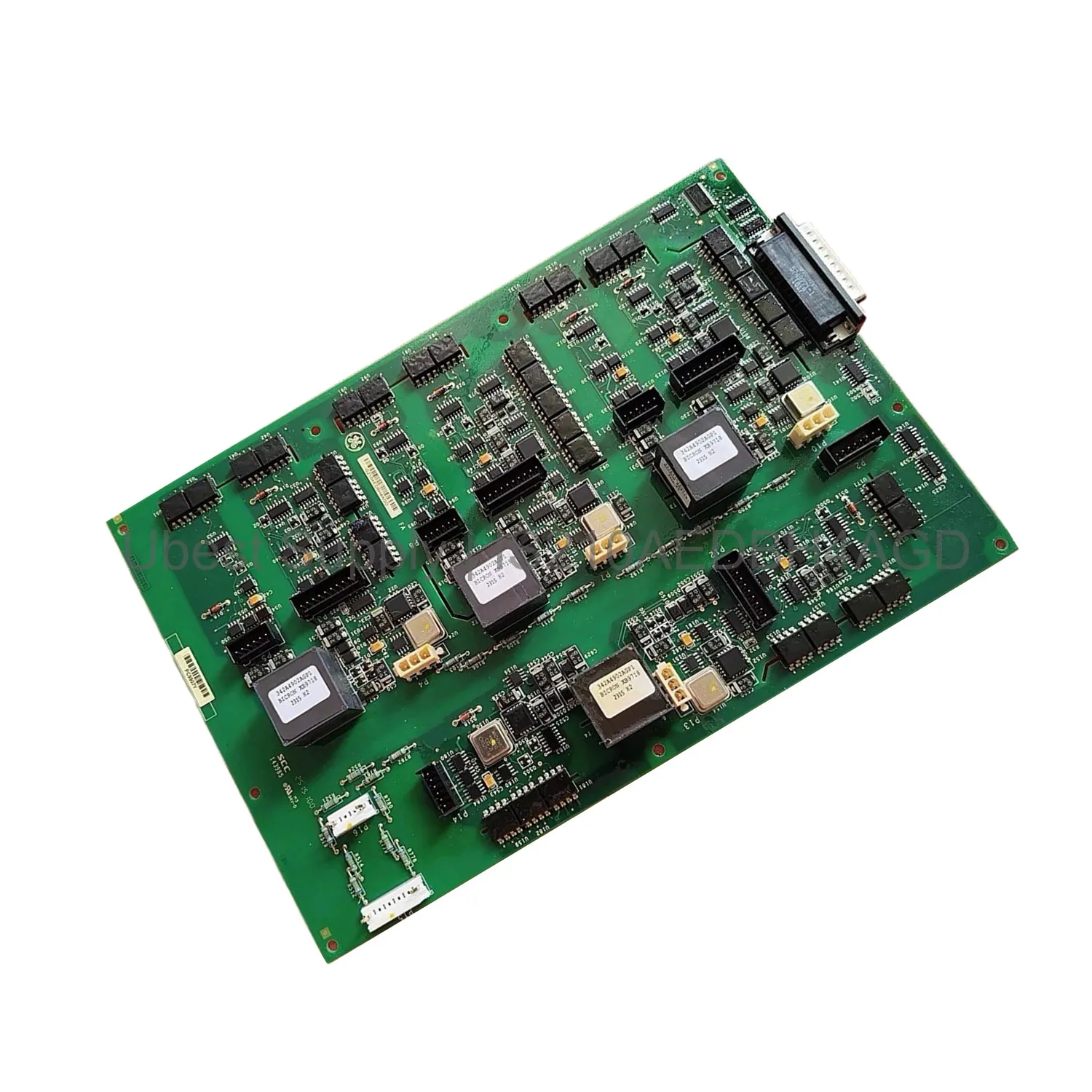

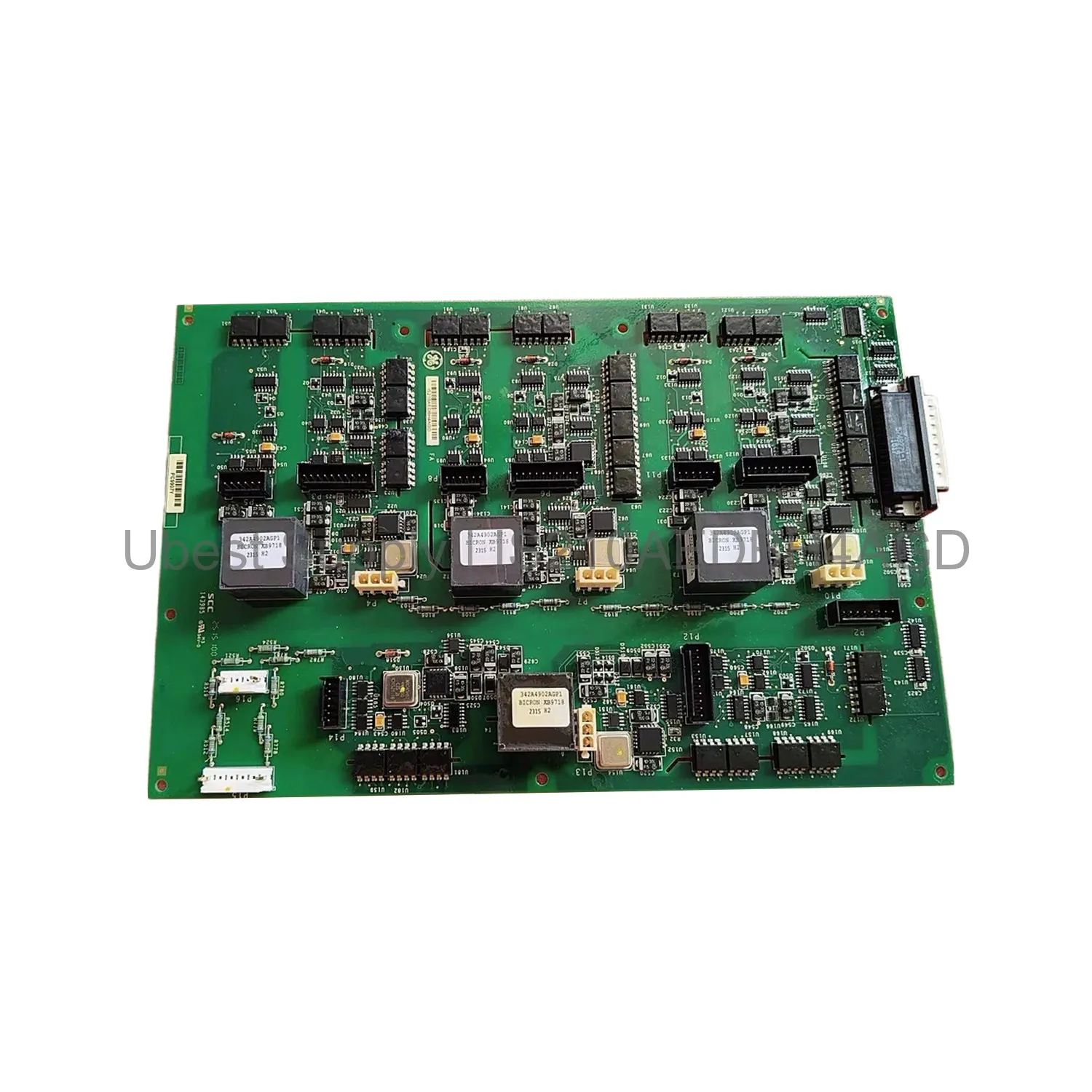

The IS210AEDBH4AGD has a hipot level of 5 KVAC. Its switching frequency ranges from 10KHz to 500 KHz. The board surface has many components. It includes capacitors and resistors. Twenty metal film resistors are present. Diodes and transistors are on the board. Four Bicron transformers are included. They are marked B9178. Over 175 integrated circuits are on the card. These chips include read-only and oscillating types. The card has four plugs. Each plug has three positions. Nine drilled locations are on the board. Slots cut into the surface hold components.

Installation & Maintenance Guide

Install the IS210AEDBH4AGD in a Mark VI rack. Ensure the system is powered off first. Align the card with the slot. Push it firmly into place. Secure it with the locking mechanism. Check all plugs for a tight fit. Do not touch the components directly. Use an anti-static wrist strap. Keep the board clean and dry. Inspect for dust or damage regularly. Replace the card if any part is broken.

Packing List

One GE IS210AEDBH4AGD Bridge Interface Card. The card is packed in an anti-static bag. It is placed in a sturdy box. No other accessories are included. We ship via Fedex, UPS, or DHL.
