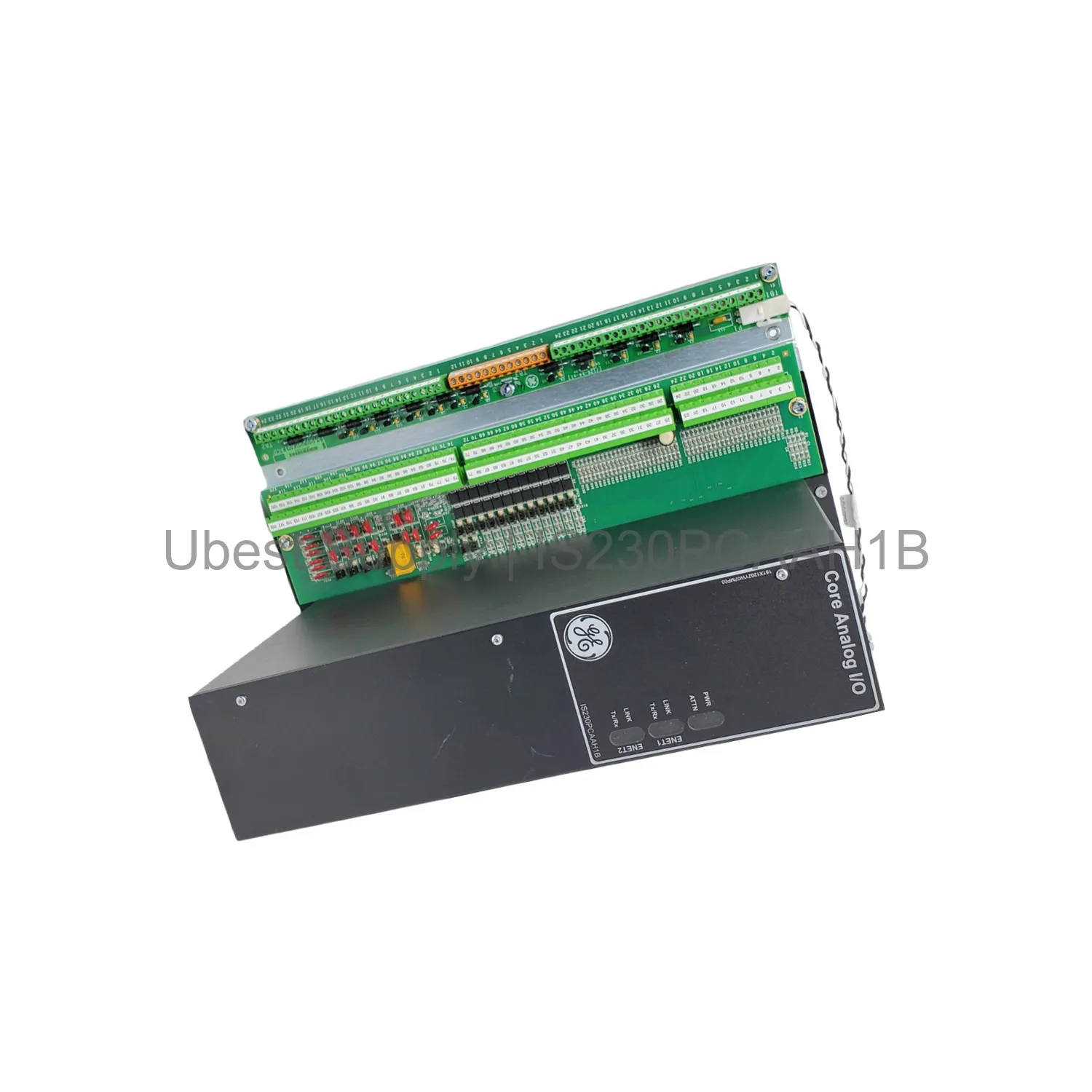

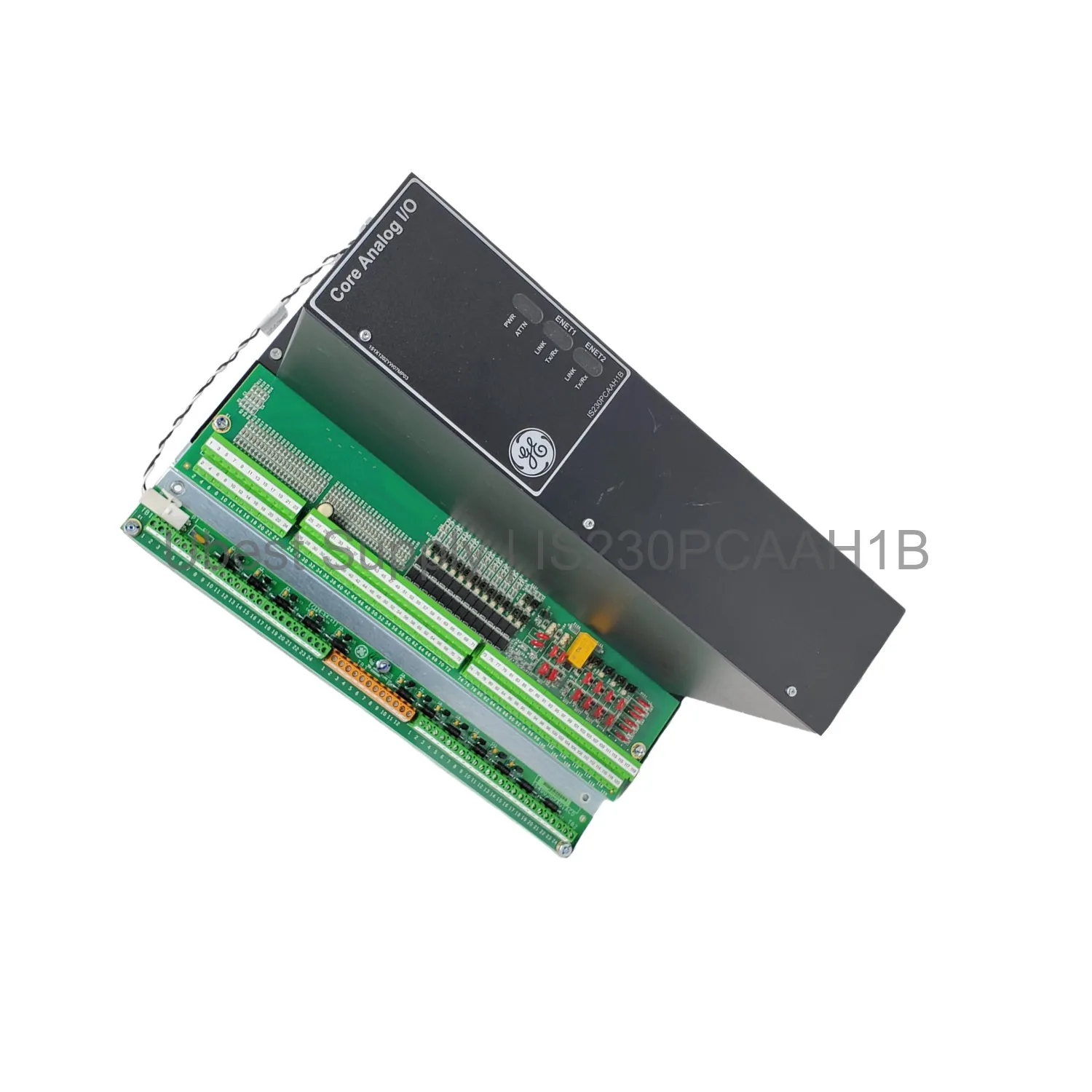

General Electric IS230PCAAH1B Mark VIe I/O Module

Product Overview

The General Electric IS230PCAAH1B is a Mark VIe I/O Module. It is a surface-mount device. This module offers 25 inputs and 4-20 mA analog outputs. It also supports 0-10 V DC inputs. The module provides LVDT excitation monitor input. It has a servo driver output. This unit is designed for industrial turbine control systems. It operates reliably in harsh environments.

Application Scenarios

This I/O module works in gas and steam turbine control. It is part of the Mark VIe system. You can use it in power generation plants. It also fits in oil and gas facilities. The module handles critical process control tasks. It manages valve positioning and actuator control. It is ideal for high-availability automation systems.

Technical Specifications

The IS230PCAAH1B has 25 inputs. It has 4-20 mA analog outputs. It also offers 0-10 V DC inputs. Input accuracy is ±0.50% for LVDT excitation. Monitor input accuracy is ±1.00%. Servo driver output accuracy is ±3.50%. Power supply input voltage is 28 Vdc ±5%. Module size is 33.02 cm high by 17.8 cm wide. Operating temperature range is -30 to 65 °C. The product origin is the U.S.A.

Installation & Maintenance Guide

Follow the GEH-6721LI manual for installation. Mount the module securely in the rack. Connect the power supply to 28 Vdc. Use proper wiring for inputs and outputs. Ensure the operating temperature stays within range. Perform regular visual inspections. Keep the module clean and free of debris. Replace it only with an identical model.

Packing List

The package includes one IS230PCAAH1B module. It comes with a quick reference guide. No additional cables or brackets are included. The module is packed in an anti-static bag. It is shipped in a sturdy cardboard box. Shipping is via Fedex, UPS, or DHL.
