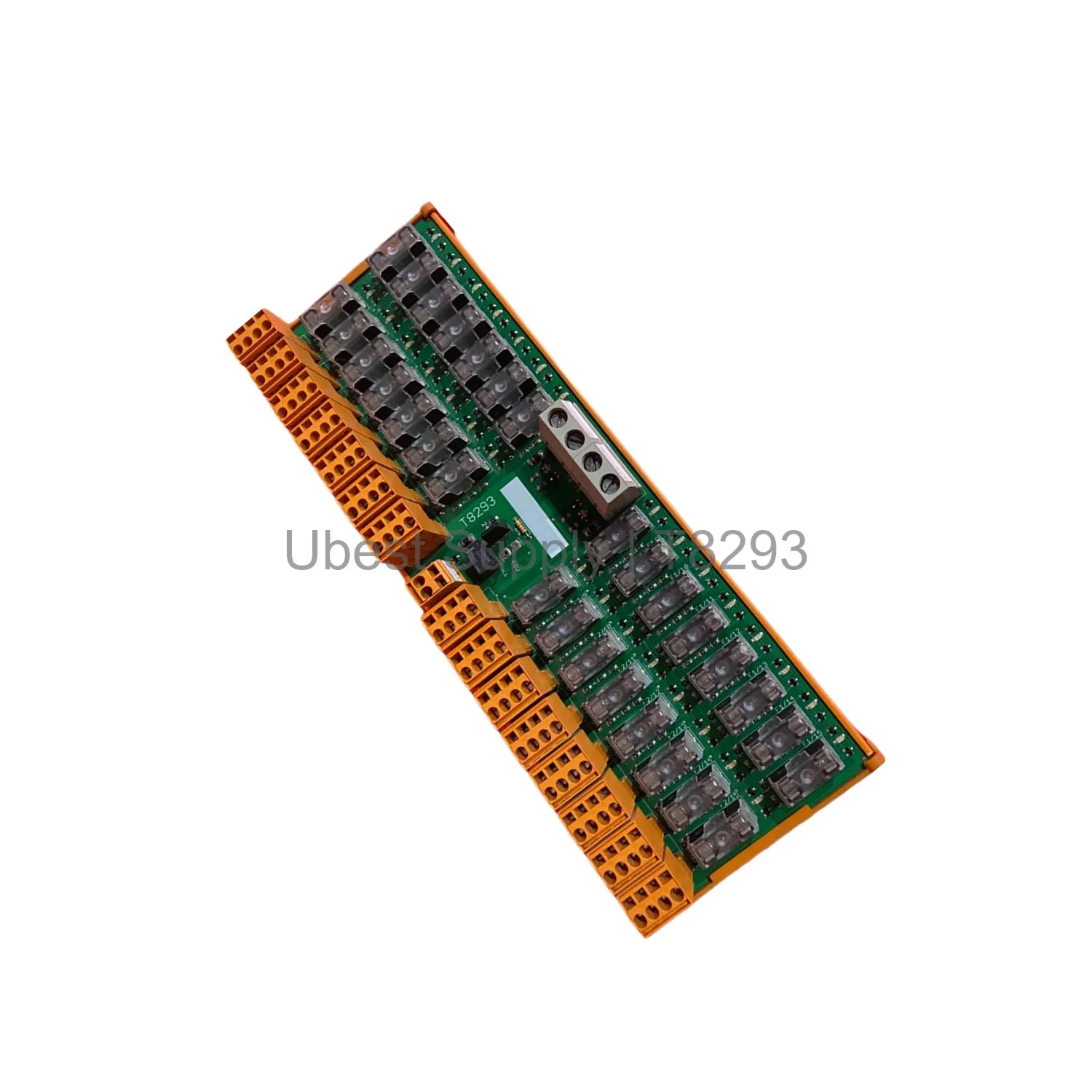

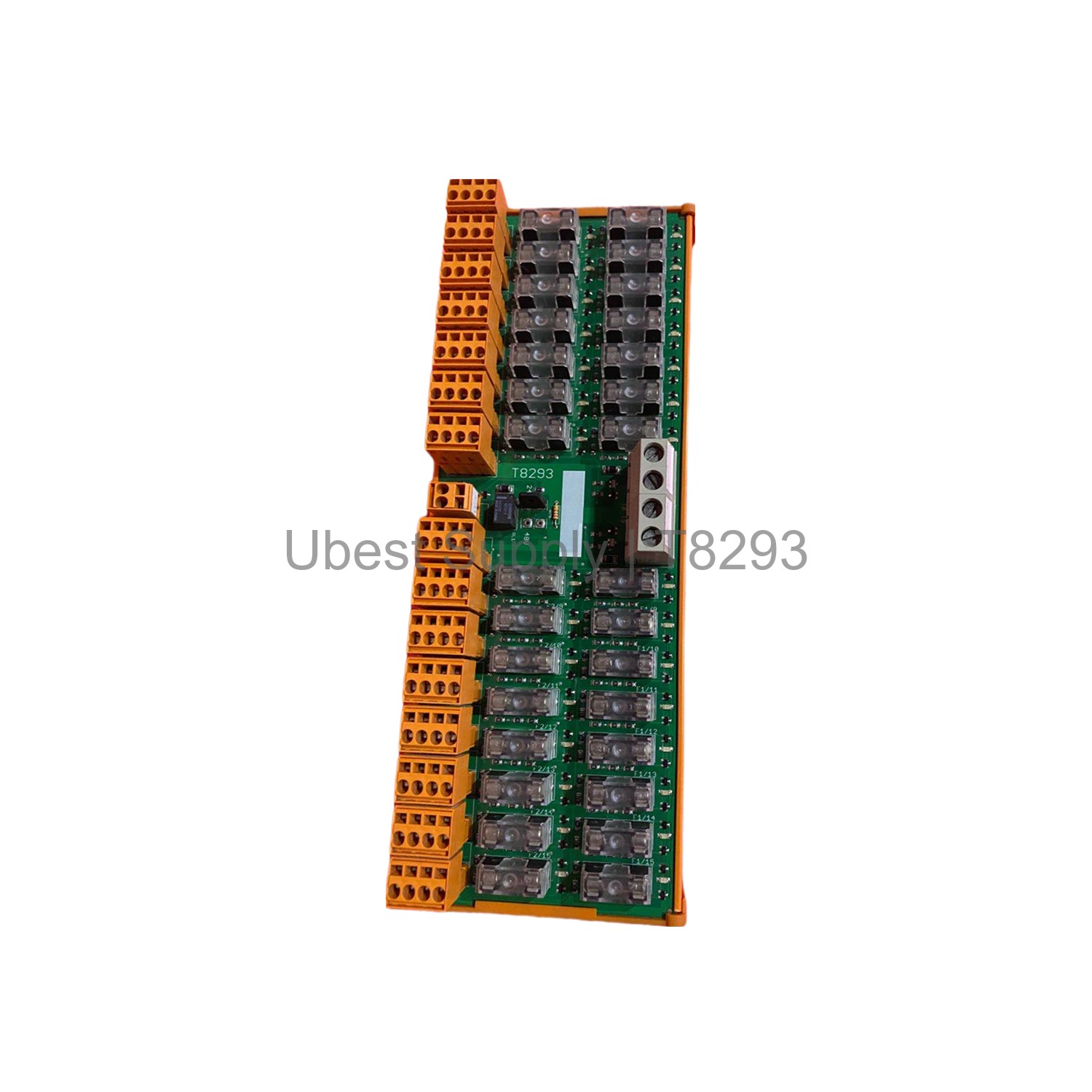

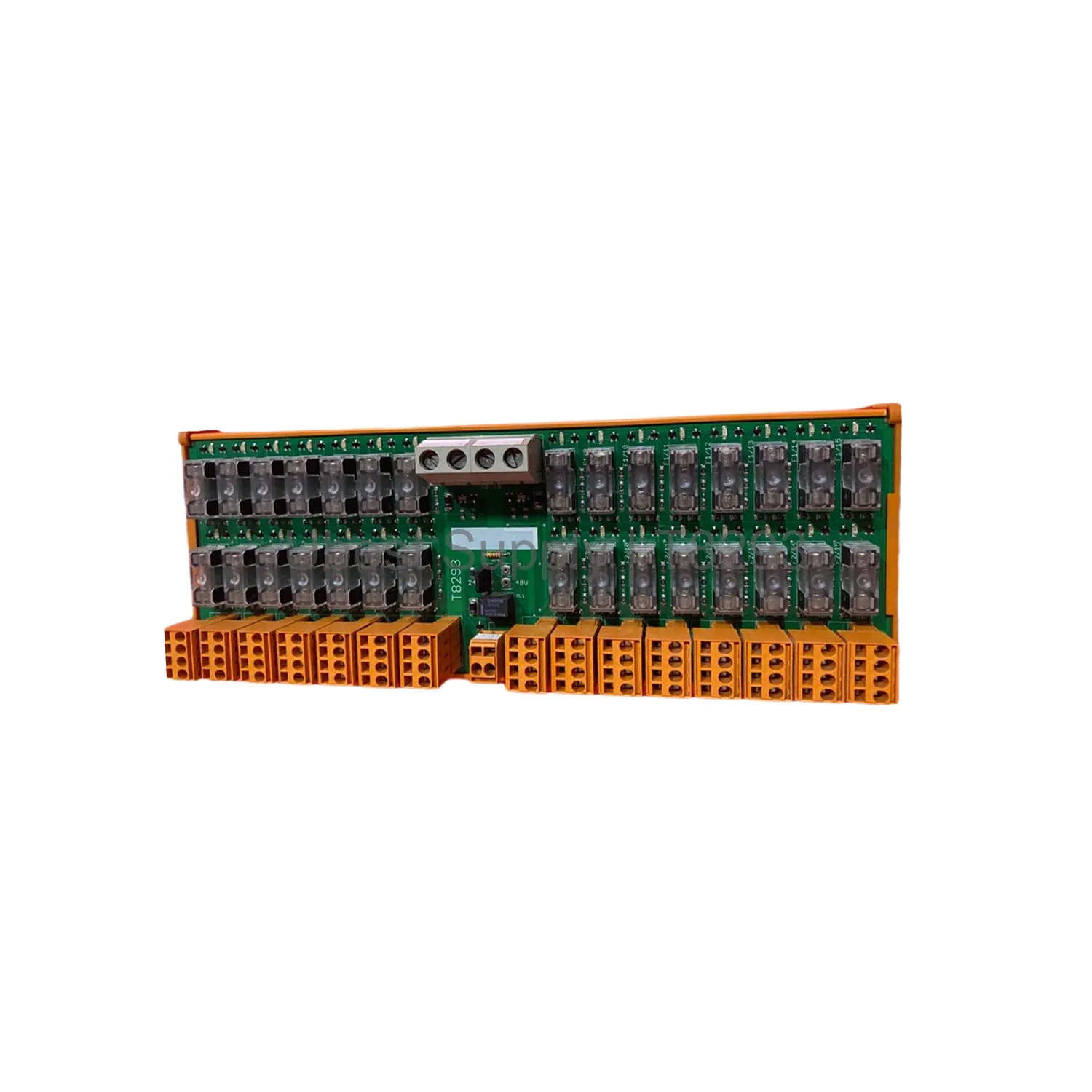

ICS Triplex T8293 Power Distribution Module 15 Way Fuse

Product Overview

The ICS Triplex T8293 is a Power Distribution Unit. It uses fuses for protection. This module supports 15 ways. It works with Trusted TMR systems. The T8293 ensures safe power distribution. It handles high current loads. This unit is built for industrial use. It offers reliable performance. The module is easy to install. It helps protect your system. Use it in critical control applications. The T8293 is a key component. It keeps your operations running.

Application Scenarios

Use the T8293 in process control systems. It works well in oil and gas plants. It suits power generation facilities. Use it in chemical processing. It fits in manufacturing environments. The module supports safety systems. It works with turbine controls. Use it in harsh industrial areas. The T8293 is for critical applications. It ensures power is stable. It protects downstream equipment. Use it in both ordinary and hazardous locations. It meets ATEX and IECEx standards.

Technical Specifications

The T8293 has a supply rating of 20 to 32 Vdc. It also works with 34 to 60 Vdc. The input and output rating is 23 Amps max. It uses 20mm 3.15 Amp T fuses. The unit comes with 30 fuses. It has 15 fused ways. The module is certified for Ordinary locations. It is also certified for HazLoc, ATEX, and IECEx. The T8293 is part of the Trusted TMR system. It provides reliable power distribution.

Installation and Maintenance Guide

First, disconnect all power sources. Mount the T8293 on a DIN rail. Secure the module firmly. Connect the input power supply. Check the voltage range. Wire each output load to a fuse. Use proper wire gauges. Label all connections clearly. Test the module before use. Replace blown fuses with the same type. Use only 20mm 3.15 Amp T fuses. Inspect the unit regularly. Keep the area clean and dry.

Packing List

The package includes one ICS Triplex T8293 module. It includes 30 spare fuses. It includes a mounting kit. It includes a user manual. The unit is packed securely. We ship by FedEx, UPS, or DHL. Contact us for faster shipping options.
