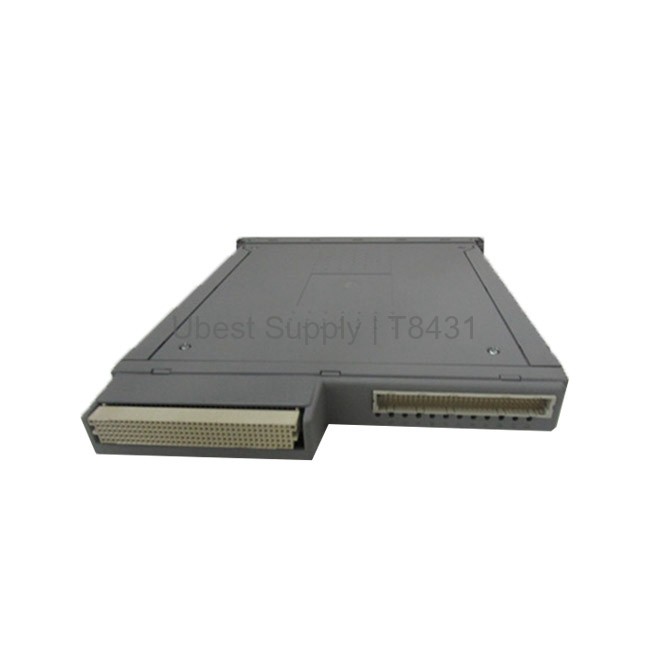

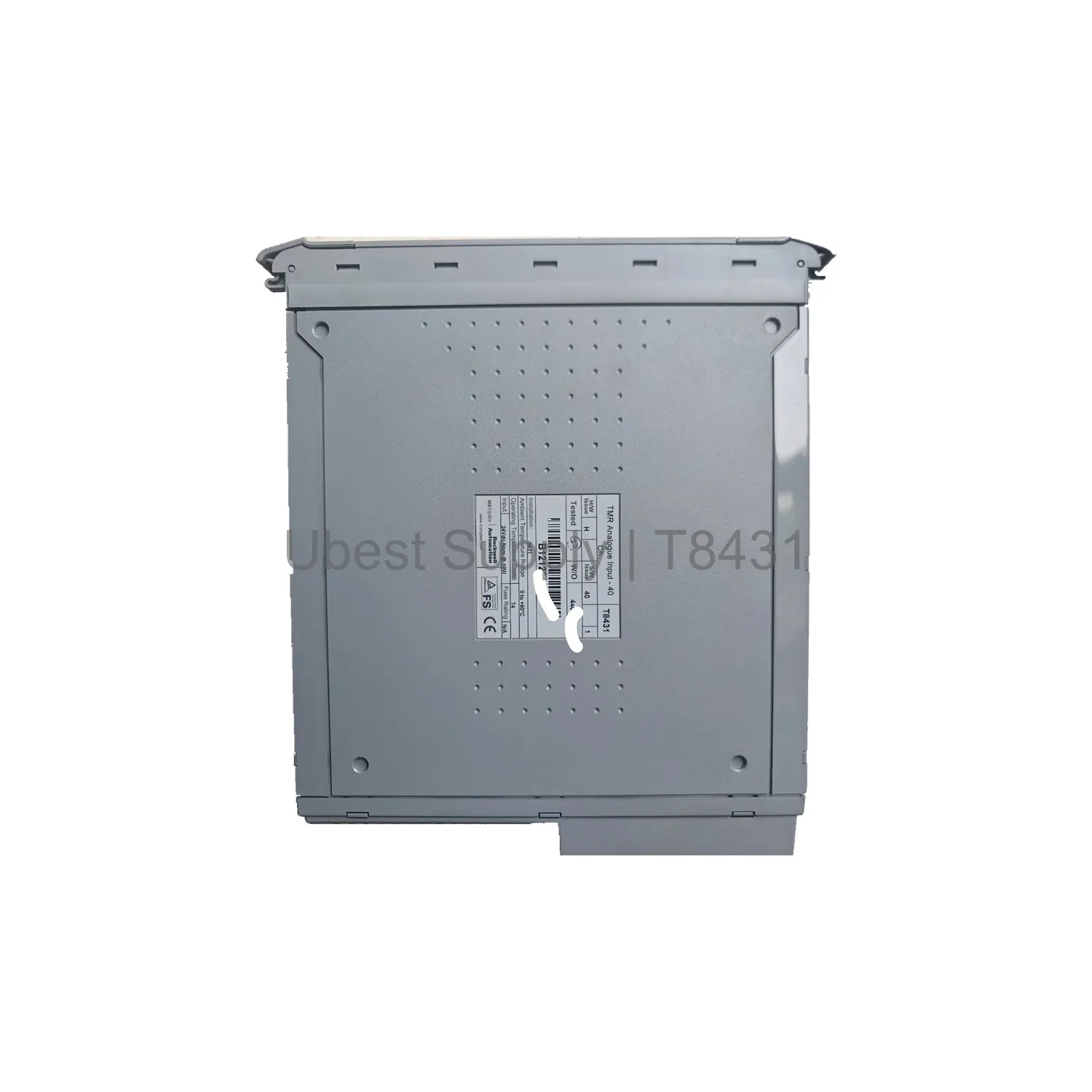

ICS Triplex T8431 Analog Input TMR 40 Channel Module

Product Overview

The ICS Triplex T8431 is a high-performance Analog Input module. It uses Triple Modular Redundant (TMR) architecture. This design ensures maximum safety and reliability. The module supports 40 input channels. Each channel accepts 0-22mA current or 0-6 Vdc voltage signals. It is built for demanding industrial environments.

The T8431 offers fast 0.5ms sample update time. It provides a resolution of 3.9uA per bit. This allows precise monitoring of field signals. The module includes user-defined thresholds for fault detection. Its circuit type is fault tolerant and fully triplicated. Optional line monitoring adds extra diagnostic capability.

Application Scenarios

This module is ideal for safety-critical processes. It works well in oil and gas refineries. Chemical plants use it for reactor monitoring. Power generation facilities rely on its accuracy. It suits turbine control and emergency shutdown systems.

The T8431 handles high voltage isolation. It sustains ±250V dc working isolation. It withstands ±2.5kV dc maximum isolation. This makes it perfect for harsh electrical environments. The module operates from -5°C to 60°C. It works in 10% to 95% non-condensing humidity.

Technical Specifications

Supply voltage range: 20 to 32 Vdc. Power consumption: 15 to 18W. Input current range: 0-22mA. Input voltage range: 0-6 Vdc. Calibration accuracy is 0.03%. Safety accuracy is ±1% of full scale. Sequence of events resolution is 1ms. Time-stamp accuracy is ±0.5 ms.

Channel to channel crosstalk is -40 to -60 dB. Self-test interval is 2 minutes. Real time clock resolution is 100µSec. Recommended calibration check interval is 2 years. The module weighs 1.149 kg. Its dimensions are 266mm height, 31mm width, and 303mm depth.

Installation & Maintenance Guide

Mount the module securely in a rack. Ensure proper grounding before power-up. Connect field wiring using shielded cables. Use external fusing if required. Do not exceed the input voltage range. Check all connections for tightness.

Perform calibration checks every 2 years. Monitor self-test results regularly. Keep the module free from dust and moisture. Operate only within specified temperature limits. Use Fedex, UPS, or DHL for shipping. Handle the module with care to avoid damage.

Packing List

1x ICS Triplex T8431 Analog Input TMR Module. 1x Installation manual. 1x Certificate of conformity. No additional accessories are included. The module is shipped in anti-static packaging.
