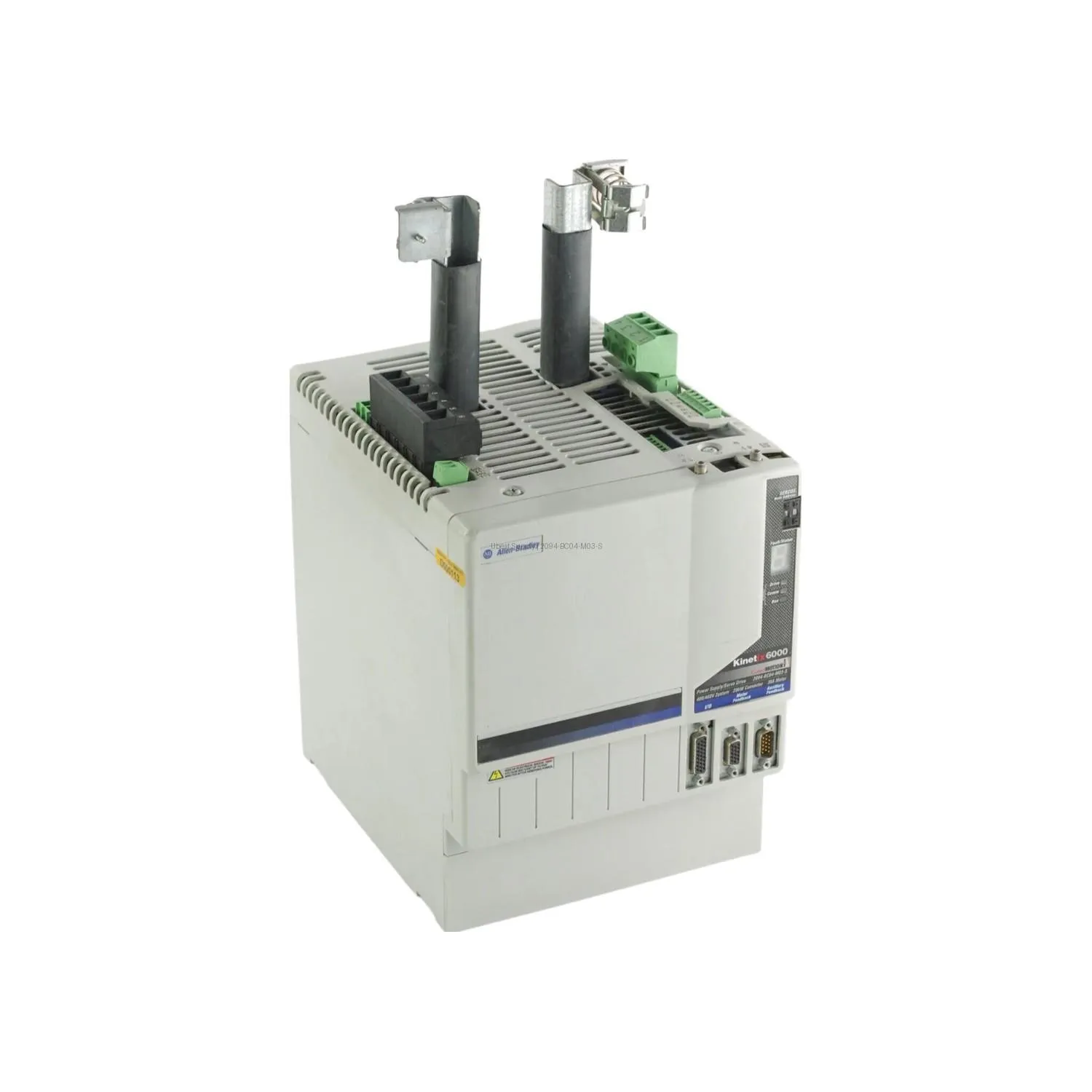

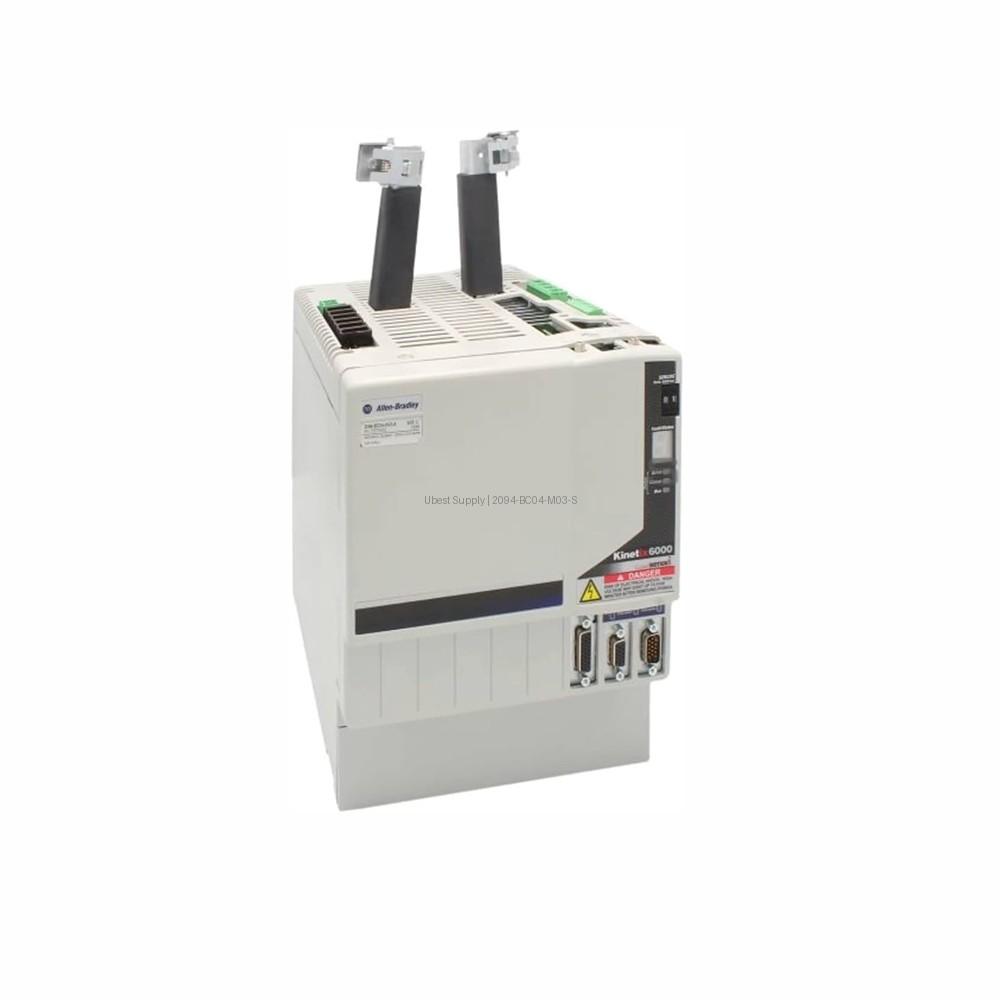

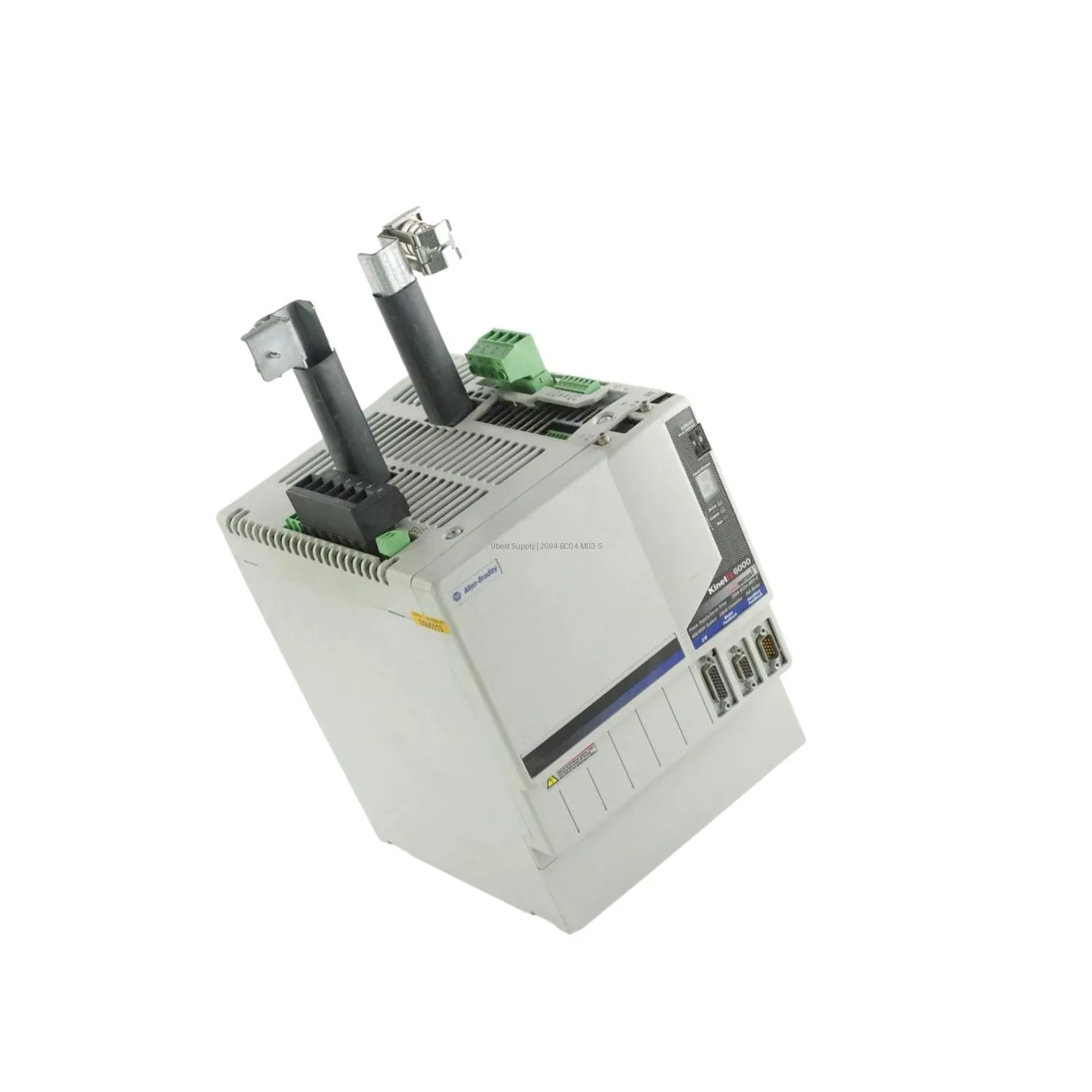

Integrated Axis Module 2094-BC04-M03-S Allen-Bradley IAM 400V

Product Overview

The Allen-Bradley 2094-BC04-M03-S is an Integrated Axis Module (IAM). It belongs to the 400 Volt Class. This module provides robust power for servo drives. It operates on 400/460VAC input. The unit delivers 28 kW of converter output. It achieves 97% efficiency. This reduces energy loss. The module supports high-performance motion control. It is ideal for demanding industrial applications.

Application Scenarios

This module works well in many automation tasks. Use it for precision cutting and forming. It suits packaging machinery perfectly. The IAM handles high-speed assembly lines. It also works for material handling systems. The 30 A inverter section drives large motors. The 500 Hz velocity loop ensures fast response. This makes it ideal for robotics and CNC machines.

Technical Specifications

Input voltage ranges from 324 to 528 VAC. Frequency is 47 to 63 Hertz. Nominal AC input current is 44.0 Amperes. DC input voltage spans 458 to 747 Volts. The inverter section outputs 30 Amperes. Power dissipation is 94 to 255 Watts. The PWM frequency is 4 kHz. Internal shunt handles 200 Watts continuous. Peak shunt power reaches 22.5 Kilowatts. Operating temperature is 0 to 50 C. The module weighs 21.1 lbs (9.60 kg).

Installation & Maintenance Guide

Install the module on the leftmost power rail. Ensure proper ventilation for cooling. Use shielded cables for signal wiring. Check input voltage before powering up. Tighten all connections securely. Monitor operating temperature regularly. Keep the unit free from dust. Replace the internal fan if needed. Use only qualified technicians for service. Follow all local electrical codes.

Packing List

One Allen-Bradley 2094-BC04-M03-S Integrated Axis Module. One installation manual is included. Mounting hardware comes with the unit. No other accessories are provided. Check the package for damage upon arrival. Contact support for missing parts. Use original packaging for returns.
