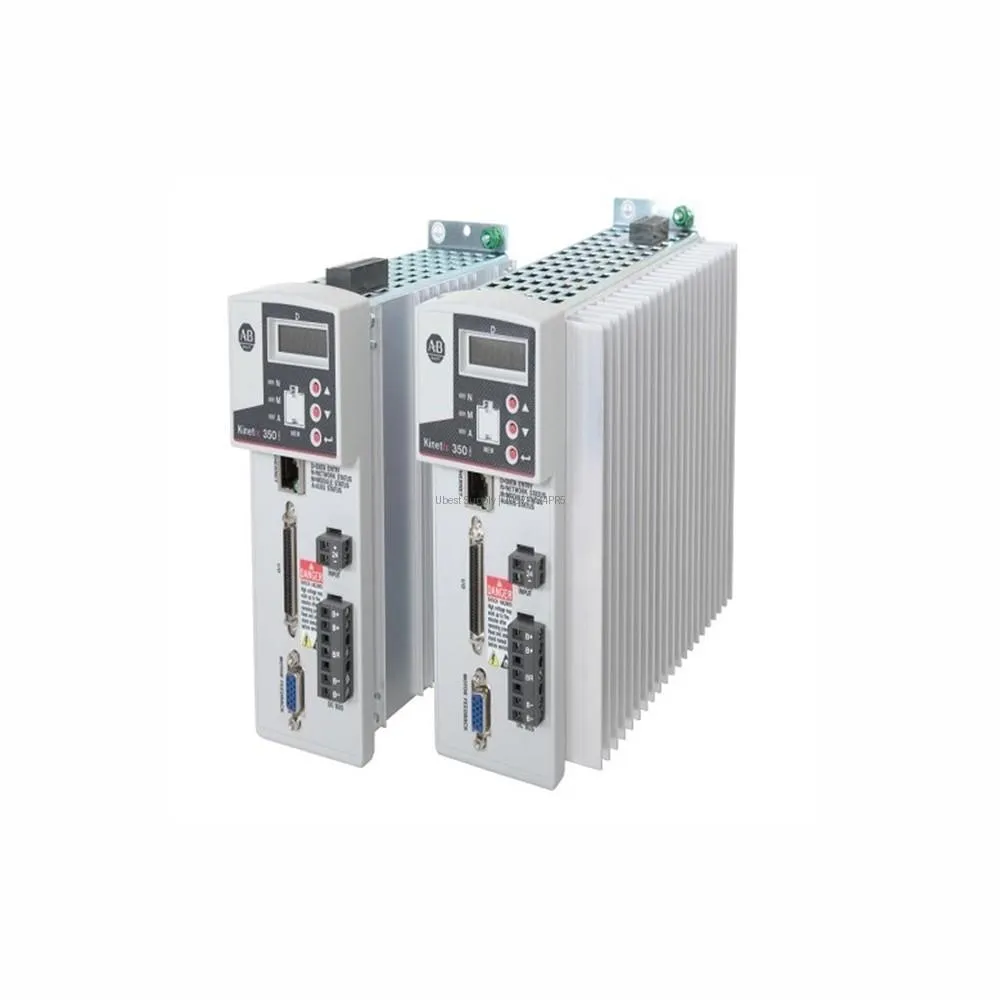

Kinetix 350 Drive 2097-V34PR5 Allen-Bradley 480V 5.7A

Product Overview

The Allen-Bradley 2097-V34PR5 is a Kinetix 350 single-axis servo drive. It operates on 480 VAC three-phase power. This drive delivers 5.7 A continuous output current. It provides 2.0 kW of output power. The unit includes integrated Safe Torque Off (STO) for safety. It uses a single Ethernet port for communication. This drive supports multiple feedback devices. These include SICK-Stegmann Hiperface and Tamagawa serial encoders. The compact panel mount design saves space. It weighs only 2.0 kg (4.4 lbs). This model is ideal for high-performance motion applications.

Application Scenarios

This servo drive works well in packaging machinery. It also suits material handling systems. Use it for converting and printing equipment. It fits robotics and assembly automation. The 2097-V34PR5 excels in precise speed control. It also handles accurate position control tasks. The integrated STO function enhances operator safety. It is perfect for OEM machine builders. It also meets the needs of system integrators. This drive performs reliably in industrial environments.

Technical Specifications

Input voltage is 480 VAC, 3-phase. Input frequency range is 48 to 62 Hz. Continuous output current is 5.7 A (0-peak). Output power is 2.0 kW. Power dissipation is 58 Watts. Torque value is 5.0 to 7.0 lb*in. Operating temperature is 32 to 104 F (0 to 40 C). Dimensions are 9.37 x 7.29 x 3.72 inches. It has one Ethernet communication port. The feedback device supports Hiperface and TTL incremental. Safe Torque-Off is integrated as standard. The unit uses a panel mount method. Minimum side clearance is 3 mm. Top and bottom clearance is 25 mm. The thermostat trips at over 10 kOhm.

Installation & Maintenance Guide

Mount the drive on a flat panel surface. Ensure proper clearance for airflow. The side clearance must be at least 3 mm. The top and bottom need 25 mm of space. Use appropriate mounting hardware. Connect the three-phase power supply correctly. Wire the motor and feedback cables securely. Configure the drive using the software tool. Perform a functional test before full operation. Keep the enclosure clean and dry. Check all connections periodically. Do not block the ventilation areas. The 2097-V34PR5 requires no routine maintenance. Replace the unit if it shows damage.

Packing List

One Allen-Bradley Kinetix 350 drive unit. One quick reference guide. No additional cables or accessories included. The product is packed in a sturdy box. It is protected with anti-static material. The package includes mounting hardware. Ensure all items are present upon receipt. Contact support if any part is missing.
