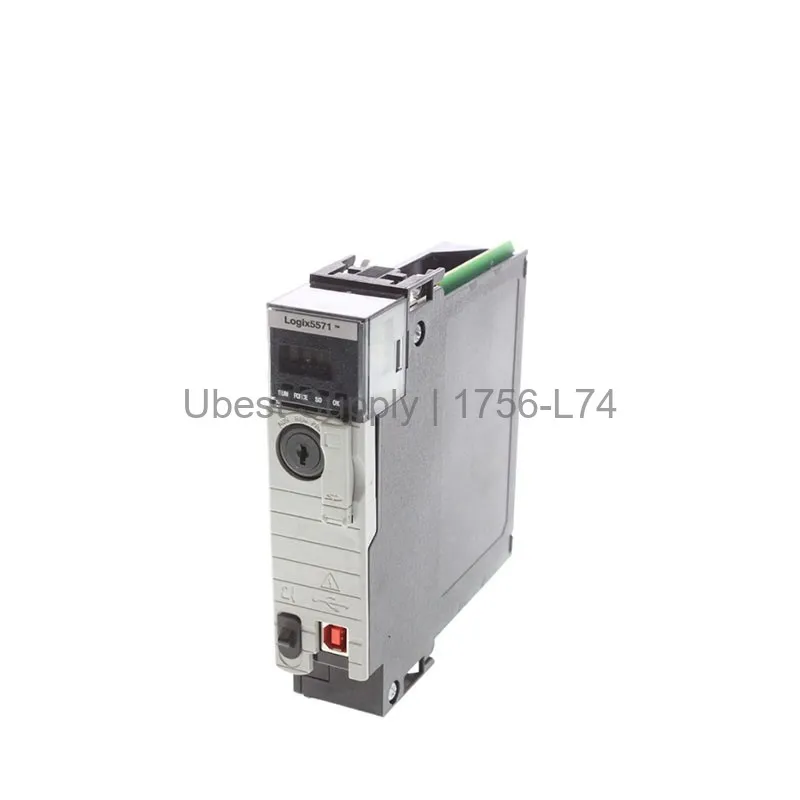

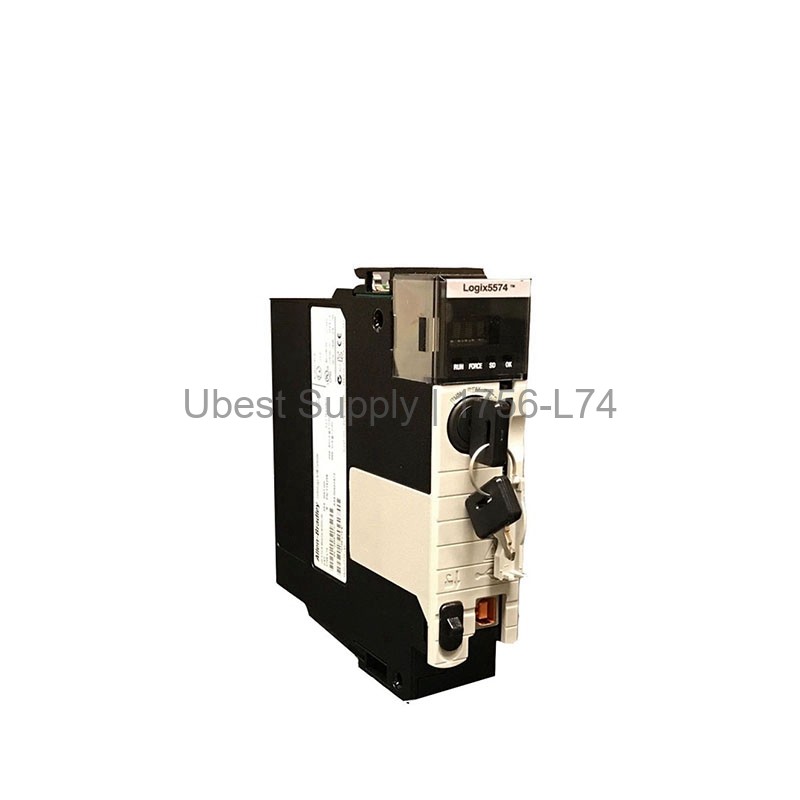

PLC Controller Allen-Bradley 1756-L74 ControlLogix Processor

Product Overview

The Allen-Bradley 1756-L74 is a powerful controller from the ControlLogix series. It supports relay ladder, structured text, function diagram, and sequential function chart. This processor offers a 16 MB user memory and a 0.98 MB I/O memory. It handles 128,000 total and digital I/O and 4000 analog I/O. The 1756-L74 requires only 2.5 W of power dissipation. Its thermal dissipation is just 8.5 BTU/hr.

Application Scenarios

This controller fits complex automation tasks. Use it in manufacturing, packaging, and material handling. It works well for process control and discrete manufacturing. The 1756-L74 integrates easily into existing ControlLogix systems. It supports various energy storage modules for data retention.

Technical Specifications

The 1756-L74 has a USB port with basic insulation. It fits any slot in a 1756 chassis. Compatible chassis include the 1756-A4, 1756-A7, and 1756-A10. It uses standard power supplies like the 1756-PA50. For redundancy, use the 1756-PA75R or 1756-PB75R. The enclosure is open-style. Operating temperature is 0-60°C. Non-operating temperature is -40 to 85°C. It withstands 10g vibration at 500 Hz. Operating shock is 30 g, and non-operating shock is 50 g.

Installation & Maintenance Guide

Install the controller in any slot of a 1756 chassis. Ensure proper power supply connection. Use compatible energy storage modules for data backup. Follow standard wiring practices for I/O modules. Keep the enclosure free of dust. Monitor operating temperature to stay within limits. Replace modules only when power is off.

Packing List

The package includes one Allen-Bradley 1756-L74 controller. It does not include chassis, power supply, or cables. Shipping is via Fedex, UPS, or DHL. Handle with care to avoid shock damage.
