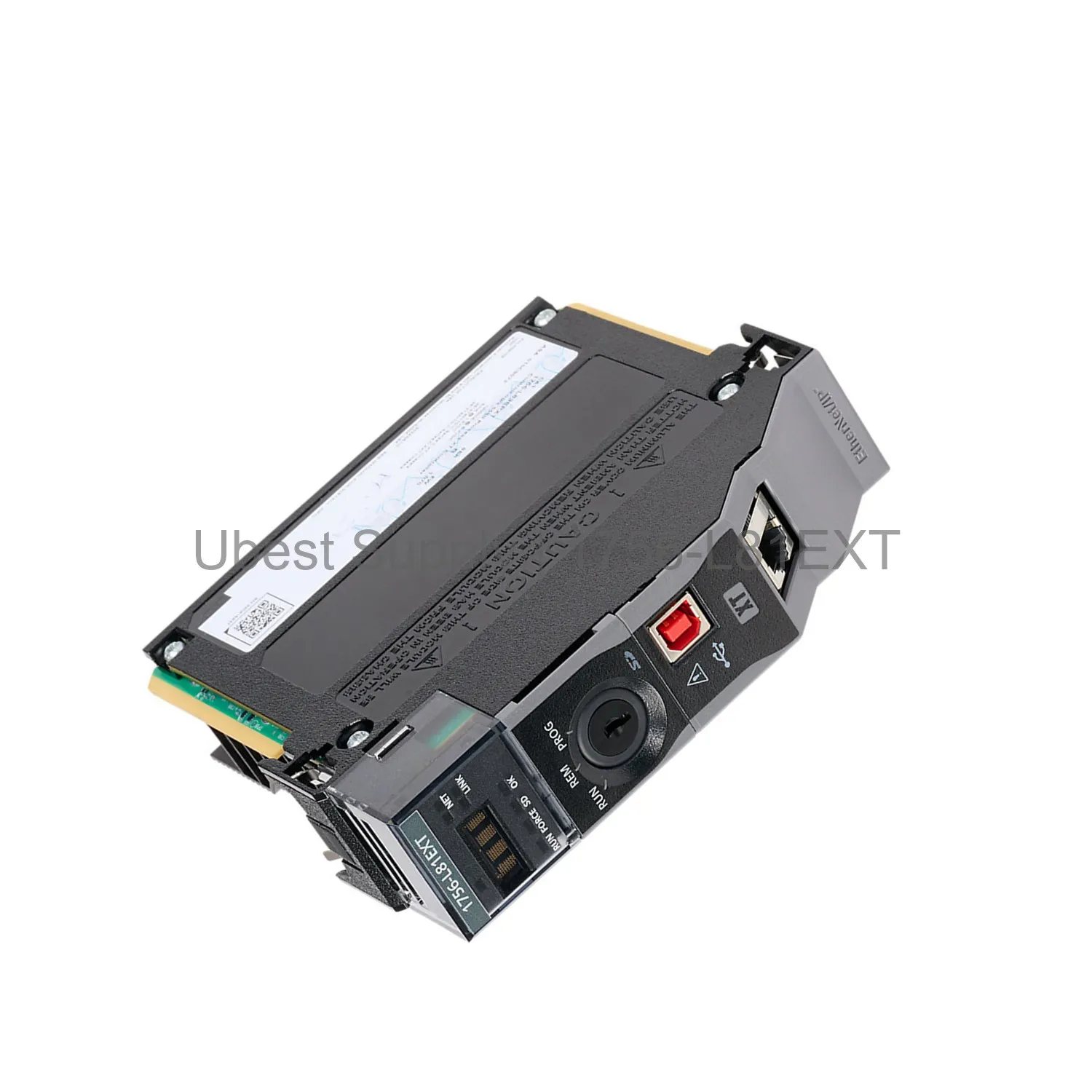

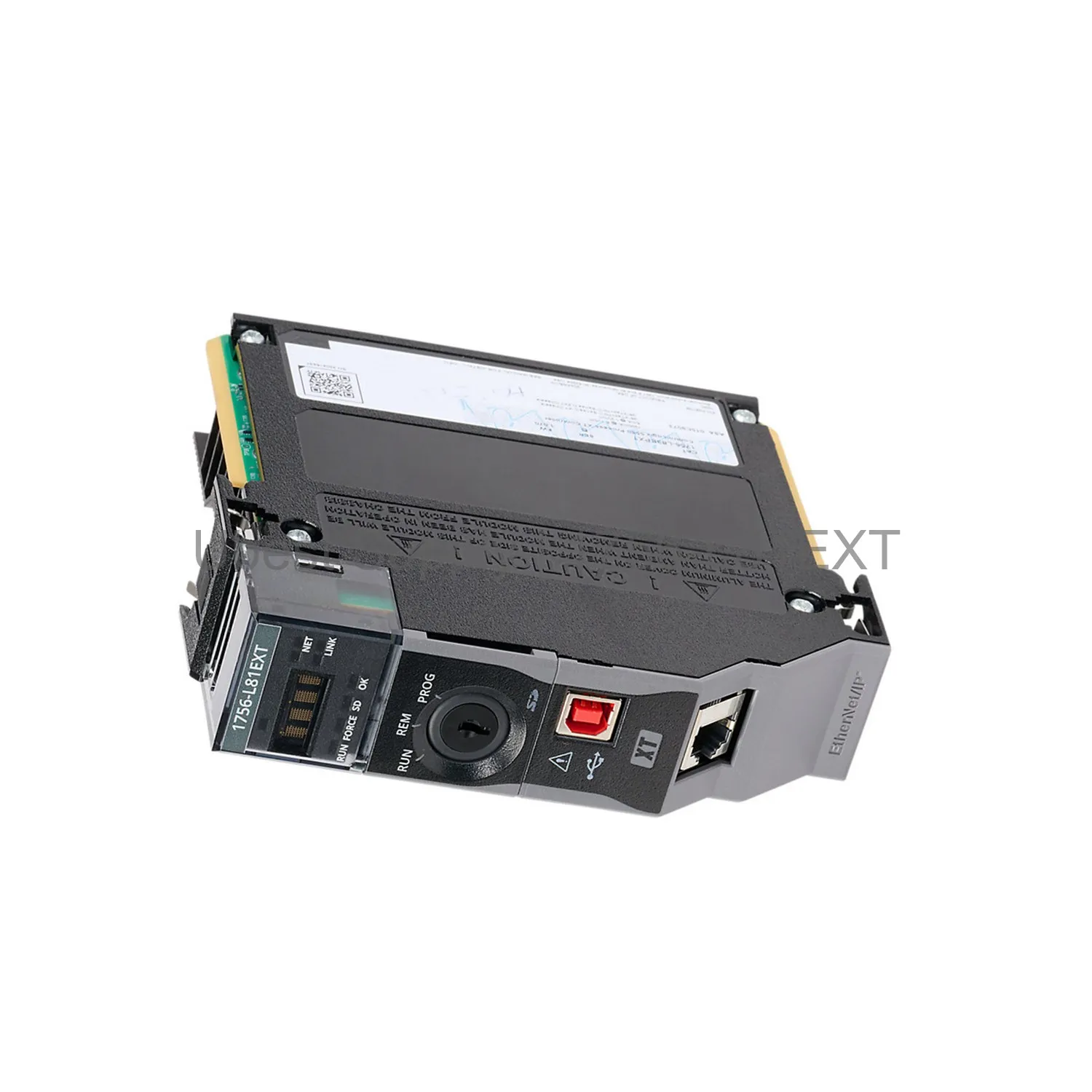

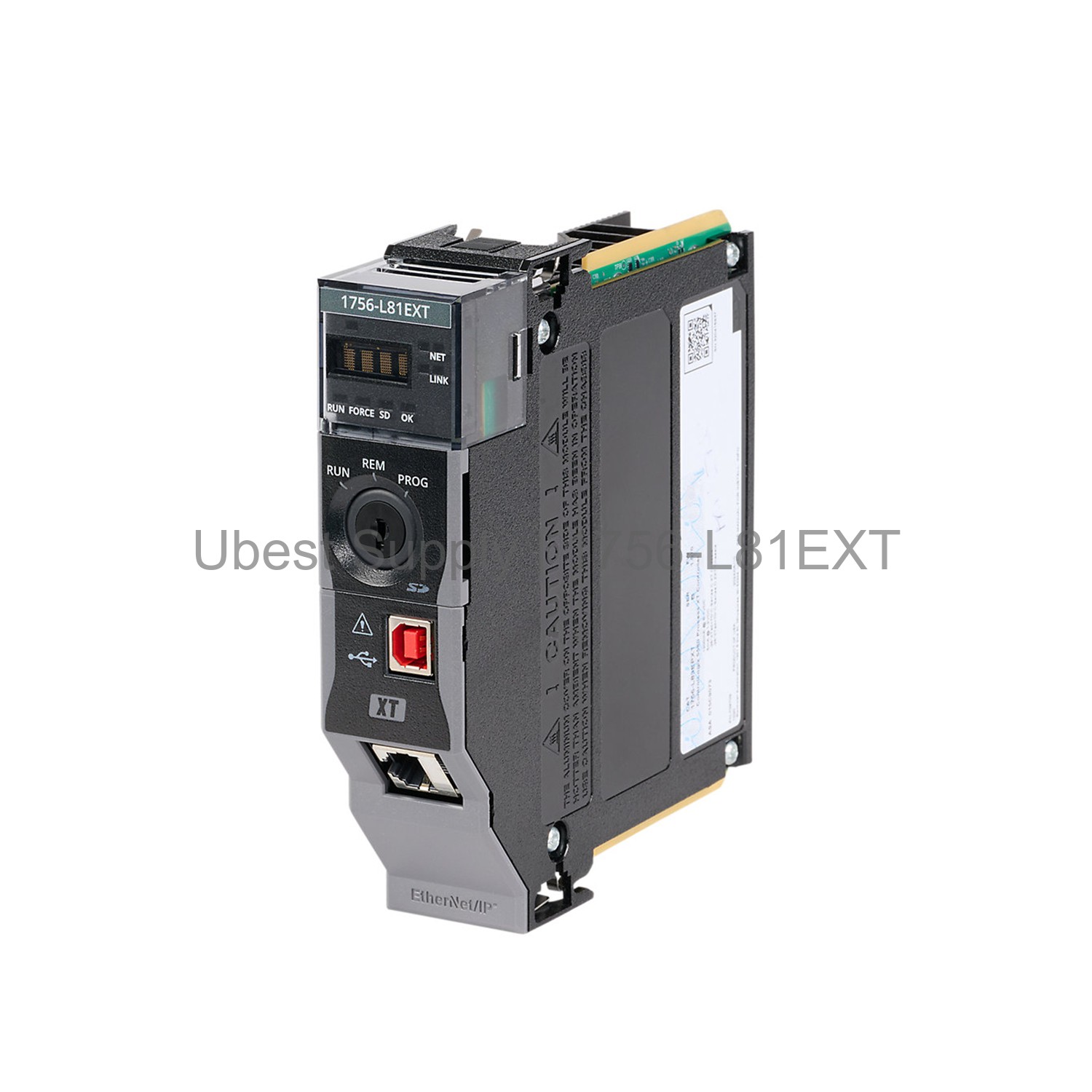

PLC Controller Allen-Bradley 1756-L81EXT ControlLogix-XT

Product Overview

The 1756-L81EXT is a high-performance controller. It belongs to the ControlLogix-XT line. This unit handles extreme temperature conditions. It offers reliable control for critical processes. The controller supports up to 32 tasks. Each task can run up to 1000 programs. This provides great flexibility for complex applications.

This model features 3 MB of user memory. This memory stores logic and data efficiently. The controller includes both USB and Ethernet ports. These ports enable fast communication and programming. The 1756-L81EXT is built for durability. It operates in harsh industrial settings.

Application Scenarios

Use this controller in oil and gas facilities. It works well in chemical processing plants. The XT rating suits extreme cold or heat. Use it for mining and metal production. It controls conveyor systems and pumps. The controller manages batch processes effectively. It also handles discrete manufacturing tasks.

Engineers choose this model for remote locations. It performs reliably in unheated enclosures. The controller supports critical infrastructure projects. It integrates with existing ControlLogix systems. This reduces downtime and simplifies upgrades.

Technical Specifications

This controller uses a 32-bit processor. It has 3 MB of battery-backed user memory. The memory supports logic and tag data. It draws a minimum of 5 mA at 1.2V DC. The maximum current draw is 1.2 A at 5.1V DC. Thermal dissipation is 21.2 BTU per hour.

The unit has one USB 2.0 port. It also has one Ethernet port. The Ethernet port supports CIP Sync and motion. The controller supports 32 tasks maximum. Each task runs up to 1000 programs. This offers massive scalability for large projects.

Installation & Maintenance Guide

Mount the controller on a standard DIN rail. Ensure proper spacing for airflow. Connect the power supply to the correct terminals. Use the USB port for initial programming. Use the Ethernet port for network integration. Update firmware using ControlFlash software.

Check the battery status annually. Replace the battery every three years. Keep the module free from dust and debris. Do not block the ventilation slots. Use only approved cables and connectors. Follow all local electrical codes.

Packing List

The package includes one 1756-L81EXT controller. It includes a quick start guide. The package includes a serial number label. It includes one USB cable. It also includes one terminal block. The package does not include a power supply.
