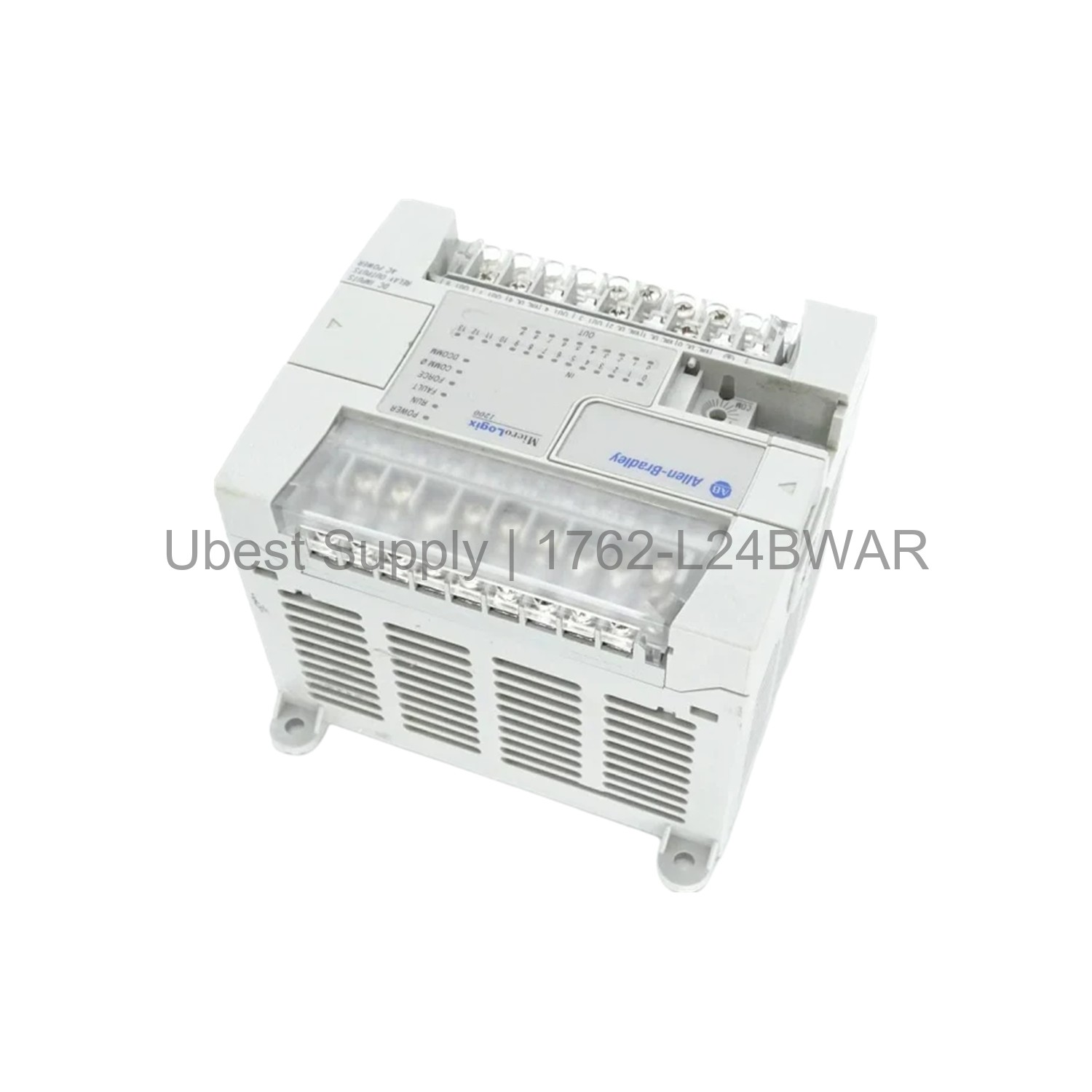

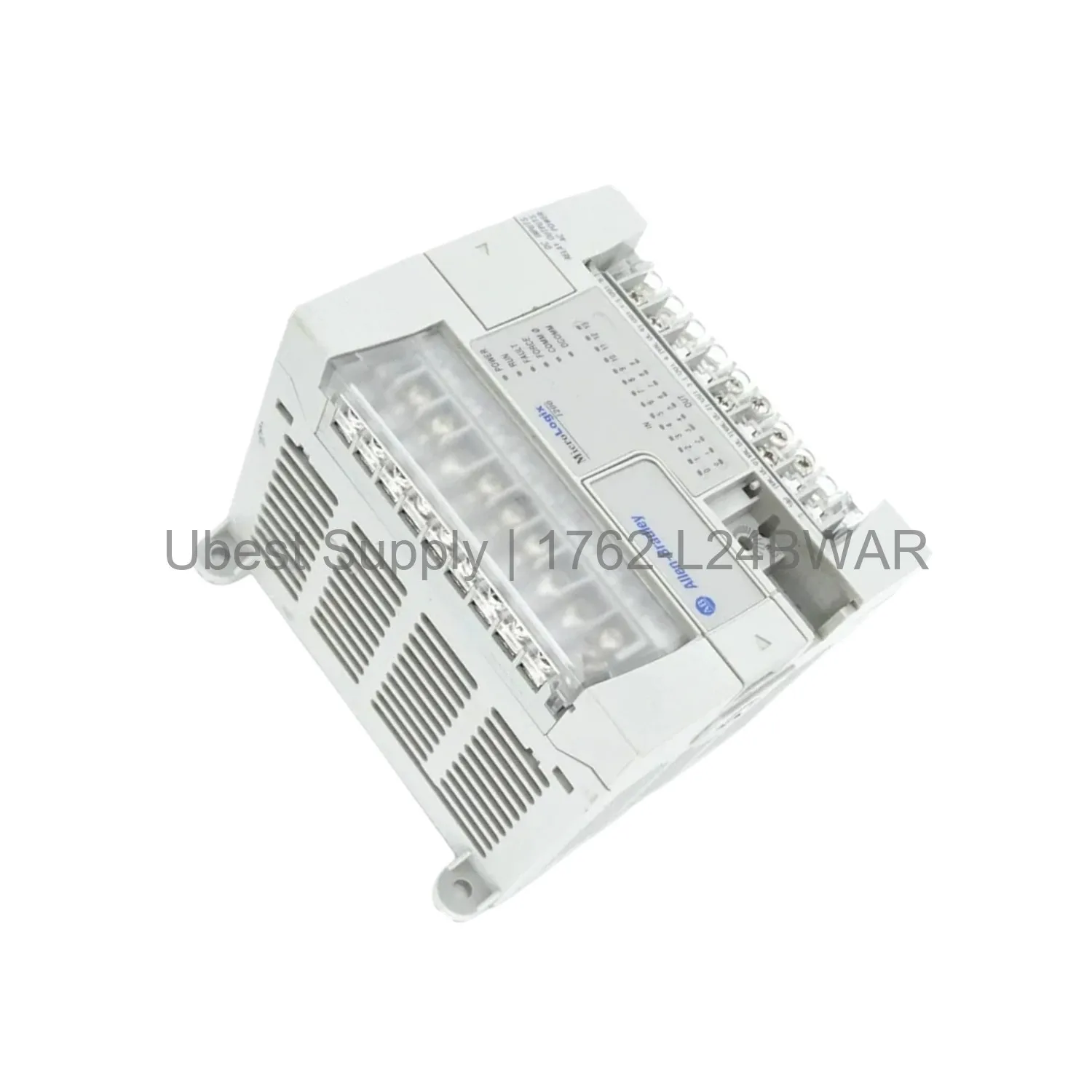

PLC Controller Allen-Bradley 1762-L24BWAR Embedded I/O

Product Overview

The Allen-Bradley 1762-L24BWAR is an embedded I/O controller from the MicroLogix 1200 series. It runs on 120-240V AC input power. This module has 10 outputs at 24 Volts DC. It also includes 10 standard 24V DC inputs and 4 fast 24V DC inputs. The controller uses a sink or source wiring configuration. It provides reliable control for industrial applications.

Application Scenarios

This controller suits small to medium automation tasks. Common uses include conveyor control, packaging machines, and material handling. It works well in factory automation and process control. The RS-232 port enables programming and HMI connection. Use it for applications needing a simple yet powerful logic controller.

Technical Specifications

Input Power: 120-240V AC. Inputs: 10 standard 24V DC plus 4 fast 24V DC. Outputs: 10 relay. Communication: RS-232 port for DH Full-duplex. Dimensions: 3.5 x 4.33 x 3.43 inches. Sensor supply COM connects to chassis ground. Minimum on-state current for inputs 0-3 is 2.5 mA at 14V DC. Nominal current is 7.3 mA at 24V DC. Maximum on-state current is 12 mA at 30V DC. For inputs 4 and above, minimum on-state current is 2 mA at 10V DC. Nominal current is 8.9 mA at 24V DC. Maximum current is 12 mA at 30V DC. Inputs 0-3 operate at 0-20 Hz. Inputs 4 and above operate at 0 Hz to 1 kHz. Off-state voltage range is 0-5V DC. Off-state leakage current is 1.5 mA minimum.

Installation & Maintenance Guide

Mount the 1762-L24BWAR on a DIN rail. Ensure proper grounding to avoid noise. Do not use the sensor supply for output circuits. Only power input devices with it. Connect input devices like switches and sensors. Use shielded cables for the RS-232 port. Perform regular checks on wiring and connections. Keep the controller free of dust and moisture.

Packing List

1 x Allen-Bradley 1762-L24BWAR controller
1 x Product documentation
Mounting hardware may be included
