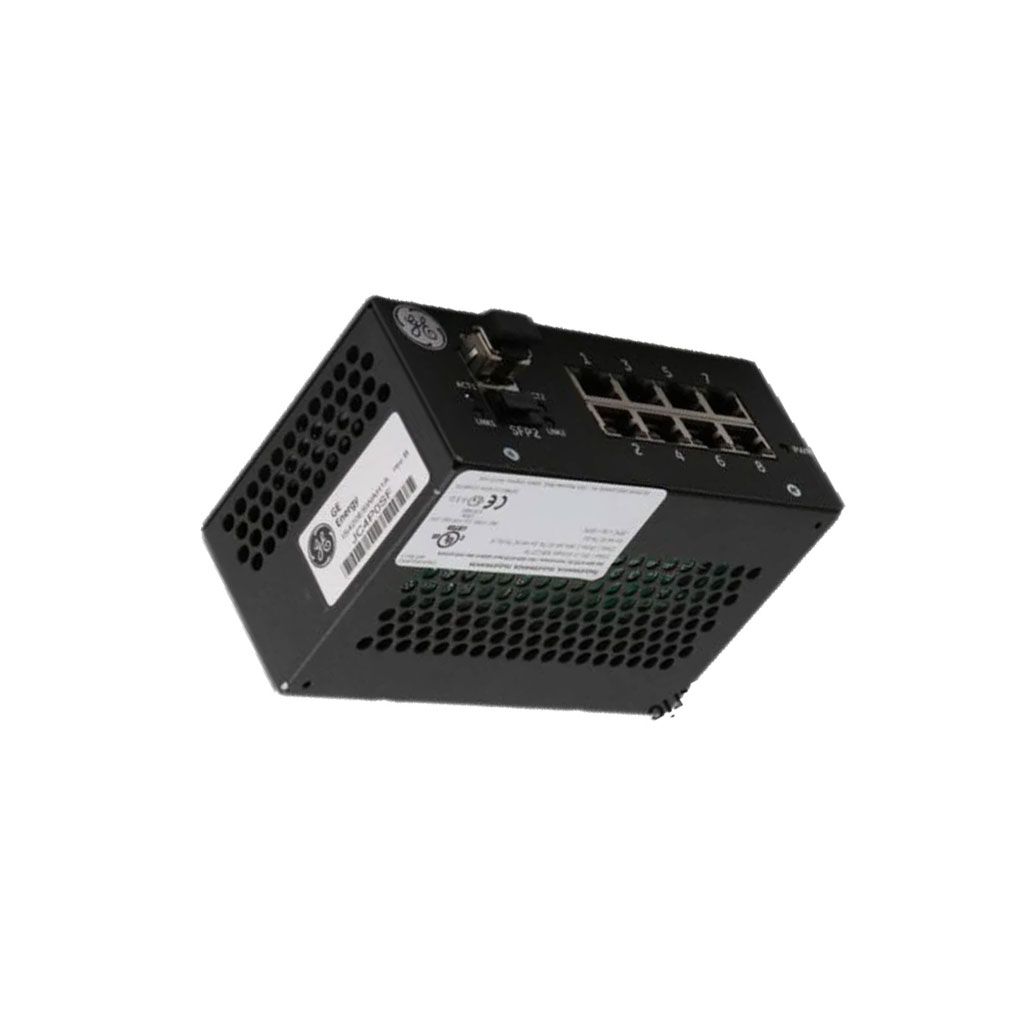

PROFINET Controller Gateway Module GE IS420PPNGH1A

Product Overview

The General Electric IS420PPNGH1A is a PROFINET Controller Gateway Module. It belongs to the Mark VIe series. This module enables high-speed communication in industrial networks. It uses a 1066 MHz EP80579 Intel processor. The operating system is QNX Neutrino. This ensures reliable real-time performance. The module has 256 DDR2 SDRAM for data handling. It operates on a 24 VDC power supply. The unit is built in the United States. It offers a compact size of 13.0 x 4.0 inches. This gateway is ideal for demanding automation tasks.

Application Scenarios

This gateway works well in power generation plants. It controls turbines and auxiliary systems. It also suits oil and gas facilities. The module connects PROFINET devices to a central controller. It manages data flow in complex processes. You can use it in manufacturing lines. It supports high-speed machinery control. The IS420PPNGH1A is a key part of a Mark VIe system. It ensures stable data exchange. This boosts overall system efficiency.

Technical Specifications

The module uses a 1066 MHz EP80579 Intel processor. It runs the QNX Neutrino operating system. Memory includes 256 DDR2 SDRAM. The power requirement is 24 VDC. Operating temperature ranges from 22 to 149°F. The size is 13.0 x 4.0 inches. Weight is 2.4 lbs. It functions as a PROFINET Gateway Module. The functional abbreviation is PPNGI. Refer to manual GEH-6725 for details. This hardware supports industrial-grade reliability.

Installation & Maintenance Guide

Install the module in a dry, clean area. Ensure the power supply is 24 VDC. Connect the PROFINET cables securely. Use the manual GEH-6725 for wiring. Check all connections before powering on. The system will boot with QNX Neutrino. For maintenance, keep the module free of dust. Monitor the operating temperature range. Replace the unit if it shows errors. Regular checks ensure long service life.

Packing List

One General Electric IS420PPNGH1A module. Includes a quick start guide. No additional cables are included. The unit is packed in anti-static material. Shipping is available via FedEx, UPS, or DHL. Ensure the package is handled with care. The weight is 2.4 lbs for shipping.
